Description

x-travel 835 mm
y-travel 510 mm
z-travel 510 mm
Control iTNC 530 ERGOLine Heidenhain
Main spindle:
Speed range - main spindle 20 - 10,000 min/-1
Drive power - main spindle 13 / 9 kW
Tool holder SK 40 DIN 69871
Max. Torque 83 / 57 Nm

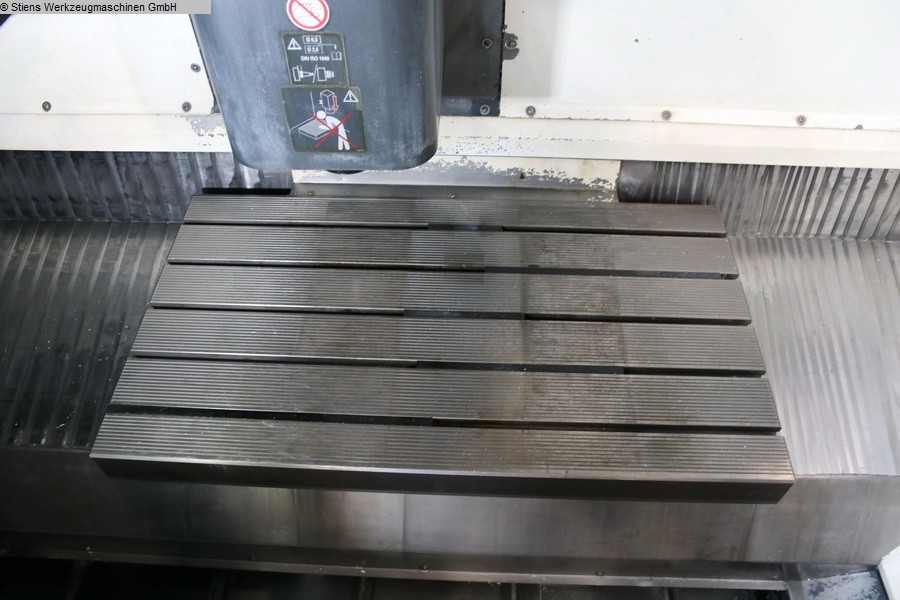

Work table:
Table clamping surface 1,000 x 560 mm
max. Table load 800 kg
Number of T-slots 5
T-slots - width 14 mm
T-slots - distance 100 mm
Tool changer:
Number of tool places 20 pos.
max. Tool diameter 80 mm
max. tool through. with a free neighboring box. 130 mm
max. Tool length 250 mm
max. Tool weight 6.0 kg
Feeds:
Rapid traverse (X / Y / Z) 30 m/min
Feed speed 1 - 20,000 mm/min
Feed force 5,000 N
Total power requirement 28 kVA
Machine weight approx. 4.0 t
Space requirement approx. 4.5 x 3.5 x 2.8 m

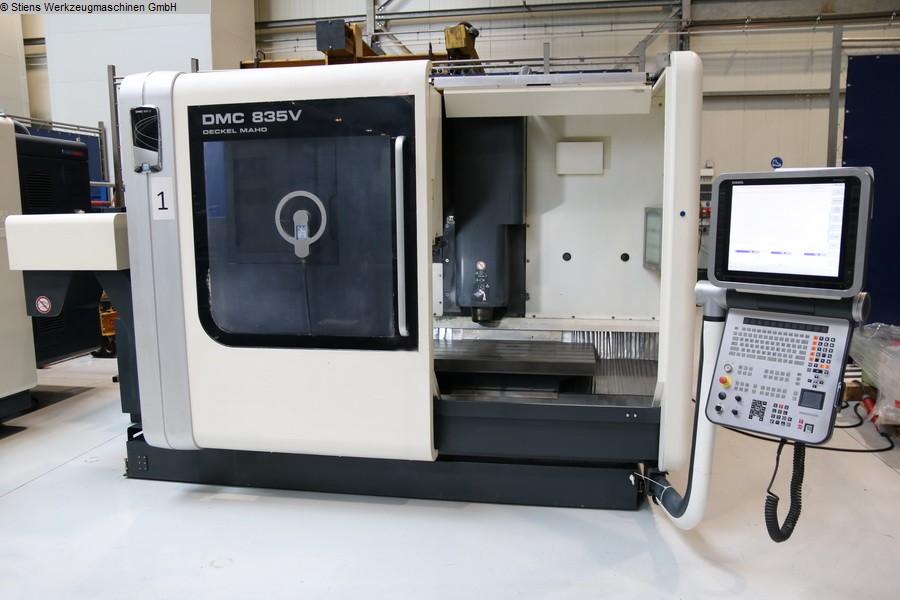

CNC - Vertical machining center LID MAHO - DMC 835 V New Design - 33,796h operating hours, 10,411h spindle hours - incl. 20x SK 40 tools
