Description

Turning diameter max. 366 mm
Turning length 705 mm

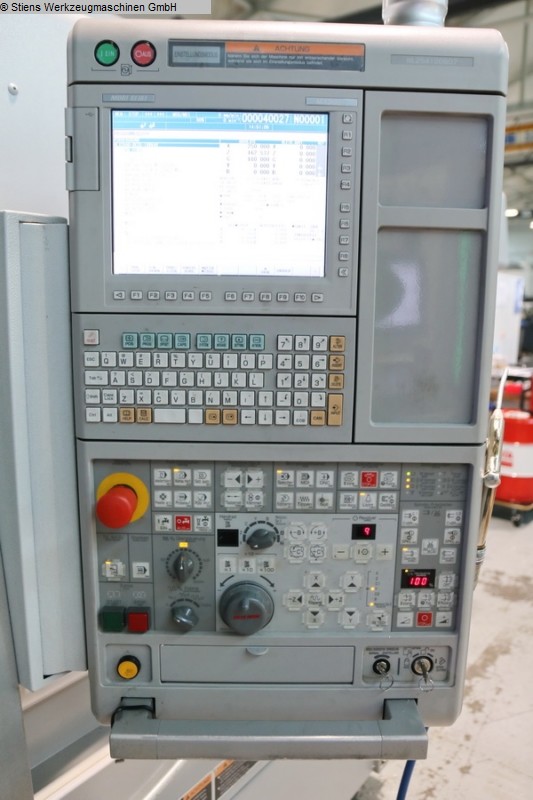

Control M 730 BM MAPPS IV
Circulation diameter over bed 920 mm
Circulation diameter over cross slide 742 mm
Main spindle:
Speed range - main spindle 4,000 min/-1
Drive power - main spindle 18.5 / 15 kW
Spindle nose JIS A2-8
Spindle bearing diameter 140 mm
Spindle bore 91 mm

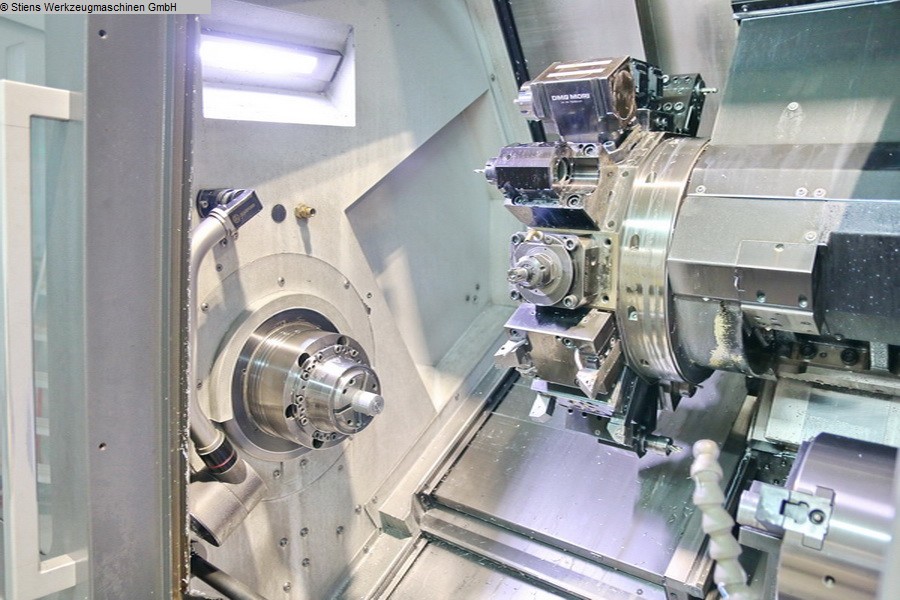

Counter spindle:
Speed range - counter spindle 6,000 min/-1
Drive power - counter spindle 11 / 7.5 kW
Spindle nose JIS A2-5
Spindle bearing diameter 85 mm
Spindle bore 43 mm
Travel paths:
x-travel 260 mm
z-travel 795 mm
Y - axis +/-50 mm
Rapid traverse ( 25 mm
Drill shaft diameter 50 mm
Turret switching time 0.27 sec.

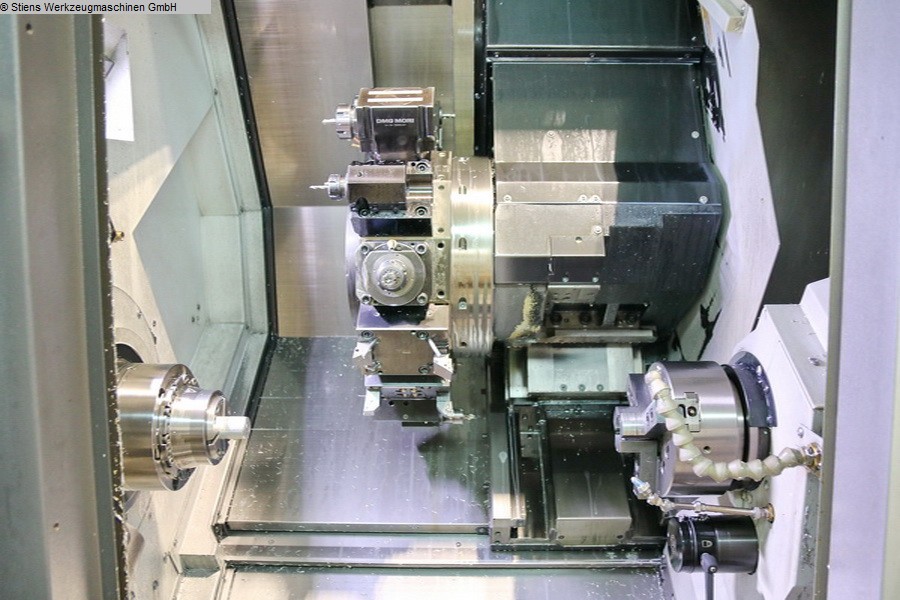

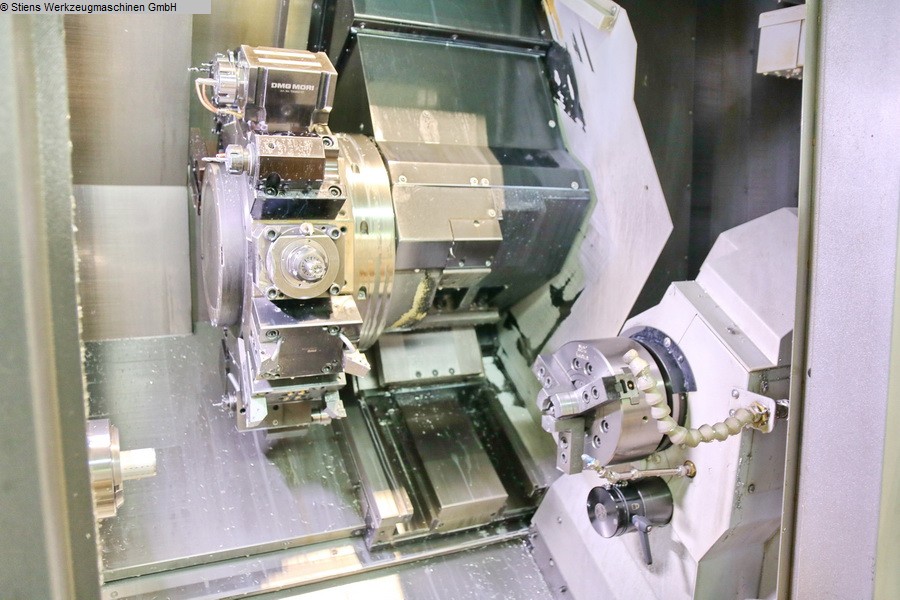

Driven tool positions:
Speed range - driven. Tools max. 6,000 min -1
Drive power - driven. Tools 5.5 / 3.7 kW
Total power requirement 41 kVA
Machine weight approx. 6.4 t
Space requirements approx. 4.0 x 3.0 x 2.3 m

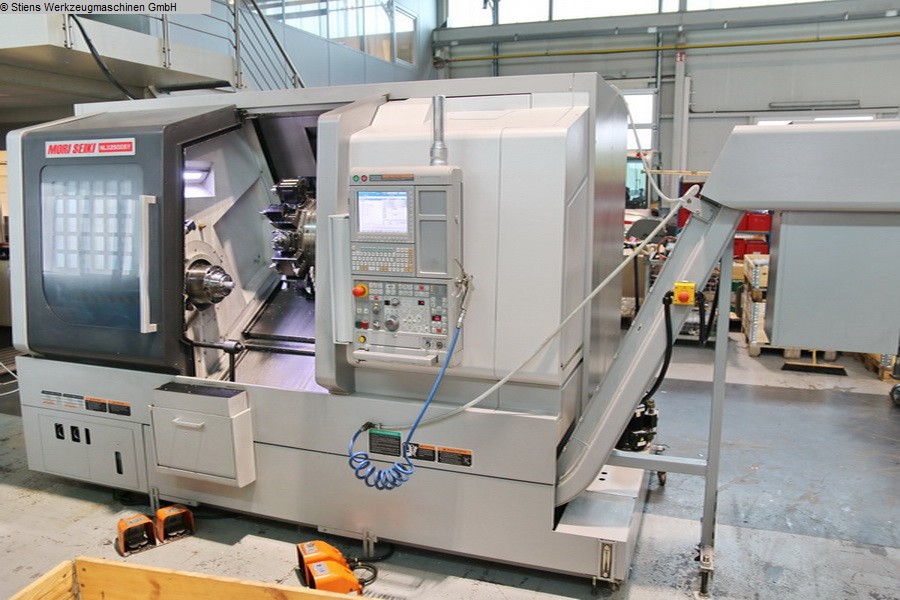

CNC turning and milling center MORI SEIKI - NLX 2500 SY / 700
