Description

Turning diameter max. 400 mm
Turning length 1,000 mm

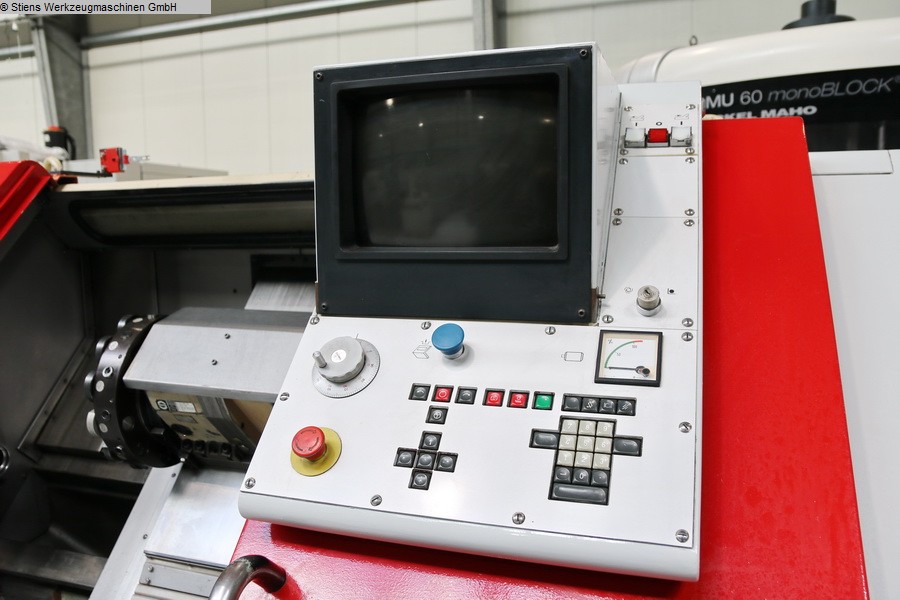

Control EPL 2
Circulation diameter over bed 400 mm
Circulation diameter over cross slide 225 mm
Travel path - x 260 mm
Travel path - z 1,040 mm
Main spindle:
Speed range - main spindle 20 - 4,000 min/-1
Drive power - main spindle 11 kW
Max. Torque 75 Nm
Spindle bore 72 mm

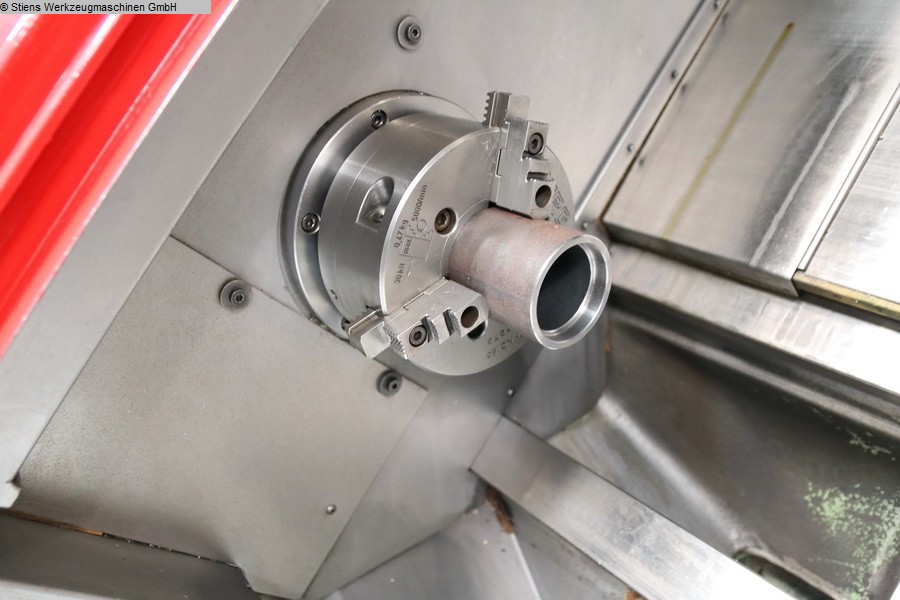

Chuck diameter 185 mm
Spindle head 140H5
Spindle diameter in the front. Bearing 100 mm

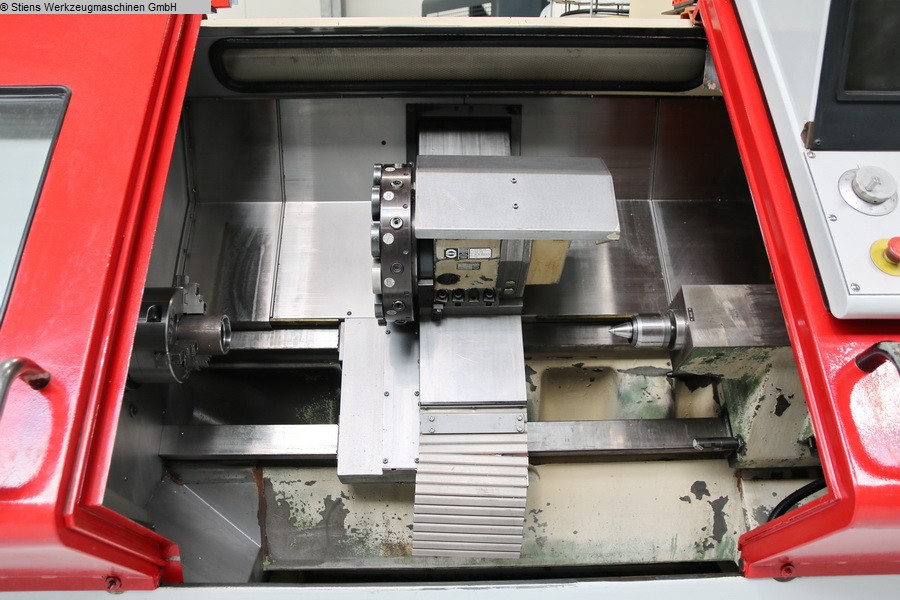

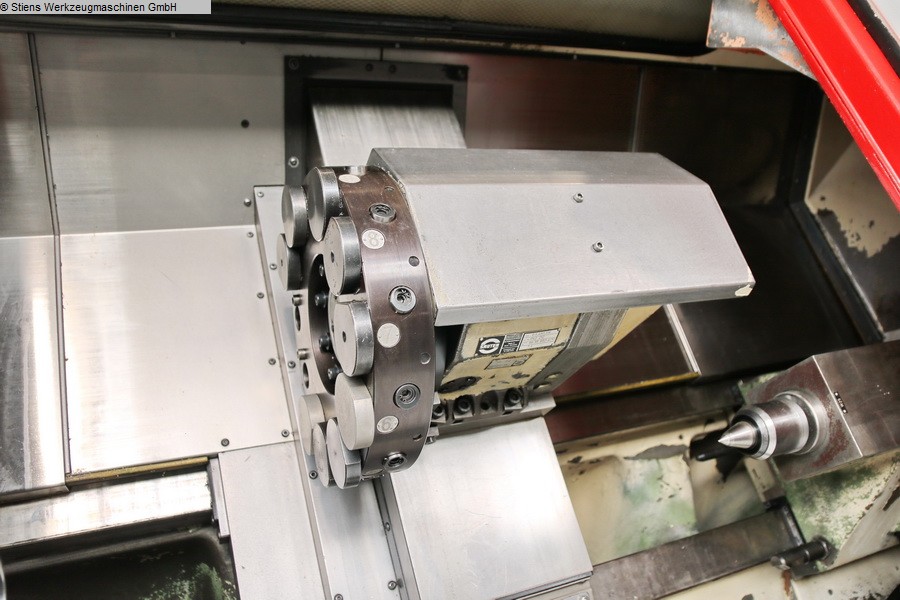

Tool turret:
Number of tool positions 12 pos.
Tailstock:
Quill diameter 80 mm
Quill stroke 100 mm
Tailstock holder MK 4
Quill pressure max. 800 daN
Feeds:
Rapid traverse in the X and Z directions 10 m/min
Feed speed x: 5 m/min.
Feed speed z: 5 m/min.
Feed force x: 500 daN
Feed force z: 800 daN
Total power requirement 29 kW
Machine weight approx. 4.0 t
Space requirement approx. 4.6 x 2.1 x 2.0 m

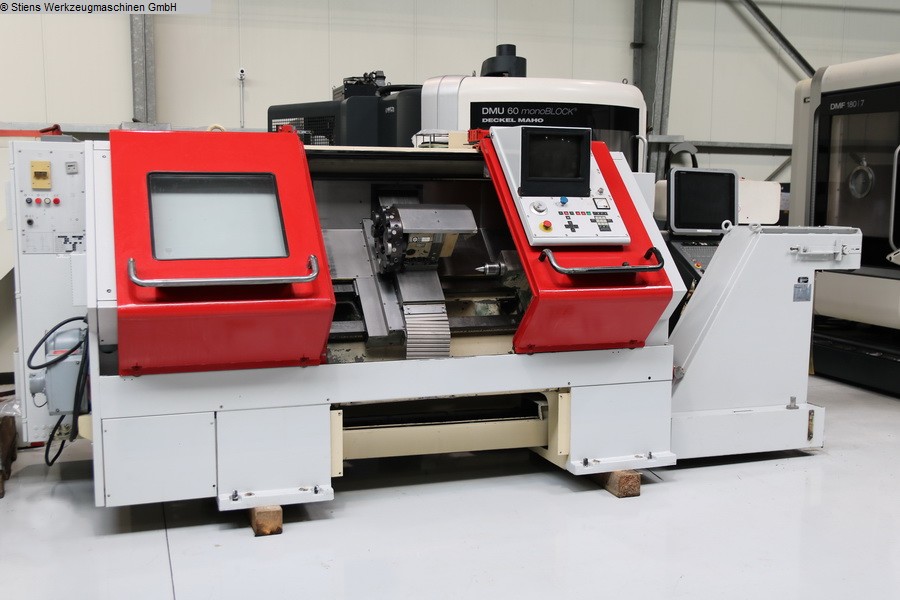

CNC lathe GILDEMEISTER - NEF CT 40
