CNC Drehmaschine
Hitachi Seiki
HiTec-Turn HT 20 RIII
Auf Anfrage
Condition
Gebraucht
Year of construction
1999
Availability
None
Category
Drehmaschinen
Location
59302 Oelde
Retailer
Description
Turning diameter 450 mm
Turning length 380 mm

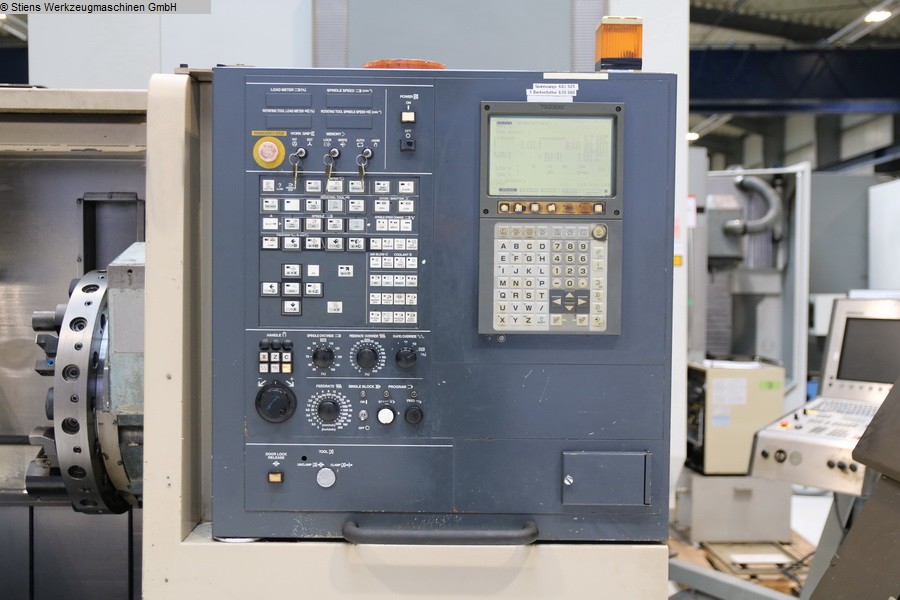

Control Seicos 40L Multi
max. Machining diameter 340 mm
Bar passage 51 mm
Speed range - spindle 30 ~ 5,000 rpm
Drive power - spindle motor 11 / 7.5 kW
Spindle nose A2-6
Spindle bore 59 mm
Bearing diameter 100 mm
Travel - x 215 mm
Travel - z 400 mm

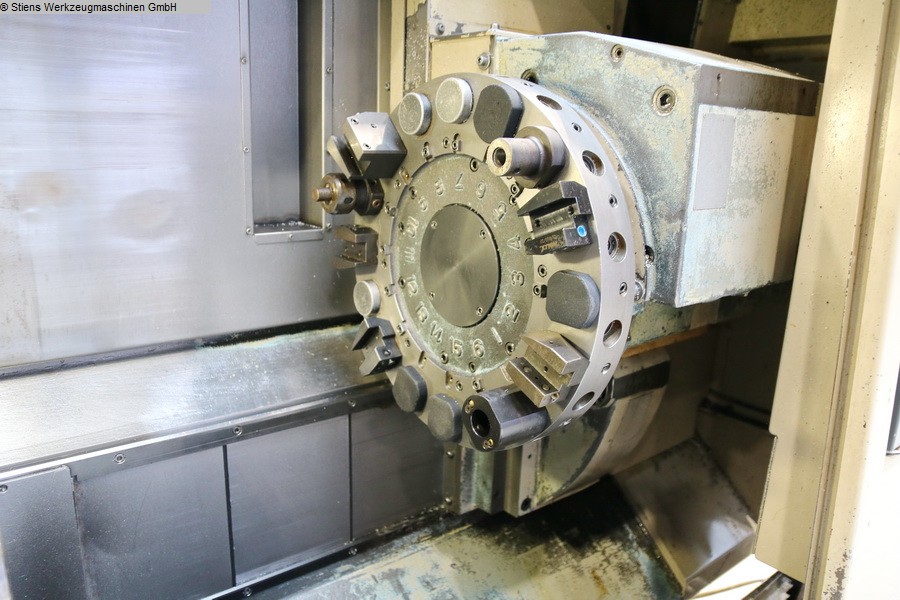

Turret head (x-fold) 16
Feed 0.001 ~ 500 mm/min
Rapid travel mm
Total power requirement 23 kVA
Machine weight approx. 4.6 t
Space requirement approx. 5.5 x 2.8 x 2.2 m

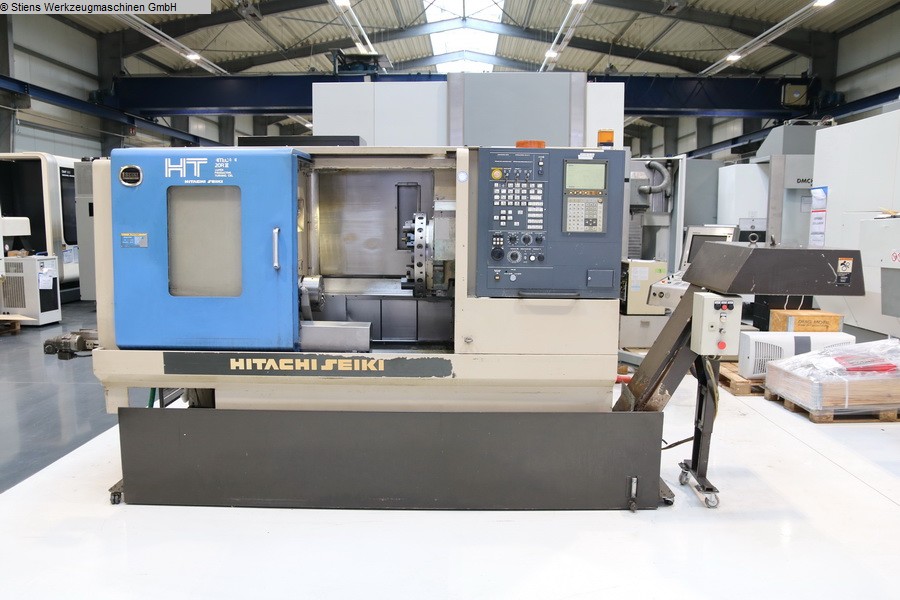

CNC lathe
HITACHI SEIKI - HiTec-Turn HT 20 RIII
