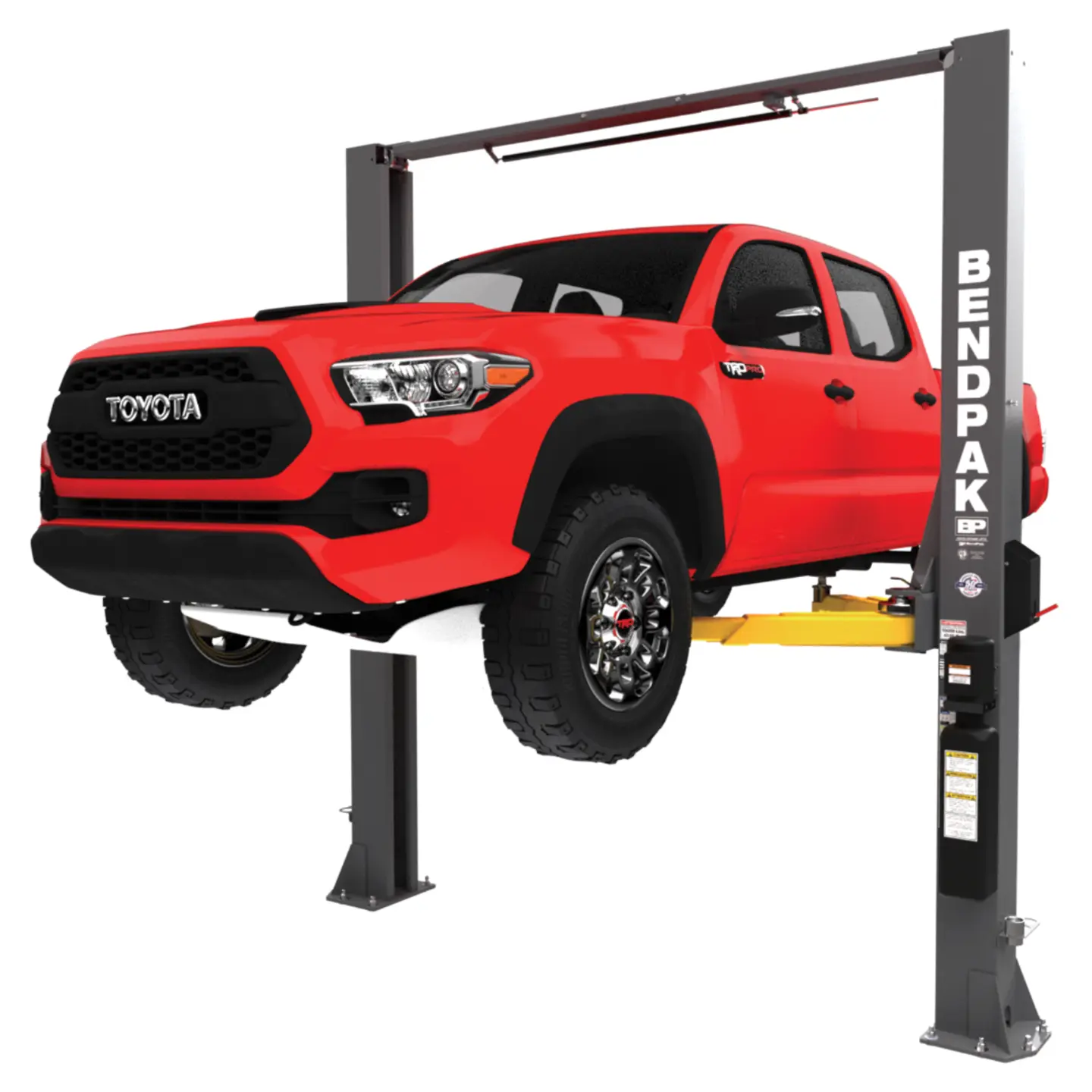

BENDPAK 10AP Electro-Hydraulic 2 Post Lift 4.5Ton
Wir informieren dich bei einer Preissenkung oder sobald dein Wunschpreis erreicht ist.
Maschinendaten auf einen Blick
- Modell
- 10AP Electro-Hydraulic 2 Post Lift 4.5Ton
- Verfügbarkeit
- Verfügbar
Informationen zur Maschine
Automatic arm restraint system prevents unplanned movement
Triple-telescoping nested swing arm design
Low profile arms
Screw pads and adapters that adjust to your needs
Innovative safety lock system
Bi-metric™ swing arms
Explore the full specifications
10AP Series Two-Post Lift Specifications
Style
Two-Post Lift
Lifting Capacity
10,000 lbs. (4,536 kg)
Max. Rise
69" (1,753 mm)
Max. Lifting Height
72.25" (1,835 mm)
Overall Width
145" (3,683 mm)
Outside Length
174" (4,420 mm)
Overall Length
200" (5,080 mm)
Overall Height
145" (3,683 mm)
Floor to Overhead Switch
138.25" (3,537 mm)
Inside Columns
108.25" (2,750 mm) or 118.25" (3,004 mm)
Drive-Thru Clearance
92" (2,337 mm) or 102" (2,591 mm)
Time to Full Rise
45 seconds
Motor
220 VAC / 50 Hz / 1 Phase
Technische Daten
| Style | Two-Post Lift |
|---|---|
| Lifting Capacity | 10,000 lbs. (4,536 kg) |
| Max. Rise | 69" (1,753 mm) |
| Max. Lifting Height | 72.25" (1,835 mm) |
| Overall Width | 145" (3,683 mm) |
| Outside Length | 174" (4,420 mm) |
| Overall Length | 200" (5,080 mm) |
| Overall Height | 145" (3,683 mm) |
| Floor to Overhead Switch | 138.25" (3,537 mm) |
| Inside Columns | 108.25" (2,750 mm) or 118.25" (3,004 mm) |
| Drive-Thru Clearance | 92" (2,337 mm) or 102" (2,591 mm) |
| Time to Full Rise | 45 seconds |
| Motor | 220 VAC / 50 Hz / 1 Phase |
