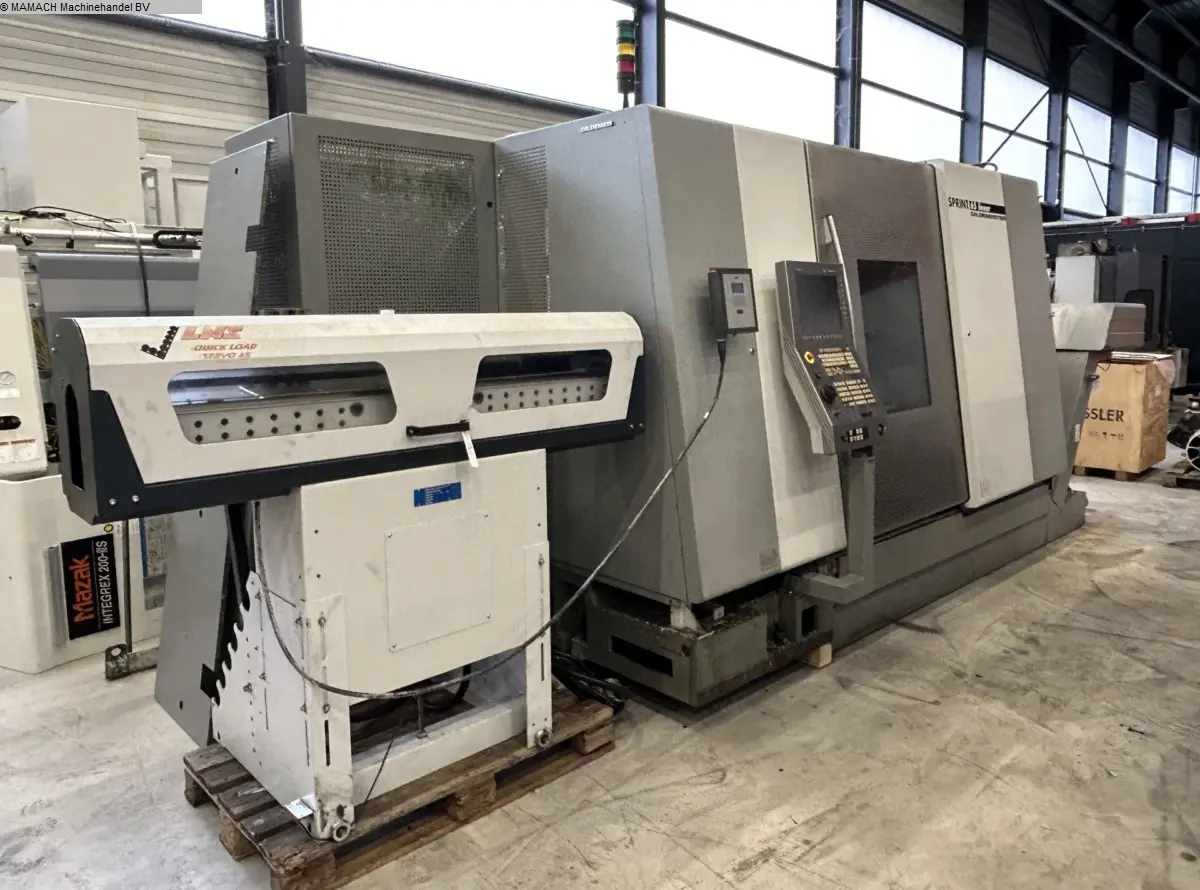

GILDEMEISTER Sprint 65 Linear #2041-2790 en – Mamach Machinehandel
Wir informieren dich bei einer Preissenkung oder sobald dein Wunschpreis erreicht ist.
Maschinendaten auf einen Blick
- Baujahr
- 2006
- Zustand
- used
- Standort
- Zevenbergen, Niederlande
- Verfügbarkeit
- Verfügbar
Informationen zur Maschine
Control Fanuc 310i %%%nSpindle bore diameter 65 mm%%%nSpindle Speed 5.000 1/min%%%nSpindle motor 25/20 kW%%%nSpindle speed counter spindle 5.000 1/min%%%nX-Axis movement 165 / 165 /165 mm%%%nY-Axis movement 80 mm%%%nZ-Axis movement 220 / 150 / 650 mm%%%nW-axis movement (subspindle to mainspindle) 690 mm%%%nC-Axis indexing 0,001 °%%%nNumber of turrets 3 %%%nNumber of tools on turret 12 (3x 12) x%%%nNumber of driven tools 12 (3x 12) x%%%nTool Taper VDI 30 %%%nBar feeder LNS Quick Load Servo 65 %%%nLength 4500 mm%%%nWidth 1990 mm%%%nHeight 2300 mm%%%nWeight 9000 kg%%%n
Technische Daten
| Year | 2006 |
|---|---|
| Control | Fanuc 310i |
| Spindle bore diameter | 65 mm |
| Spindle Speed | 5.000 1/min |
| Spindle motor | 25/20 kW |
| Spindle speed counter spindle | 5.000 1/min |
| X-Axis movement | 165 / 165 /165 mm |
| Y-Axis movement | 80 mm |
| Z-Axis movement | 220 / 150 / 650 mm |
| W-axis movement (subspindle to mainspindle) | 690 mm |
| C-Axis indexing | 0,001 ° |
| Number of turrets | 3 |
| Number of tools on turret | 12 (3x 12) x |
| Number of driven tools | 12 (3x 12) x |
| Tool Taper | VDI 30 |
| Bar feeder | LNS Quick Load Servo 65 |
| Length | 4500 mm |
| Width | 1990 mm |
| Height | 2300 mm |
| Weight | 9000 kg |
| Control | NT Smart X (Fanuc i) |
| Turning diameter | 170/190 mm |
| Turning length | 515 mm |
| Control | Fanuc 18i-TB |
| Turning diameter | 381 mm |
| Spindle bore diameter | 75 mm |
