Matsuura Cublex-35 gebraucht kaufen

Neugerät

Verfügbar

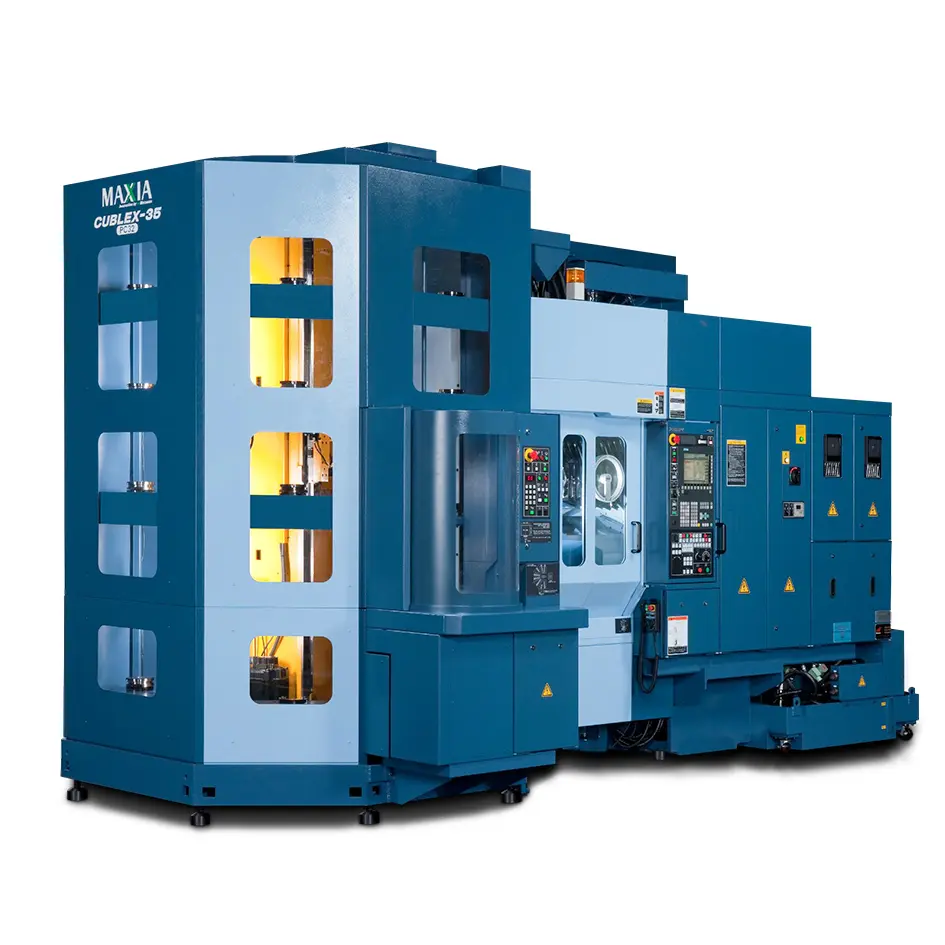

Matsuura Cublex-35

Zustandnew

StandortSpanien

Preis auf Anfrage

Preisalarm aktivieren

Wir informieren dich bei einer Preissenkung oder sobald dein Wunschpreis erreicht ist.

Maschine anfragen

Details

Beschreibung

Matsuura Multitasking Centre Cublex-35

Spezifikation

Movement and Ranges	B Axis: +65º~-125º, C Axis: 360º, X Axis: 550 mm, Y Axis: 440 mm, Z Axis: 580 mm
Table	Loading capacity: 60 kg, Max. workpiece size: Ø350 mm x H315 mm, Working surface: Ø130 mm
Spindle	Max. torque: 167 Nm, Power : 7.5 – 11 Kw, Speed: 12000 rpm, Type of Spindle Taper: HSK-A63W (ICTM)
Feedrate	Feedrate B: 50 rpm, Feedrate C: 200 mm (Milling) / 3000 mm (Turning), Feedrate X/Y/Z: 60000 mm/min
ATC	Max. tool diameter: Ø80 mm – Ø150 mm, Max. tool length: 350 mm, Max. tool number: 60 tools (chain magazine), Tool shank type: HSK-A63W (ICTM), Max tool weight : 10 Kg
APC	Number of pallets: 2
Dimensions & Weight	5586 mm x 3193 mm x 3250 mm (W x L x H), Weight: 12300 kg (PC2/ATC 60) / 15900 KG (PC32/ATC 330)
Control	Matsuura G-Tech-31i
Standard accesories	Auto grease supply, Intelligent Protection System, IPC Function, MIMS, Spiral chip conveyor
Optional accessories	ATC for up to 330 tools (Matrix magazine), ATC for up to 530 tools (Matrix magazine), Number of palets: 32 (tower system/1 work station), Number of palets: 38 (tower system/2 work station), Number of palets: 40 (tower system/1 work station), Number of palets: 47 (tower system/1 work station), Number of palets: 49 (tower system/1 work station), Number of palets: 60 (tower system/1 work station), Spindle 15000 rpm/HSK-A63W (auto grease)/7.5-12 kW(Low) ~ 7.5-15 kW(High)/135 Nm, Spindle 20000 rpm/HSK-A63W (auto grease)/11-15 kW(Low) ~ 15-18.5 kW(High)/108.4 Nm
