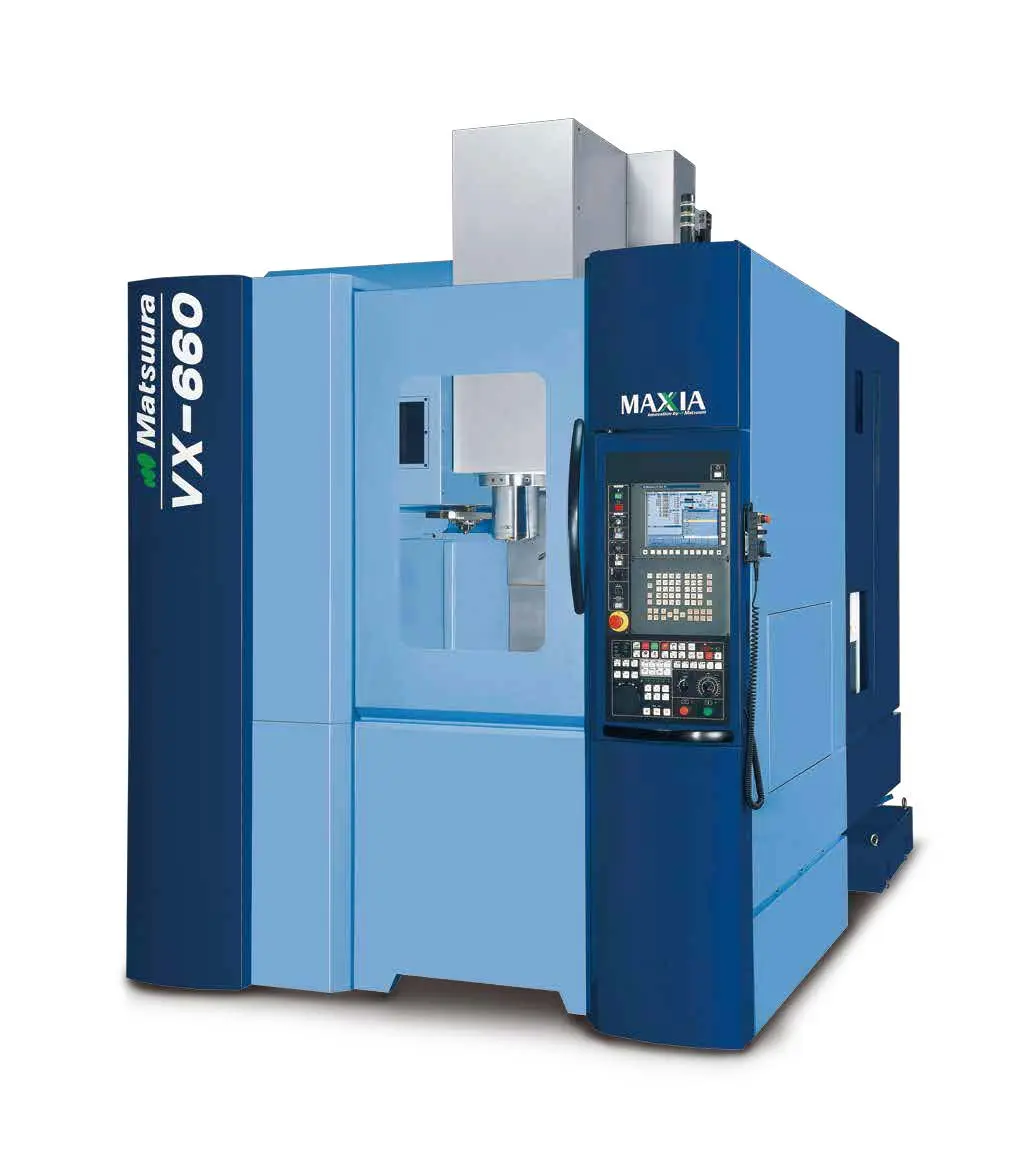

Matsuura VX-660
Wir informieren dich bei einer Preissenkung oder sobald dein Wunschpreis erreicht ist.
Maschinendaten auf einen Blick
- Verfügbarkeit
- Verfügbar
Informationen zur Maschine
Description With a 550-mm Y-axis stroke, the VX-660 has the size capacity of one rank larger model. We have developed the 15,000 min-1 spindle, which is the Matsuura original, for the “heart” of the machining centers, to cope with all-around machining applications from high-speed aluminum machining to hard-to -cut material machining. The high-speed 20,000 min-1 spindle is available as an option. Some of the features which we re previously offered as options now come as standard to ensure high cost performance. A few of these include the lift-up chip conveyor (scraper type), the work piece cleaning gun, the chip flush, the air blow for chip removal, and CE marking to be in compliance withEU safety standard requirements.
Technische Daten
| Movement and Ranges | X Axis: 660 mm, Y Axis: 550 mm, Z Axis: 560 mm |
|---|---|
| Table | Loading capacity: 500 kg, Working surface: 940 mm x 550 mm |
| Spindle | Max. torque: 150 Nm, Power : 15 – 22 Kw, Speed : 15.000 rpm |
| Feedrate | Feedrate X/Y/Z: 48000 mm |
| ATC | Max. tool diameter: Ø76 mm – Ø150 mm, Max. tool length: 300 mm, Max. tool weight: 7 kg, Pullstud type: JIS B 6339 40P, Tool shank type: JIS B 6339 40T, Max. Tool Number : 30 tools |
| Dimensions & Weight | 2050 mm x 3178 mm x 2983 mm (W x L x H), Weight: 5615 kg |
| Control | Matsuura G-Tech-31i |
| Standard accesories | Chip Conveyor, Intelligent Protection System, IPC Function, MIMS |
| Optional accessories | ATC 48 tools (#40, chain magazine), ATC 60 tools (#40, chain magazine), Spindle 20000 rpm/BT40 (Grease), Type of tool shank: HSK-A63 |
