CNC Fräsmaschine
MAHO
MH 600 E2
Auf Anfrage
Condition
Gut (gebraucht)
Year of construction
1989
Availability
sofort
Category
Fräsma.-univ.NC/CNC 500-699mm x-Weg
Location
Neresheim, Deutschland
Retailer
Description

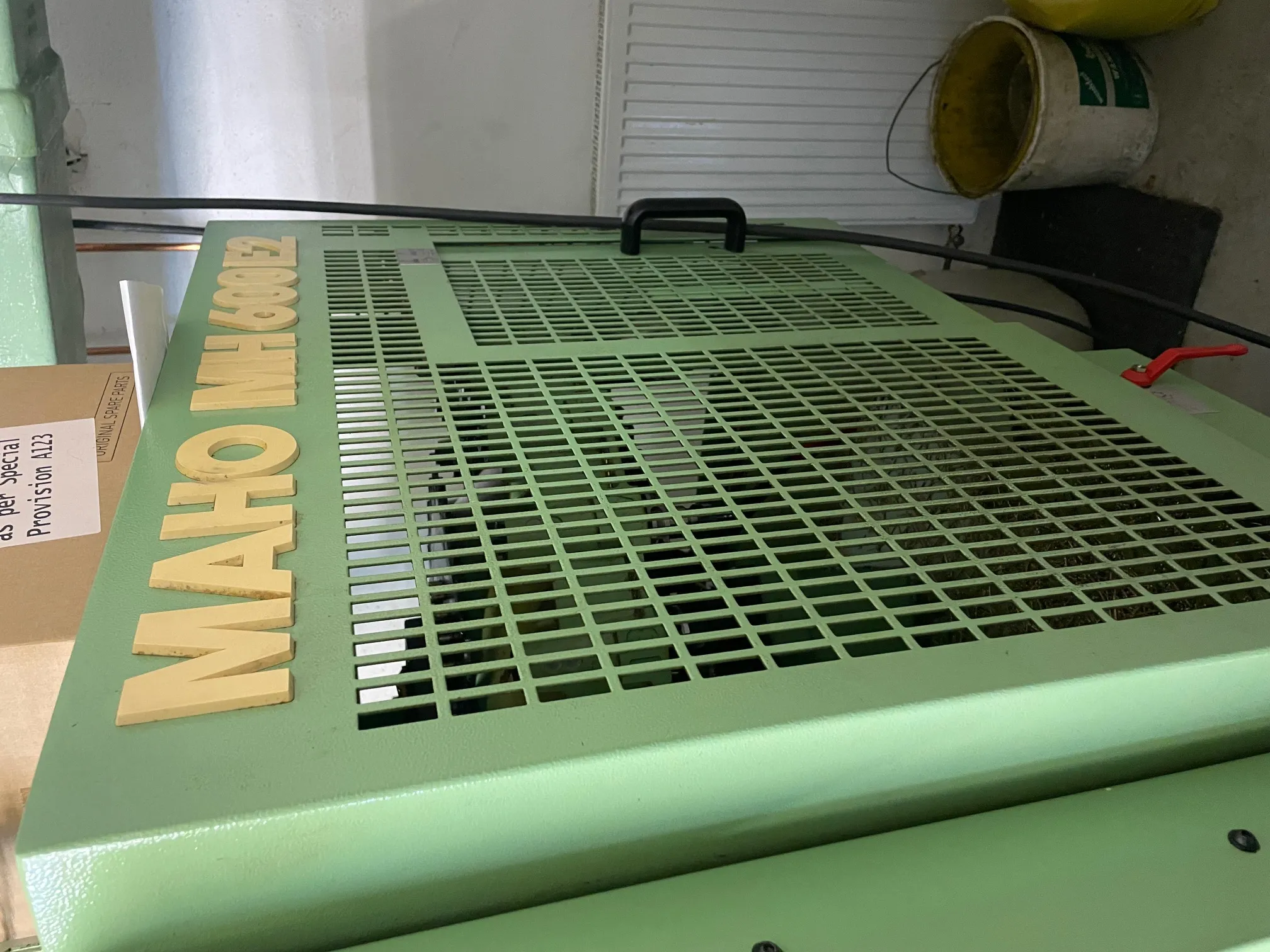

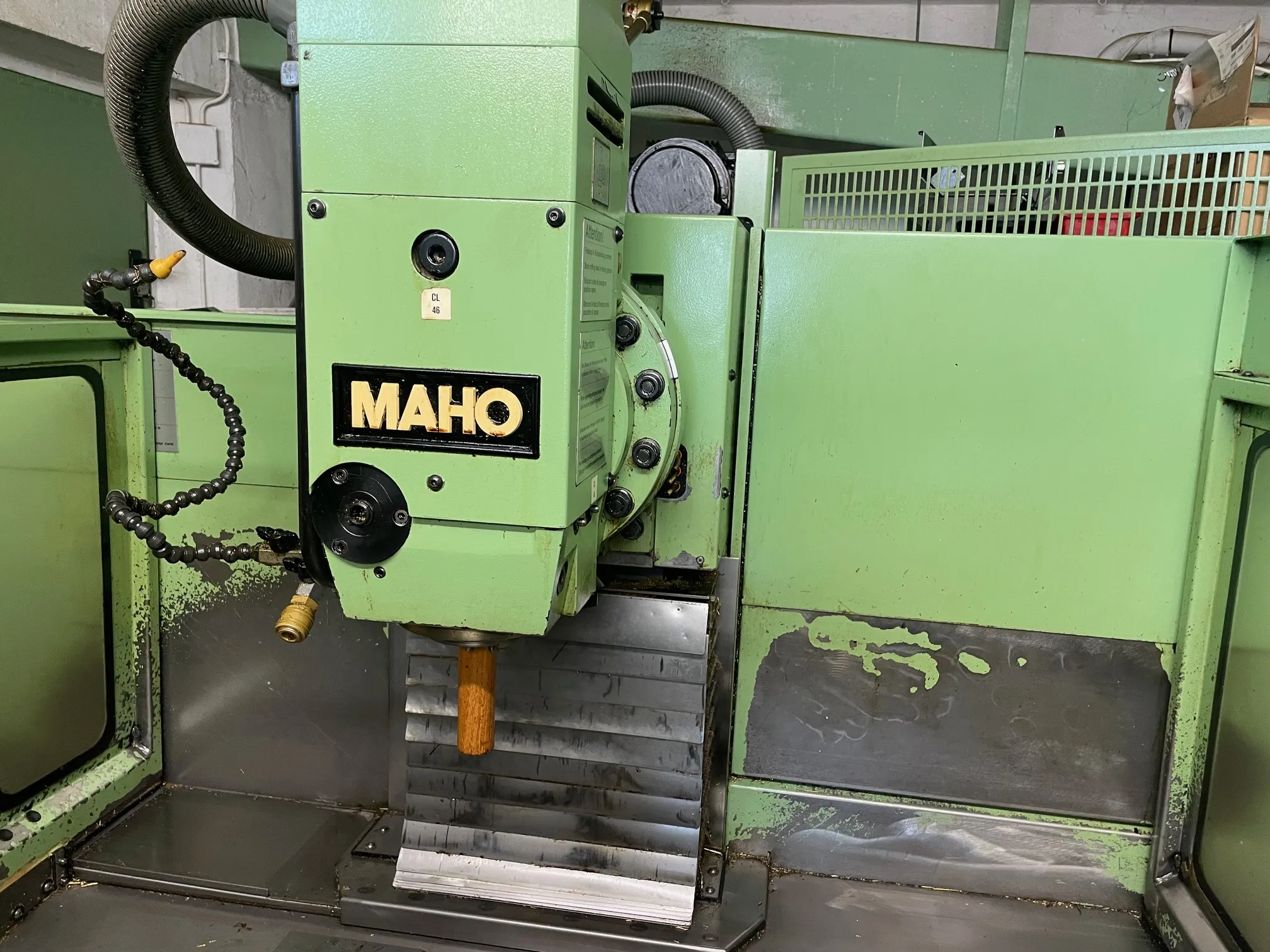

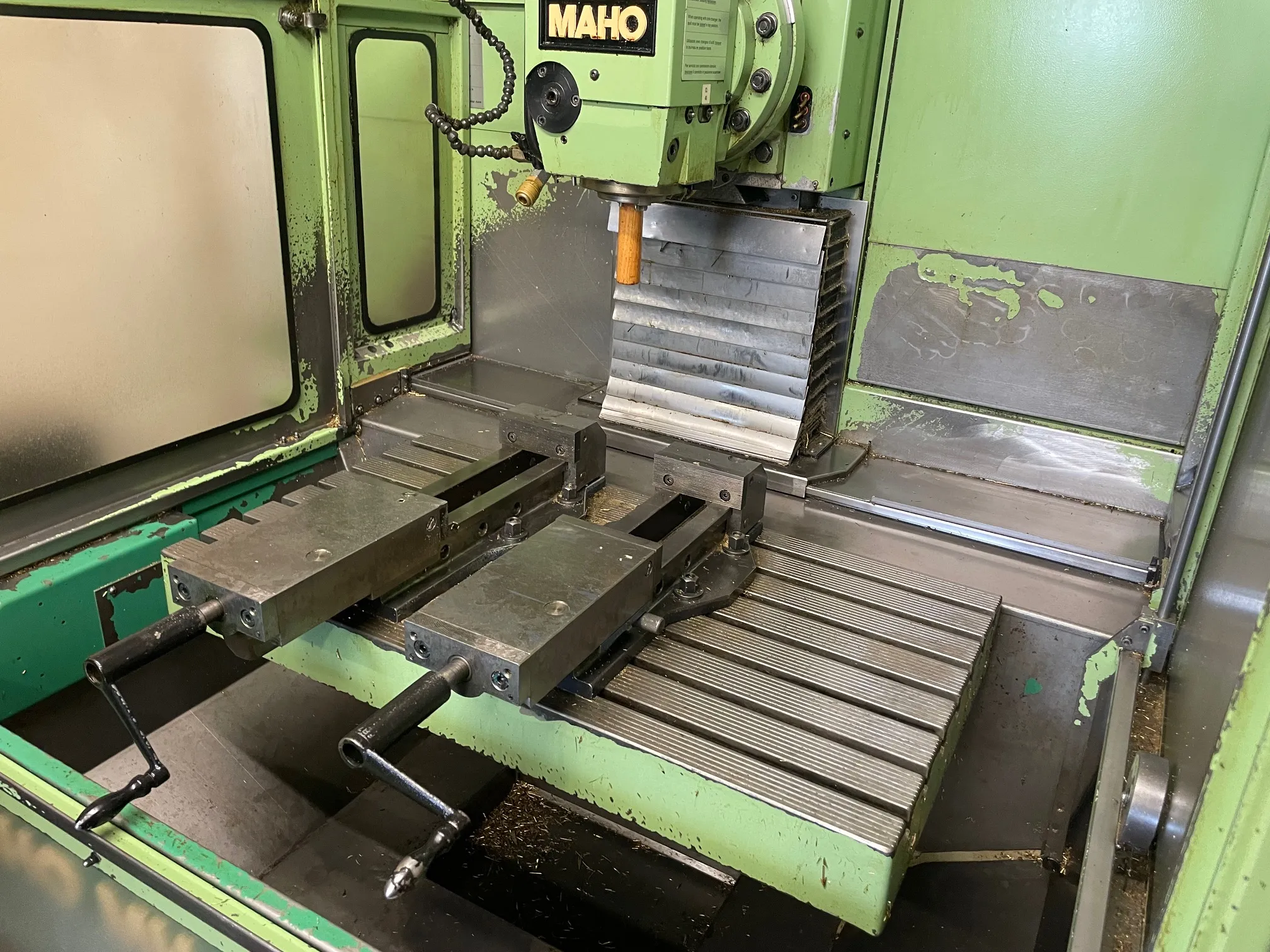

CNC milling machine make MAHO type MH 600 E
Year of construction 1989
CNC path control type Phillips 432 E
Technical data:
Working area X 600 mm
Working area Y 400 mm
Working area Z 400 mm

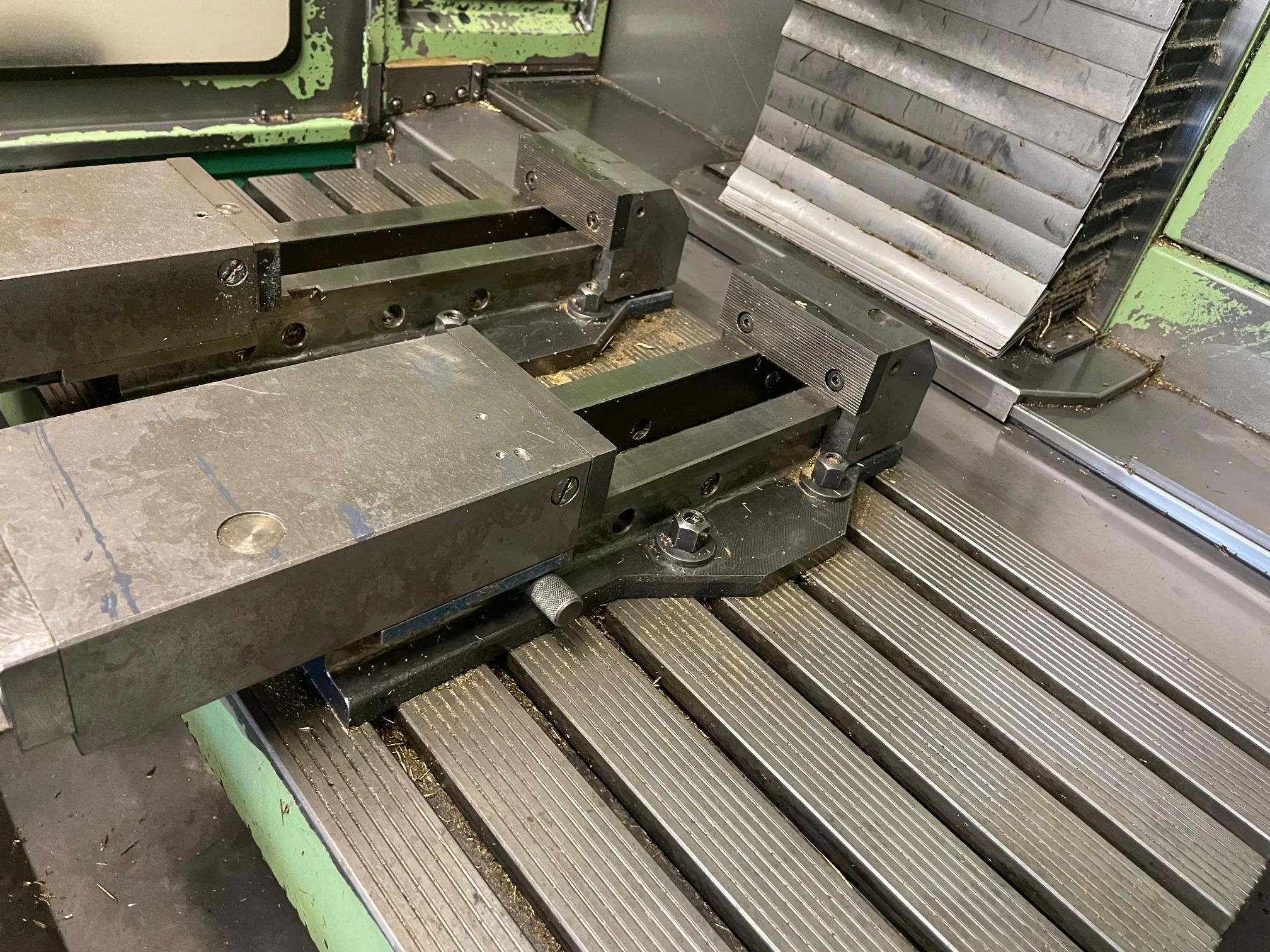

Table size / rigid angle table 1000 x 400 mm

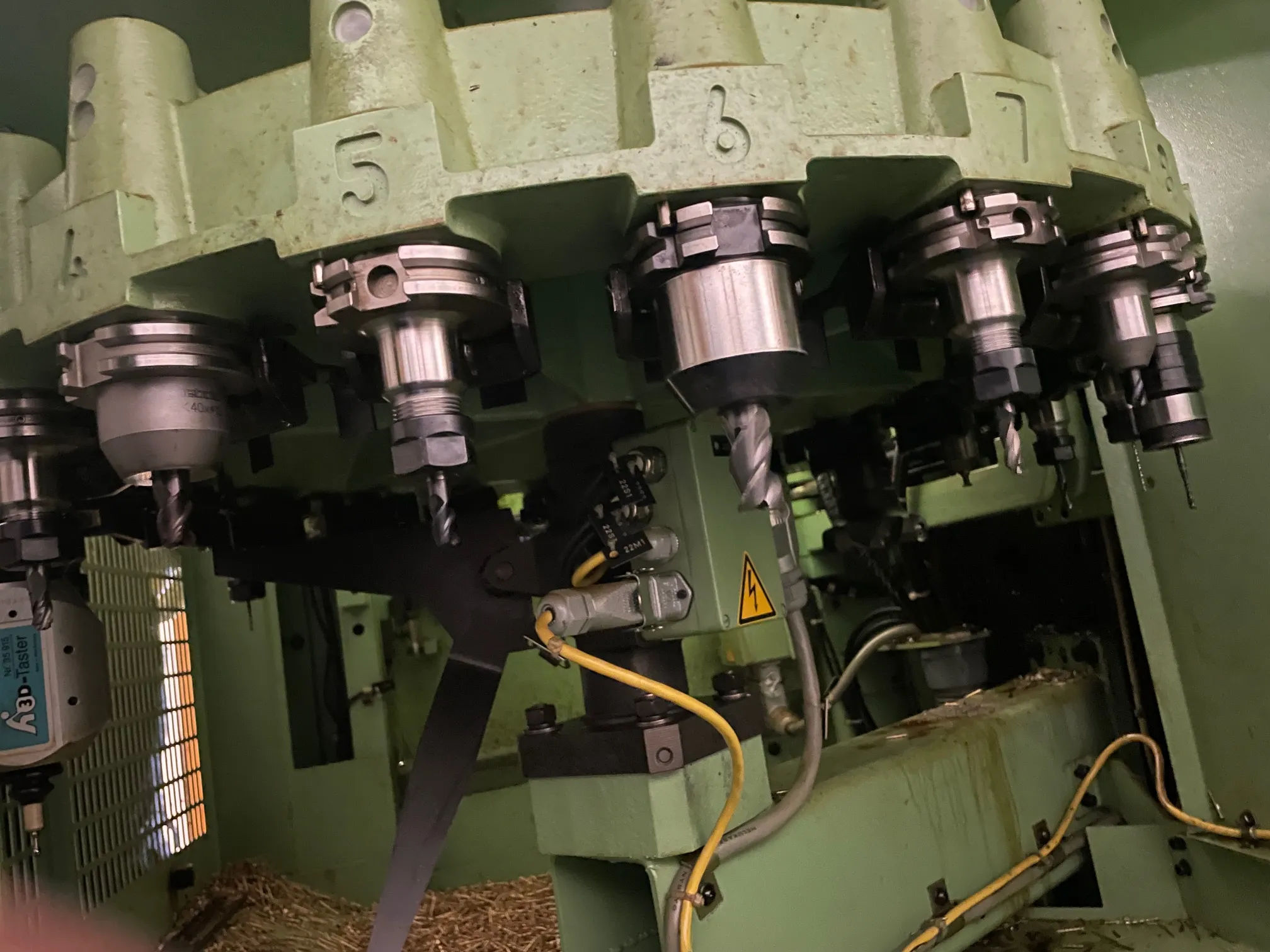

Tool holder ISA 40
Quill stroke 80 mm
Speed range 80 - 4000 rpm.
Feed range X,Y,Z 1 - 2000 mm/min.
Rapid traverse X 4 m/min.
Rapid traverse Y 3 m/min
Rapid traverse Z 5 m/min
Resolution 0.001 mm
Drive power/total connected load 4.0 kW/16 kVA
Footprint 2300 x 2160 x 1900 mm
Weight 2.25 t
