Description

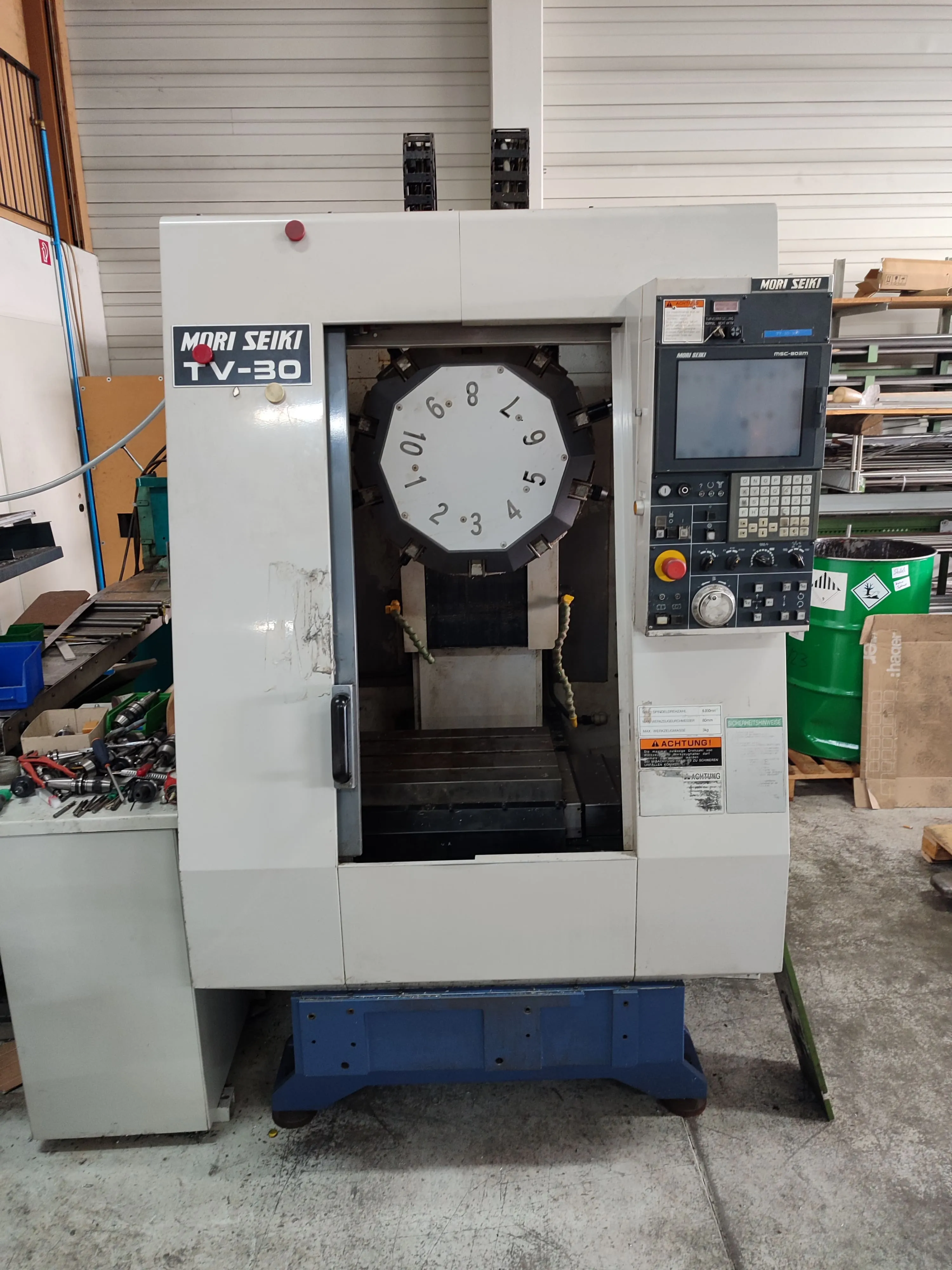

Vertical machining center Mori Seiki TV 30

Year of construction: 1996

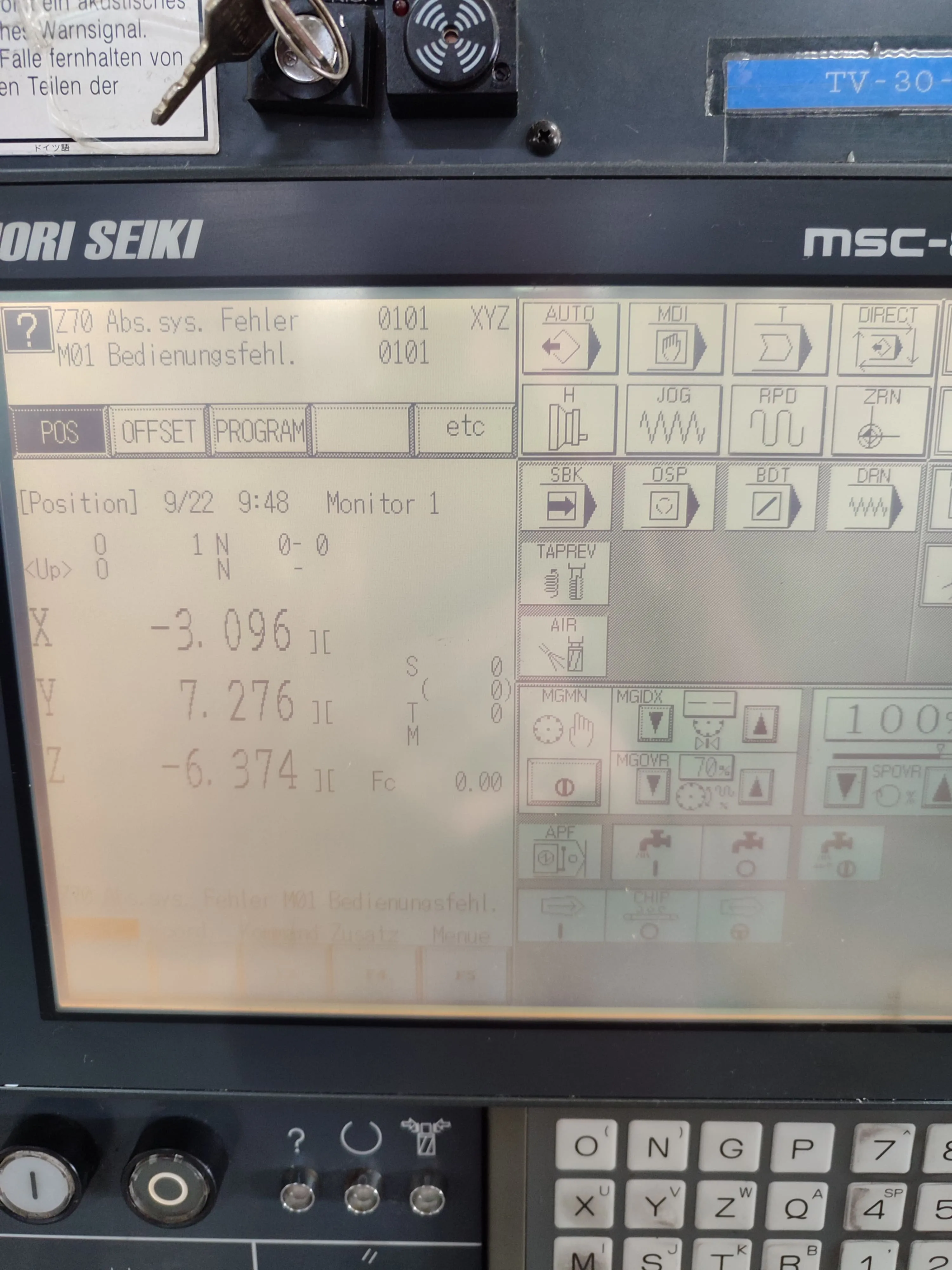

Control MSC 802-M

x-travel 420 mm

y-travel 300 + 60 mm

z-travel 300 mm

Control     MSC 802-M

Main spindle:

Max. Speed          8,000 rpm

Tool holder           BT 30

Drive power - main spindle   3.7 / 2.2 kW

Work table:

Table clamping surface 600 x 340 mm

max. Table load          150 kg

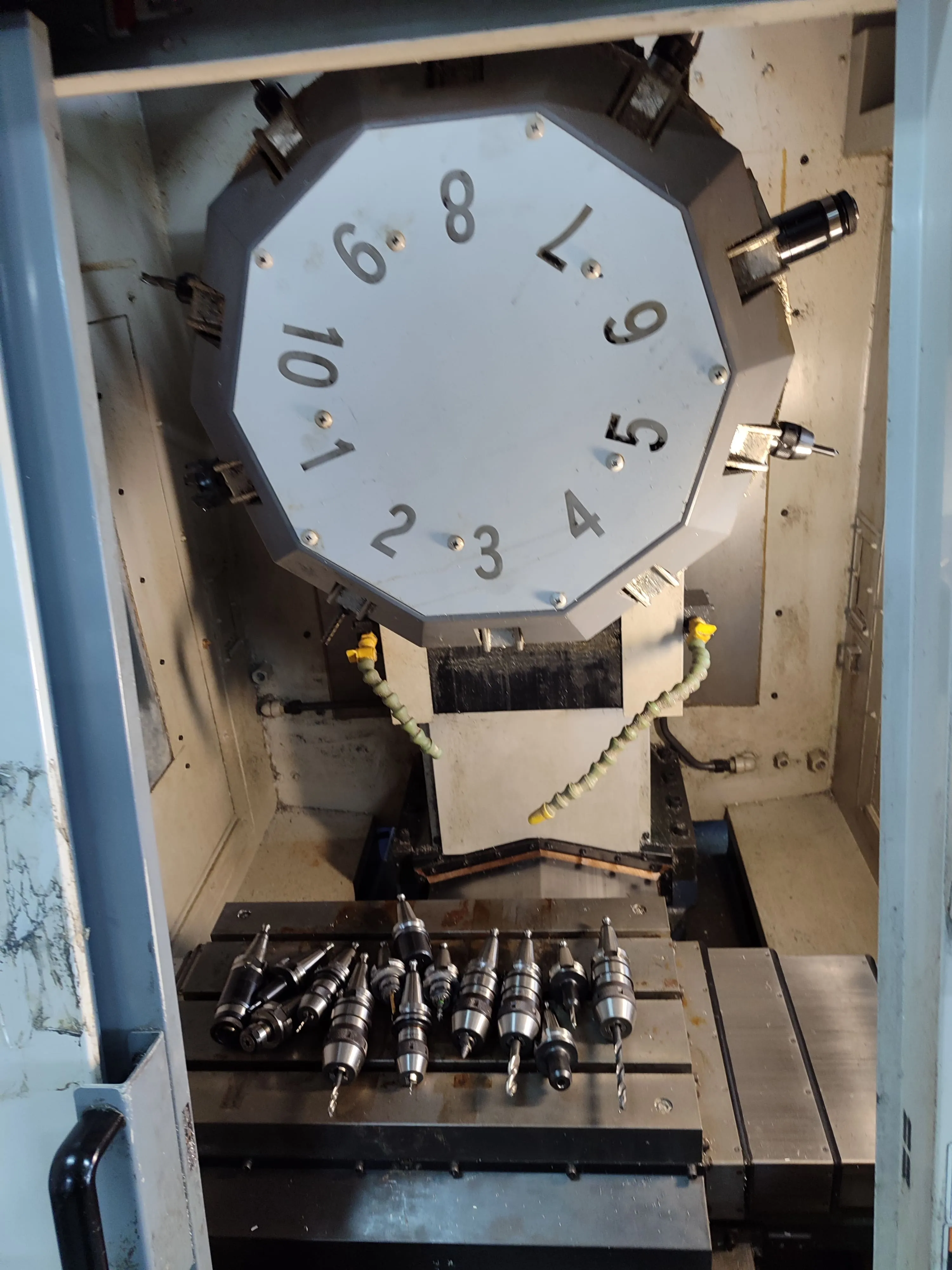

Tool changer:

Number of tool locations          10 pos.

max. Tool diameter        60 (100) mm

max. Tool length          200 mm

max. Tool weight      3.0 kg

Change time between tool and tool          0.7 sec

Feeds:

Rapid traverse (X / Y / Z) 12 m/min

Feed speed max. 48,000 mm/min

Inching feed speed      0 - 1,260 mm/min

Total power requirement     20.4 kW

Machine weight approx. 2.0 t

Space requirement approx.          2,500 x 3,000 x 2,300 mm
