Vertikal Bearbeitungszentrum

PINNACLE

SV 116

Auf Anfrage


Condition

Sehr gut

Year of construction

2008

Availability

sofort

Category

Bearbeitungszentren (vertikal)

Location

Wallerstein, Deutschland


Description

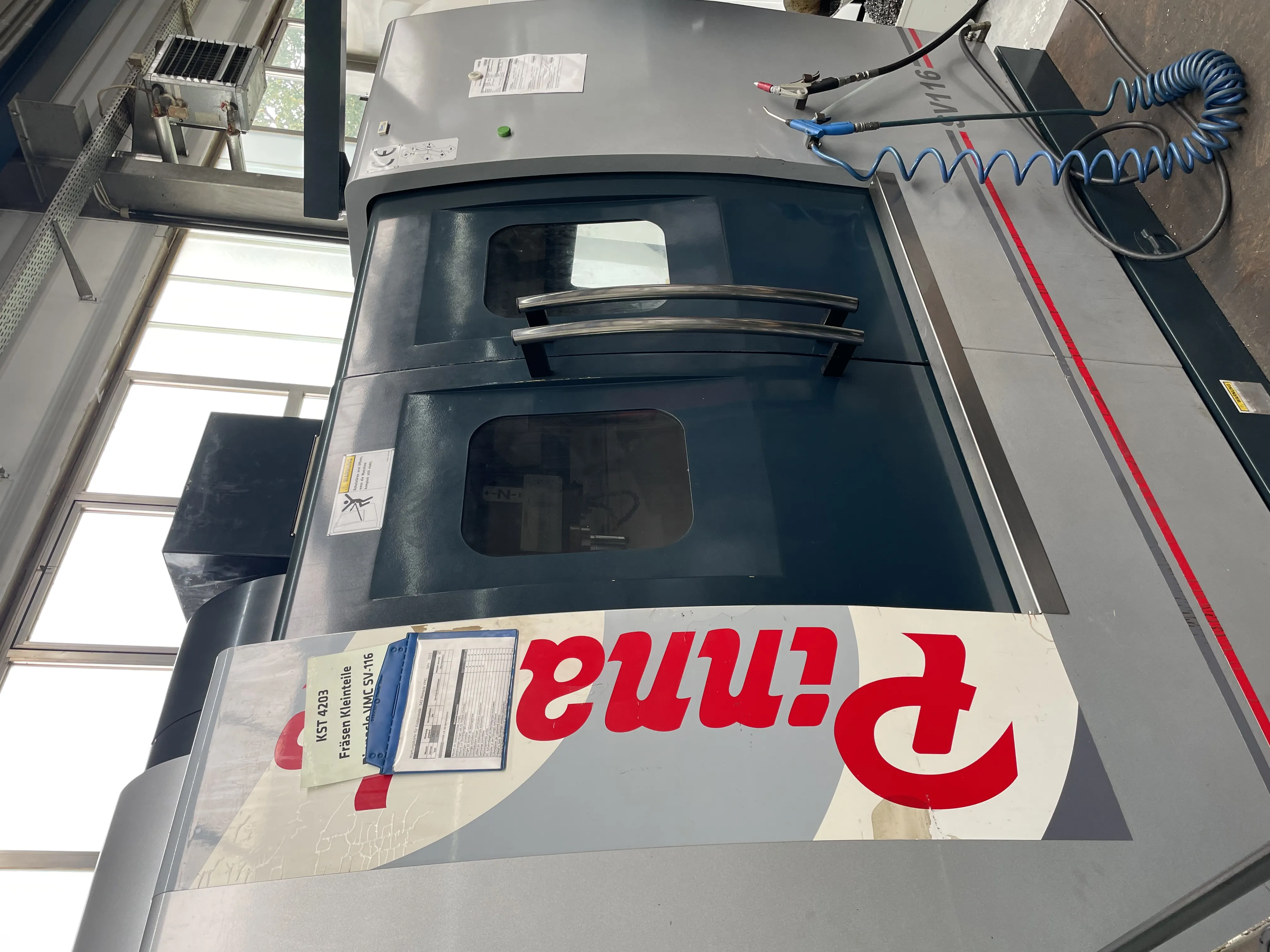

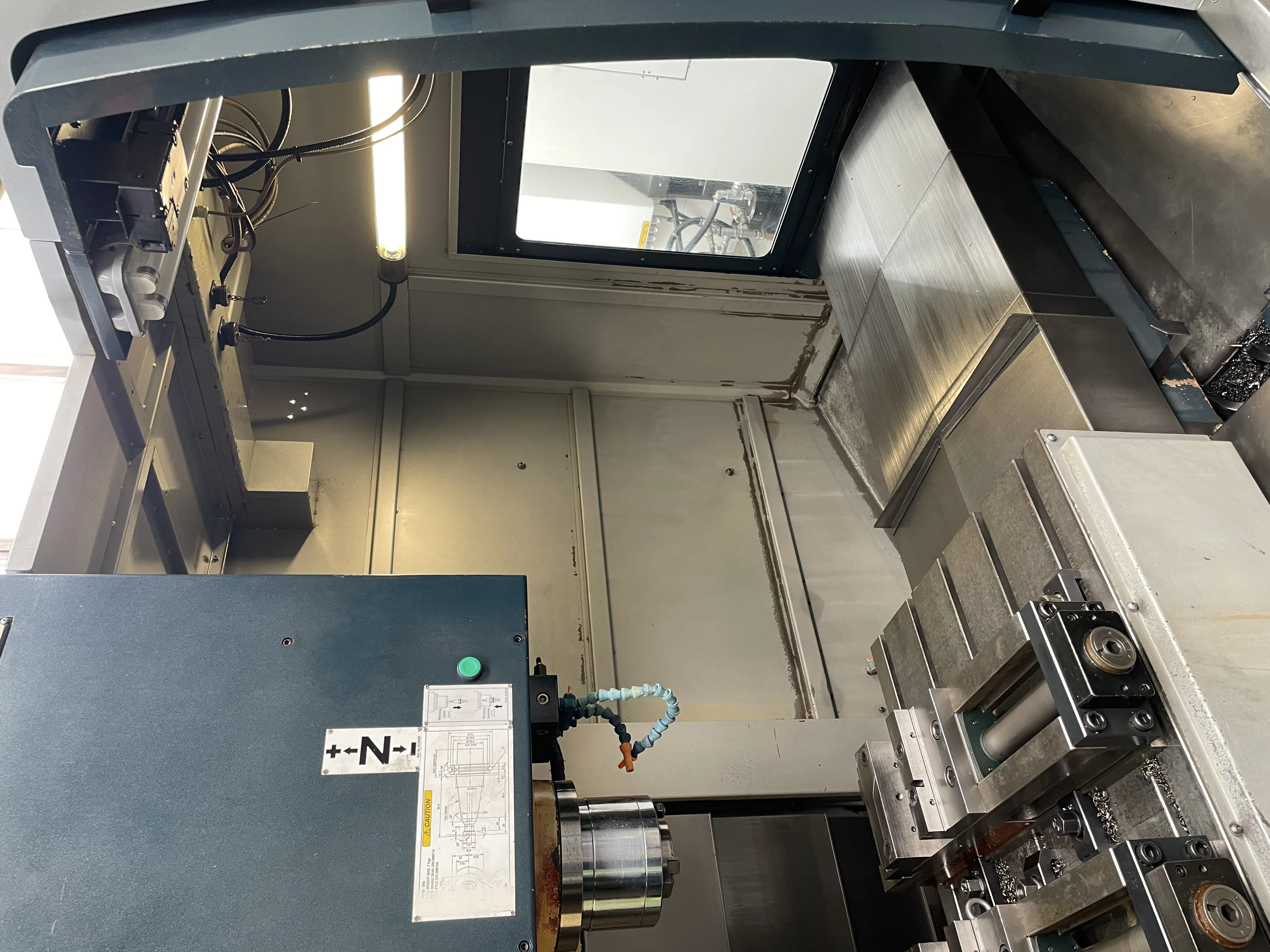

Vertical machining center Pinnacle SV 116

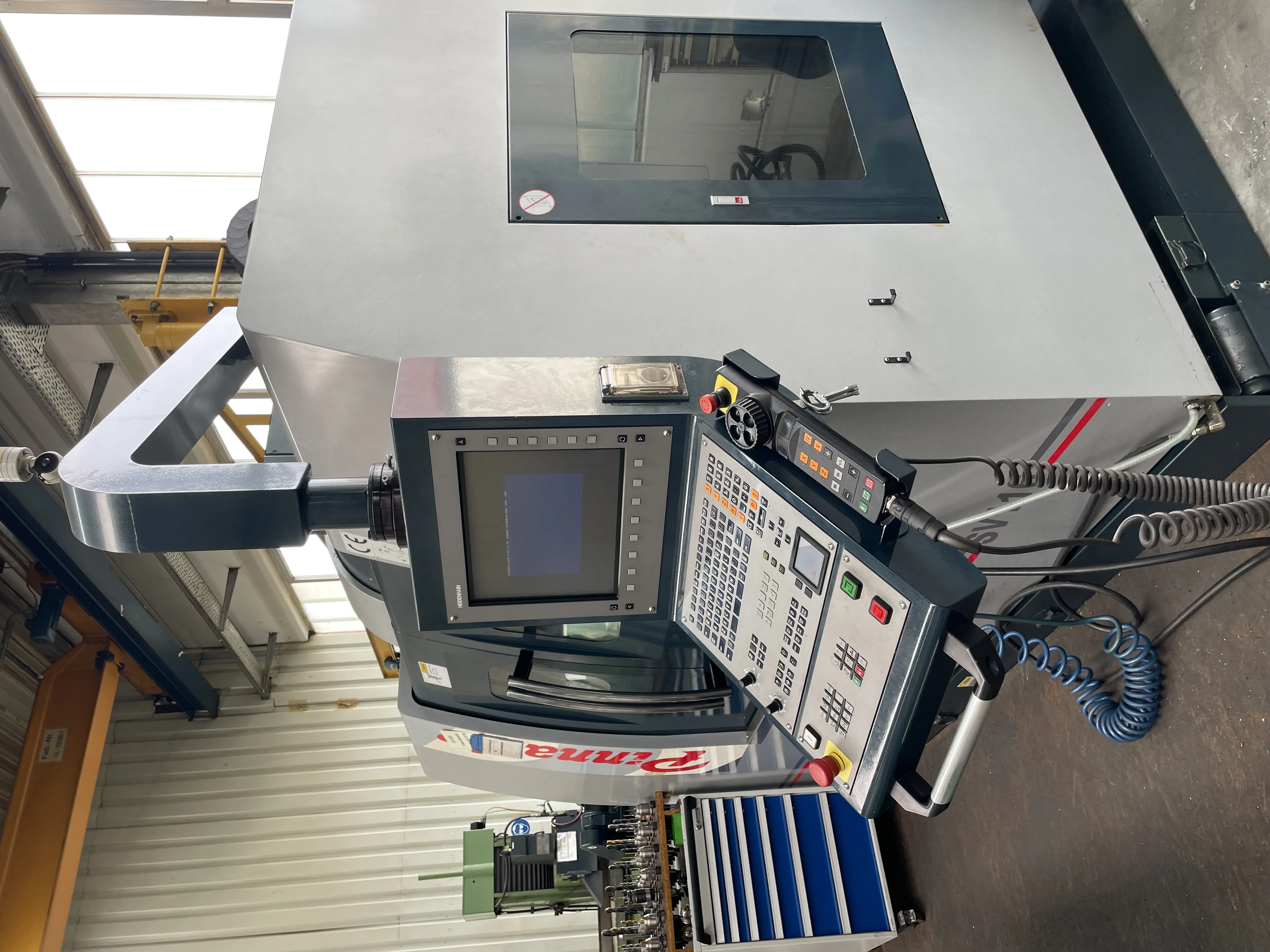

Control Heidenhain iTNC 530

Year of construction: 2011

MODEL SV116

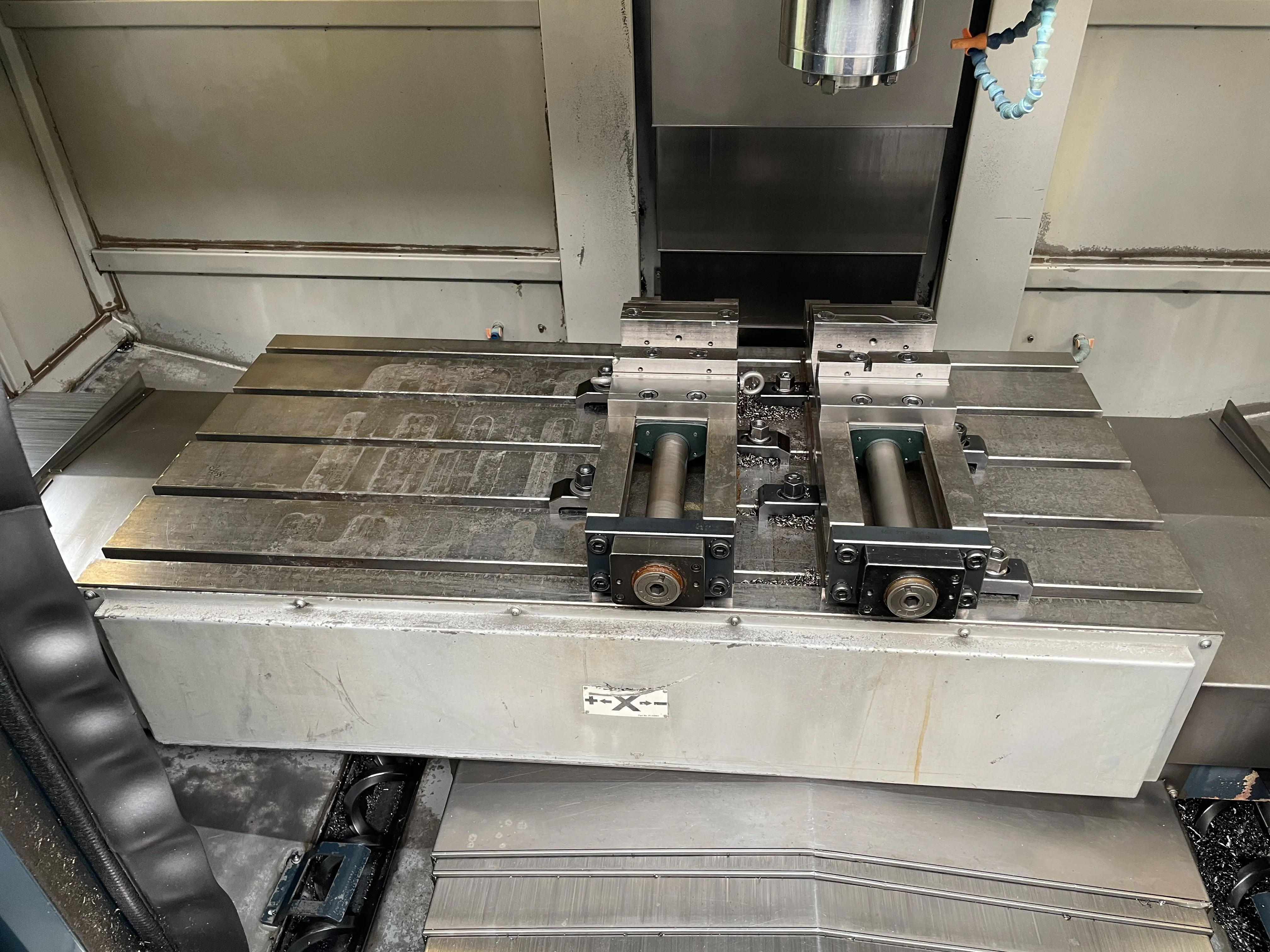

TABLE Table size (mm) 1300 x 610

Travel ranges (X x Y x Z mm) 1140 x 610 x 610

Max. Table load (kg) 850

Spindle nose to table surface (mm) 110 ~ 720

T-slot (width x distance x number mm) 18 x 125 x 5

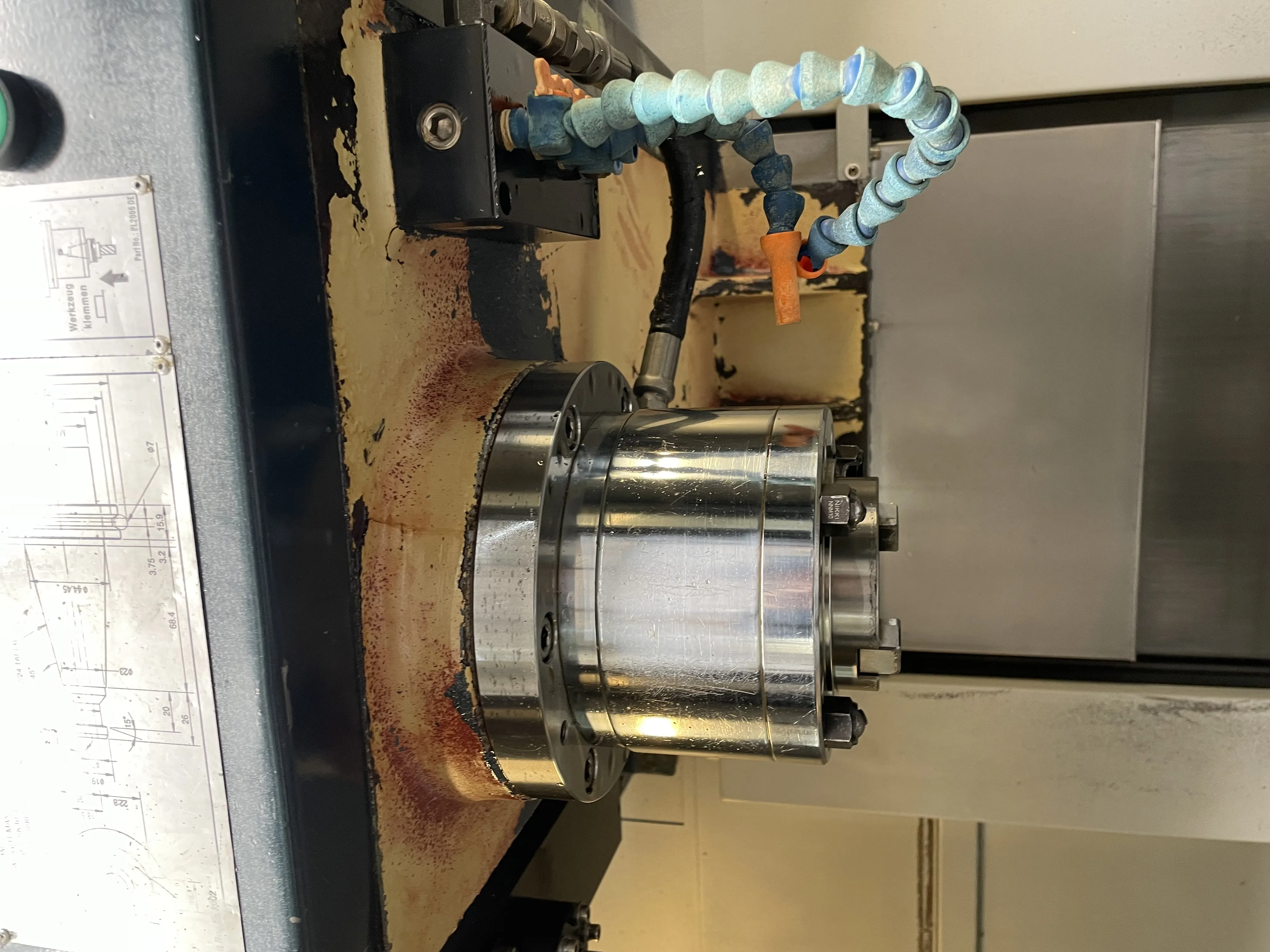

Spindle holder BT-40

Spindle speed (RPM) 40 ~ 8000

Main engine (con/30 min Kw) 7.5 / 11

FEED SPEED Rapid feed speed (X/Y/Z m/min) 20 / 20 / 20

Feed speed (X/Y/Z/mm/min) 10000

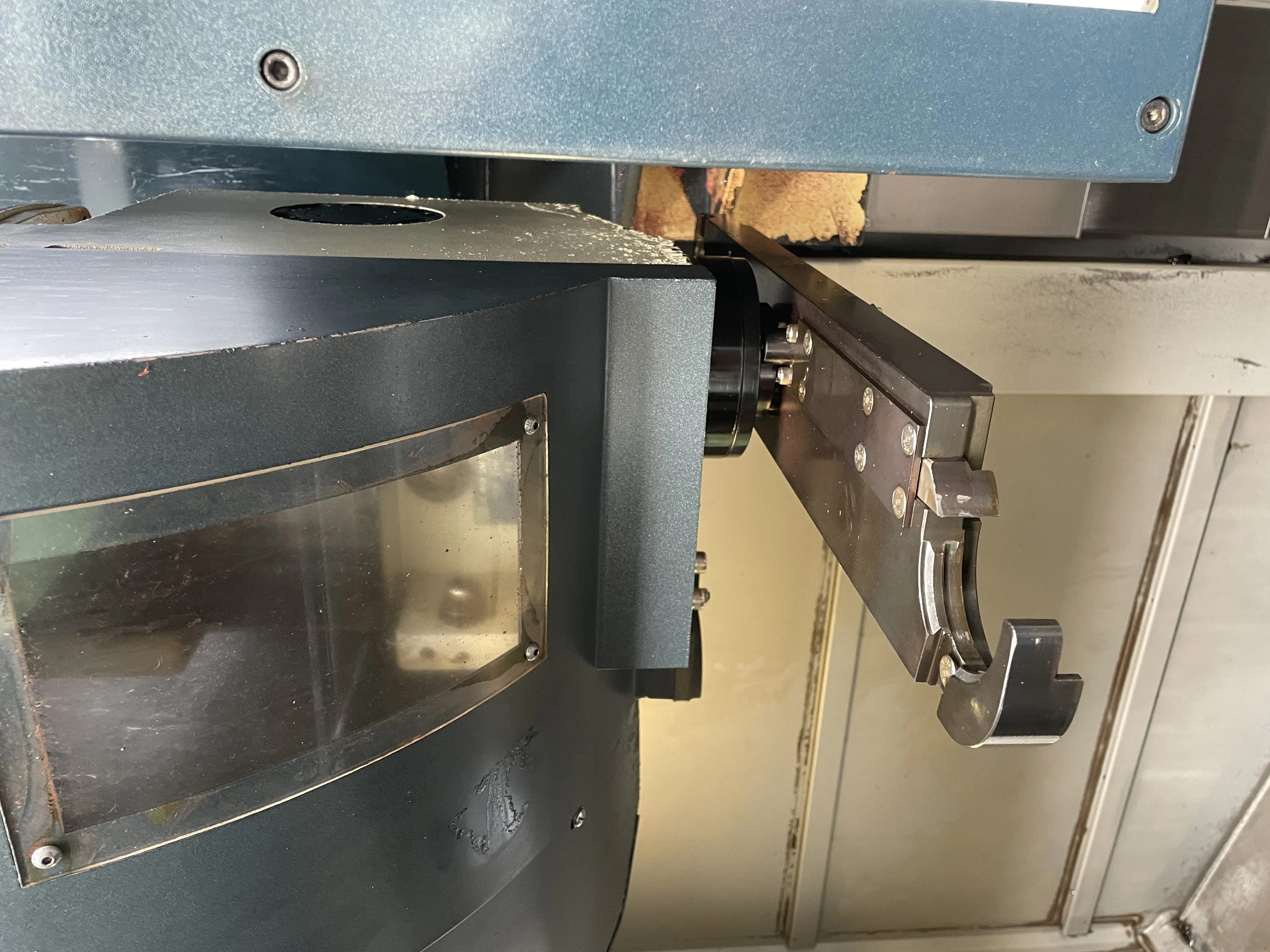

 AUTOMATIC TOOL CHANGER ISO40 ATC Type DISK Cam Type DAUL ARM Tool Selection (Bidirectional) RANDOM Tool Storage Capacity (PCs) 24 Max Tool Diameter (mm) Ø90 Max Tool Length (mm), Weight (kg) 250, 8 MISCELLANEOUS Air Requirement (kg/cm2 ) 6 Voltage 220 220 Power Requirement (KVA) 20 Coolant Tank Capacity (L): 300

Machine weight (kg) 6500

Machine height (mm) 2950 Base area (L x W mm) 3100 x 2200

Packaging size (L x W x H mm): 3150 x 2230 x 2350

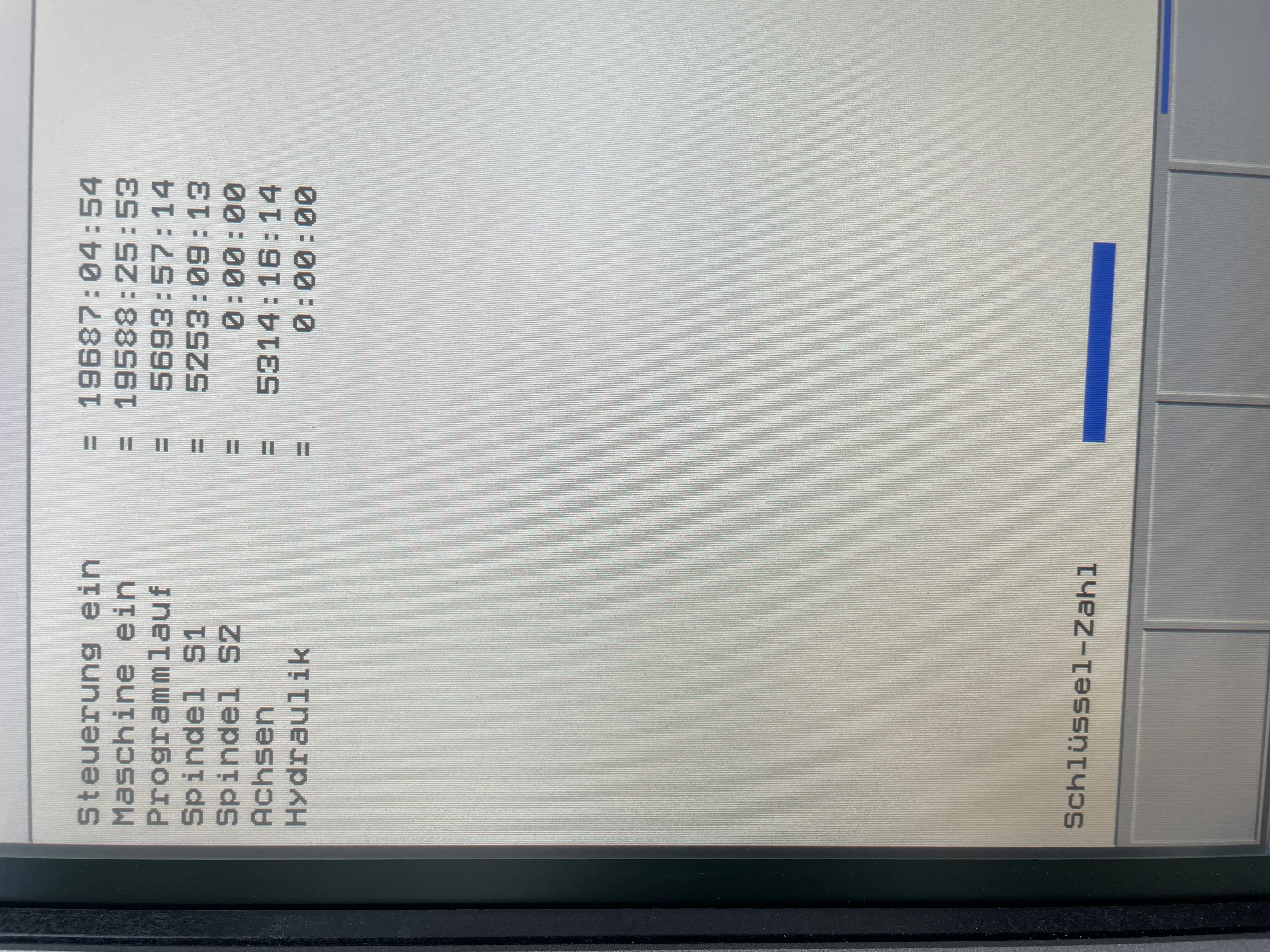

Operating hours: 19,700 Spindle hours: 5,700
