Zyklendrehmaschine
SEIGER
SLZ 400E
Auf Anfrage
Condition
Gut (gebraucht)
Year of construction
2005
Availability
März/April 2024
Category
Drehmaschinen - zyklengesteuert - Drehdurchmesser 400-499mm
Location
Dortmund, Germany
Retailer
Description

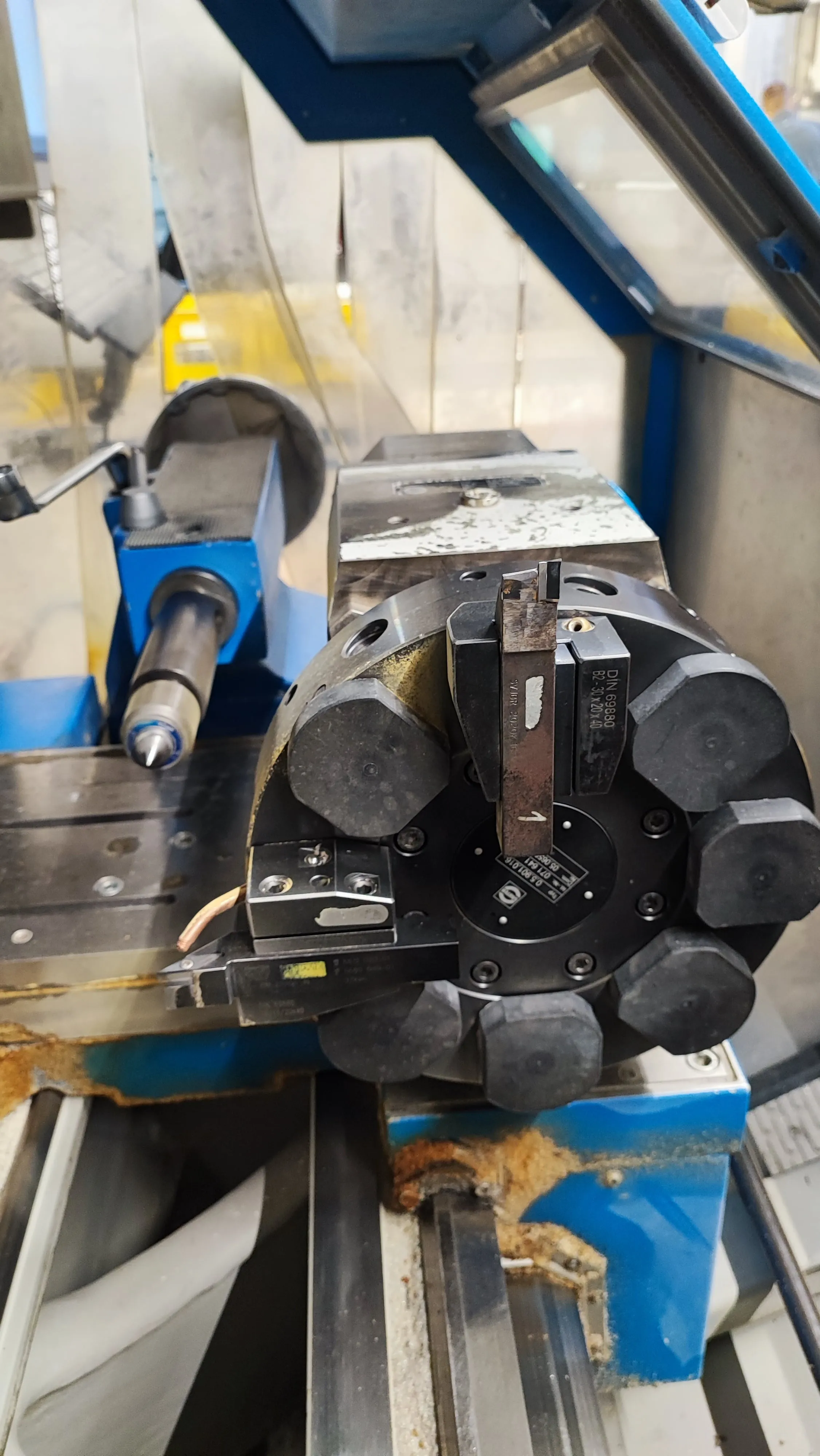

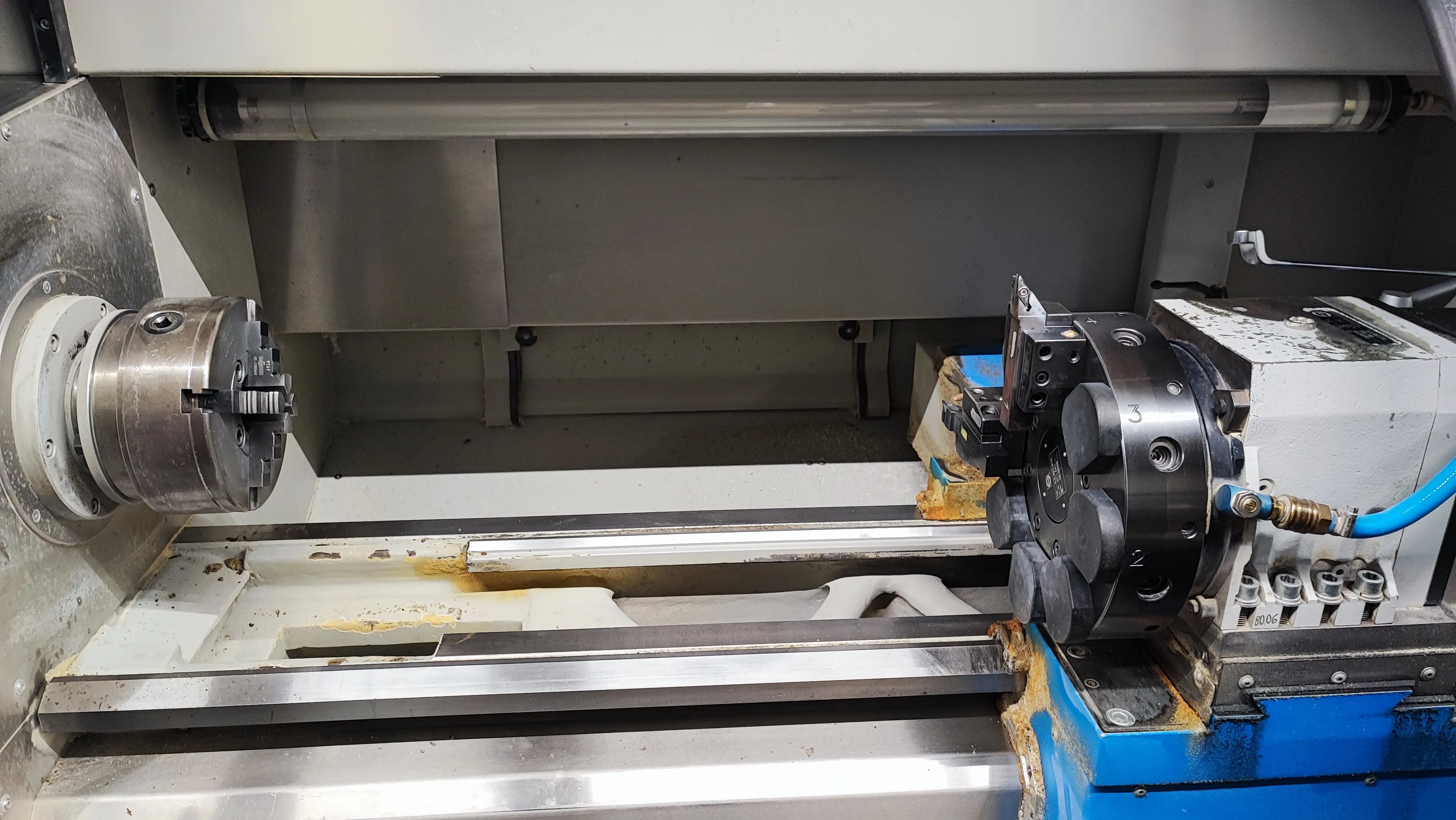

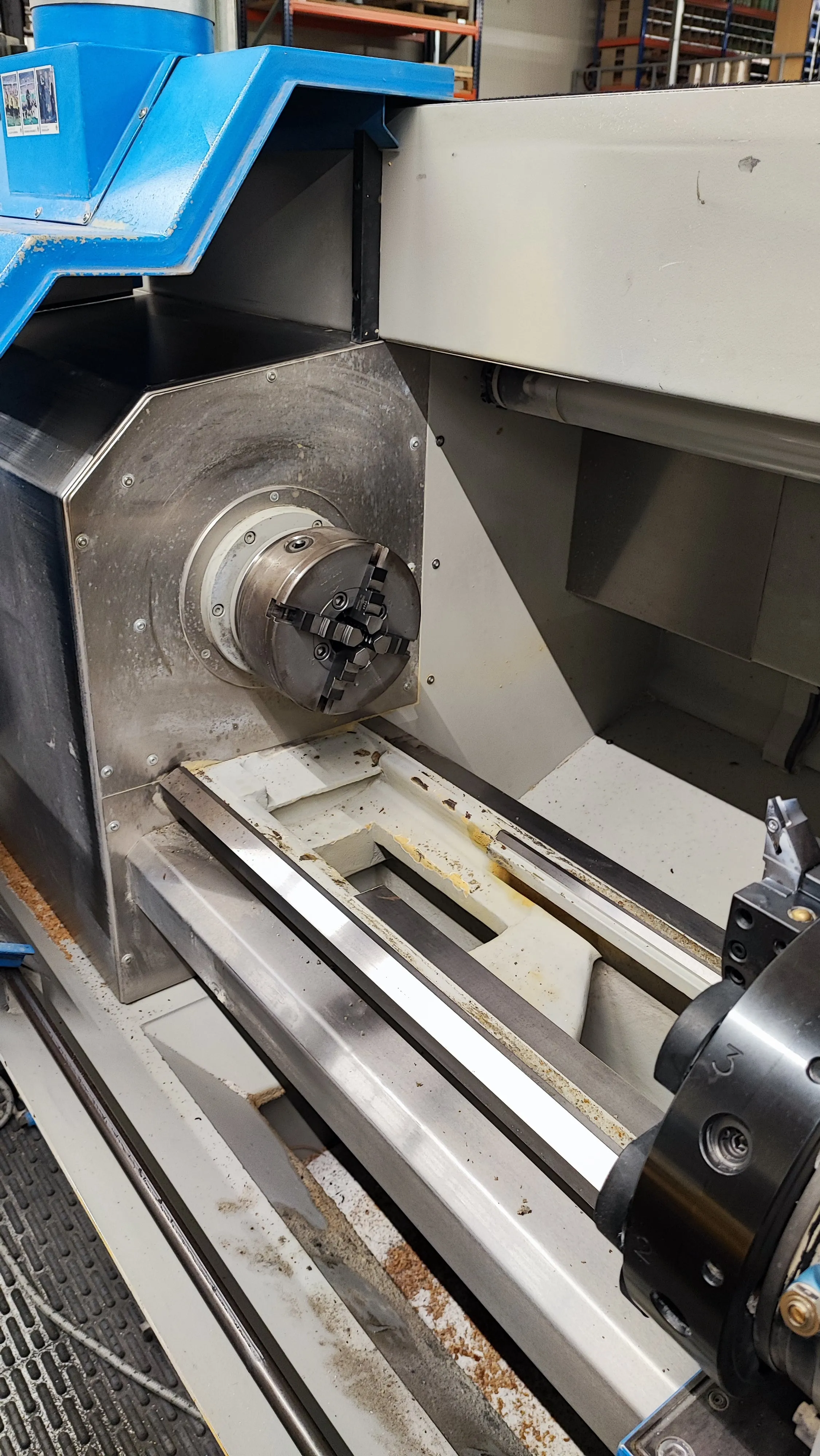

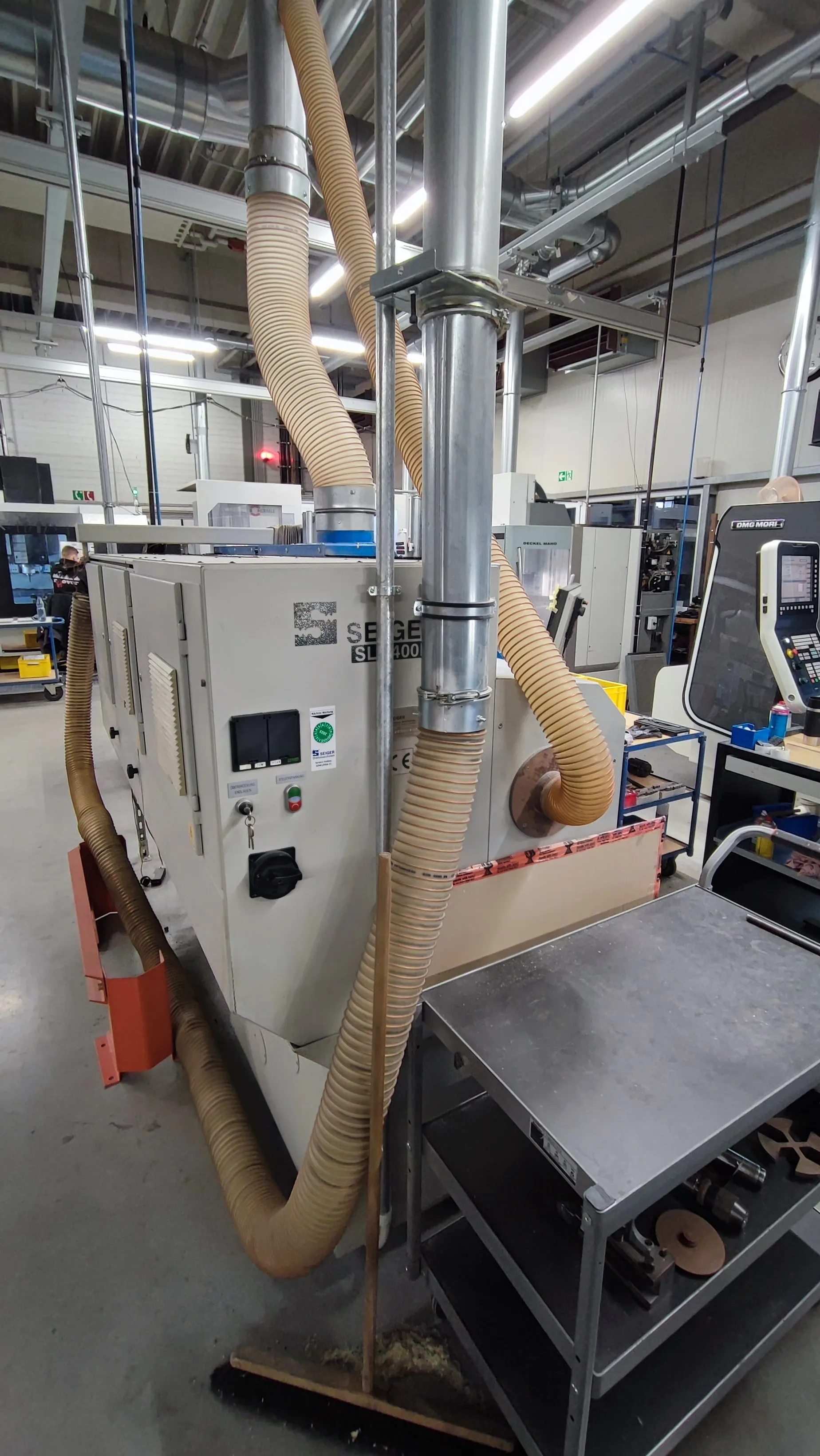

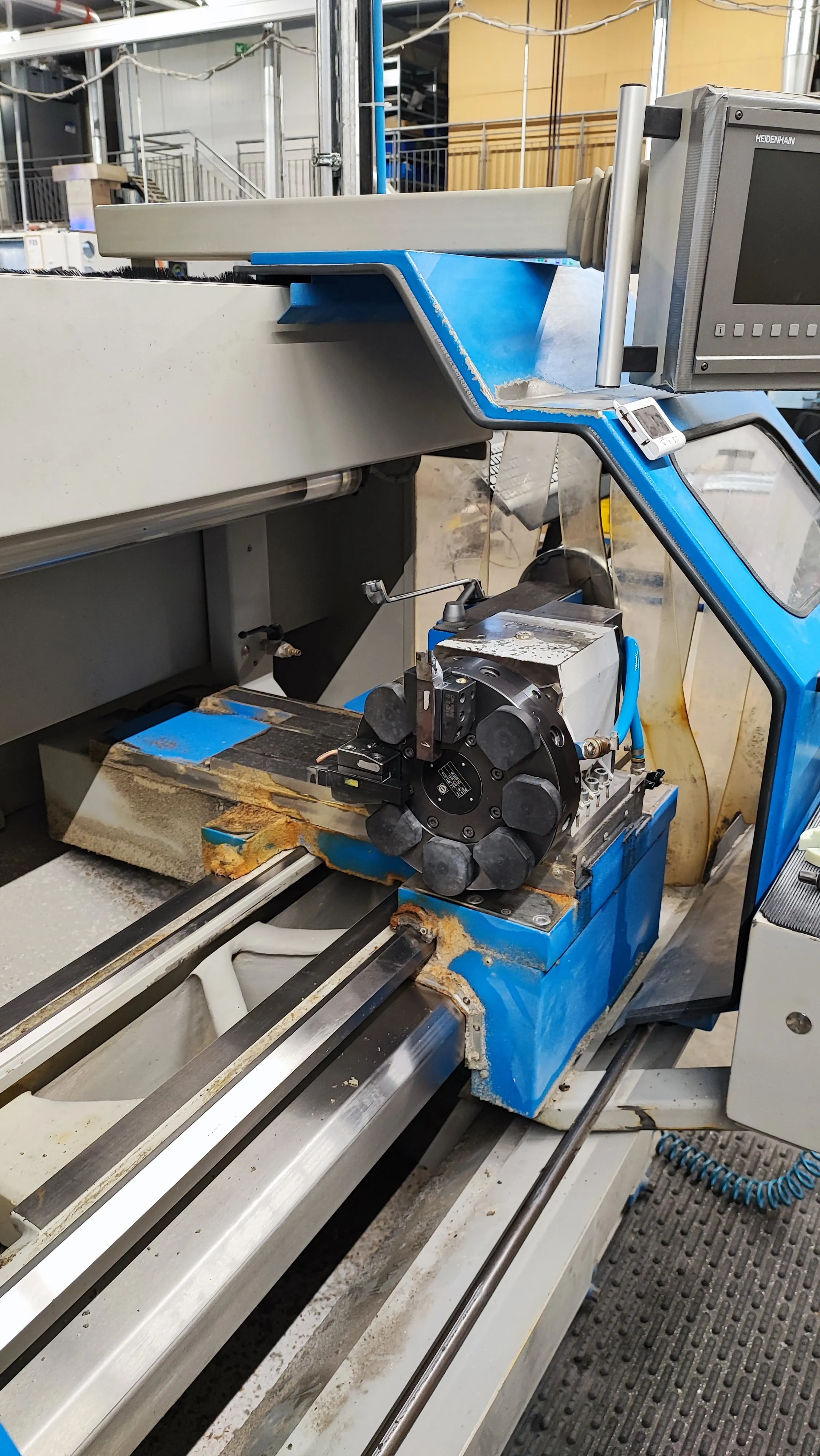

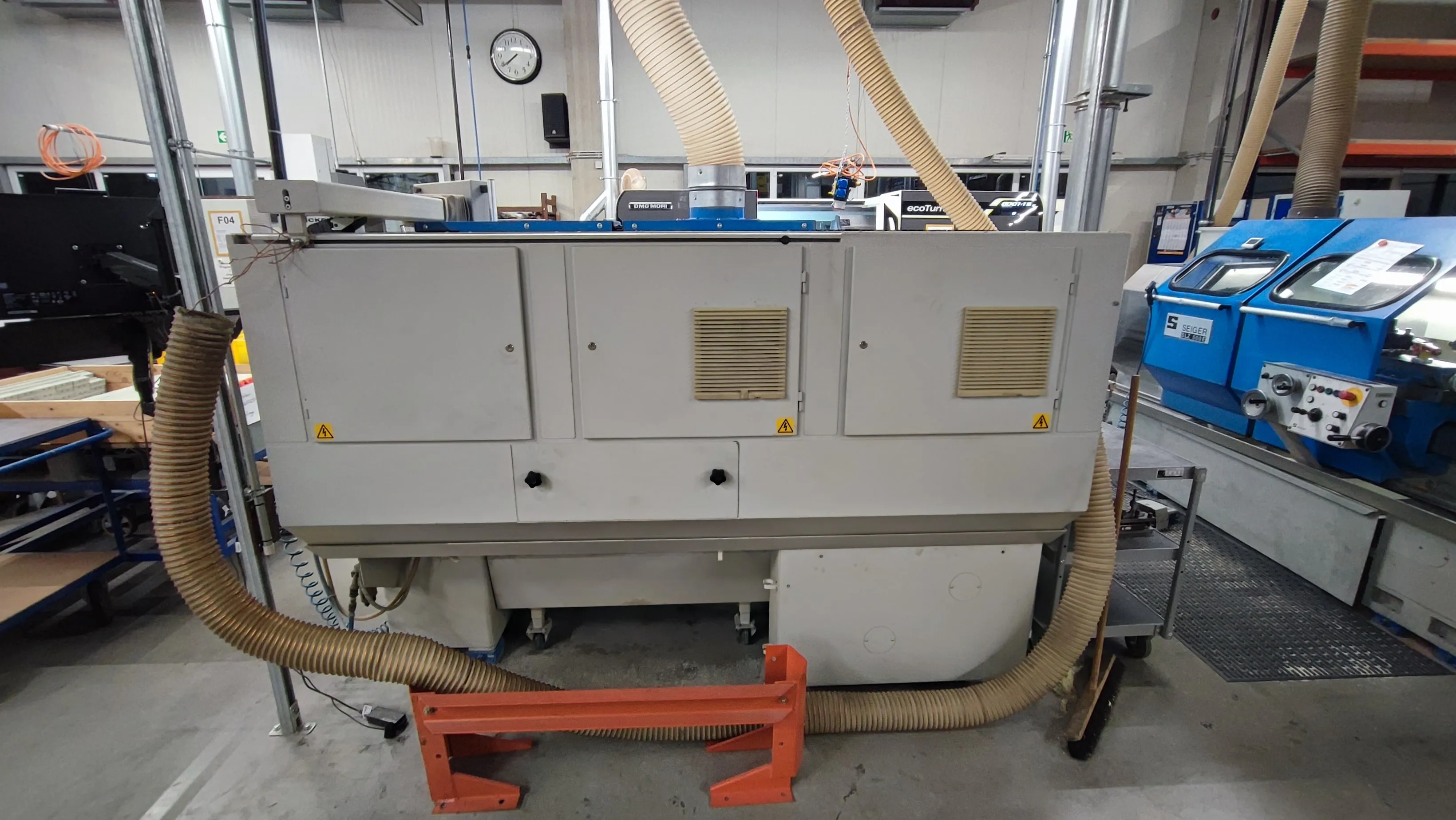

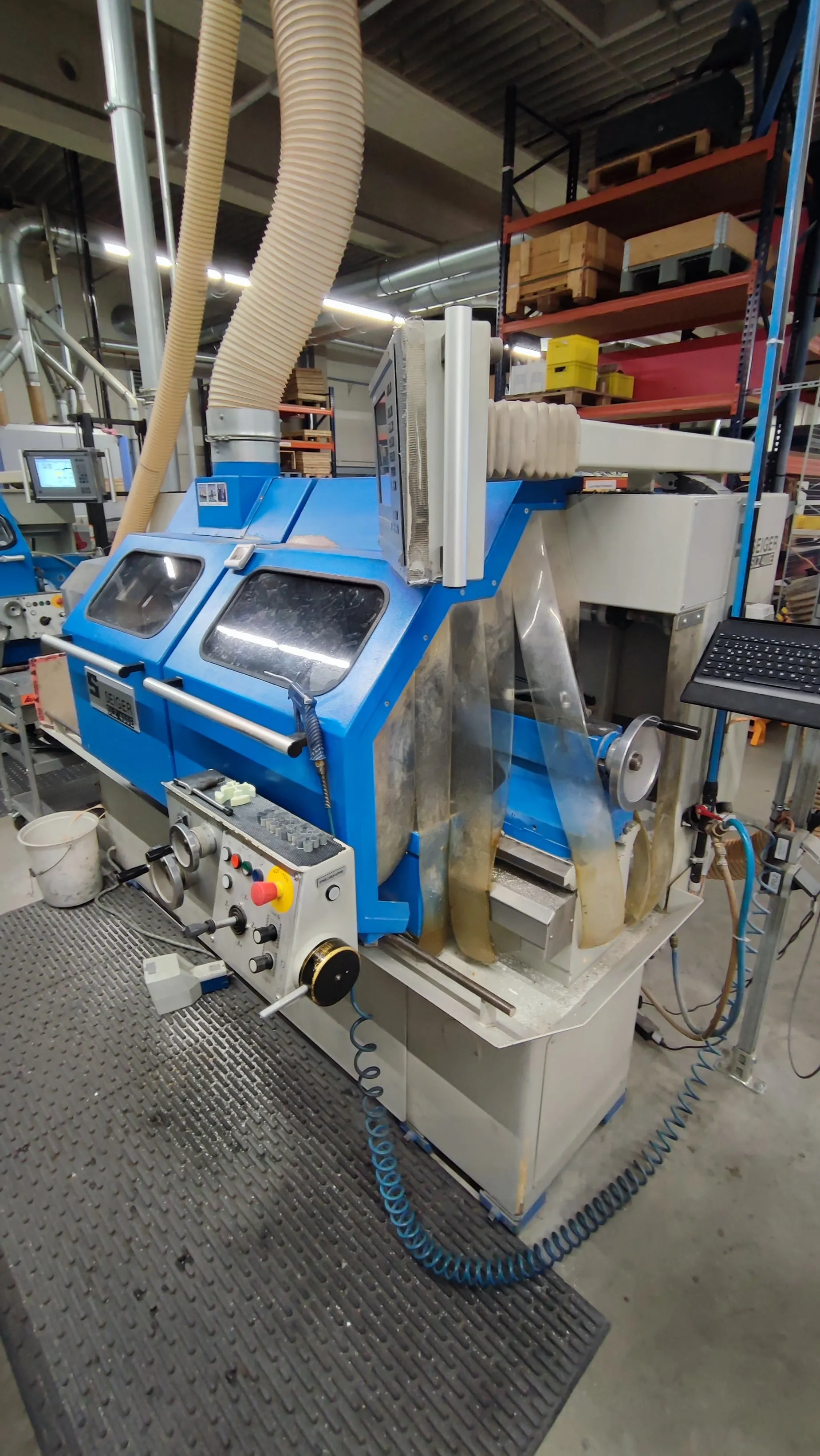

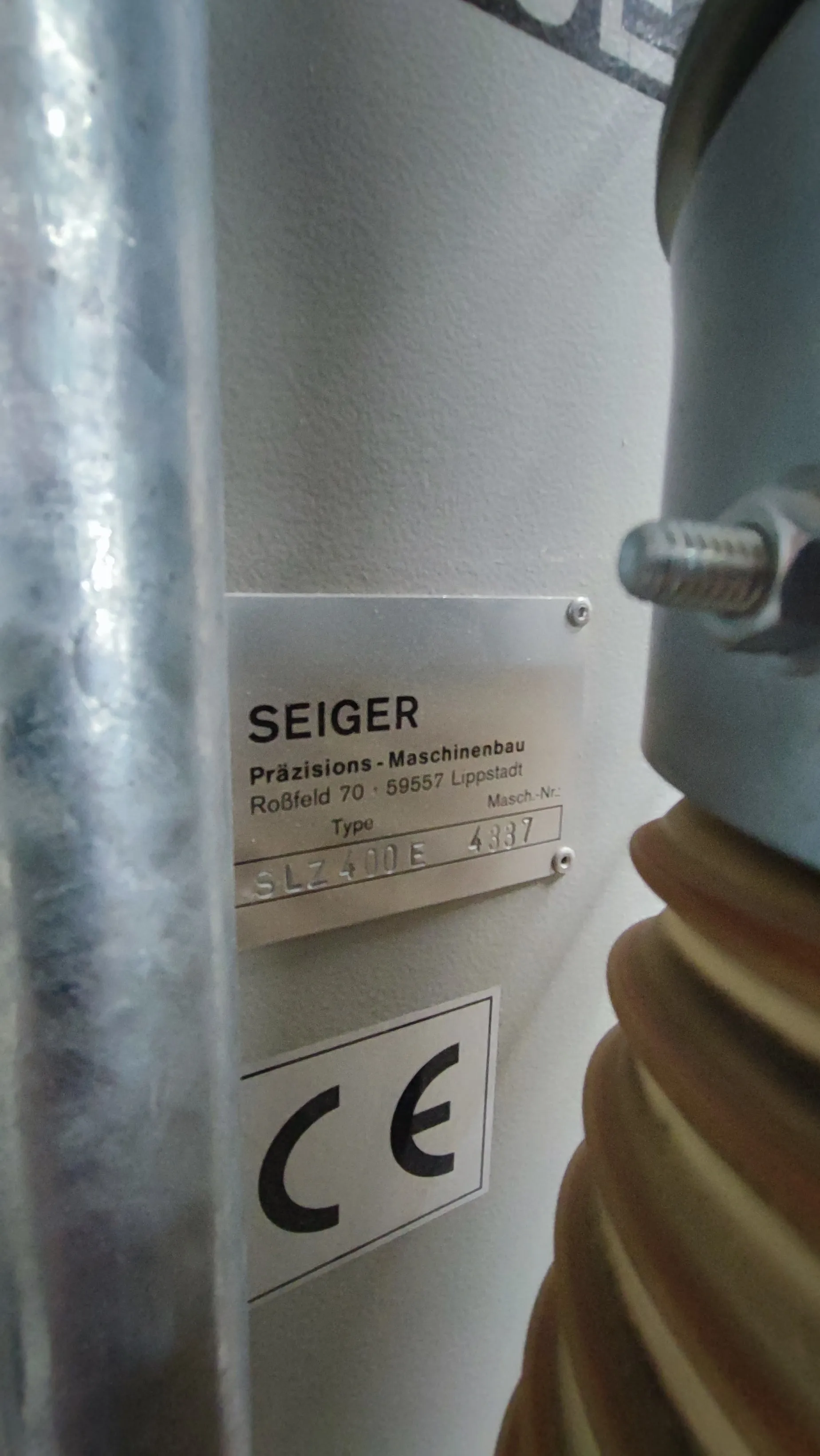

Seiger SLZ 400E cycle lathe
Year of construction: 2005
Circulation diameter max. over bed 410 mm
Circulating diameter max. over face slide 210 mm
Turning length 1000 mm
x-axis 300 mm
z-axis 100 mm
Control HDH Manual Plus 4110
Spindle bore 55 mm
Spindle speed 1-4000 rpm
Feed x: 10 m/min
Feed y: 7 m/min
Total power requirement approx. 16 kW
Machine weight approx. 2.4 t
Dimensions machine approx. LxWxH 2,600 x1,600 x 1,900 mm
