Description

Guide and tension spindle circuit

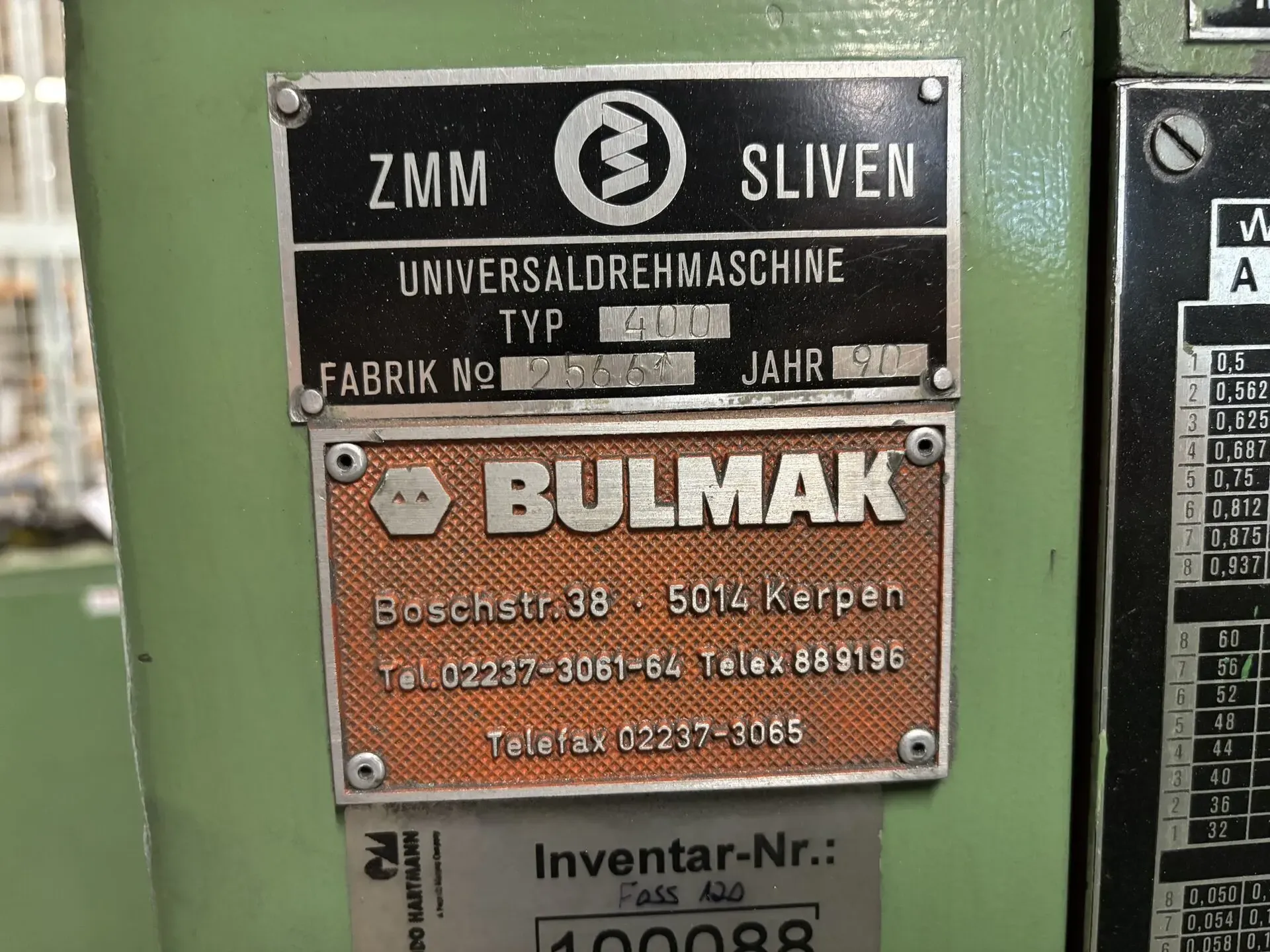

• manufacturer: Zmm
• Type: Cu 400
• year of construction: 1990
• manufacturing number: 2566
• Spindle speed: 20 - 2000 u/min
• Spindle passage: approx. 63 mm
• peak length: approx. 1000 mm
• lace height about bed: 200 mm
• rotary diameter via bed: approx. 400 mm
• peak over support: approx. 150 mm
• rotary diameter via support: approx. 300 mm
• The machine is equipped with a riding dock, a multifix steel holder and a triple baking lining
• diameter: 250 mm
• also 2 bezels
• bezel diameter: approx. 120 mm
• also another four -baked feed
• diameter: 250 mm
• and a plan plate from the manufacturer Röhm
• diameter: 300 mm
• Total weight: approx. 1,500 kg
• Dimensions total: 2,500 x 900 mm

The machine is sold in the course of an industrial auction.

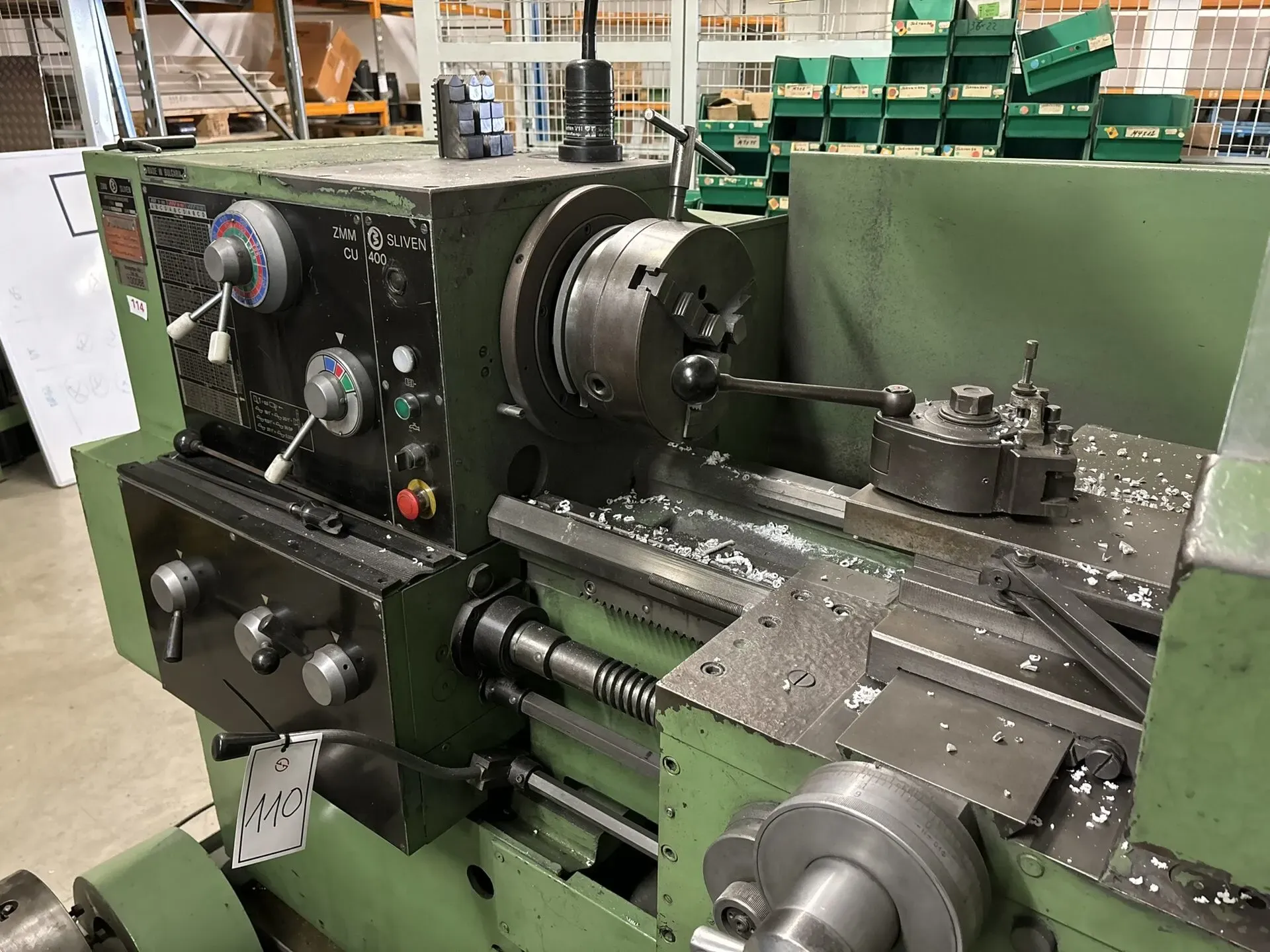

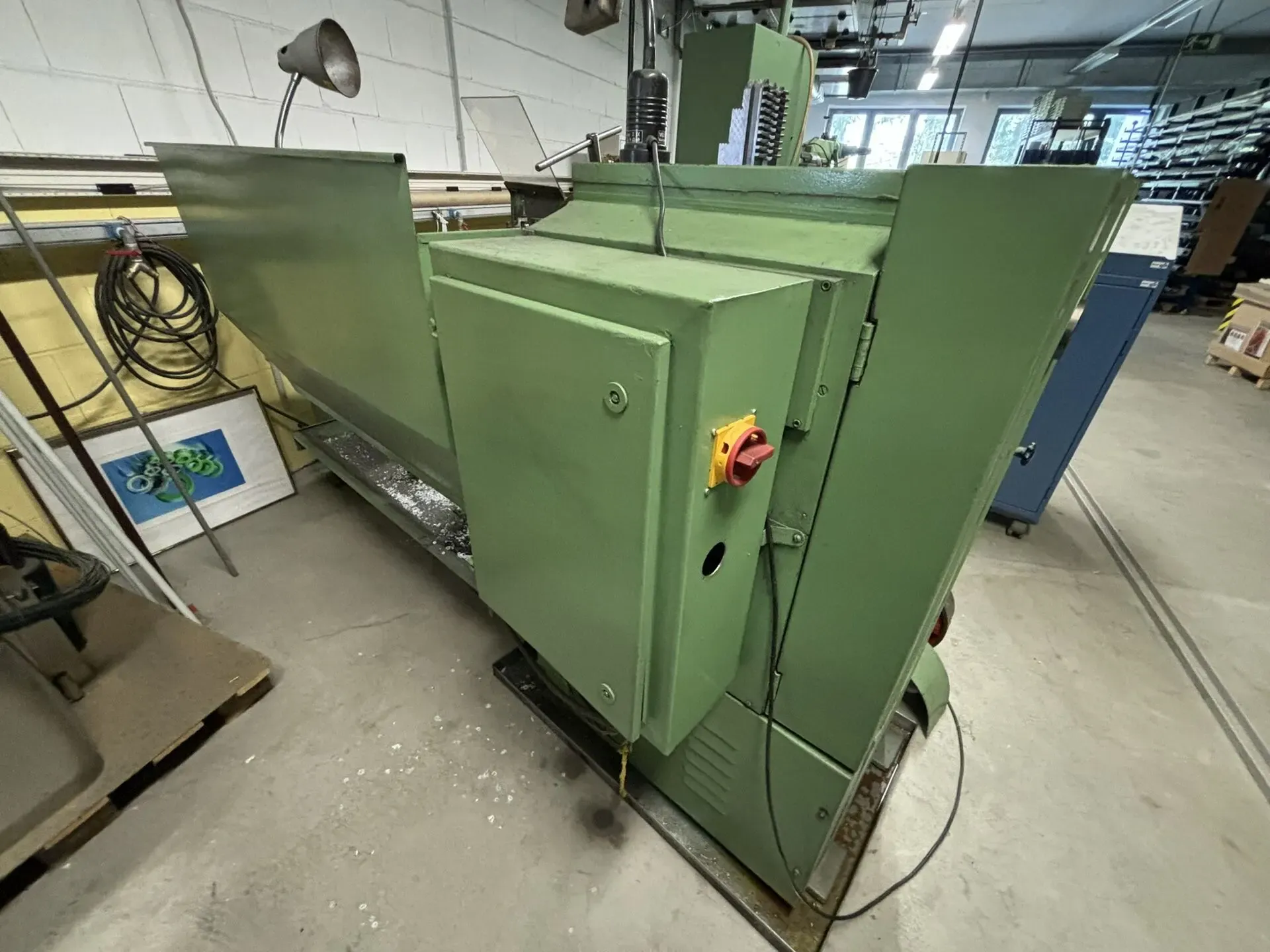

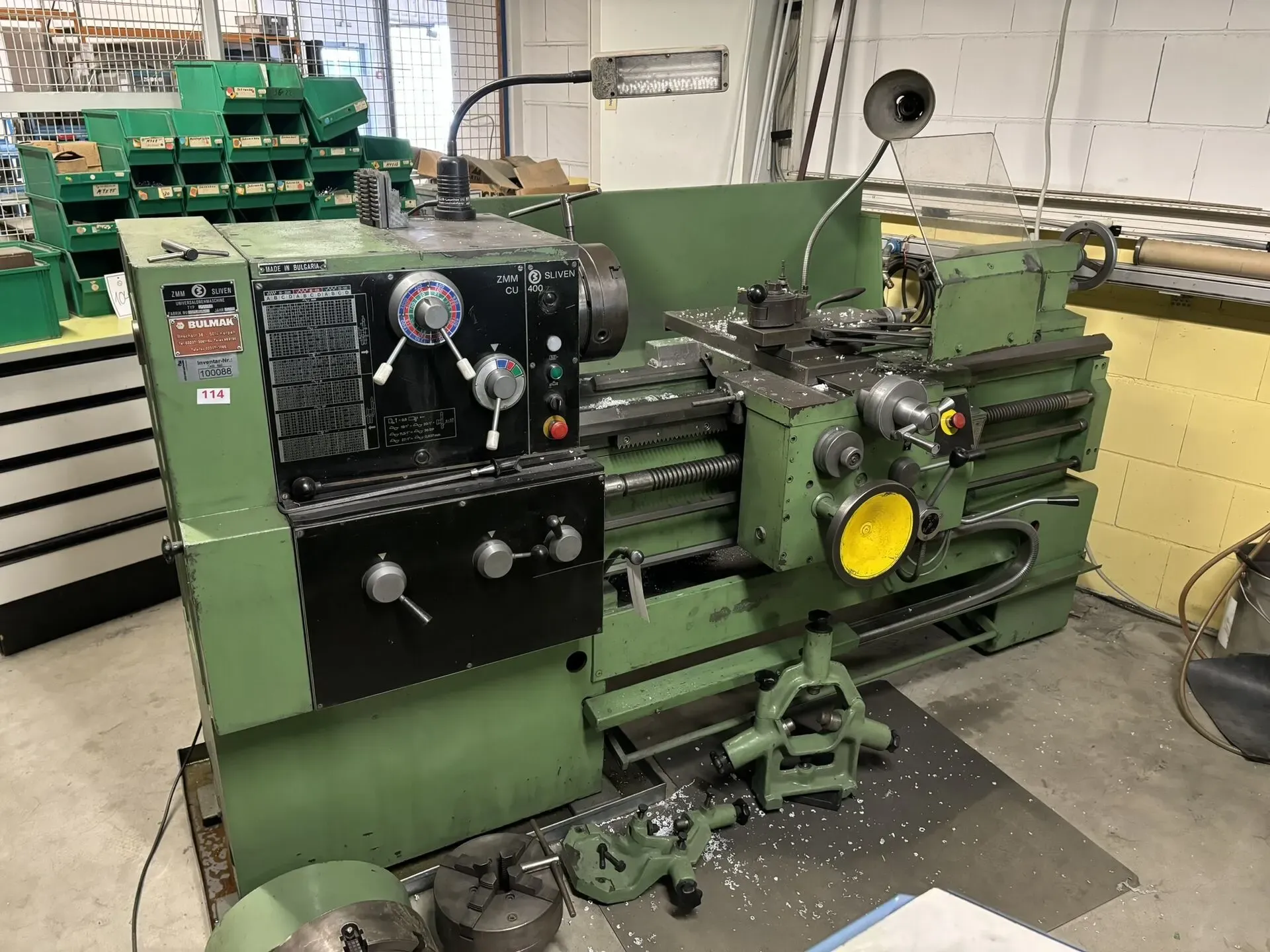

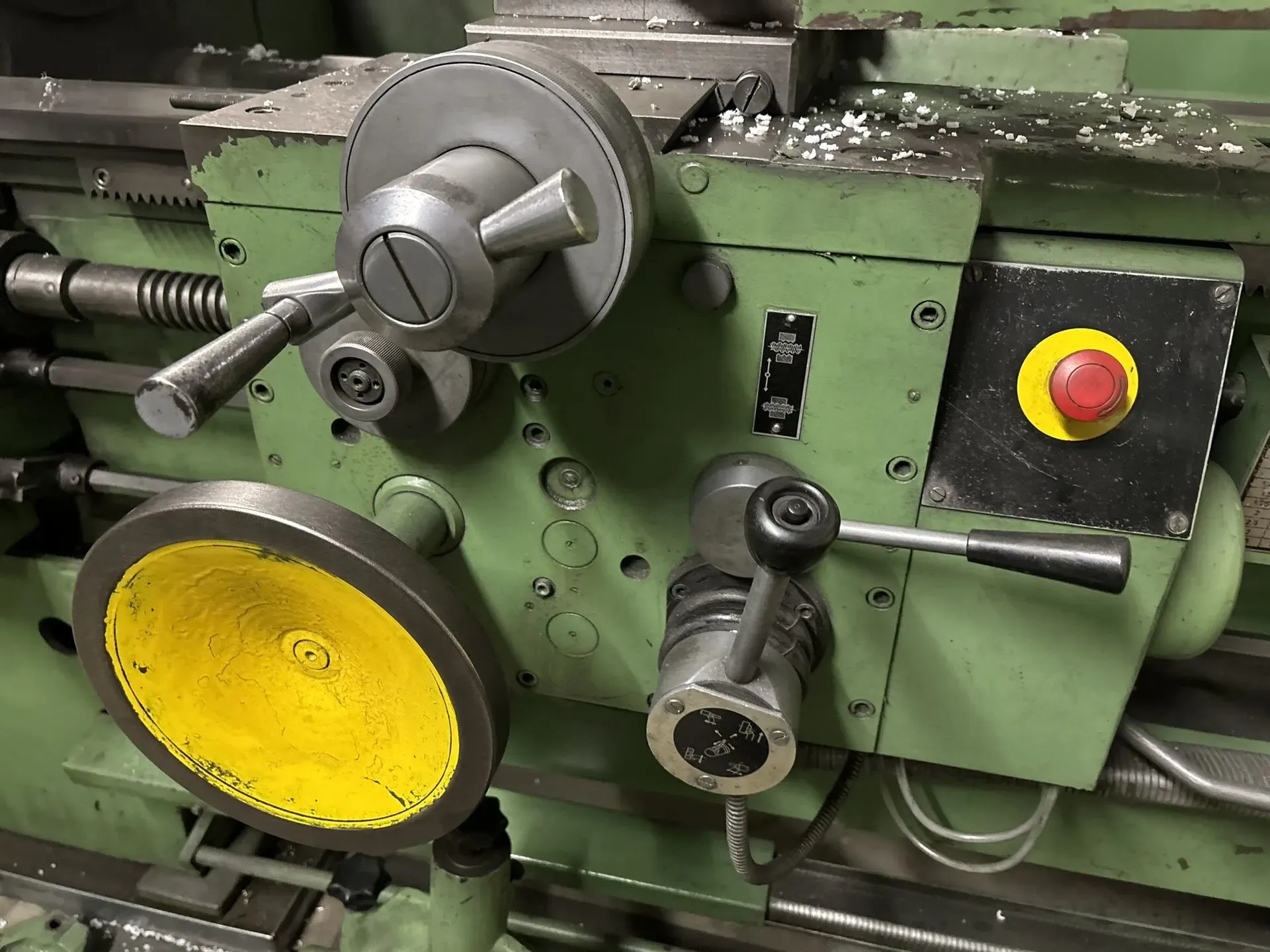

Here is the machine:
