Description

I - steel - flat 120 x 30 (d600) mm
I-steel - upright 100 x 20 (d2100) mm
Angle steel 80x80x8 (d2000) mm
Solid material - diameter 60 (d1000) mm
Pipe diameter 100 x 3 (d3000) mm
Square material 50x25x2 (d600) mm
Total power requirement 5.5 kW
Machine weight approx. 1500 kg
Space requirement approx. 1240 x 1375 x 1540 mm
I - steel - flat 120 x 30 (d600) mm
I-steel - upright 100 x 20 (d2100) mm
Angle steel 80x80x8 (d2000) mm
Solid material - diameter 60 (d1000) mm
Pipe diameter 100 x 3 (d3000) mm
Square material 50x25x2 (d600) mm
Total power requirement 5.5 kW
Machine weight approx. 1500 kg
Space requirement approx. 1240 x 1375 x 1540 mm
I - steel - flat 120 x 30 (d600) mm
I-steel - upright 100 x 20 (d2100) mm
Angle steel 80x80x8 (d2000) mm
Solid material - diameter 60 (d1000) mm
Tube diameter 100 x 3 (d3000) mm
Square material 50x25x2 (d600) mm
Total power requirement 5.5 kW
Machine weight approx. 1500 kg
Space requirement approx. 1240 x 1375 x 1540 mm
I - steel - flat 120 x 30 (d600) mm
I-steel - upright 100 x 20 (d2100) mm
Angle steel 80x80x8 (d2000) mm
Solid material - diameter 60 (d1000) mm
Pipe diameter 100 x 3 (d3000) mm
Square material 50x25x2 (d600) mm
Total power requirement 5.5 kW
Machine weight approx. 1500 kg
Space requirements approx. 1240 x 1375 x 1540 mm
I - steel - flat 120 x 30 (d600) mm
I-steel - upright 100 x 20 (d2100) mm
Angle steel 80x80x8 (d2000) mm
Solid material - diameter 60 (d1000) mm
Tube diameter 100 x 3 (d3000) mm
Square material 50x25x2 (d600) mm
Total power requirement 5.5 kW
Machine weight approx. 1500 kg

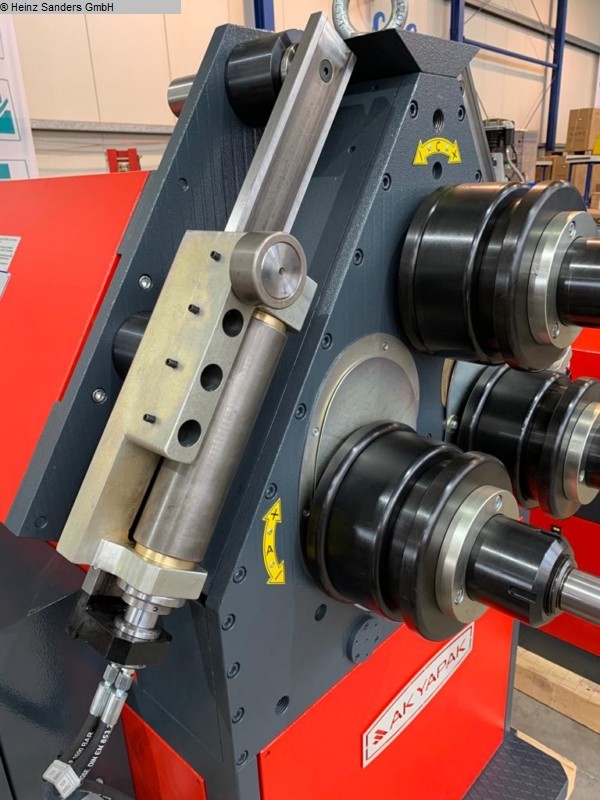

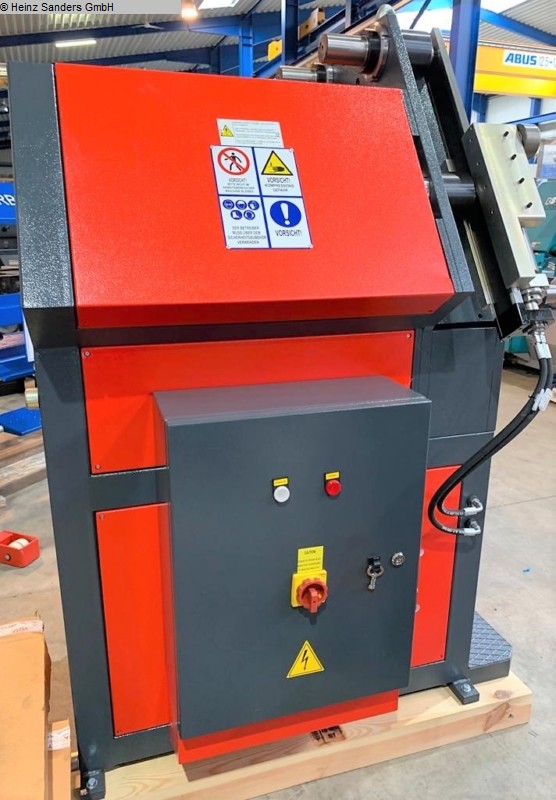

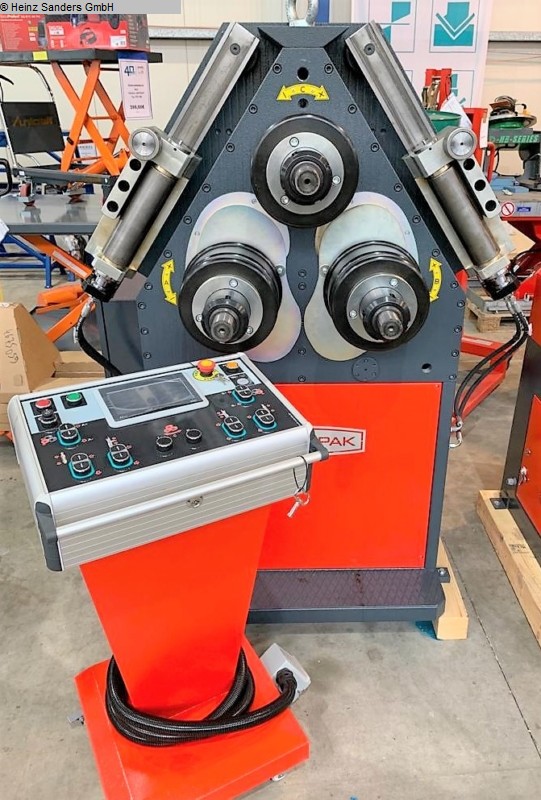

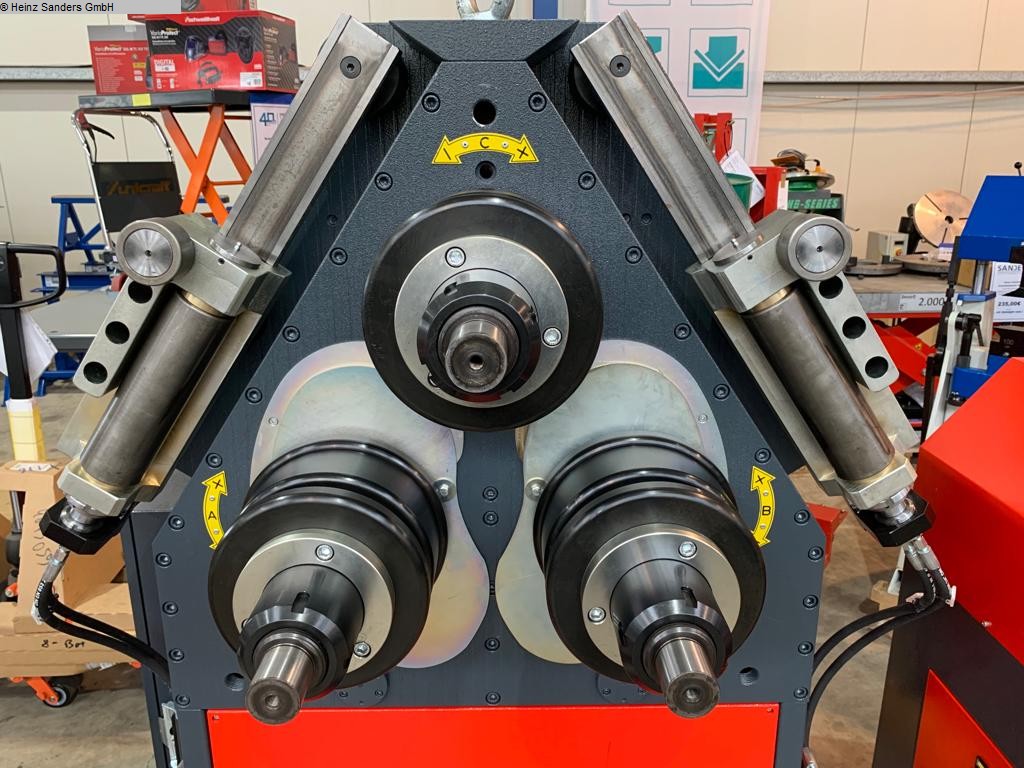

Equipment: - hydr. roller drive - Planetary gear delivery of the 2 lower rollers - for extra small bending radii - hardened tool holder (42CrMo4) - Standard roller set, hardened - hydraulically adjustable side straightening rollers - mobile control panel - 3 powered rollers - Digital display - Machine can be used horizontally and vertically - CE mark / declaration of conformity - Instruction manual in German Special accessories included in the price: - hydraulic side roller adjustment
