Description

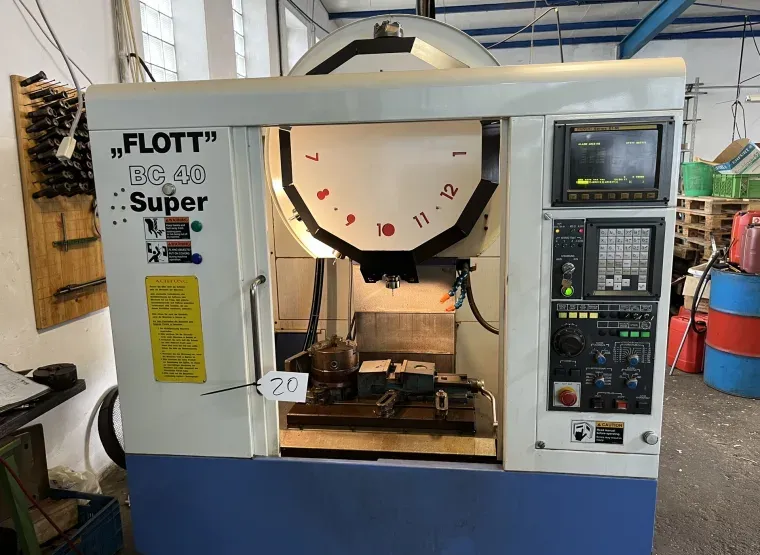

vertical processing center

• manufacturer: Kira
• Type: BC40 Super/VTC-40S
• year of construction: 1998

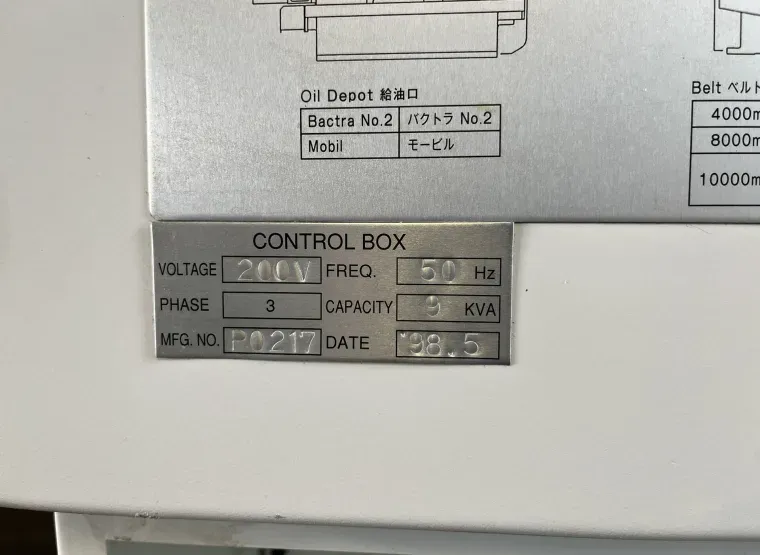

• manufacturing number: P0217
• travels:
• x: 540 mm
• y: 340 mm
• z: 315 mm
• distance spindle nose to table: 135 to 450 mm
• table dimensions: 600 x 380 mm
• max. Table load: 200 kg

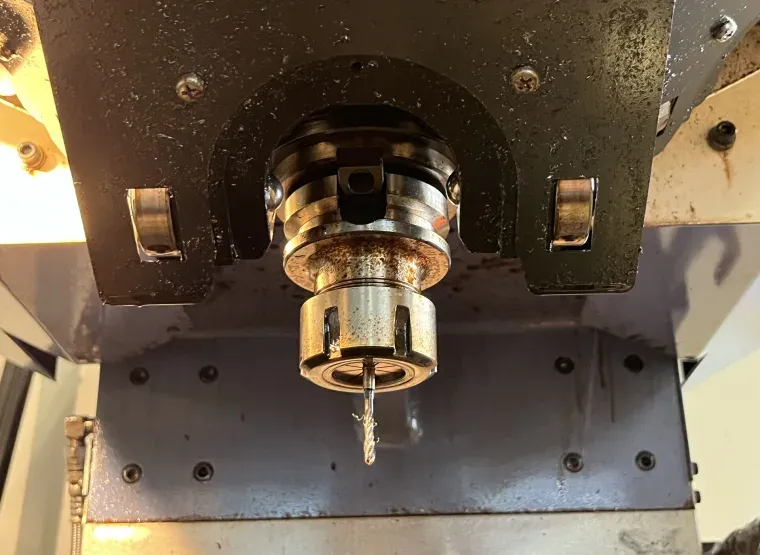

• spindle recording: Taper No. 40
• max. Tool diameter: 100 mm
• max. Tool length: 250 mm
• max. Tool weight: 4 kg
• Number of tool spots: 12

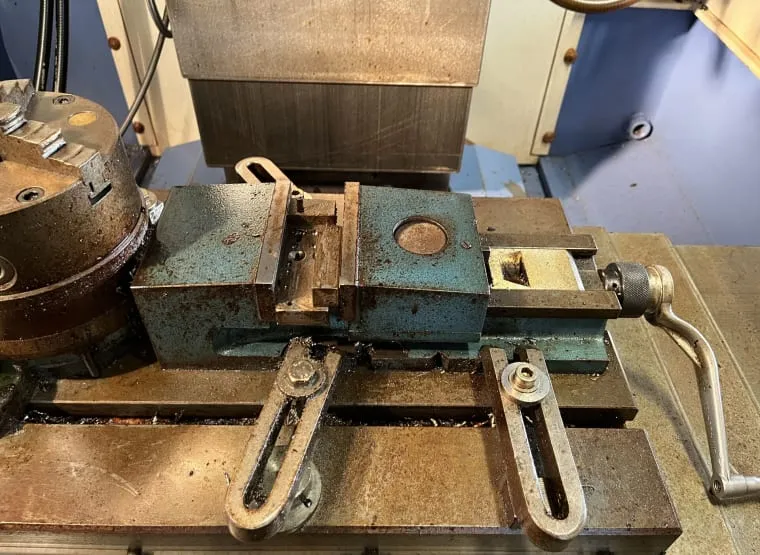

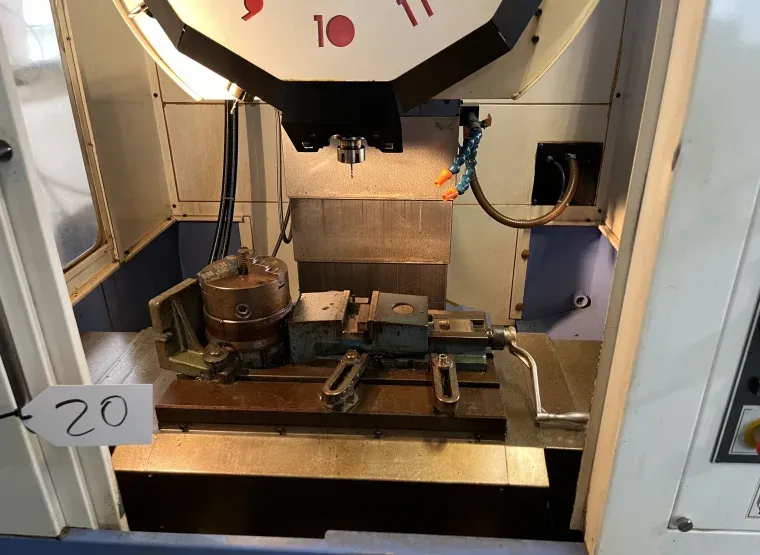

• Accessories: a machine vice (baking width: approx. 125 mm), a triple chuck (diameter: approx. 160 mm) (swiveling)

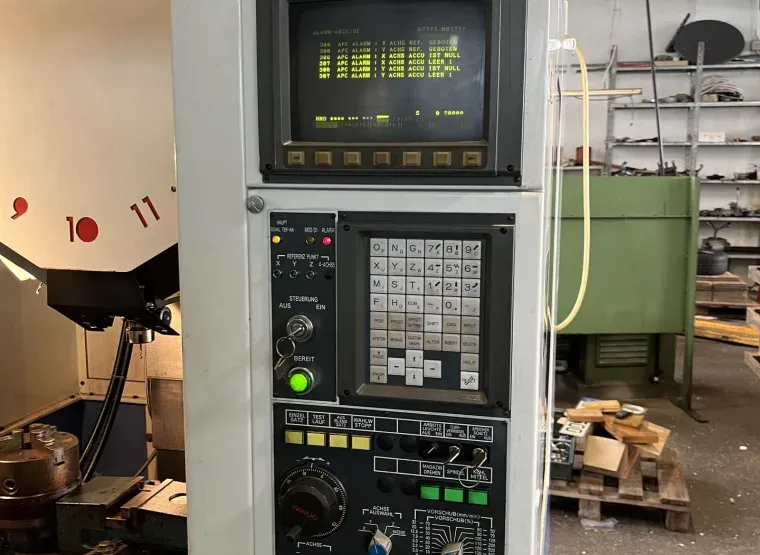

• Control: Fanuc Series 21-m
• with technical documentation as shown in the pictures for further technical data see images
• Dimensions Total: 2,100 x 1,450 x 2,000 mm
• Total weight: approx. 4,500 kg

The machine is sold in the course of an industrial auction.
