Description

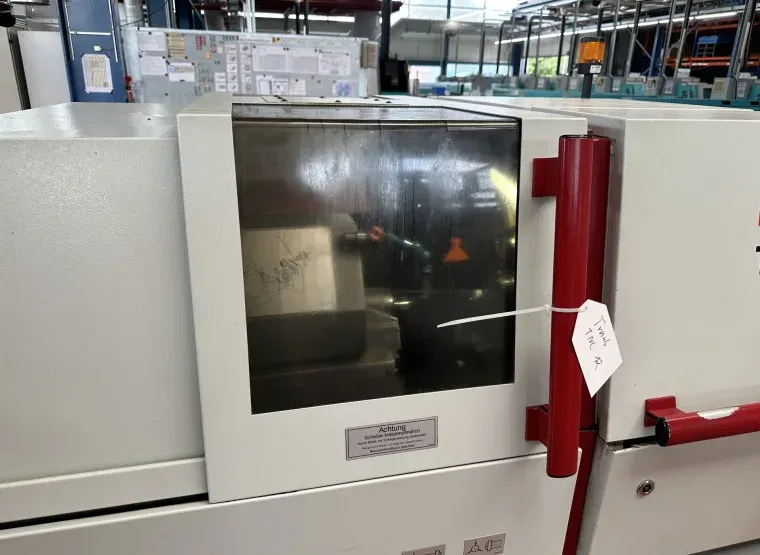

CNC lathe

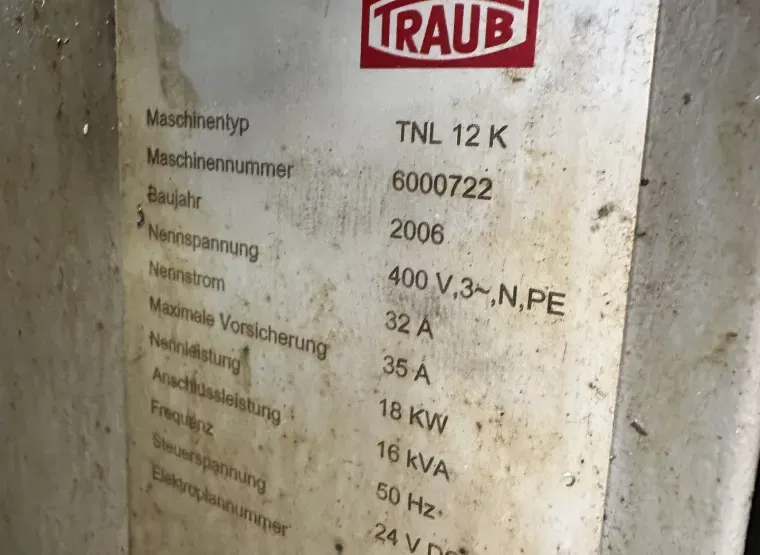

• Manufacturer: TRAUB
• Type: TNL 12 K
• Year of construction: 2006
• Serial number: 6000722
• Operating voltage: 400
• Frequency: 50 Hz
• Rated current: 32 A
• Connection: 18 kVA
• Control: TRAUB TX 8i
• Max. Bar diameter: 12.7 mm

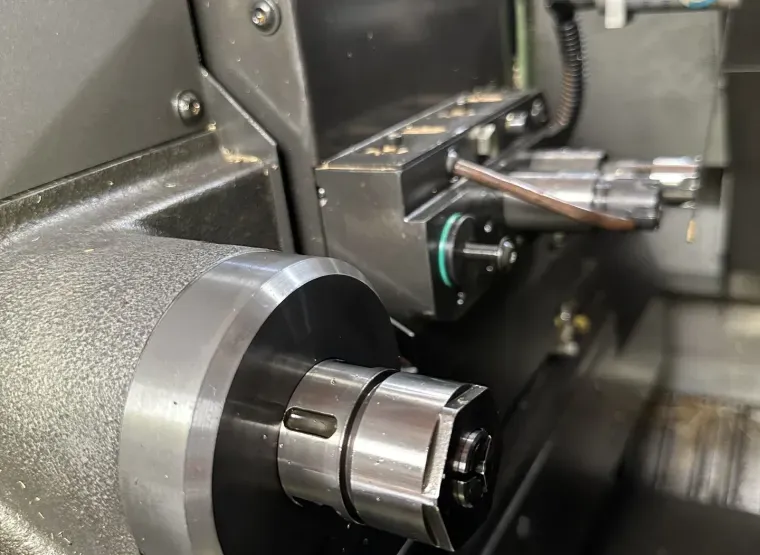

• Spindle bearing diameter: 35 mm
• Max. Turning length/headstock stroke: 50 mm
• Spindle speeds: 0 - 12000 rpm
• C-axis electrical resolution: 0.001°
• C axis speed: 0 - 100/min
• C-axis torque: max. 6.9 Nm
• Feed force Z1: 3200 N
• Rapid traverse Z1: 15 m/min
• Web speed Z1: 10 m/min
• Ball screw diameter x pitch Z1: 16 x 5 mm
• Travel X1: 35 mm
• Travel path Y1: 37.5 mm
• Rapid traverse X1 and Y1: 15 m/min
• Line speed X1 and Y1: 7.5 m/min
• Feed force X1 and Y1: 2000 N
• Ball screw diameter x pitch: 16 x 5 mm

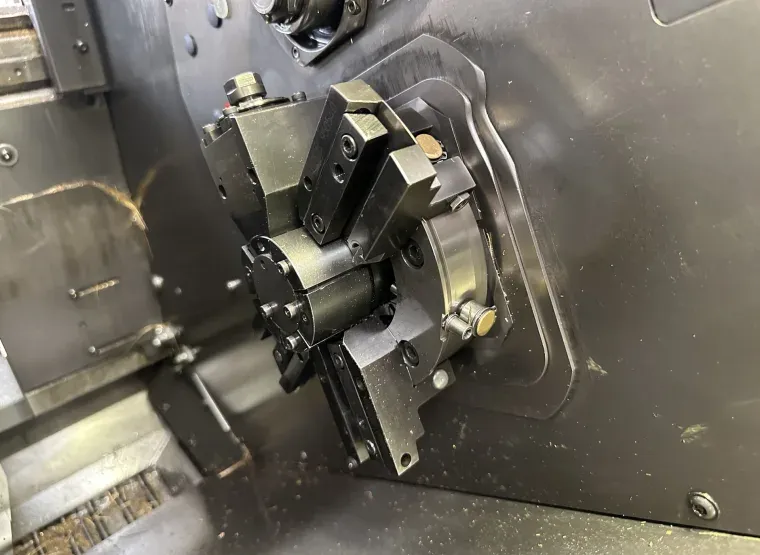

• Number of tool holders: 6
• Lathe tool cross section: 12 x 12 mm

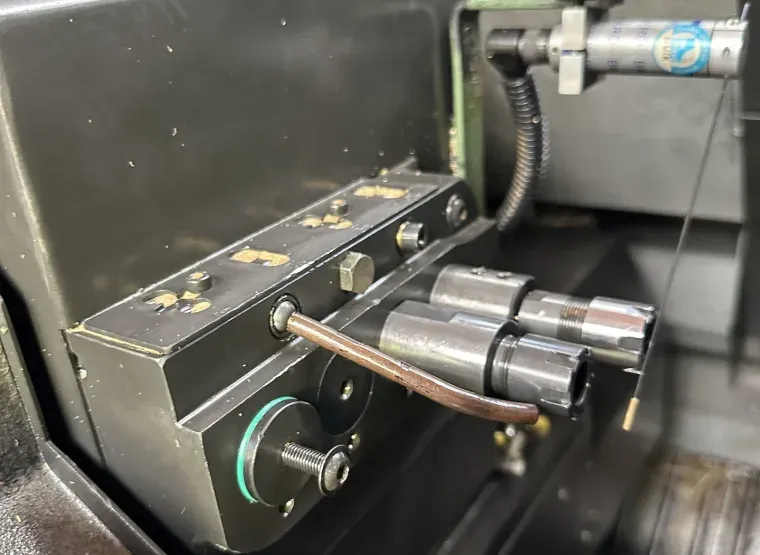

• Incl. driven tool stations
• Applicable tool holders: TRAUB
• Tool drive:
• Drive power: 0.9 kW
• Speed: 0 - 8000 rpm
• Max. Number of tool holders: 6

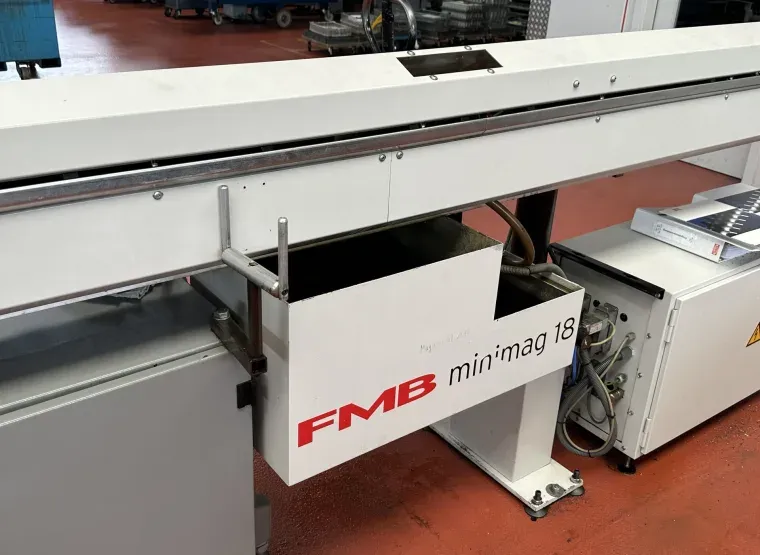

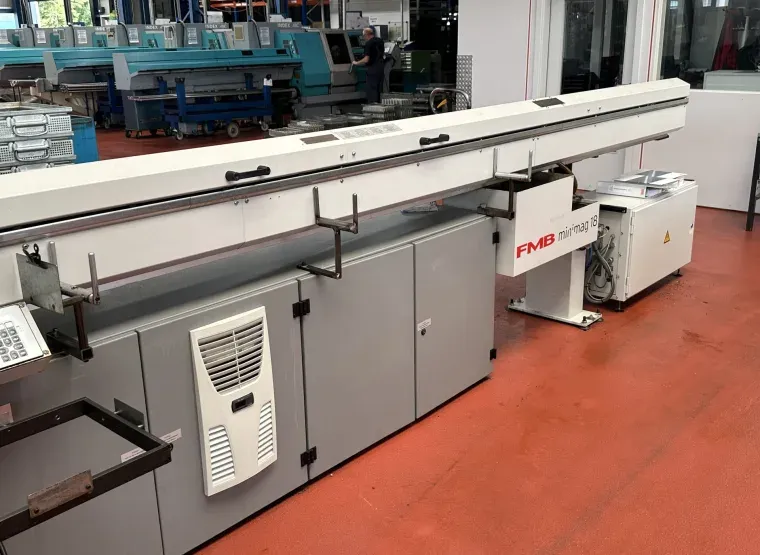

• Incl. Bar loader from the manufacturer FMB
• Type: MINIMAG 18
• Incl. Belt filter system from the manufacturer RESY and a KNOLL chip conveyor

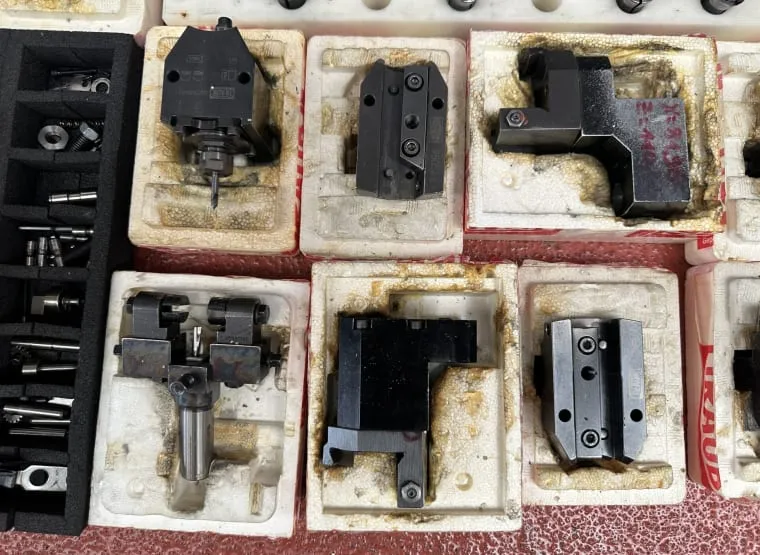

• In addition, various accessories suitable for the machine such as tool holders, driven tool holders, collets and a digital height gauge
• Serial number: 6000722
• Control: TRAUB TX 8i
• Number of tool slots: 6
• Speed range: 8,000 1/min
• Total dimensions: 10,000 x 1,500 x 1,600 mm
• Total weight: approx. 3,000 kg

The machine will be sold at an industrial auction.
