Description

CNC vertical machining center

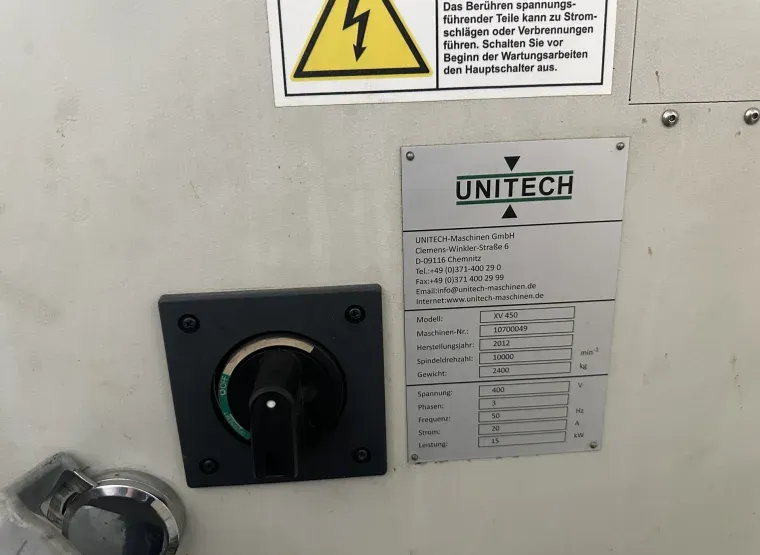

• Manufacturer: UNITECH
• Type: XV 450
• Year of construction: 2012
• Machine number: 10700049
• Operating voltage: 400 V
• Frequency: 50 Hz
• Rated current: 20 A
• Connection: 15 kV

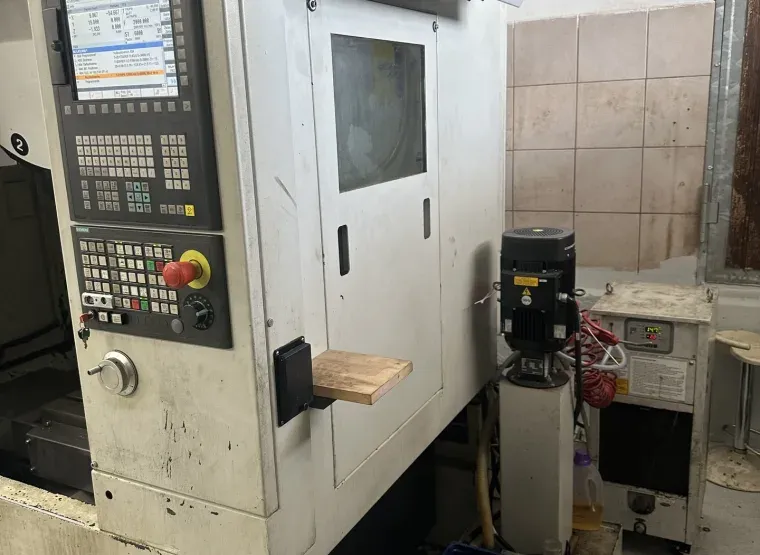

• Control: SIEMENS SINUMERIK 828 D
• Spindle speed: 10000 rpm
• Tool holder: SK 30

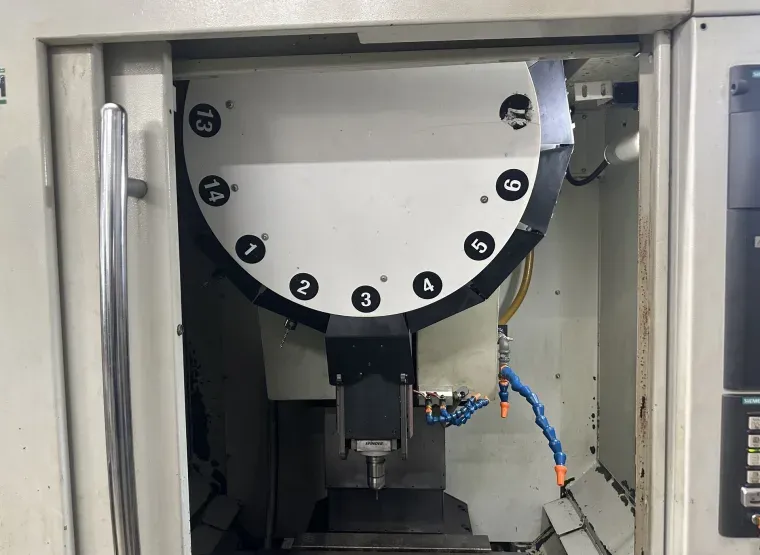

• With a 14-fold tool changer

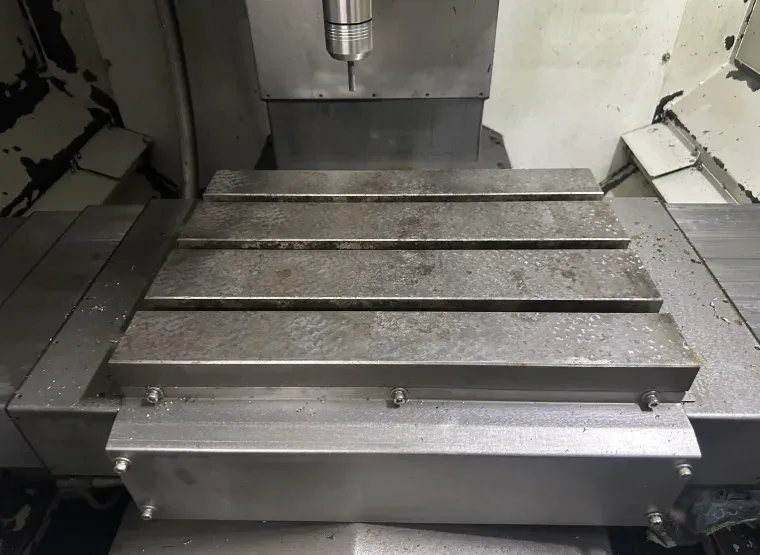

• Table dimensions: 500 x 350 mm
• With 3 grooves
• Spindle speeds: 12000 rpm
• Tool holder: BT 30
• Spindle cooling unit: IKZ 25 bar
• Travel paths:
• X: 450 mm
• Y: 300mm
• Z: 320 mm
• Table clamping area: 450 x 300 mm
• Table load: 150 kg
• Distance of T-slots: 100 mm
• Working feed range: 12000 mm/min
• Rapid traverse X-axis: 48 m/min
• Rapid traverse Y-axis: 48 m/min
• Rapid traverse Z-axis: 36 m/min
• Max. Tool diameter: 90 mm
• Max. Tool length: 200 mm
• Max. Tool weight: 3 kg
• Change time from chip to chip: 2.8 s

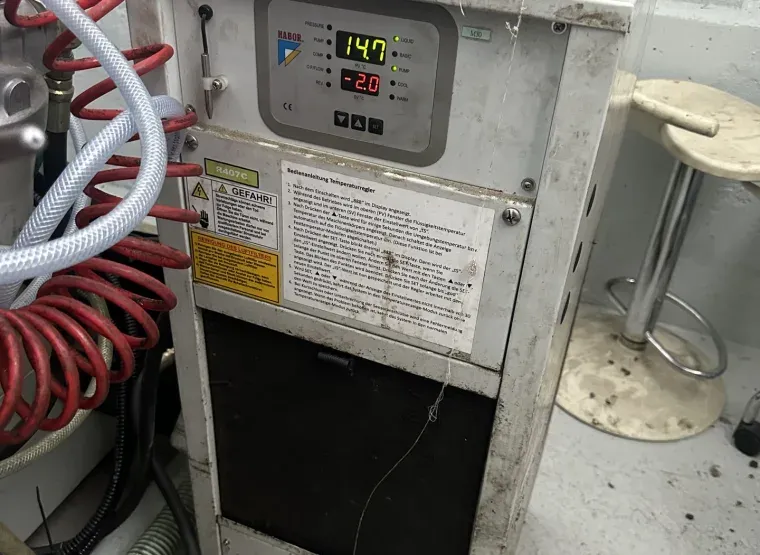

• Incl. a 20-fold lot of SK 30 tool holders as well as a coolant pump from the manufacturer GRUNDFOS and a cooling device
• Total dimensions: 2,300 x 1,700 x 2,400 mm
• Total weight: approx. 2,500 kg

The machine will be sold at an industrial auction.
