Description

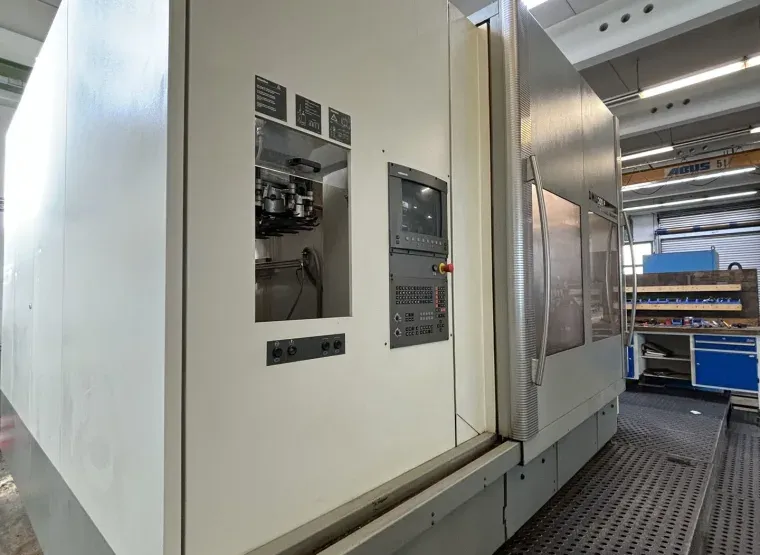

CNC 5-axis processing center

• manufacturer: Lid maho
• Type: DMU 200p
• year of construction: 2001

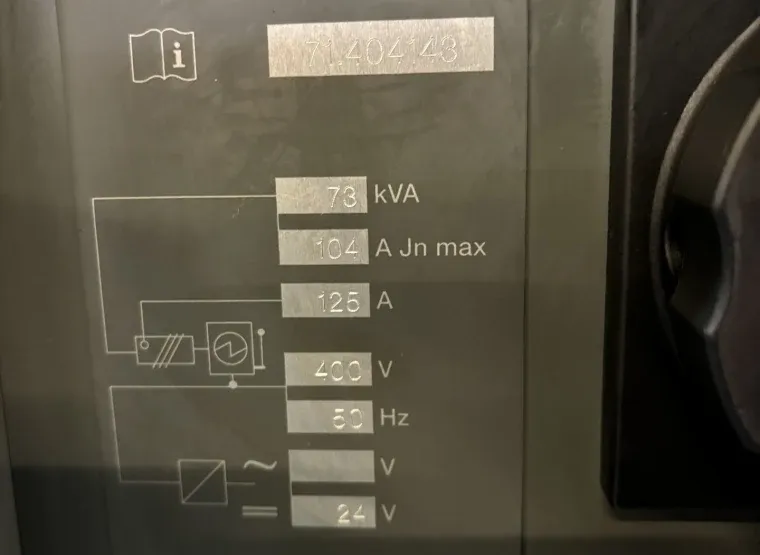

• machine number: 71.404143
• operating voltage: 400 V
• frequency: 50 Hz
• Connection: 73 KVA
• nominal current: 125 a
• Readed spindle lessons: 38916

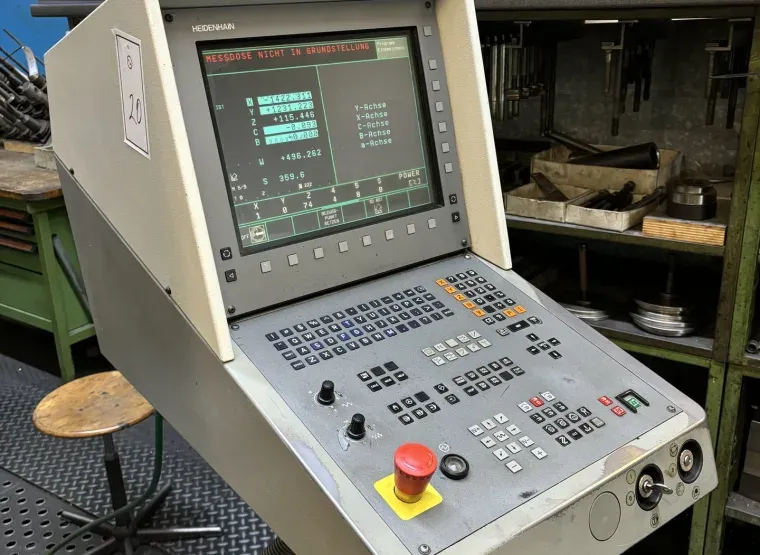

• Control: Heidenhain TNC 426
• travels:
• x: 1800 mm
• y: 2000 mm
• z: 1100 mm
• Tool recording: SK 50
• feed speed X, Y and Z axis: 20-10000 mm/min
• Rait X-axis: 60 m/min
• Rait y and z-axis: 40 m/min
• Facilities in X, Y and Z axis: 20-2000 mm/min
• Way measuring system:
• resolution X, Y and Z axis: 0.001 mm
• Input unit X, Y and Z axis: 0.001 mm
• position tolerance X, Y and Z axis: 0.010 mm
• The machine has a 60-time tool changer
• max. Tool diameter: 110 mm
• in free neighboring places: 230 mm
• max. Tool length from spindle nose without tool breakage monitoring: 450 mm
• with tool breakage monitoring: 385 mm
• max. Tool weight with automatic tool change: 20 kg
• max. Overall tool weight in the magazine: 400 kg

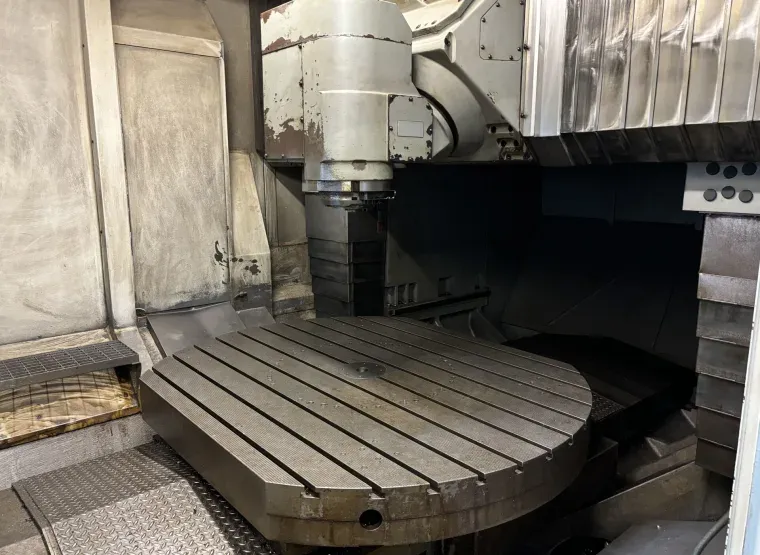

• incl. NC round table
• clamping surface: 1700 x 1400 mm
• distance of the T-grooves: 125 mm
• Number of the T-Nutens Richtnut in the middle: 1/18 pieces
• clamping grooves: 10/18 pieces
• centering bore diameter: 50 mm
• max. Revolation of the table top: 10 rpm
• feed: 3600 °/min

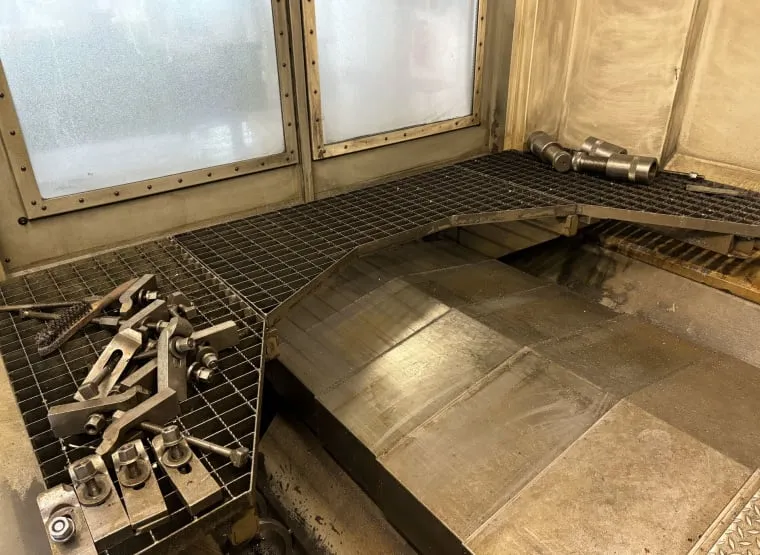

• incl. Various clamping systems, an electrical handwheel, a 3D measuring button from the Heidenhain manufacturer, a coolant system from the manufacturer Interlit and a larger item Documentation
• Attention: The machine can be transported on a low loader up to 3000 mm width and a standard truck
• Dimensions Total: 7,000 x 6,000 mm
• Total weight: approx. 35,000 kg

The machine is sold in the course of an industrial auction.
