Description

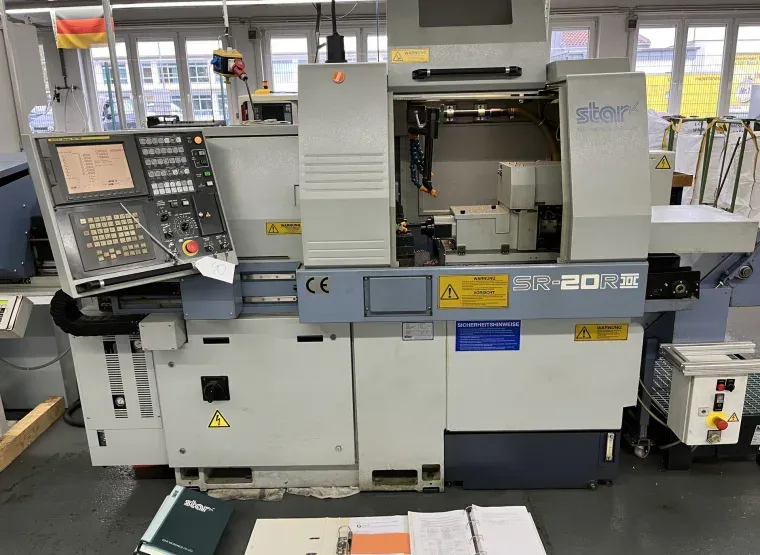

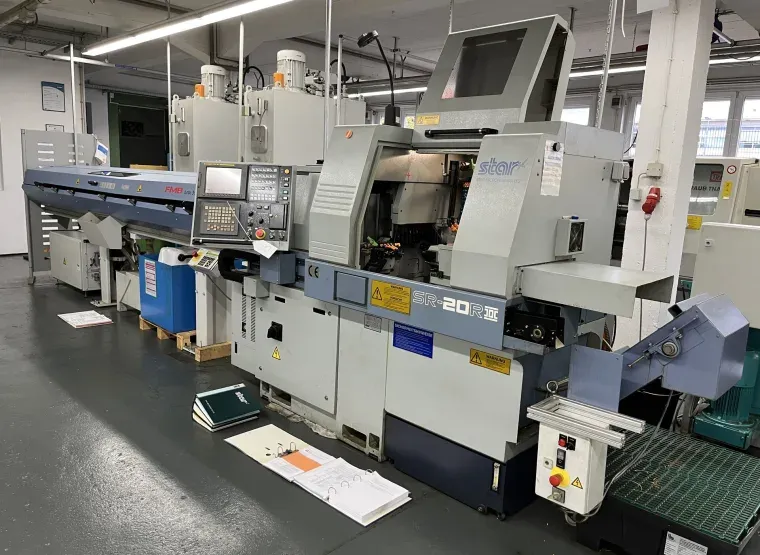

CNC automatic lathe

• Manufacturer: STAR
• Type: SR-20RII
• Year of construction: 2007
• Serial number: 2171
• Operating voltage: 400 V
• Frequency: 50 Hz
• Connection: 7 kVA

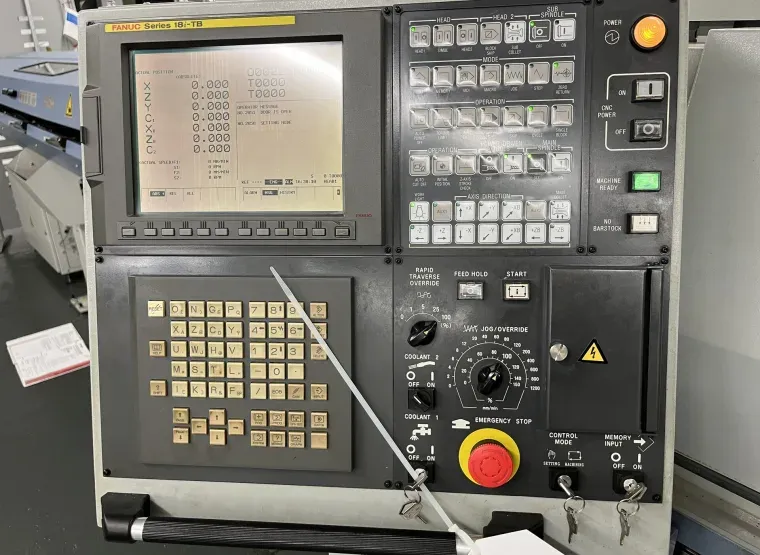

• Control: FANUC SERIES 18i-TB
• Specification of the control axis:
• Rapid feed in Z, X, Y, ZB, XB: 20000 mm/min
• In C: 19800°/min
• Max. Rotary feed in Z, X, Y, ZB, XB: 10000 mm/min
• In C: 10000°/min
• Max. Turning diameter: 25 mm
• Max. Headstock stroke: 205 mm
• Max. Drilling performance:
• Fixed tool: diameter 10 mm
• Driven tool: diameter 8 mm
• Max. Tapping performance:
• Fixed tool: M 8
• Driven tool: M 6
• Max. Milling performance:
• Fixed tool: diameter 10 mm
• Max. Thread cutting performance:
• Fixed tool: M 8 x P1.25
• Max. Slot performance:
• Fixed tool: 1.5 x 4 mm
• Spindle speed: 500 - 10000 rpm
• Max. Clamping diameter: 20 mm
• Max. Part length: 80 mm
• Max. Part clamping length: 30 mm
• Max. Part clamping length: 75 mm

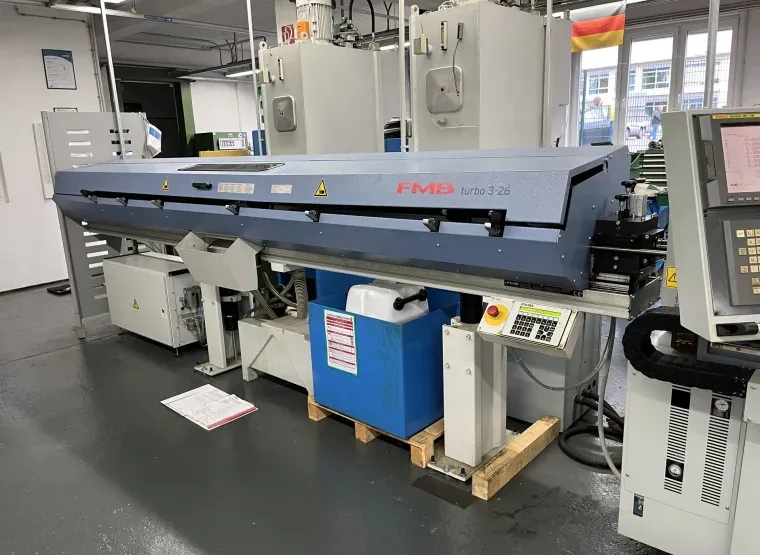

• The machine is equipped with a chip conveyor and a bar loader from the manufacturer FMB (type: TURBO 3-26) and further documentation
• Total dimensions: 8,000 x 1,100 x 1,900 mm
• Total weight: approx. 3,000 kg

The machine will be sold at an industrial auction.
