Zyklendrehmaschine
DMT-KERN
CD 322
Auf Anfrage
Condition
Gut (gebraucht)
Year of construction
2009
Availability
Sofort
Category
Sonstige
Location
Deutschland, 58636 Iserlohn
Retailer
Description

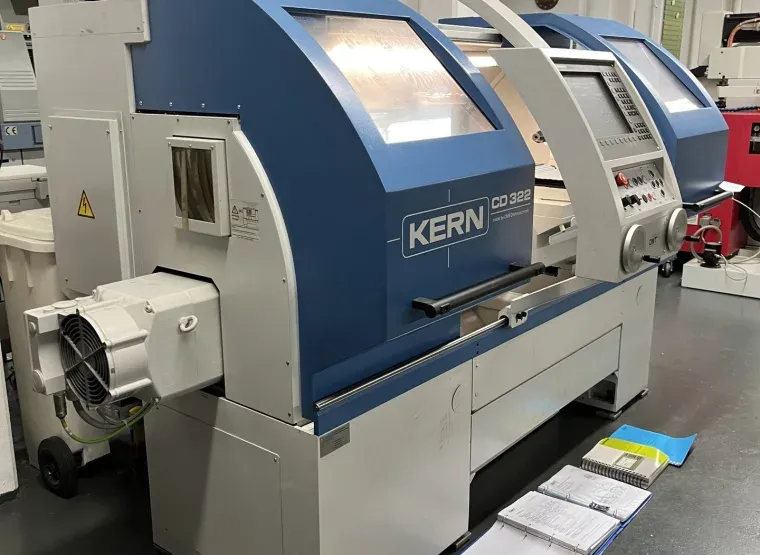

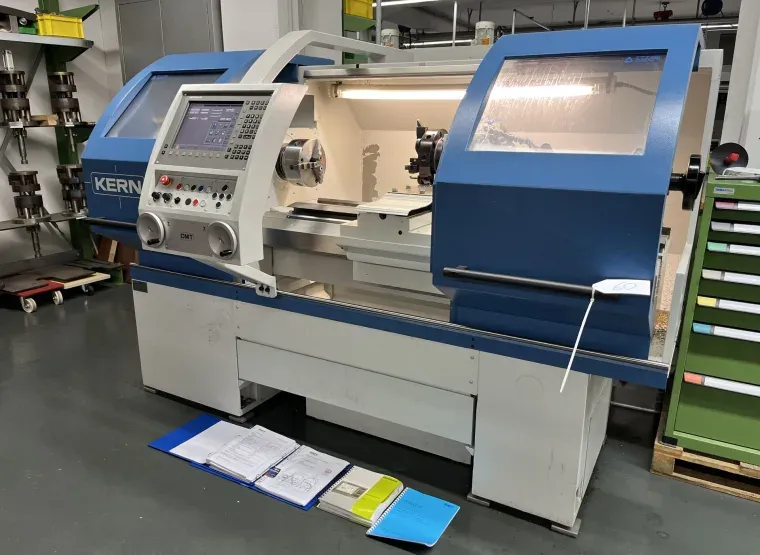

Cycle lathe

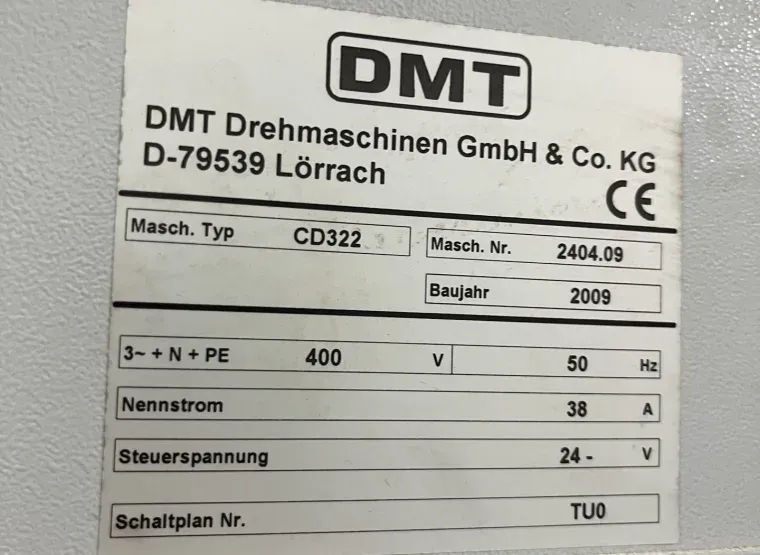

- Manufacturer: DMT-KERN
- Type: CD 322
- Year of construction: 2009
- Machine number: 2404.09
- Operating voltage: 400 V
- Frequency: 50 Hz
- Rated current: 38 A

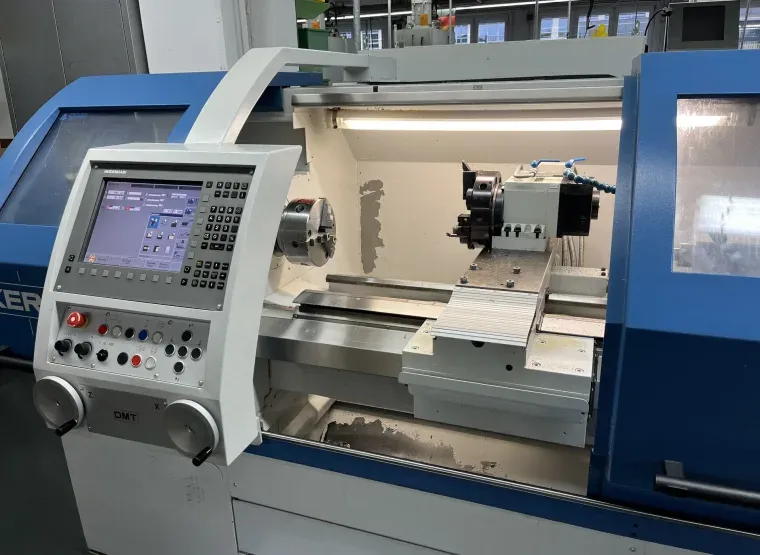

- Control: HEIDENHAIN MANUAL PLUS 620
- Circulation diameter over bed: 320 mm
- Circulating diameter above the cross slide: 150 mm
- Sledge path plan: 200 mm
- Center width: 1000 mm
- Spindle diameter in the front bearing: 100 mm
- Speed range: 1 - 3000 rpm
- Cross slide:
- Feed range plan: 0.001 - 1000 mm/rev
- Longitudinal feed range and thread pitch: 0.001 - 2000 mm/rev
- Rapid traverse plan: 5 m/min
- Rapid longitudinal traverse: 10 m/min
- Pinole diameter: 60 mm
- Pinole travel: 140 mm
- Receiving cone: MK 4

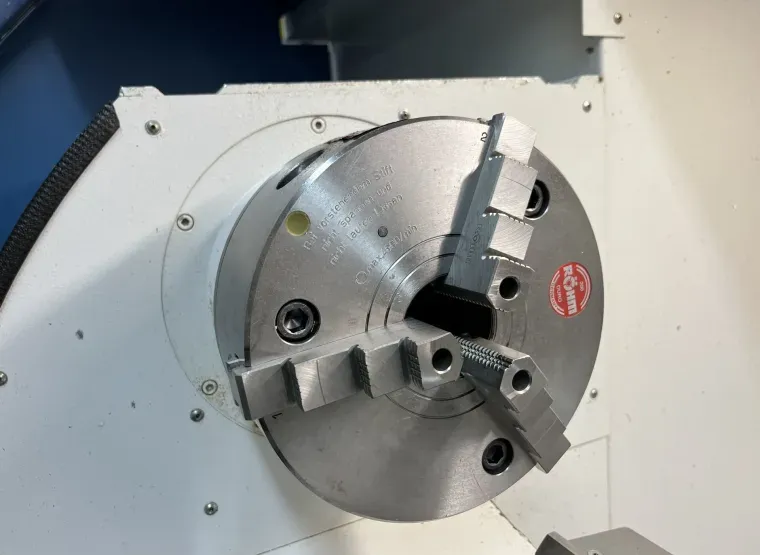

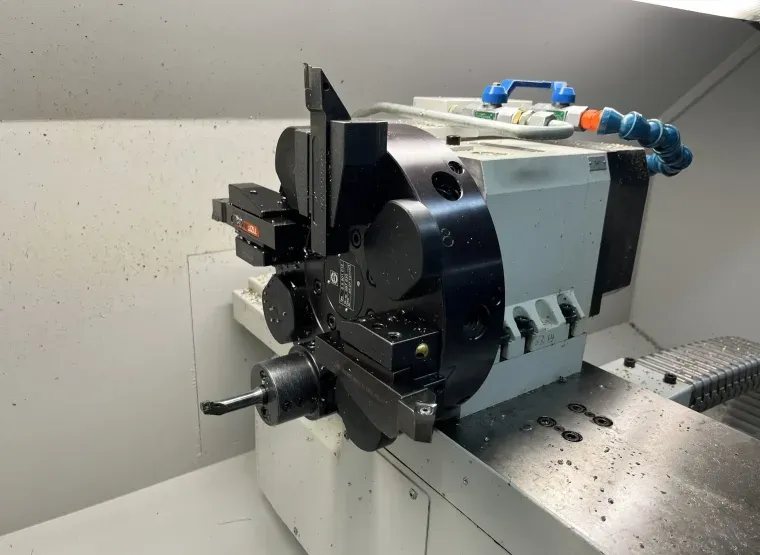

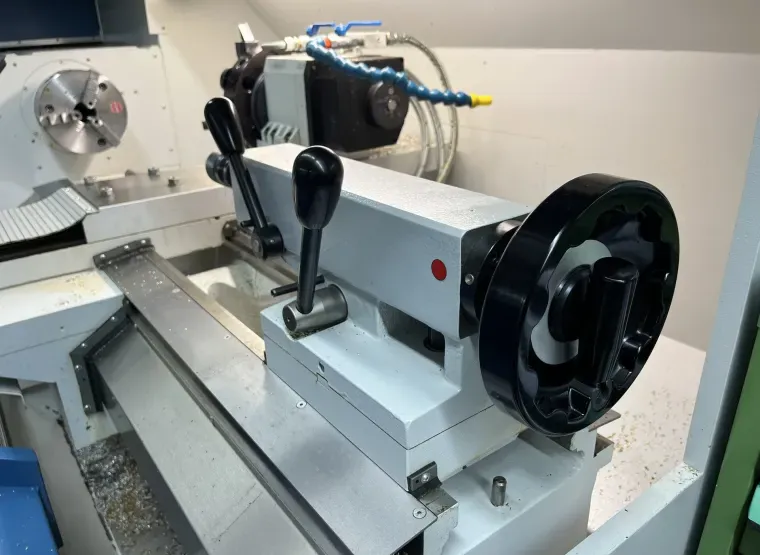

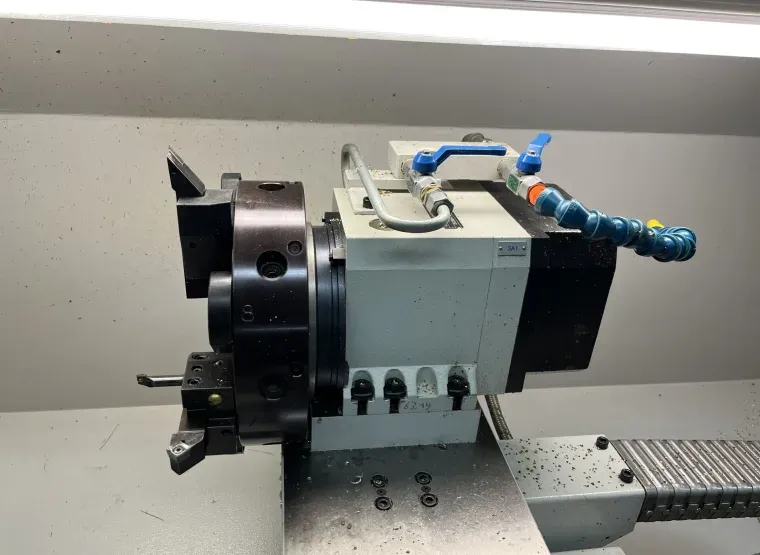

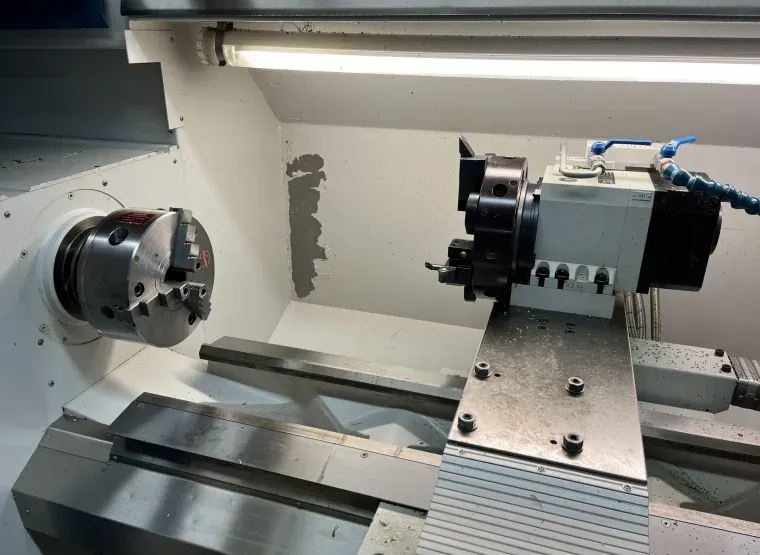

- The machine is equipped with a tailstock as well as an 8-fold tool turret and a three-jaw chuck from the manufacturer RÖHM
- Diameter: 200 mm
- Total dimensions: 2,400 x 2,000 x 1,800 mm
- Total weight: approx. 2,300 kg
The machine will be sold at an industrial auction.
