Description

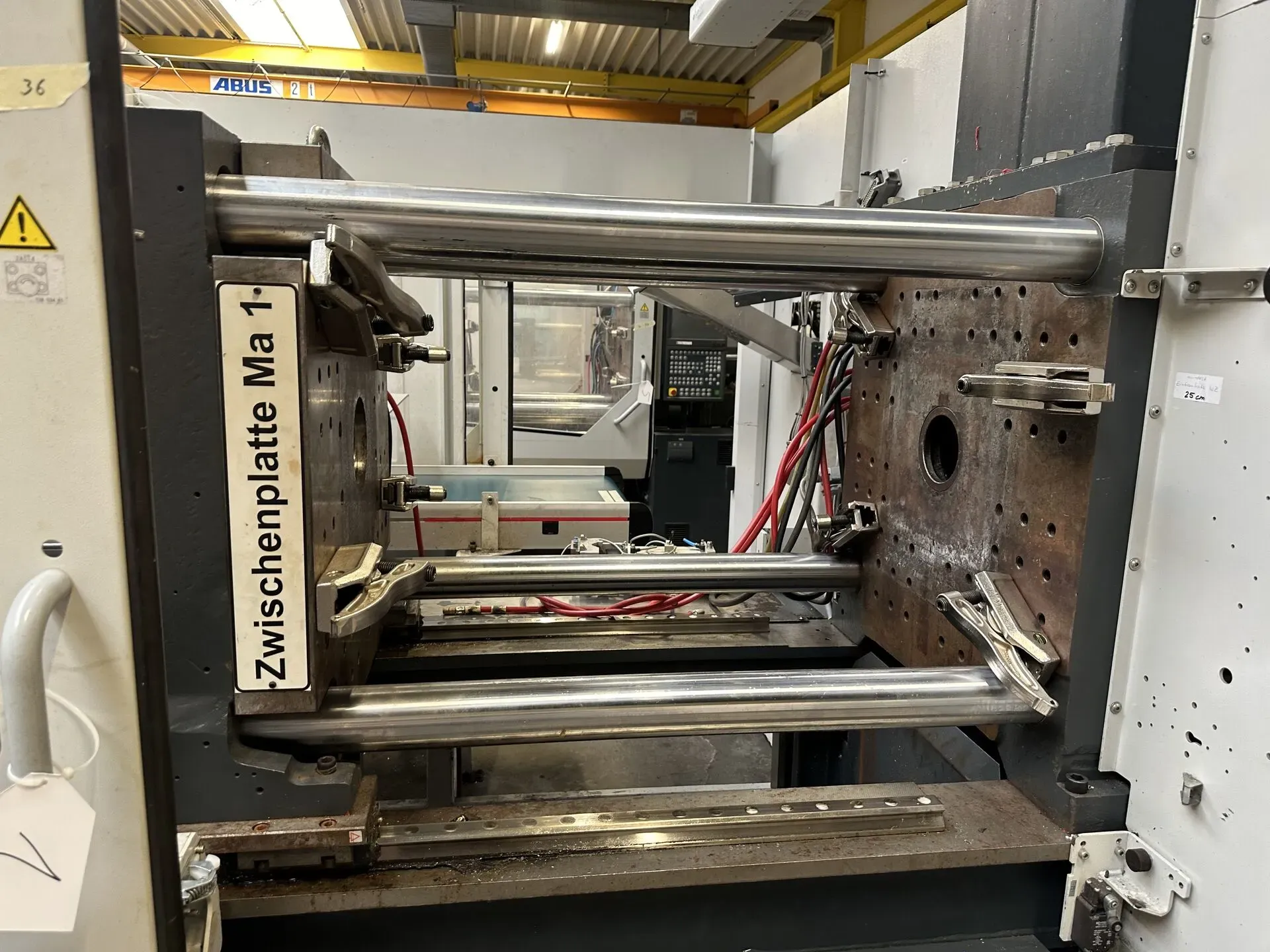

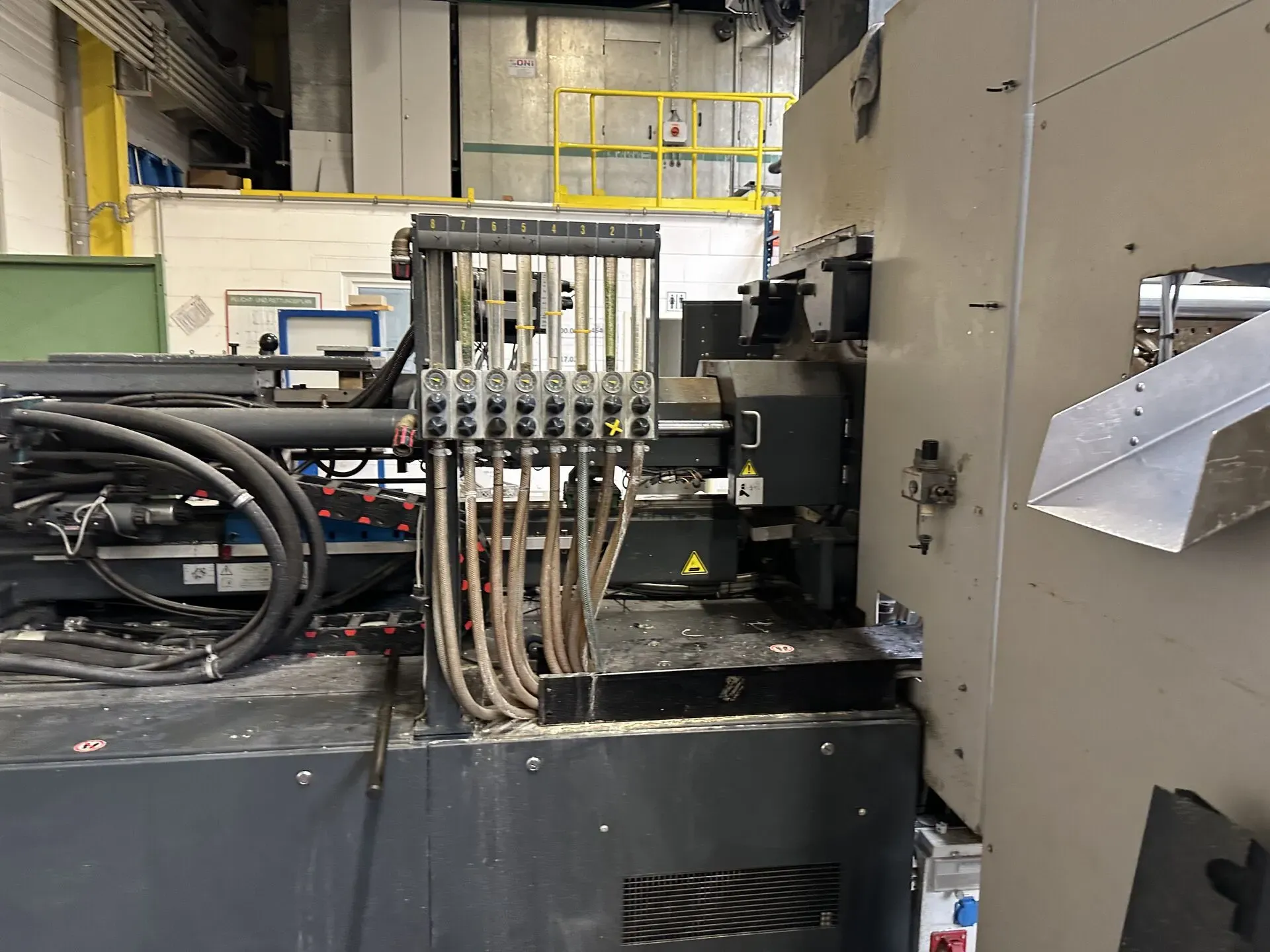

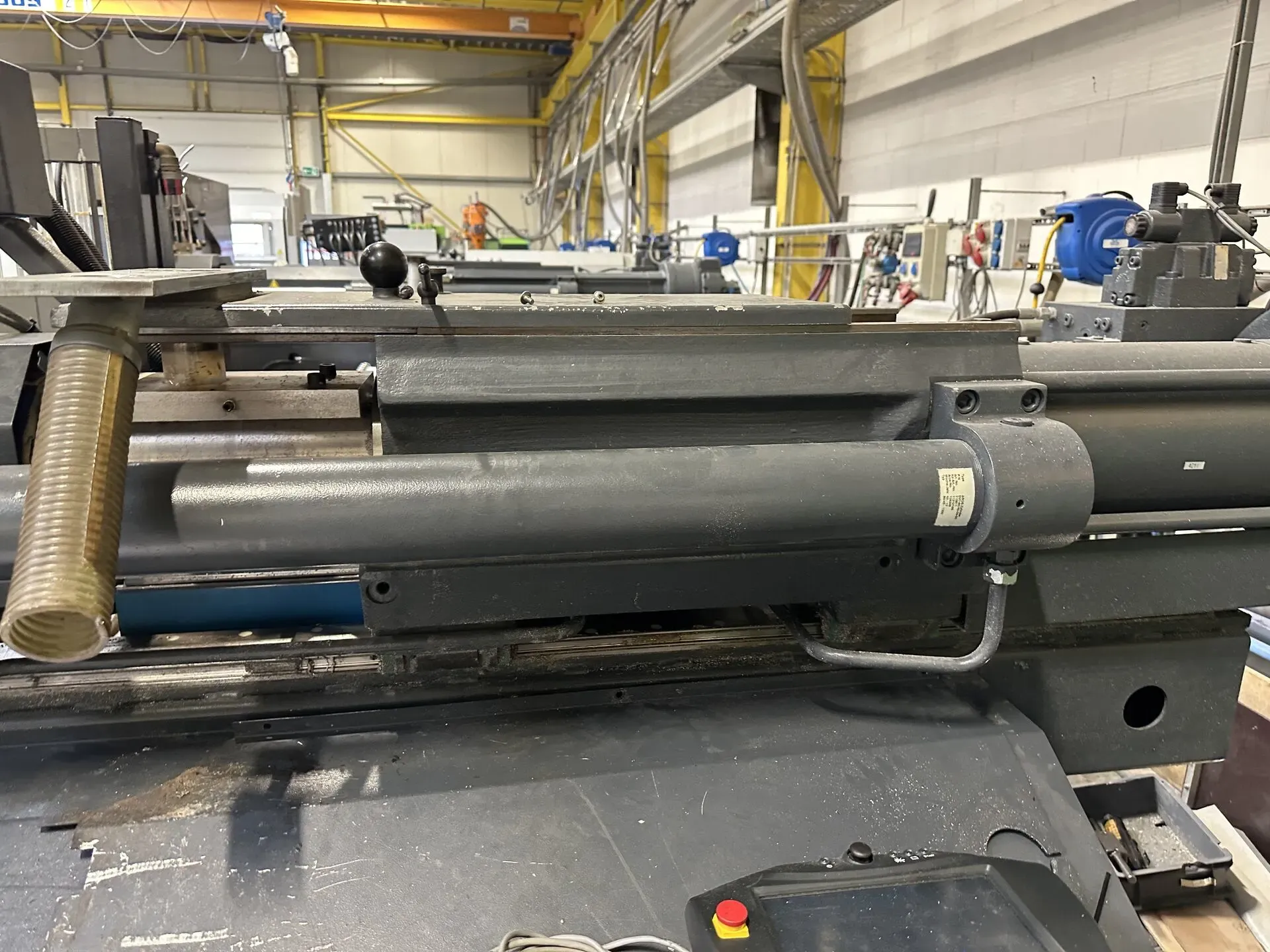

Injection molding machine

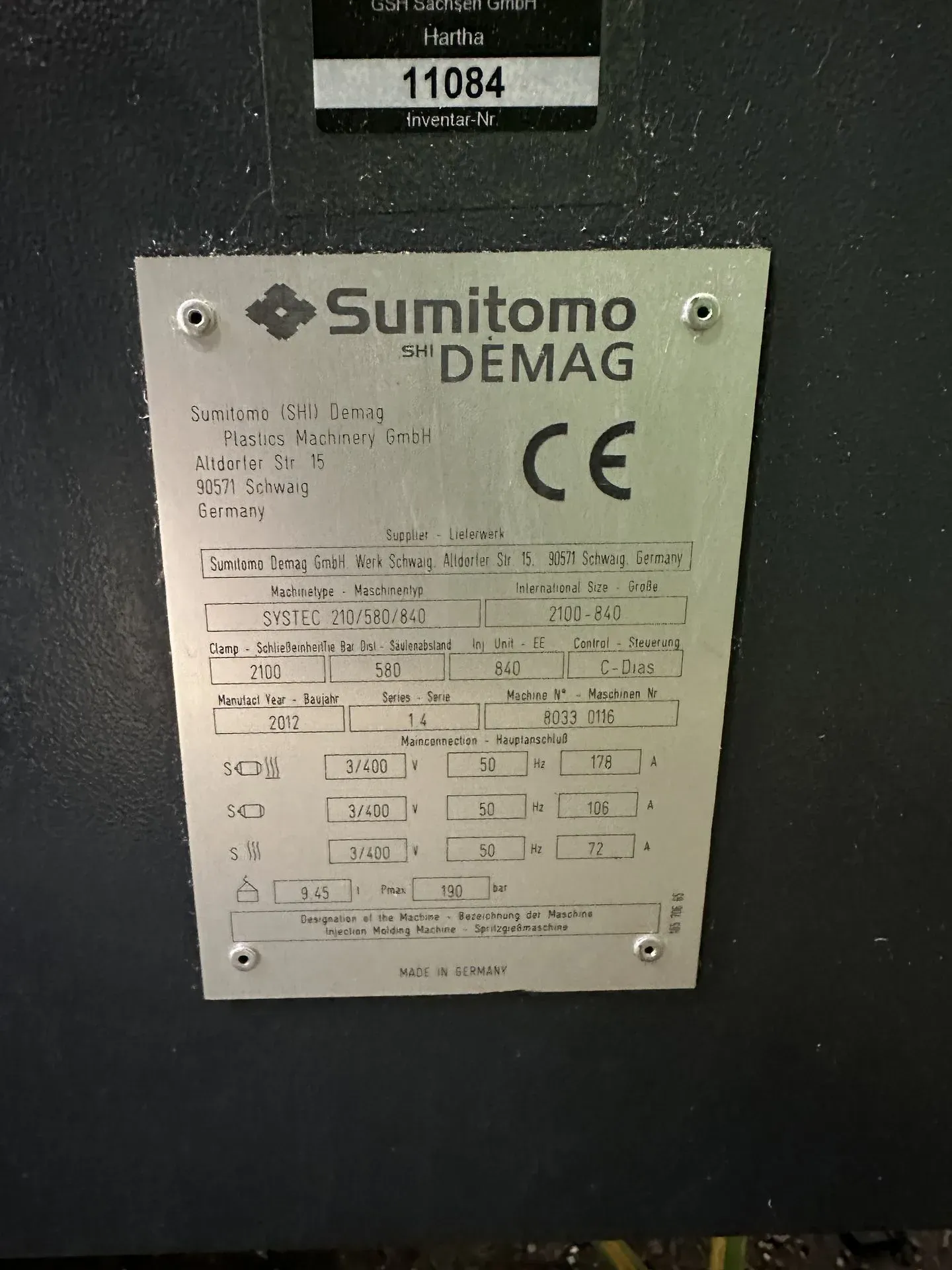

• Manufacturer: SUMITOMO DEMAG
• Type: SYSTEC 210/580/840
• Year of construction: 2012
• Machine number: 80330116
• Operating voltage: 3 x 400 V
• Frequency: 50 Hz
• Rated current: 178 A
• Control: SUMITOMO DEMAG
• Closing force: 2100 kN
• Locking force: 2310 kN
• Opening distance: max. 575 mm
• Tool installation height: at least 340 mm
• Tool installation height: max. 690 mm
• Max. Distance between the tool clamping plates: 1265 mm
• Tool clamping plates: 860 x 860 mm
• Light column spacing: 580 x 580 mm
• Max. Tool weight: 3300 kg
• Max. Weight share of movable tool platen: 2000 kg
• Max. Weight share of fixed tool platen: 2500 kg
• Ejector path: 180 mm
• Ejector force: 73 kN
• Ejector retraction force: 630 kN
• Screw diameter: 60 mm
• Injection pressure at 400°: 1351 bar
• Displacement volume: 636 cm³
• Injection molded part weight: 579 g
• Dosing path: max. 225 mm
• Nozzle path: max. 460 mm
• Nozzle immersion depth: 20 mm
• Nozzle contact force: 110 kN

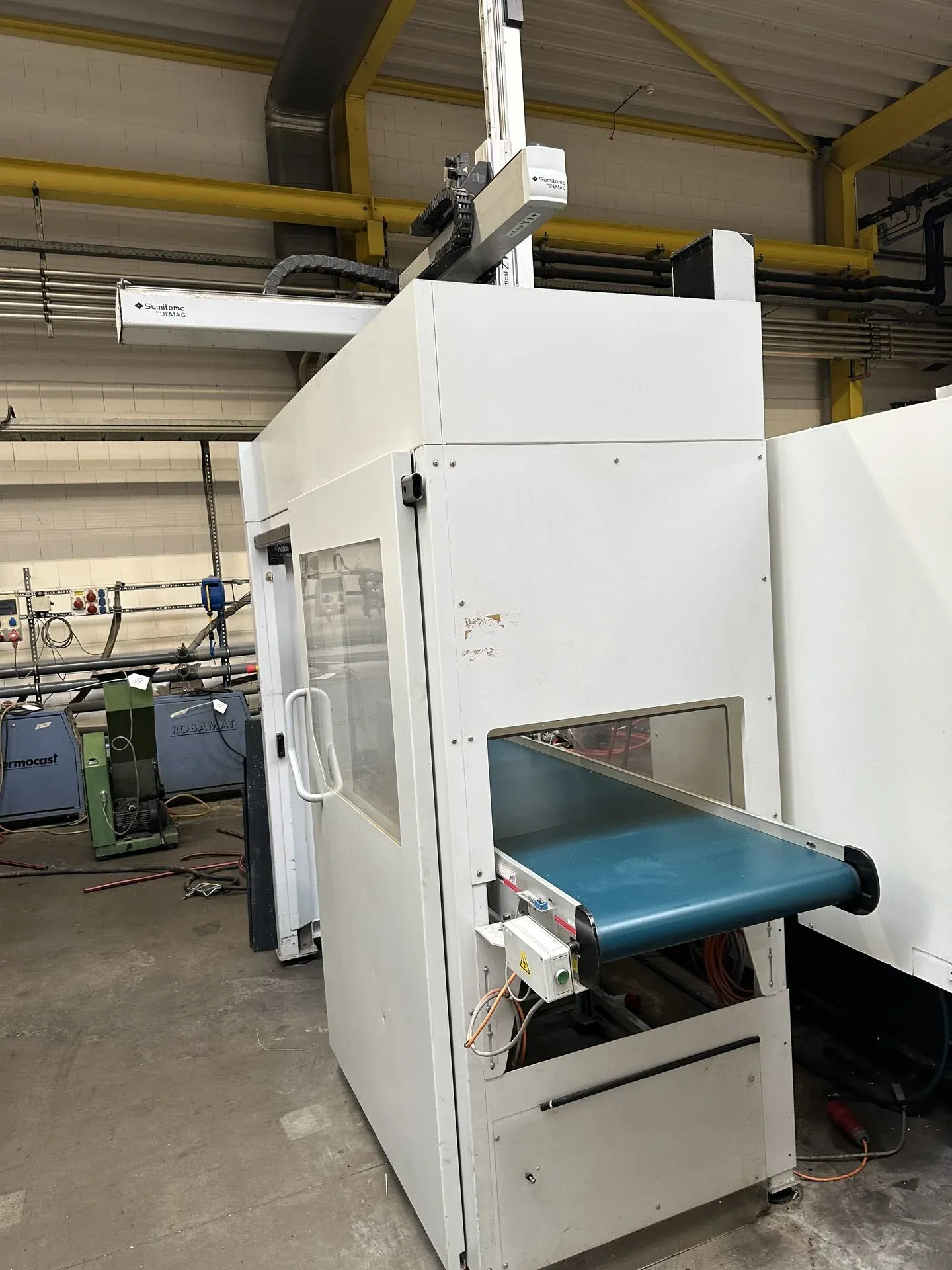

• Incl. Handling system from the manufacturer SUMITOMO DEMAG as well as a conveyor belt system
• Band width: approx. 650 mm
• Total dimensions: 7,000 x 3,300 x 4,500 mm
• Total weight: approx. 10,000 kg

The machine will be sold at an industrial auction.
Click here for the machine:
https://www.surplex.com/de/al/4/machines-and-inventory-of-plastic-processing-7322.html
