Description

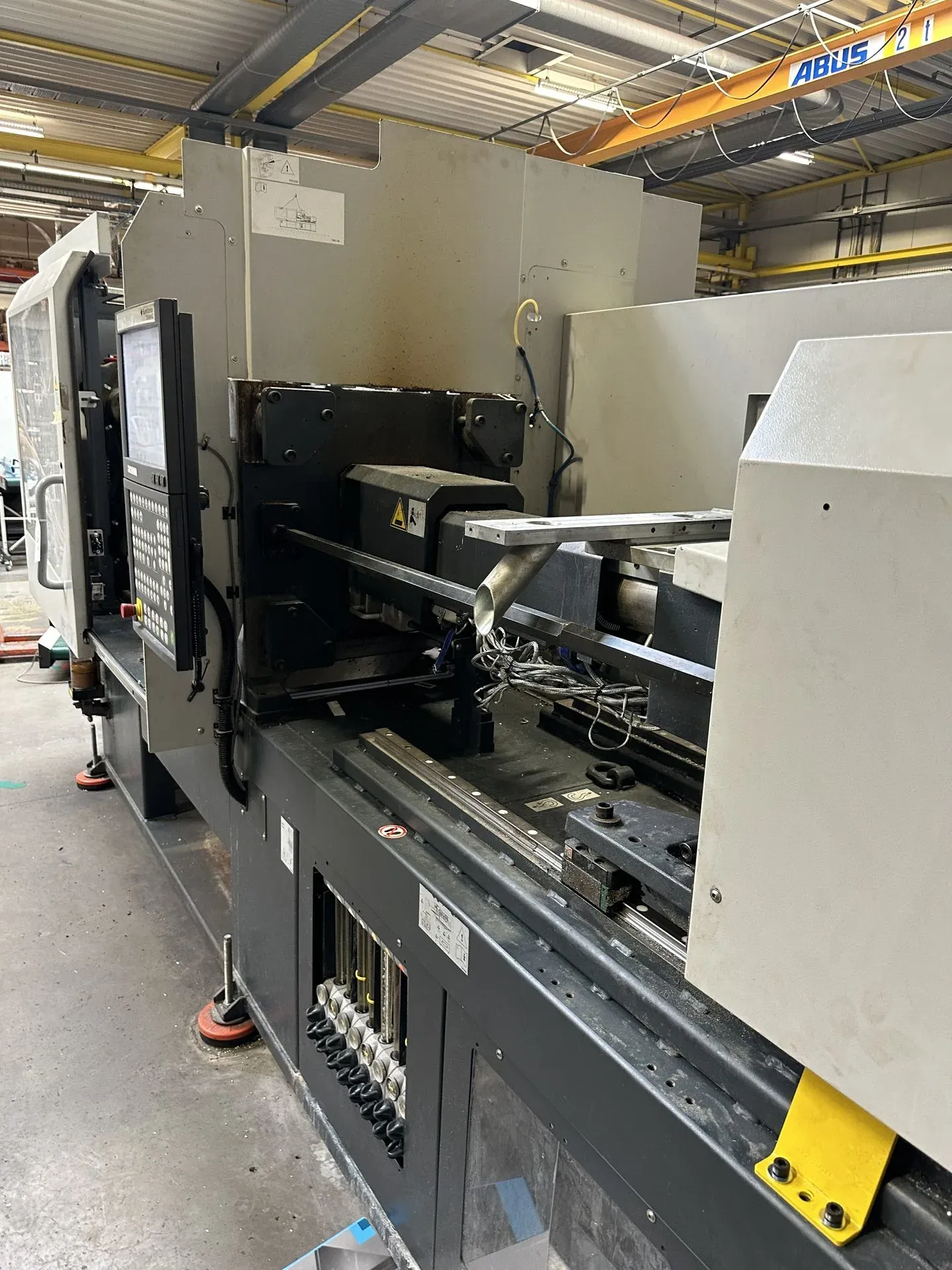

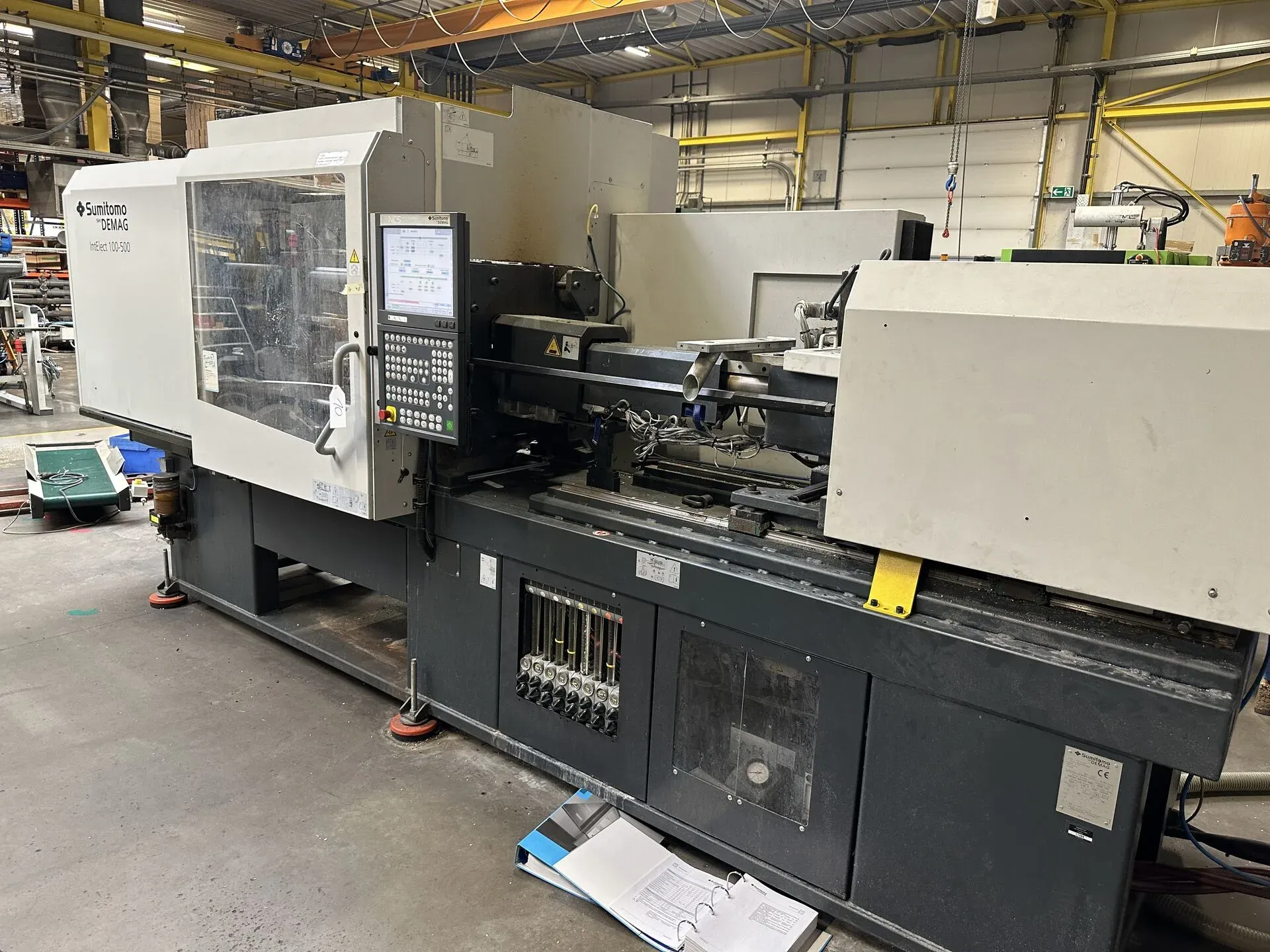

injection molding machine

• manufacturer: Sumitomo Demag
• Type: Intelect 100/470-500
• year of construction: 2012
• machine number: 7260-0239
• operating voltage: 400 V
• frequency: 50 Hz
• nominal current: 104 a

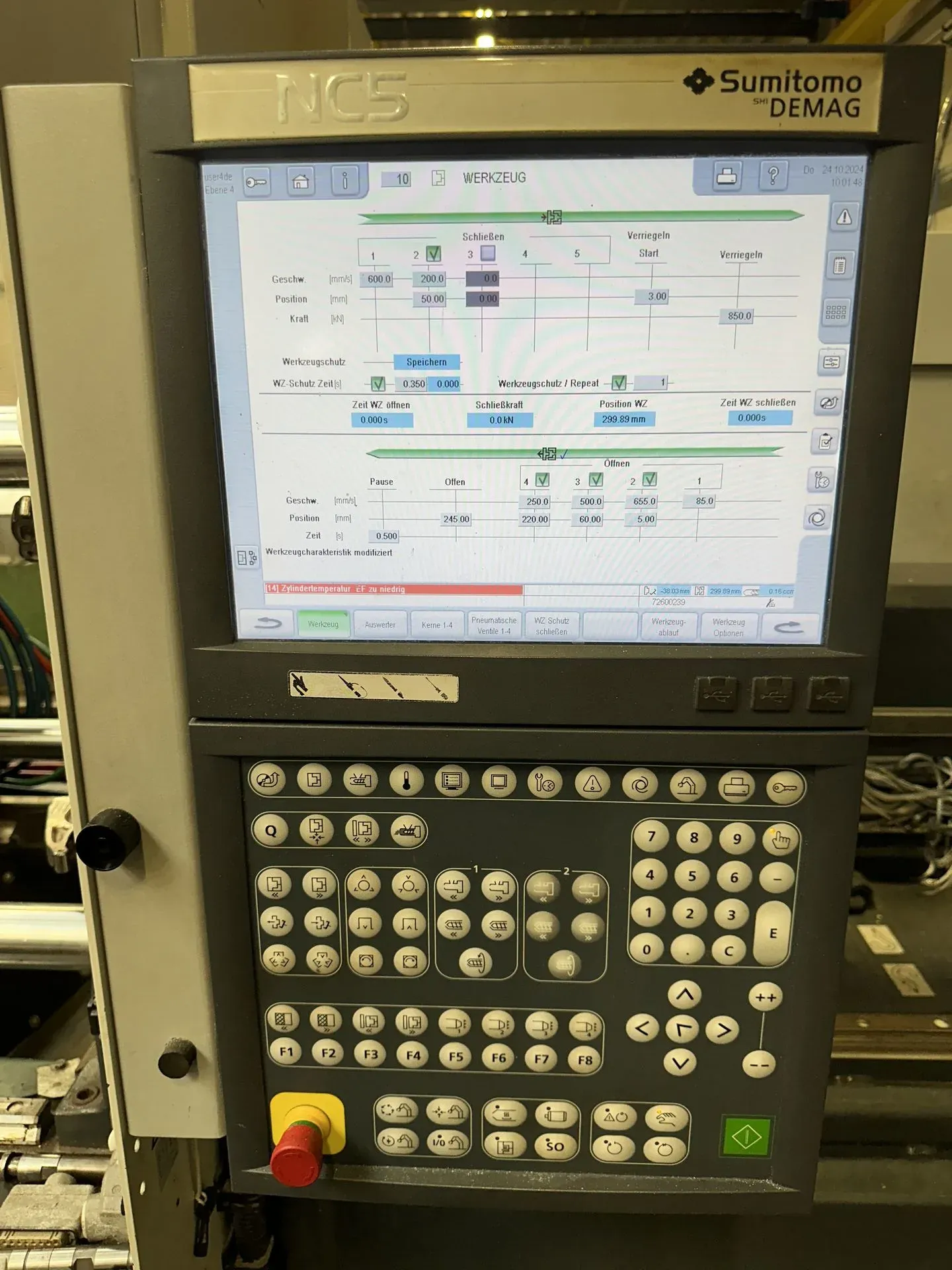

• Control: Sumitomo Demag
• locking power: 1100 kn
• Zuhaltpower: 1100 kn
• opening path: max. 380 mm
• tool installation height: at least 200 mm
• tool installation height: max. 430 mm
• max. Distance from the tool clamping plates: 810 mm

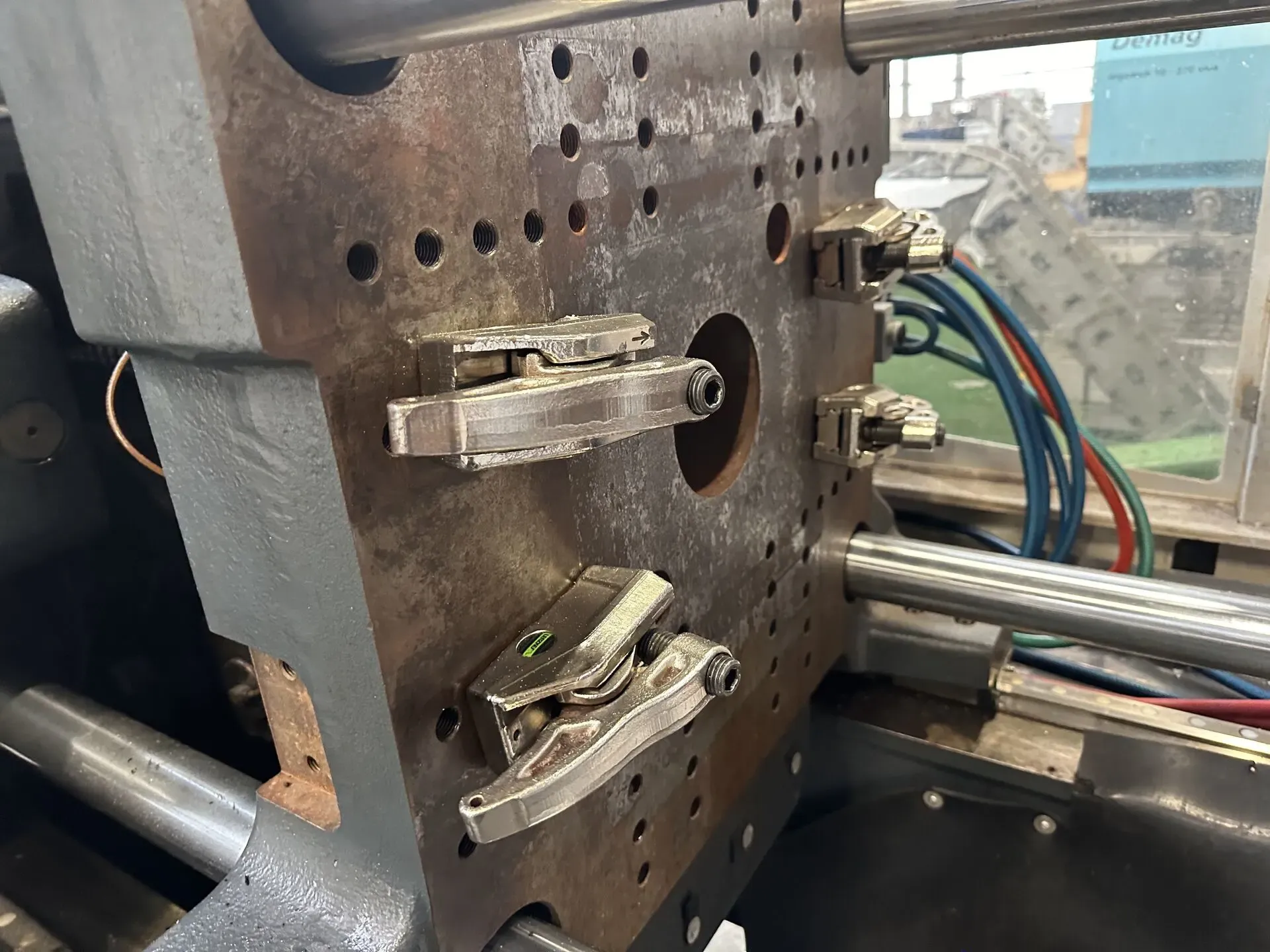

• tool clamping plates: 620 x 620 mm
• light columns: 470 x 420 mm
• tool weight: max. 780 kg
• of which tool weight on the movable
• tool clamping plate: 500 kg
• Ensuring: 110 mm
• Empire: 35 kn
• Excerpter retreat: 35 kn
• snail diameter: 45 mm
• specific injection pressure: 1690 bar
• lifting volume: 294 cm³
• Spray parts weight: 262 g
• dosing path: max. 185 mm
• nozzle path: max. 350 mm
• nozzle intake depth: 20 mm
• nozzle wear: 30 kn
• Dimensions Total: 5,000 x 2,000 mm
• Total weight: approx. 5,000 kg

The machine is sold in the course of an industrial auction.
Click here for the machine:
https://www.surplex.com/de/al/4/maschinen-und-inventar-der-kunststoff-7322.html
