Beschreibung

Profile Grinding Machine, 5 axis grinder, Grinding Machine, Profile Grinding Machine, Magerle Grinding Machine, Rotary Table Grinding Machine, Mägerle MGC - 330. 65. 85

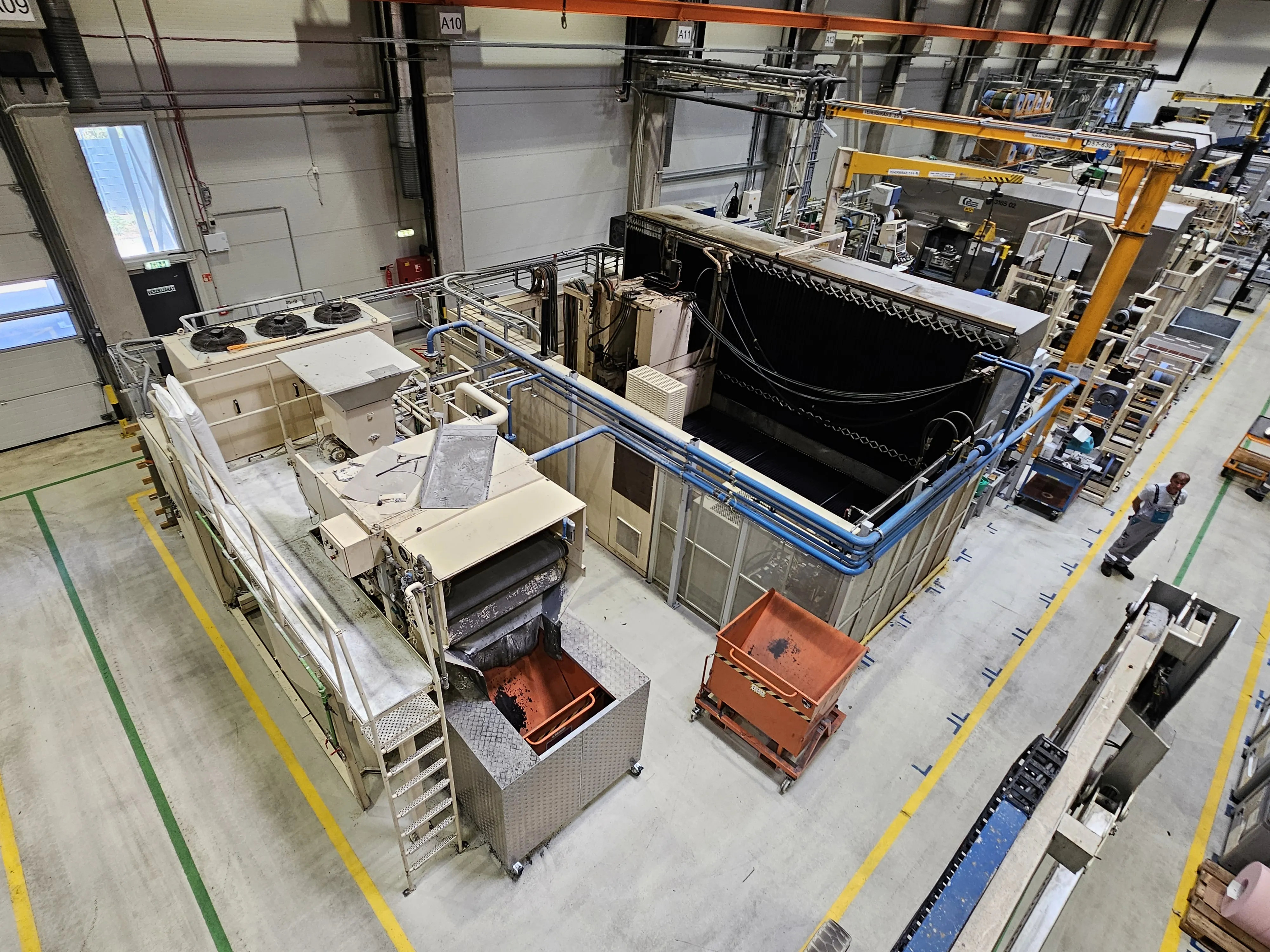

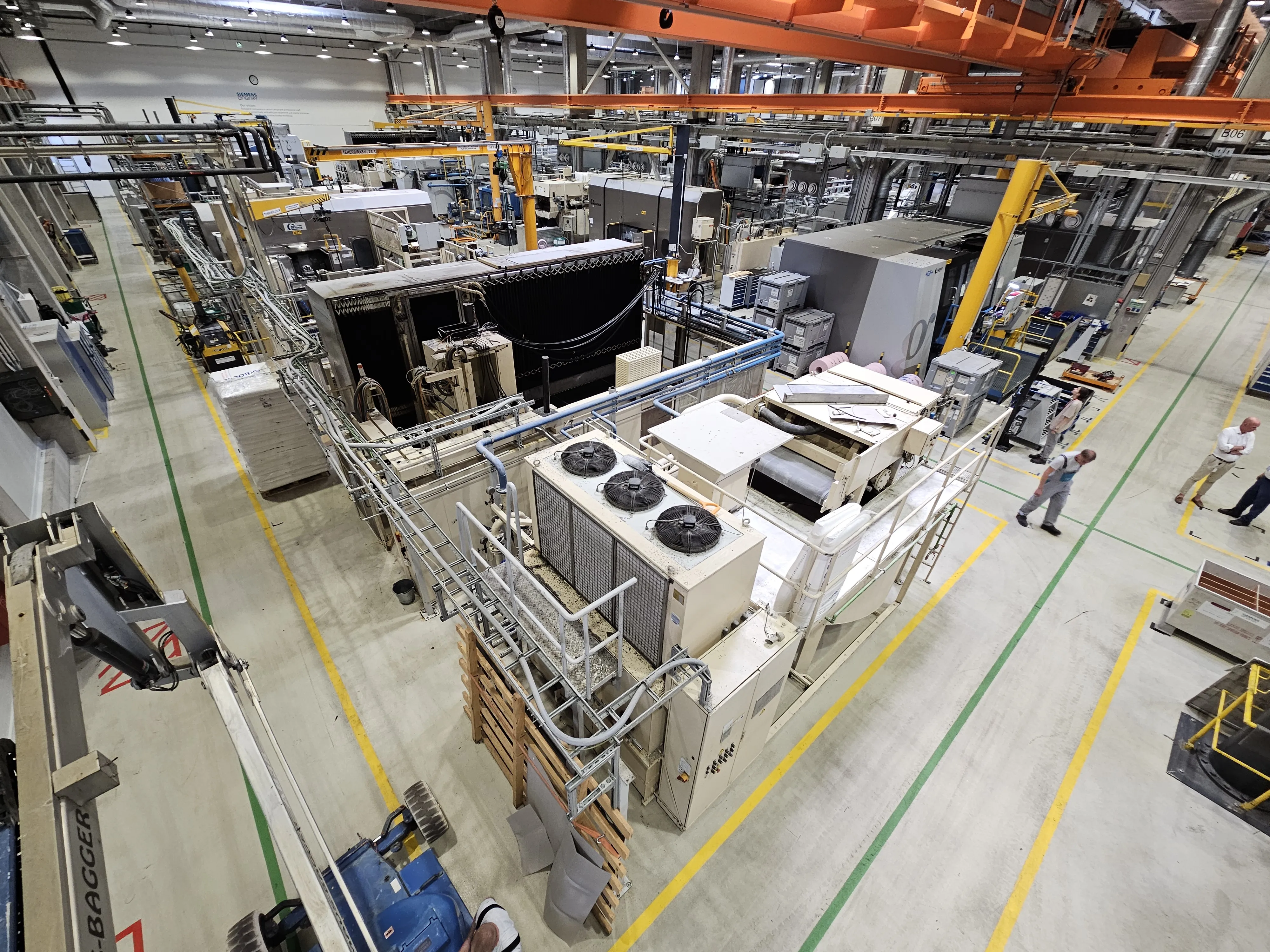

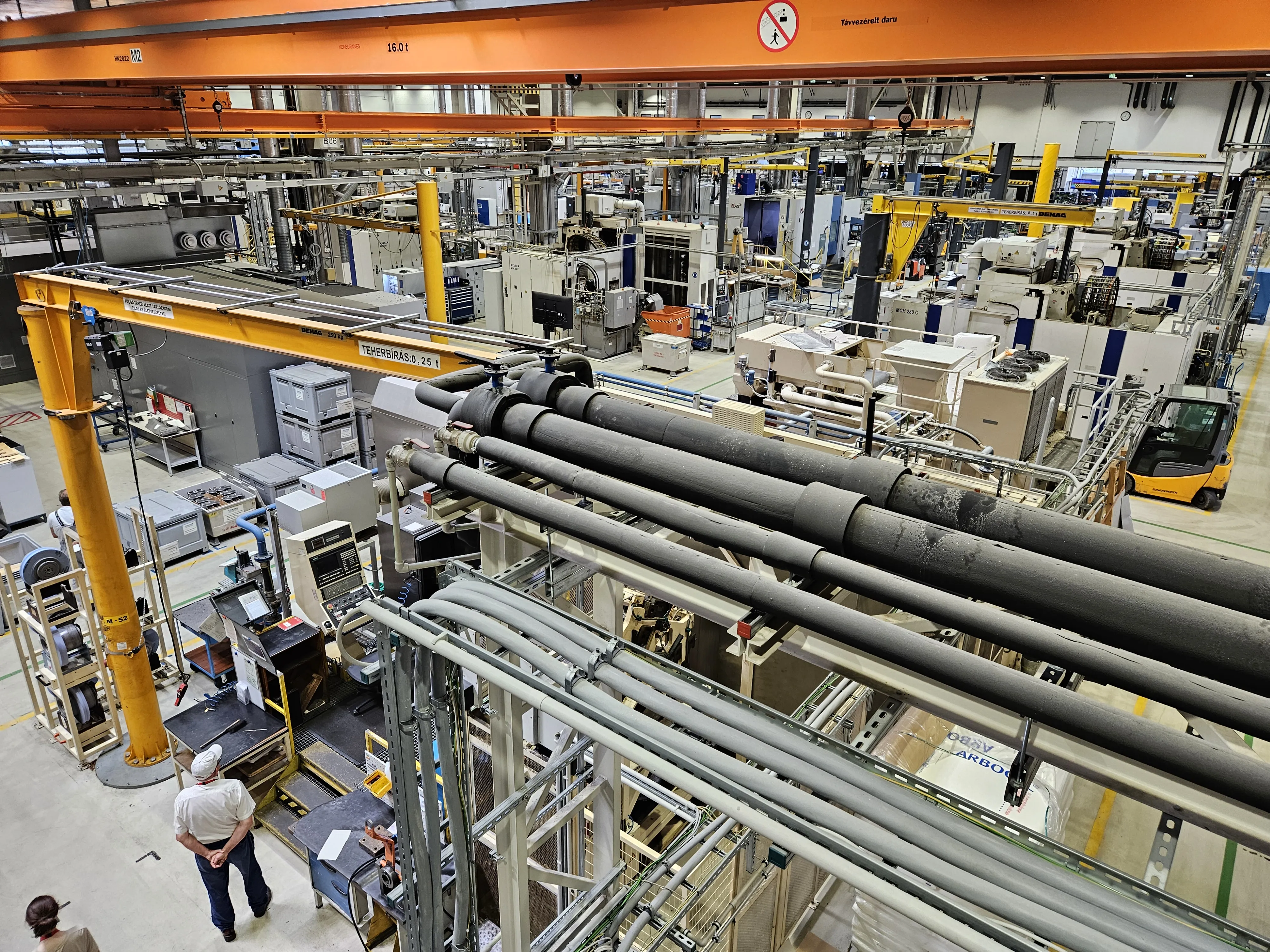

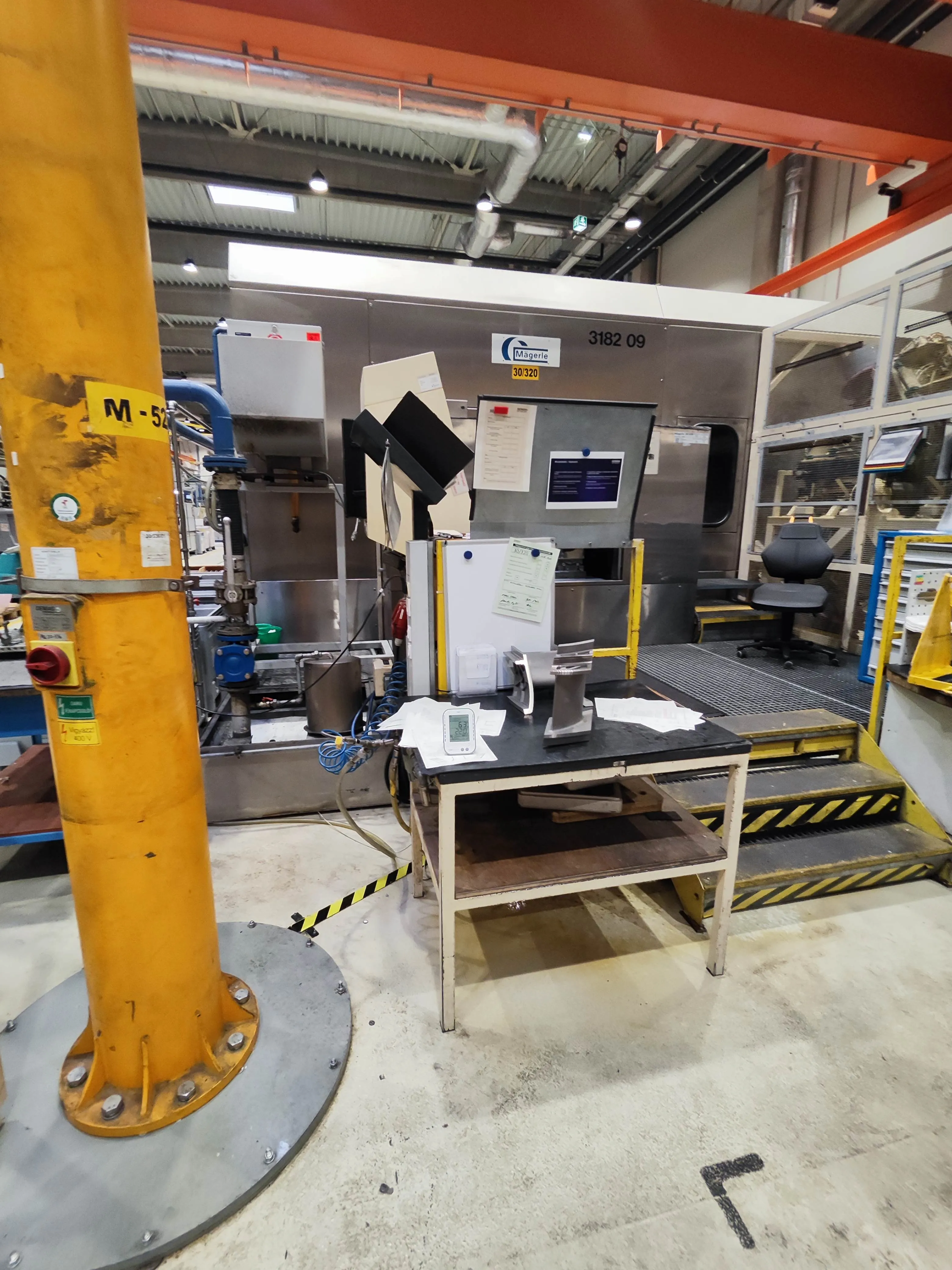

The machine can be tested at its original location; it has not been disassembled.
Manufacturer: Mägerle
Model: MGC - 330. 65. 85
Year: 1996
Dimensions: 7000 x 7200 x 3450 mm
Control System: Siemens Sinumerik 880 G

Electrical Data:
400-690 V; 350 A; 50/60 Hz

Axis Travel Range: New main spindle (replaced in October 2024)
X - 3300 mm
Y - 720 mm
Z - 400 mm

Work Table: Rotary table, double-sided
Manufacturer, Model: Fibroplan NC 1.02.0240.1.1.11.14
Load Capacity: 250 kg
D7V2Uhg
Table Size: 320 x 320 mm (Manufacturer: Erowa)

The Mägerle MGC 330 65 85 is part of the MGC series, designed for high-precision machining of large and heavy workpieces. This model features a rotary table that enables the processing of large and complex components while providing excellent load-bearing capacity.

Key Features:

Modular Design: Like other models in the MGC series, this one is built on a modular concept, allowing for various configurations, such as single or multiple spindles arranged horizontally or vertically.

High Precision: The machine is built for high-precision tasks, especially in industries where strict tolerances are required.

Versatility: In addition to grinding, the MGC is capable of performing multiple machining processes, such as turning and milling, offering a flexible solution for various manufacturing needs.
