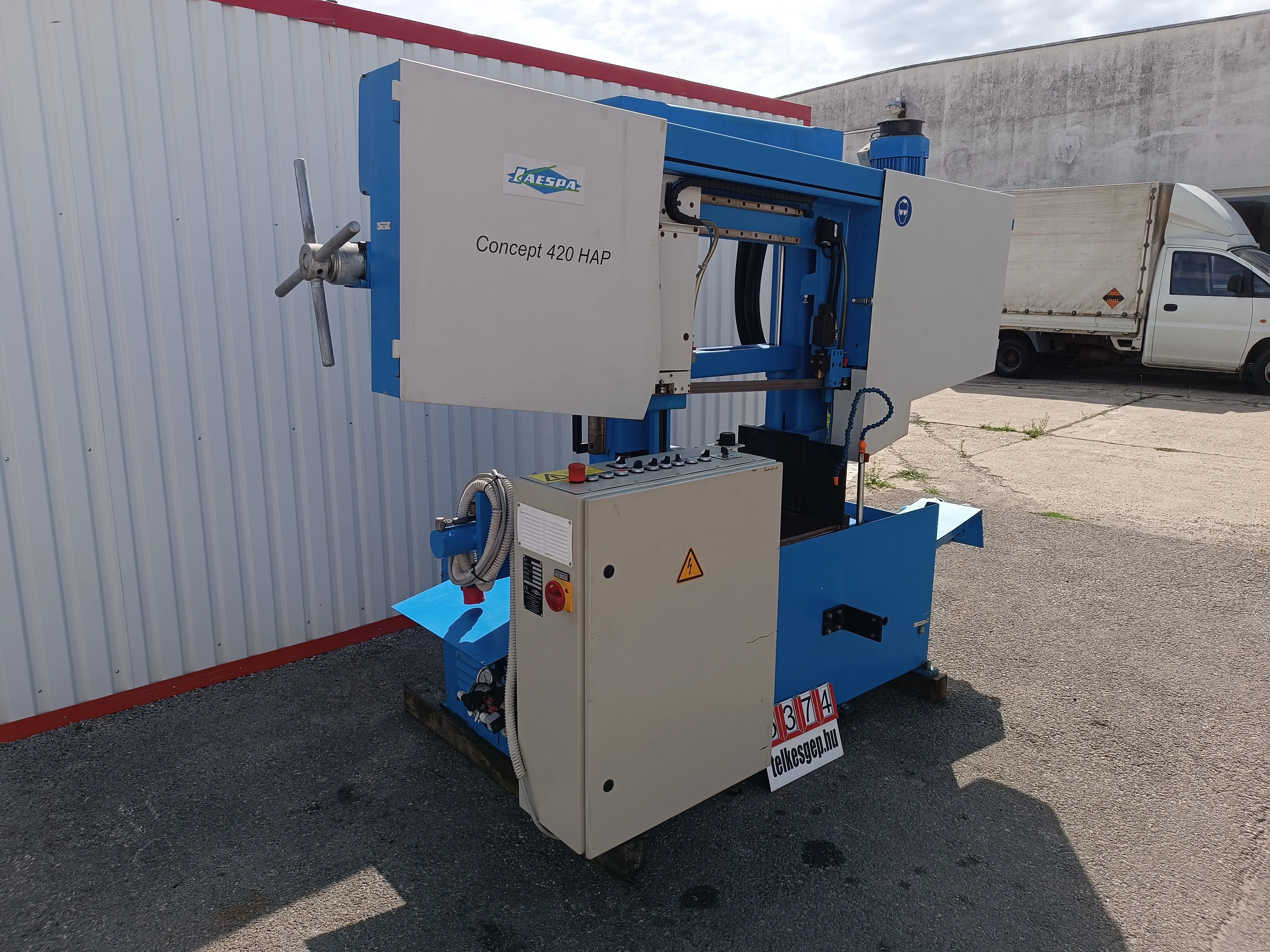

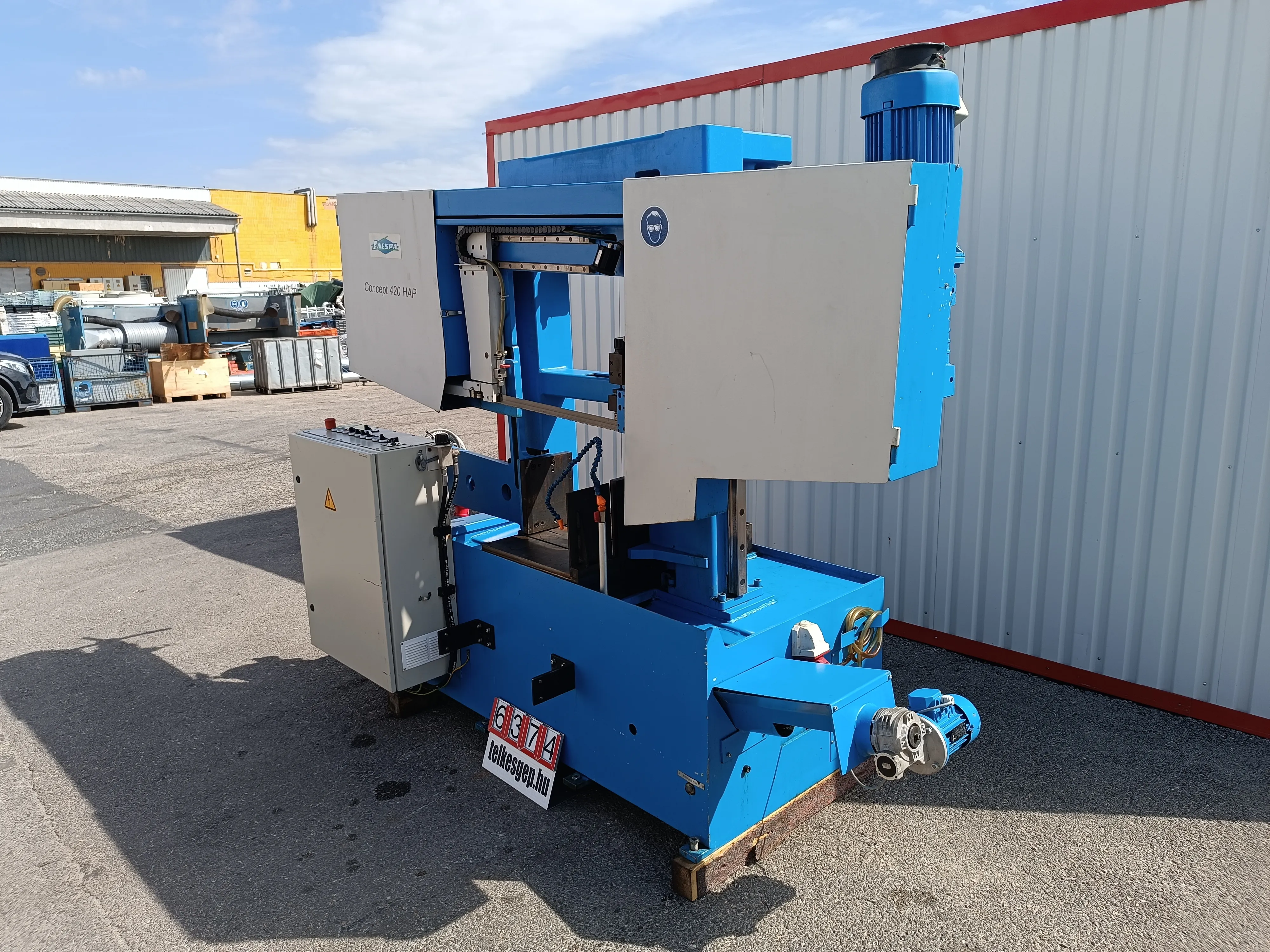

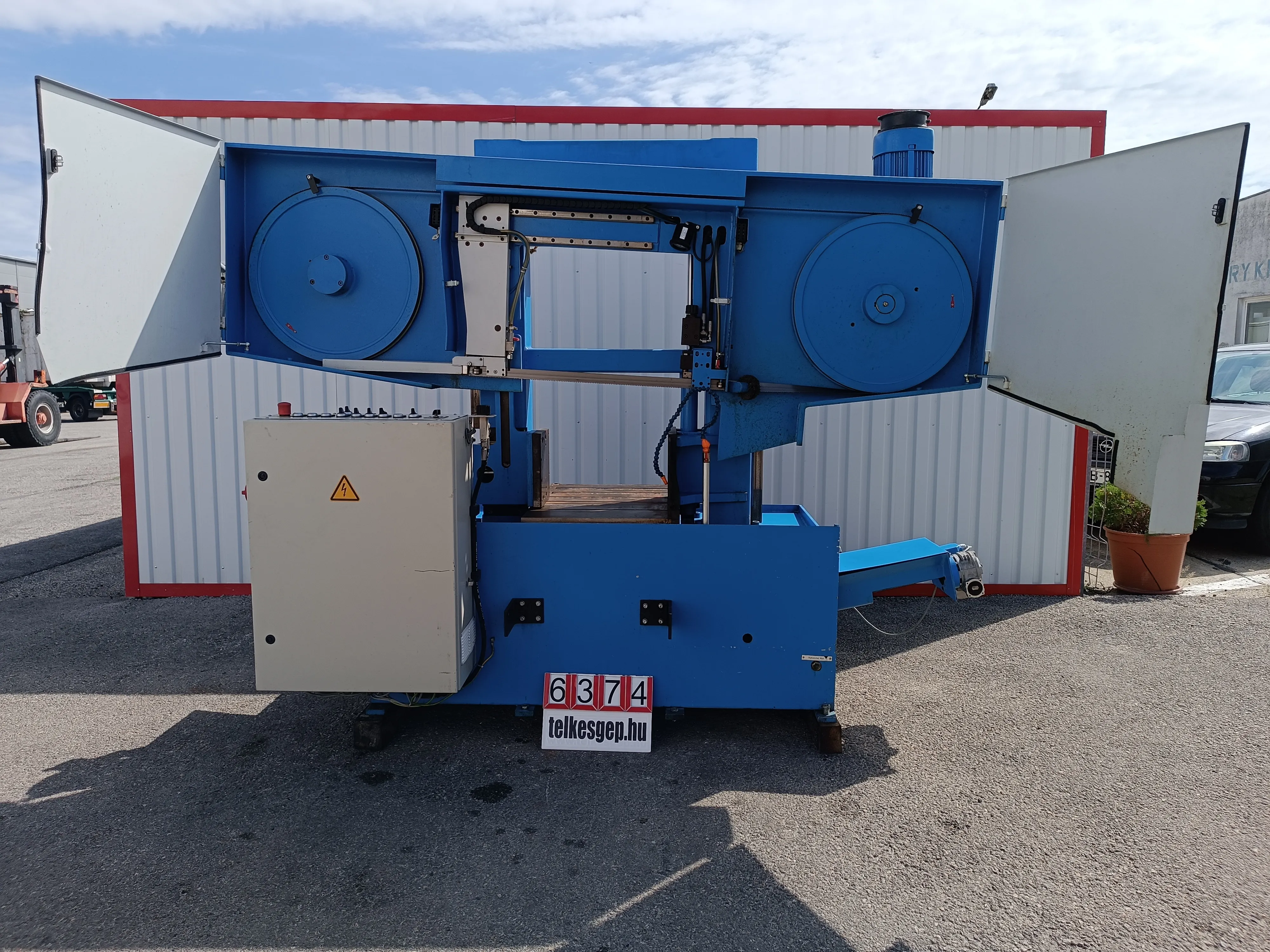

Band Saw, JAESPA CONCEPT 420 HAP, Used Machine

Manufacturer: Jaespa
Model: CON 420 HAP
Overall Dimensions: 2530 x 1100 x 2060 mm
Year: 2014
Weight: 2000 kg

Electrical Data: 4 kW; 400 V; 16 A

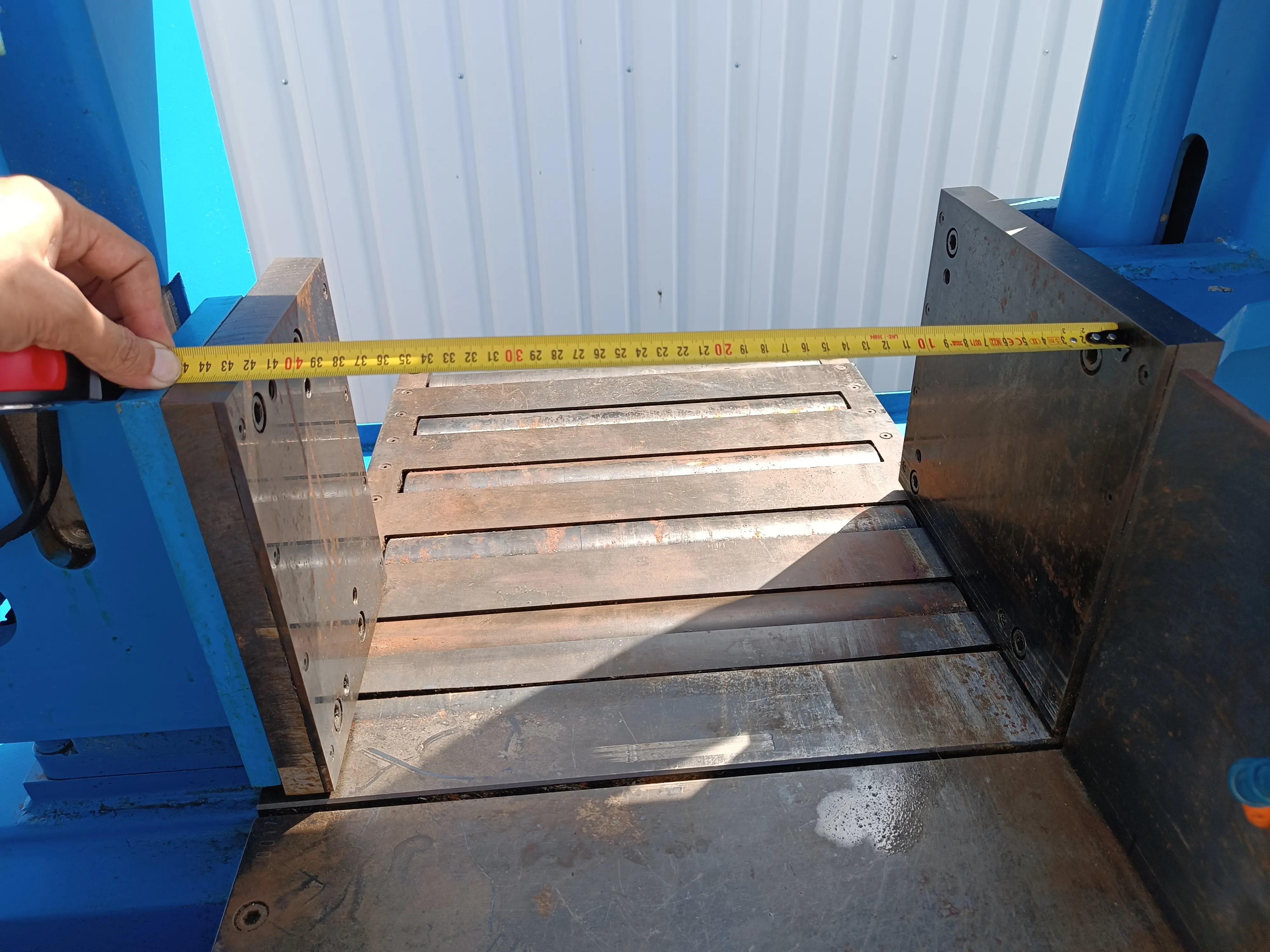

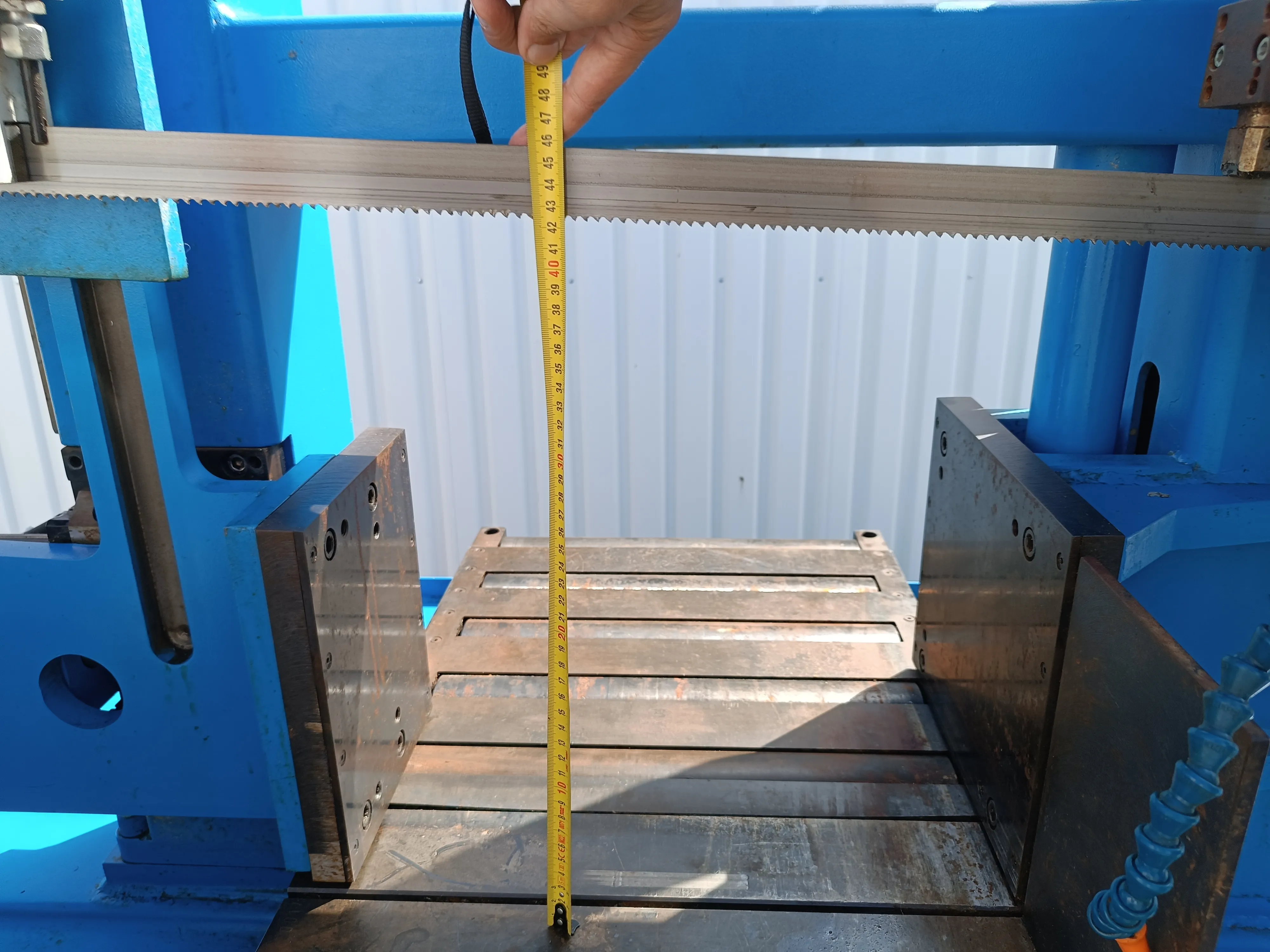

Cutting Area: 420 x 410 mm; Ø 420
Blade Size: 5300 x 34 x 1.1 mm
Cutting Speed: 15-100 m/min

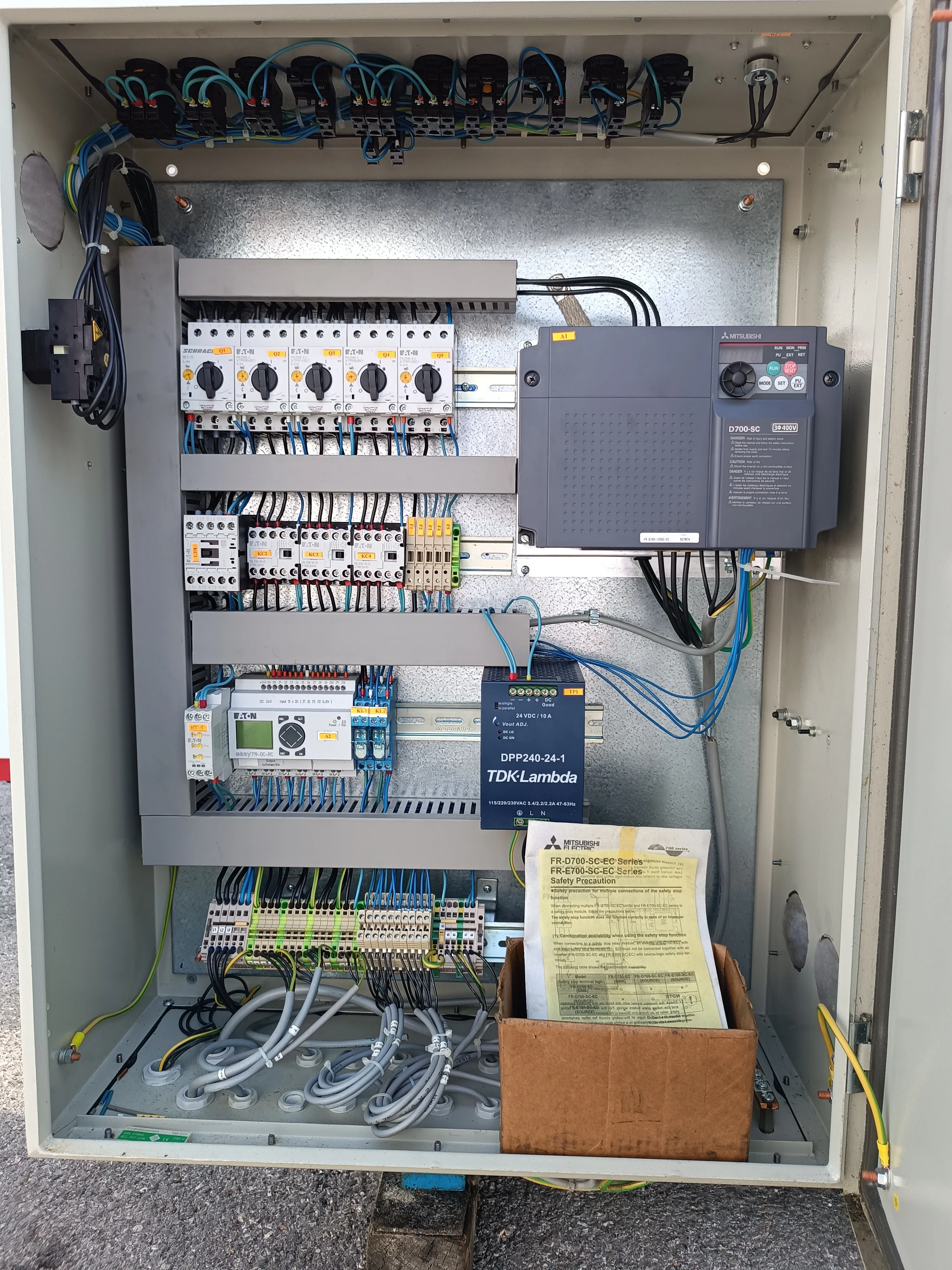

Frequency-controlled, stepless band drive
Stepless, hydraulic saw feed
Durable guides with play-free and low-maintenance guide systems
After cutting is completed, the console is raised to a manually pre-set height
Hydraulic cutting pressure adjustment
Hydraulic material clamping with long-stroke cylinder
Automatic saw blade guide arm adjustment
Equipped with a chip conveyor
Key Features:

Precision Cutting: Designed for high precision, the CONCEPT 420 HAP consistently delivers accurate cuts, making it an ideal choice for demanding manufacturing environments.

Robust Design: Built for durability, this band saw machine offers long-term reliability even with intensive use.

User-Friendly Operation: Designed with ease of use in mind, its intuitive controls allow operators to work efficiently and safely.

Versatility: Suitable for cutting various materials, such as metals and plastics, making it a versatile choice for diverse industrial needs.

The machine is in excellent condition and ready for immediate use. Whether for series production or custom cutting tasks, the JAESPA CONCEPT 420 HAP is an excellent investment for your workshop or manufacturing facility.
Ci88Xdjd9O

Don’t miss the opportunity to enhance your production capabilities with this top-of-the-line band saw. Contact us for more details or to schedule a viewing.
