PLATE DRILLING AND FLAME CUTTING MACHINE
PEDDINHAUS
FDB 600
14800,00€
Zustand
Gut (gebraucht)
Baujahr
1985
Verfügbarkeit
1
Kategorie
Sonstige Maschinen
Standort
Tatabánya
Referenznummer
5801
Händler
Beschreibung

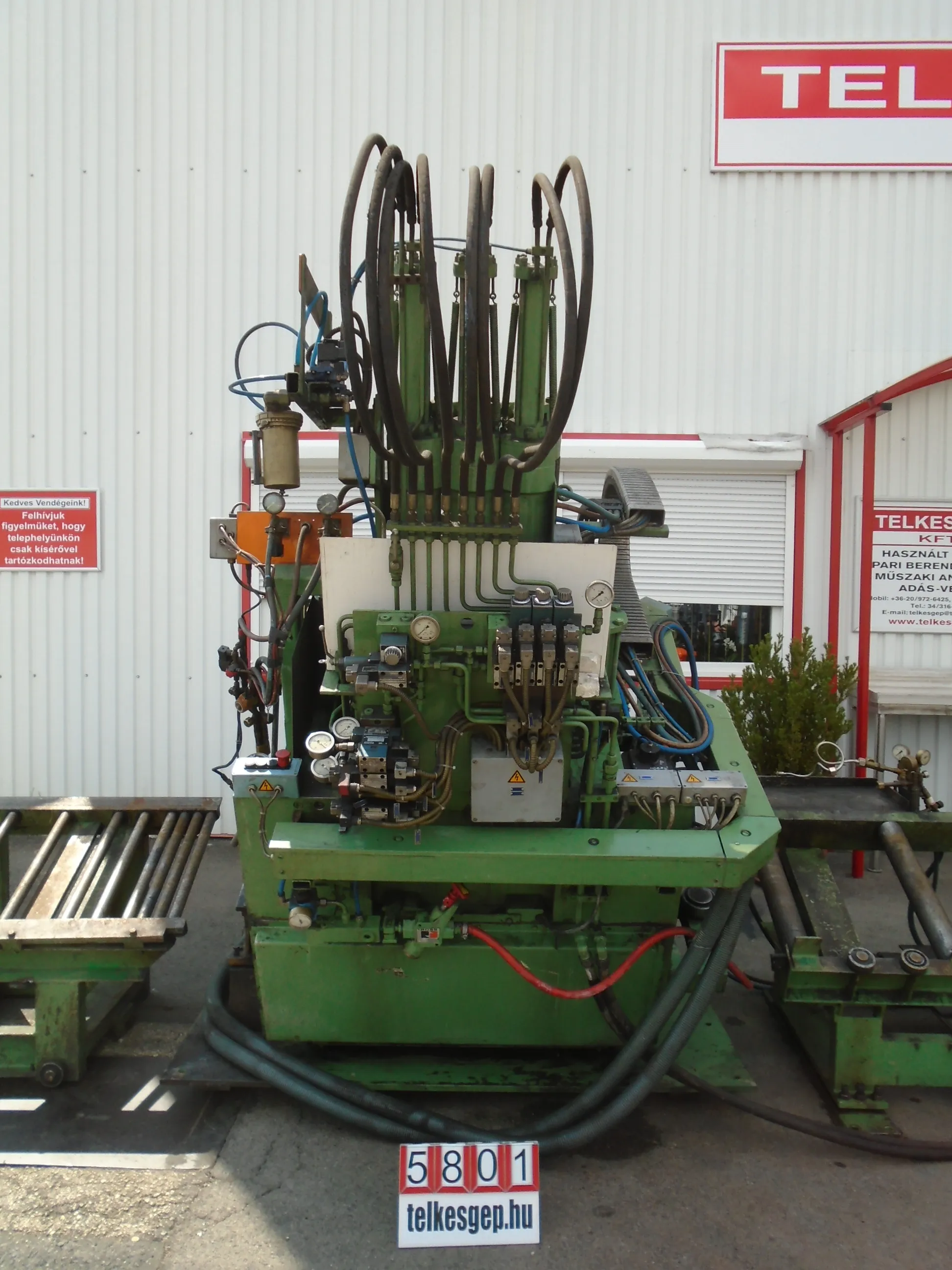

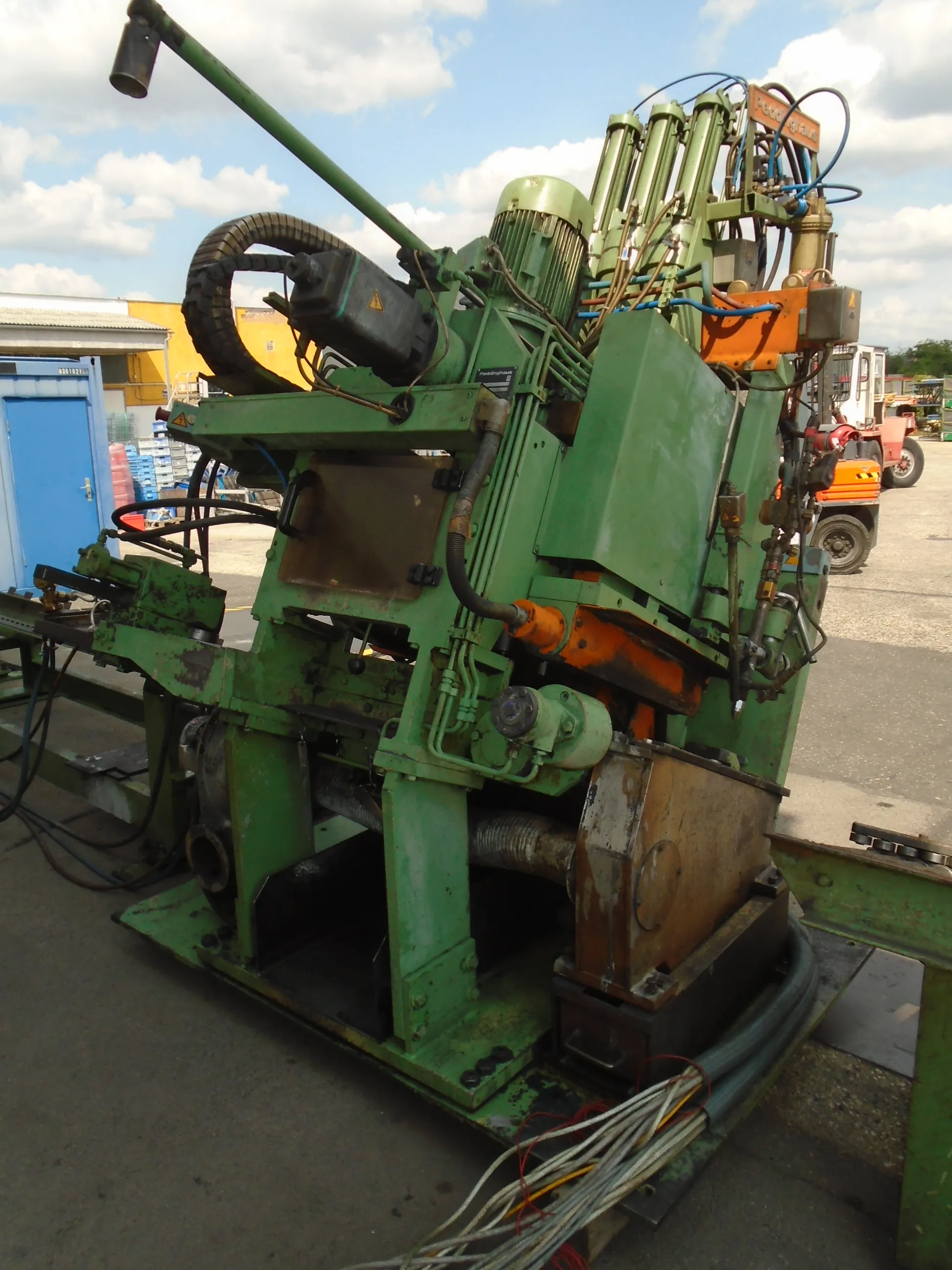

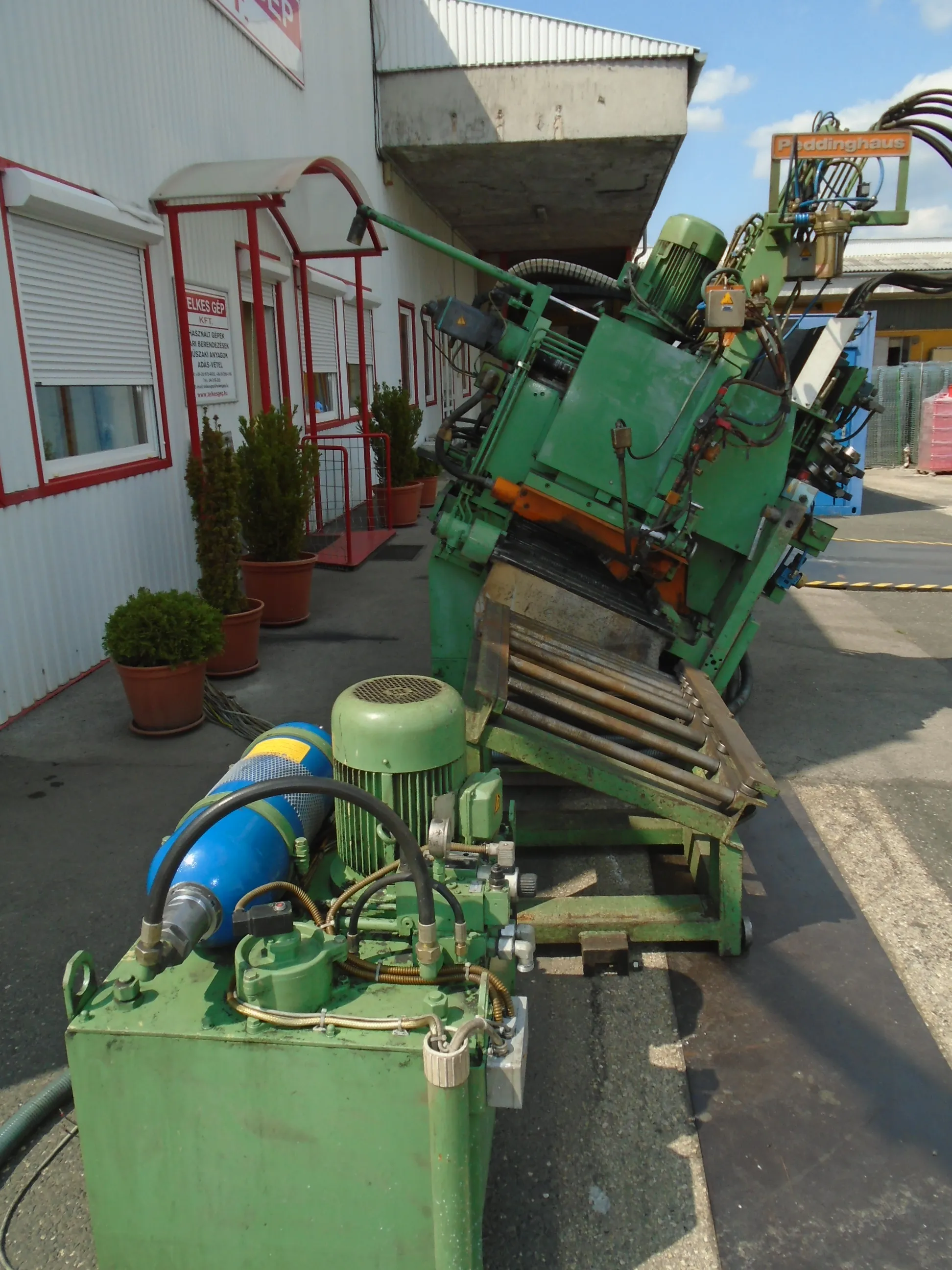

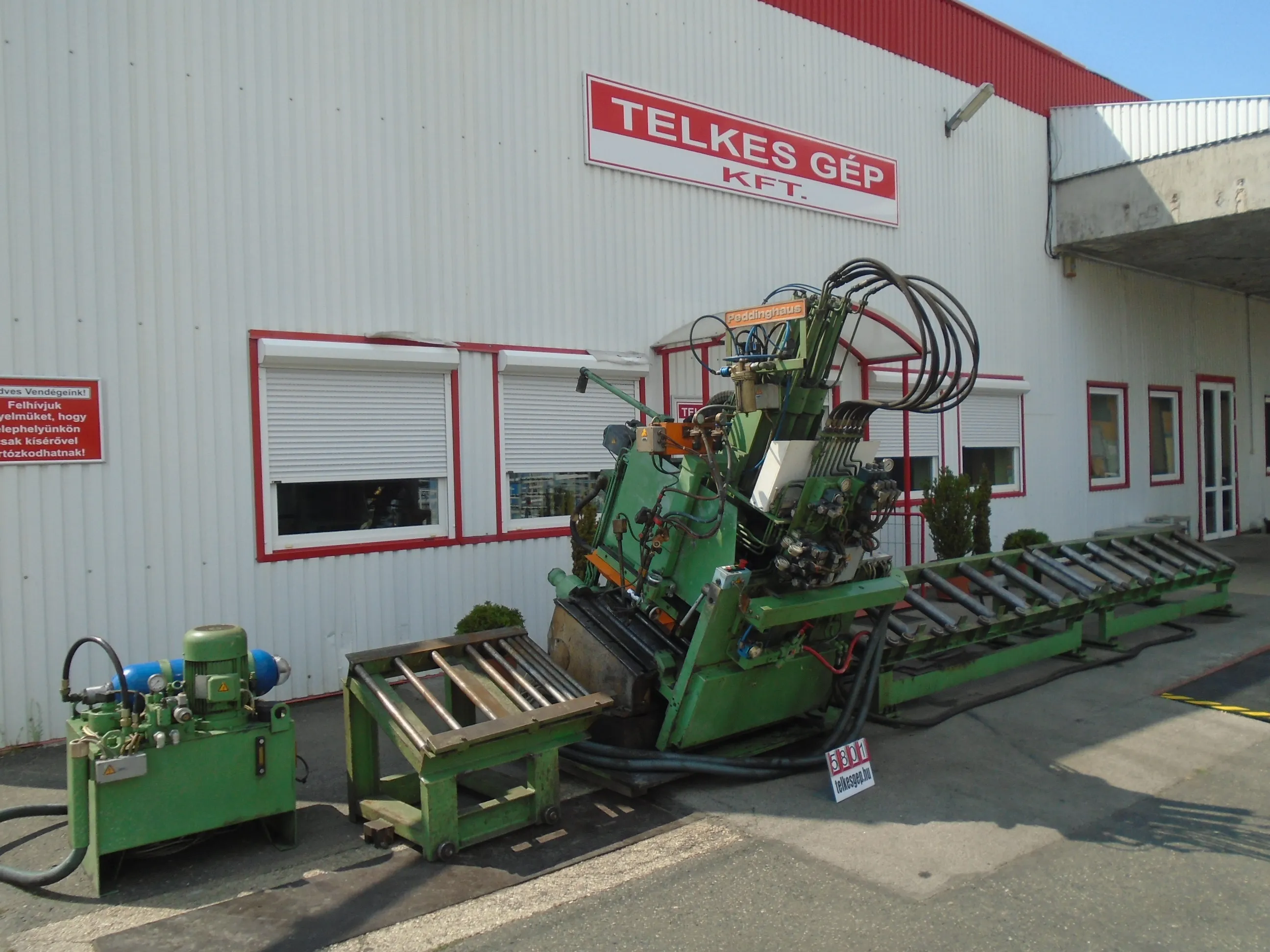

Plate drilling and burning machine FDB 600,
The Peddinghaus FDB 600 plate processor from the Peddimat product range is suitable for automated drilling and oxy-fuel flame cutting of flat steel and steel sheets in steel construction.

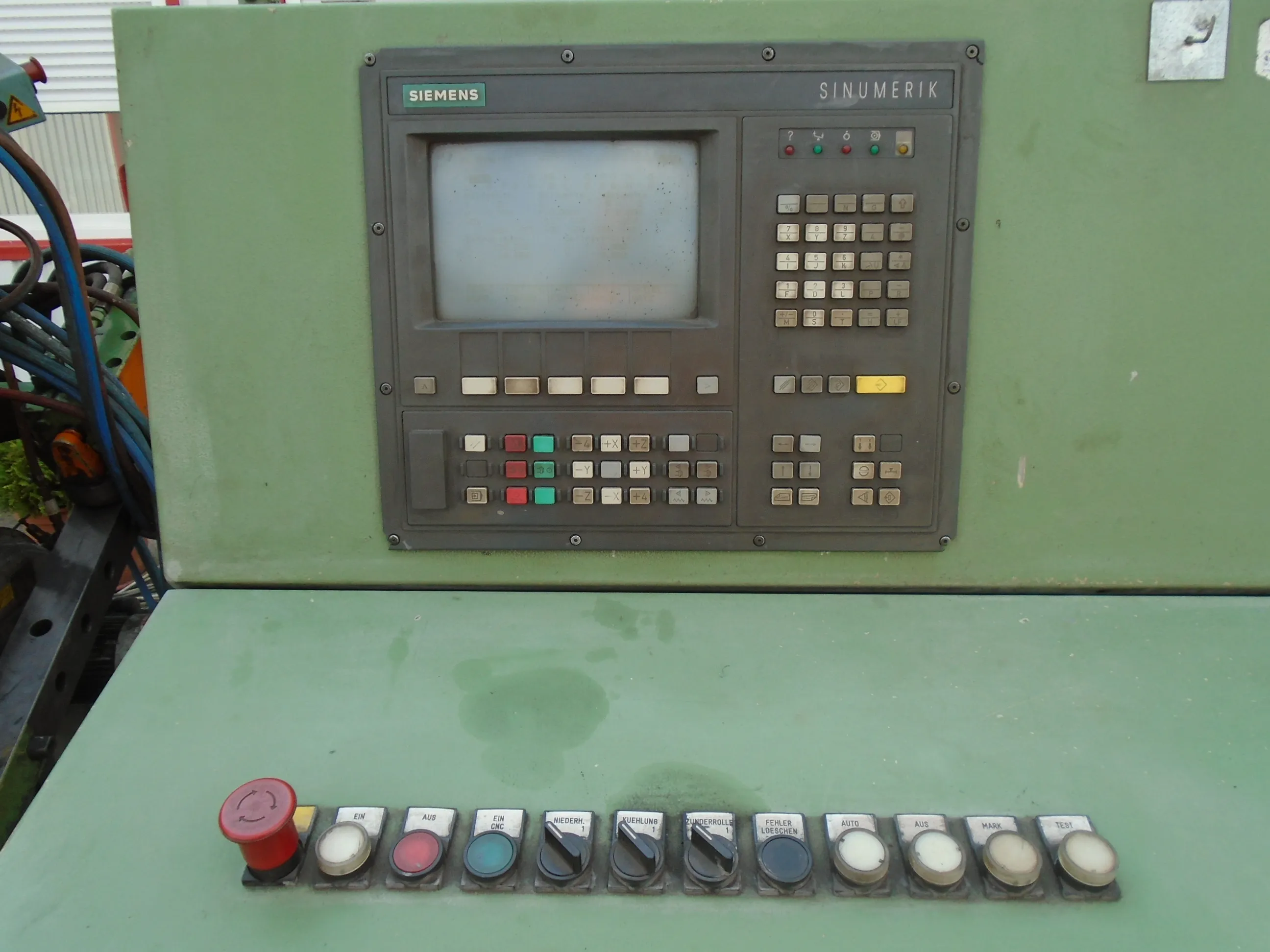

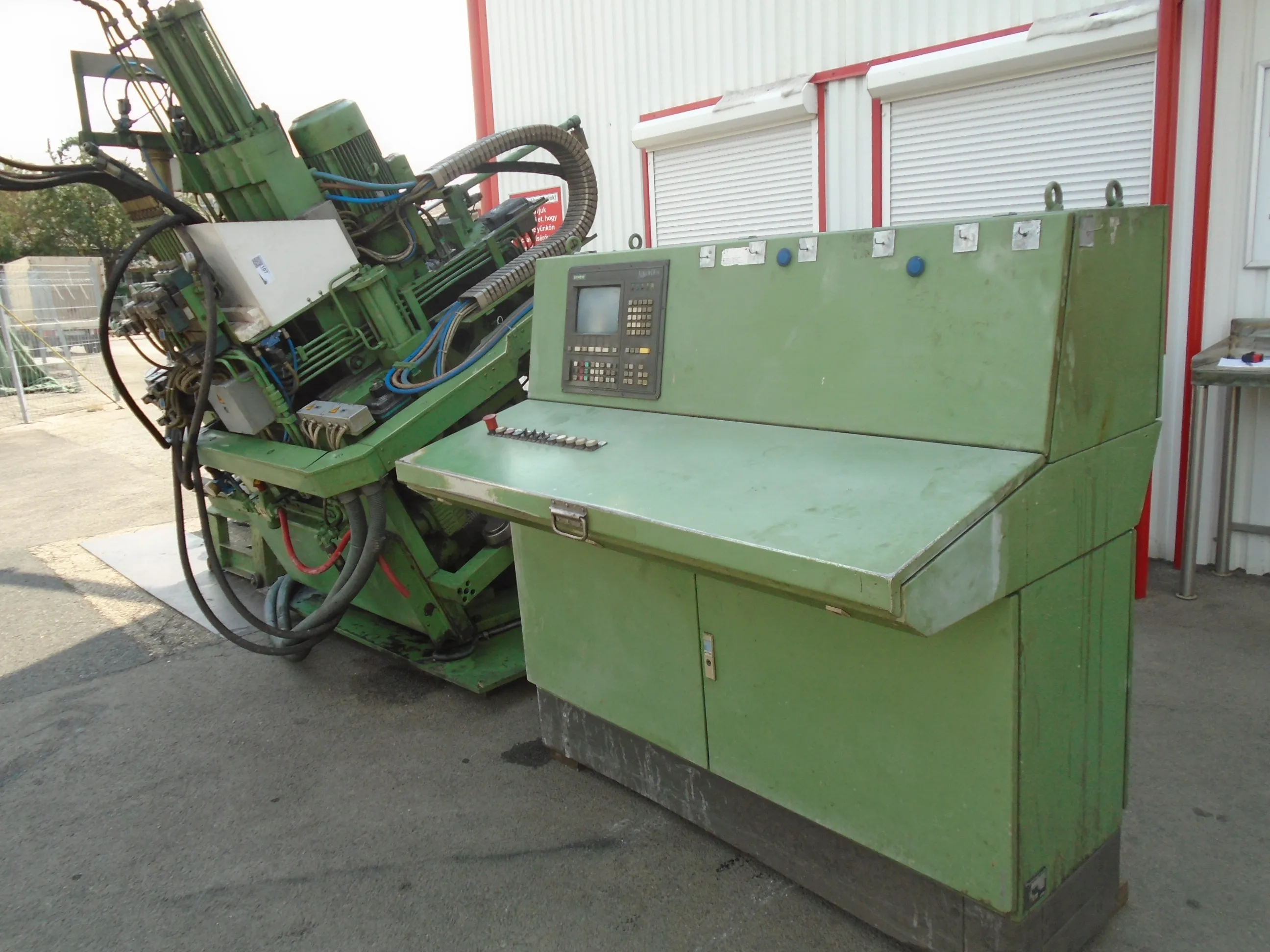

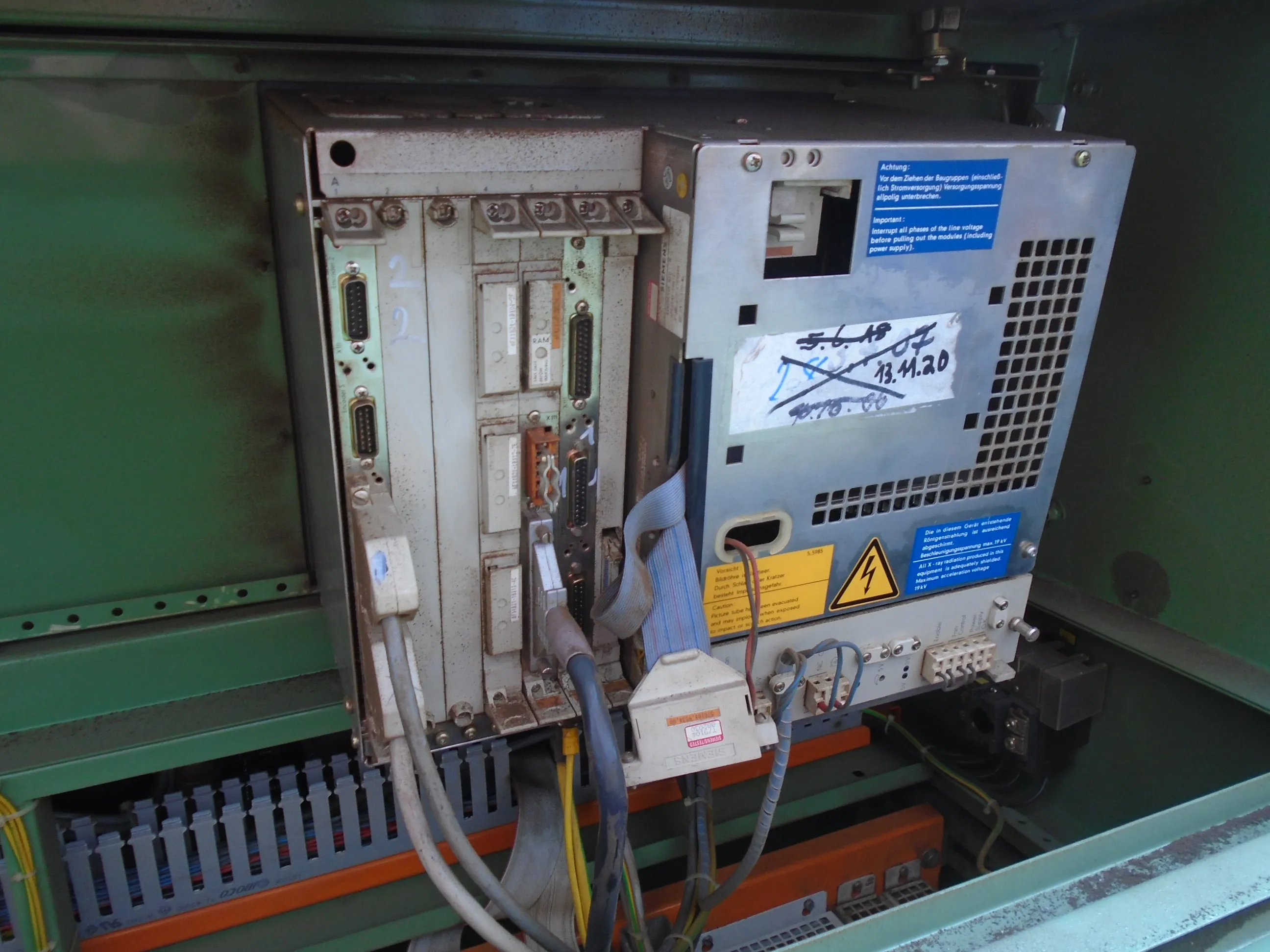

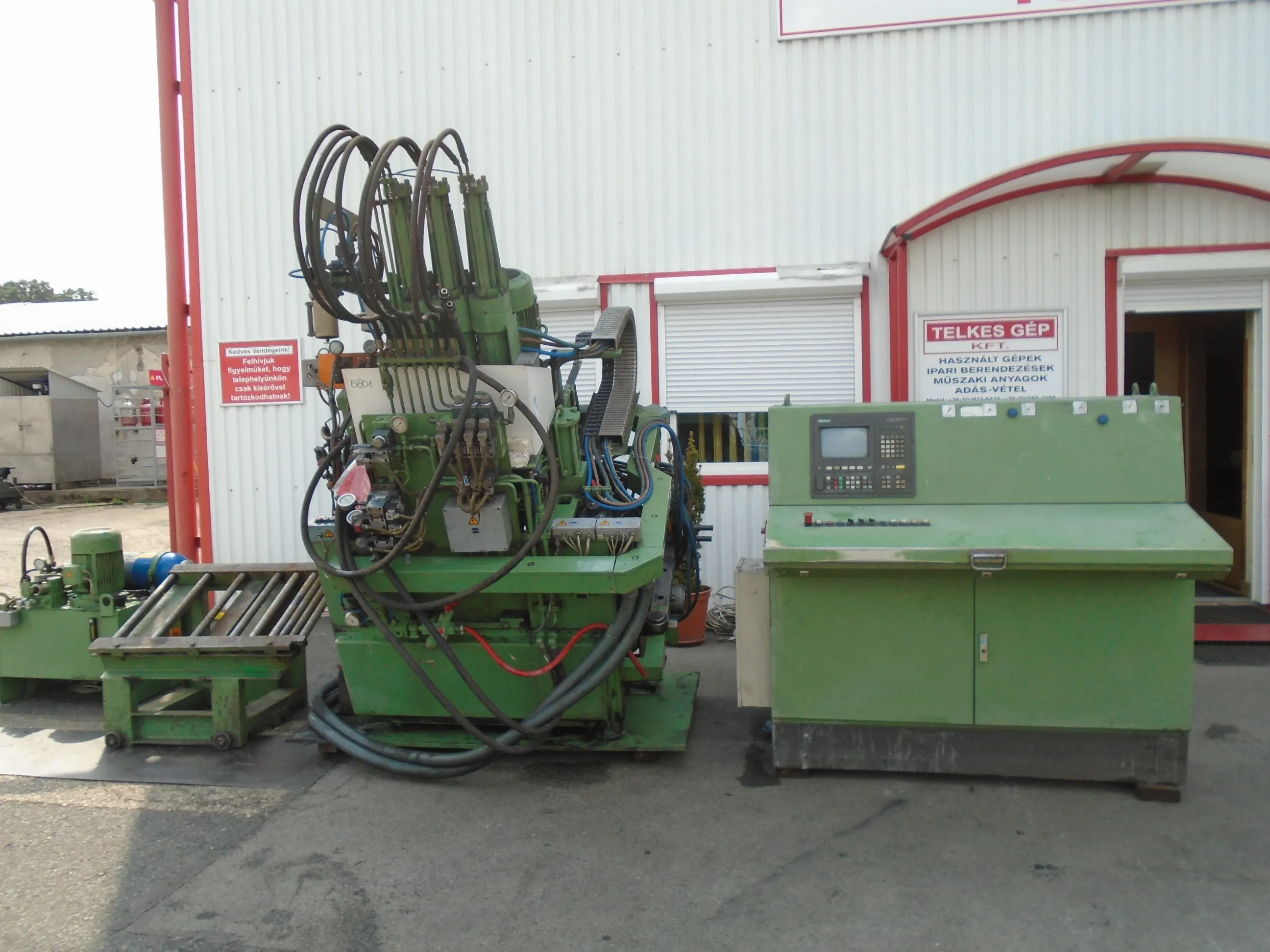

CNC control SIEMENS SINUMERIC
drill diameter: min ø 8, max. ø 40 mm, inner coolant drilling system

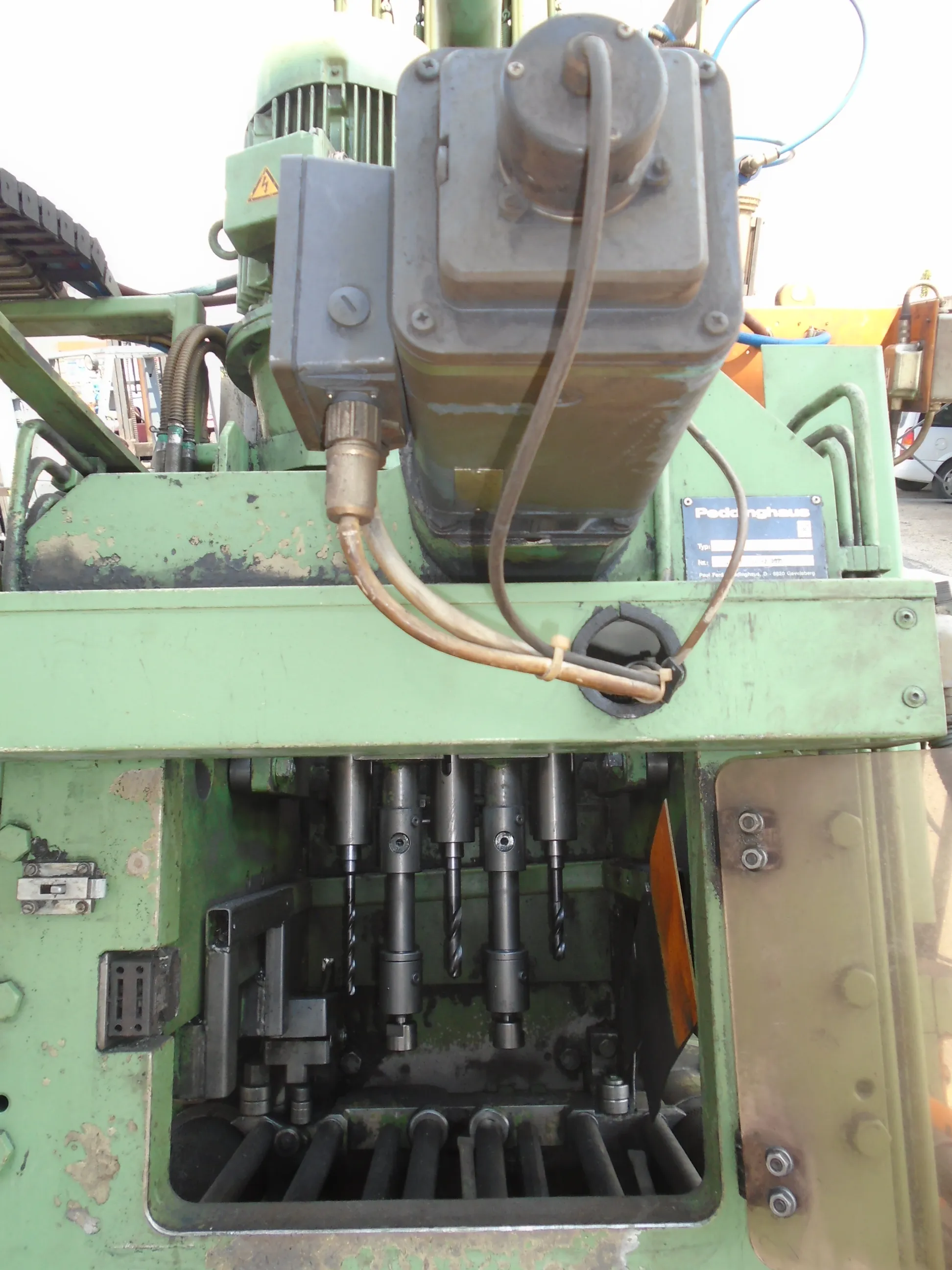

Number of drilling agregates:3 pcs.
Cutting system: Autogen burning equipment
total power requirement: 30 kW
max. workpiece height: 600 x 50 x 6000 mm
Min. material size: 80 x 8 mm
sheet thickness - min.:6 mm
sheet thickness - max.:50 mm
dimensions of the machine ca.:2,4 x 2,4 x 2,8 m

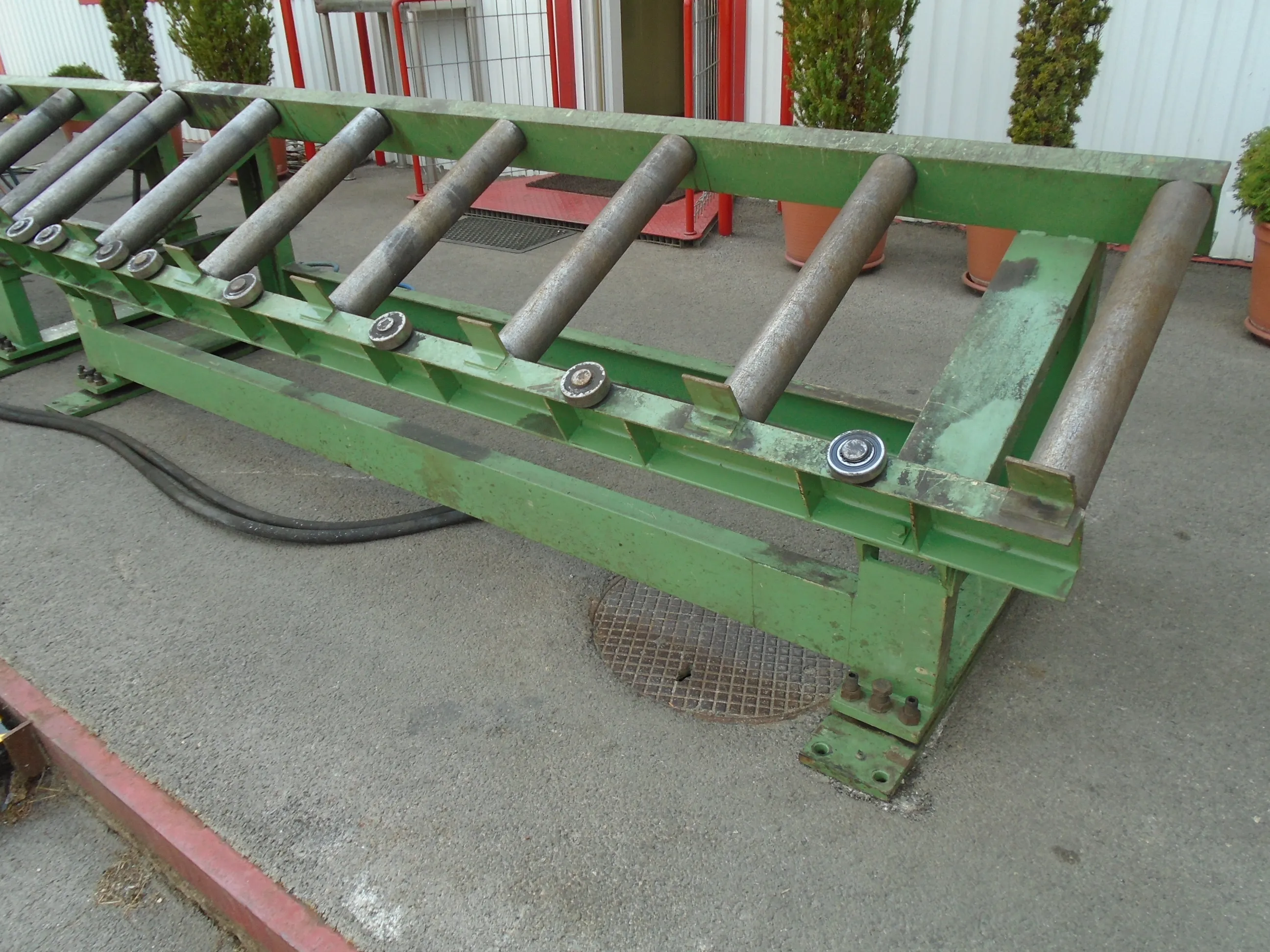

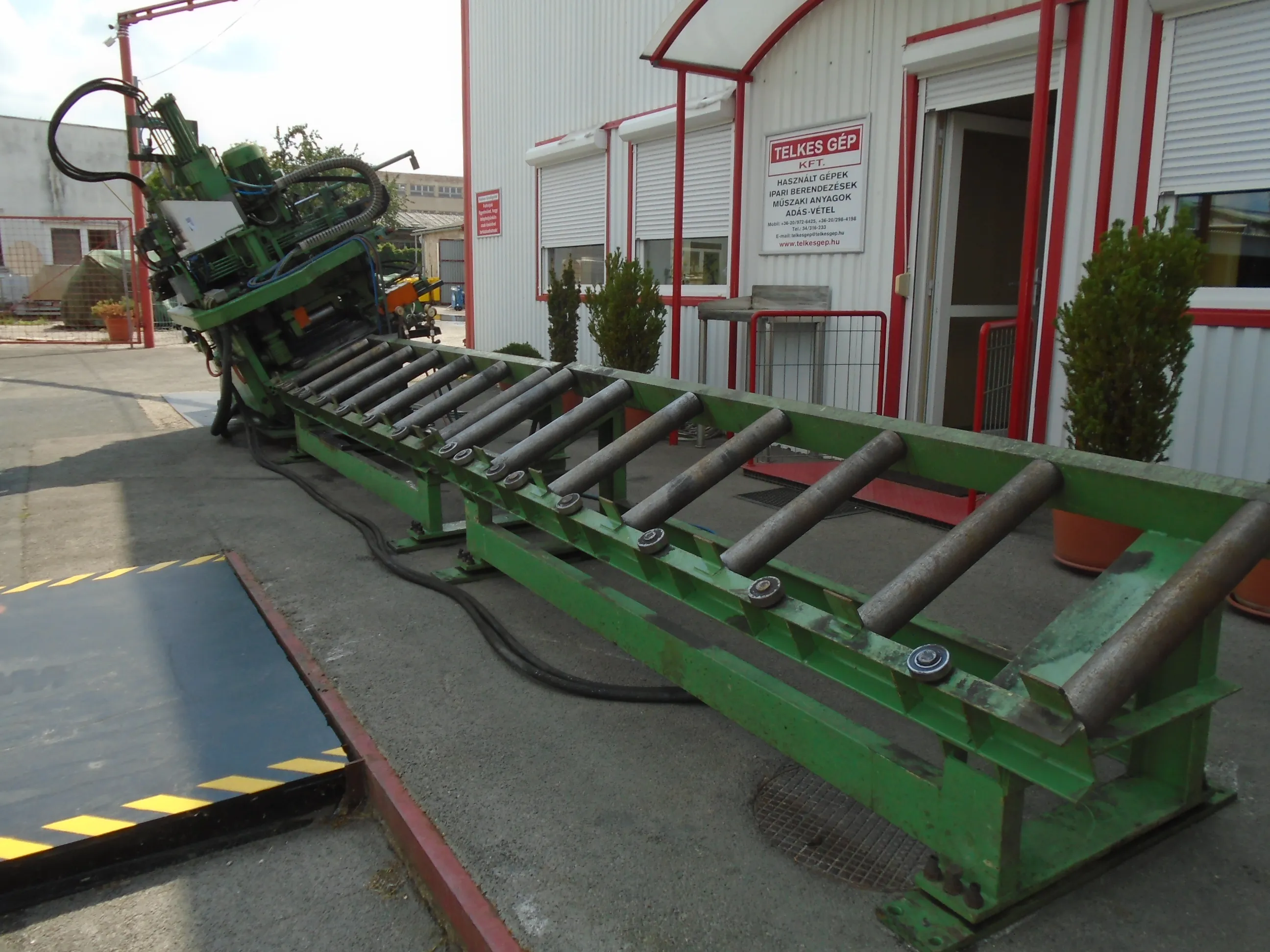

Lead roller conveyor: 6 m
Outside roller conveyor: 1 m
weight of the machine ca.: 6,5 t
