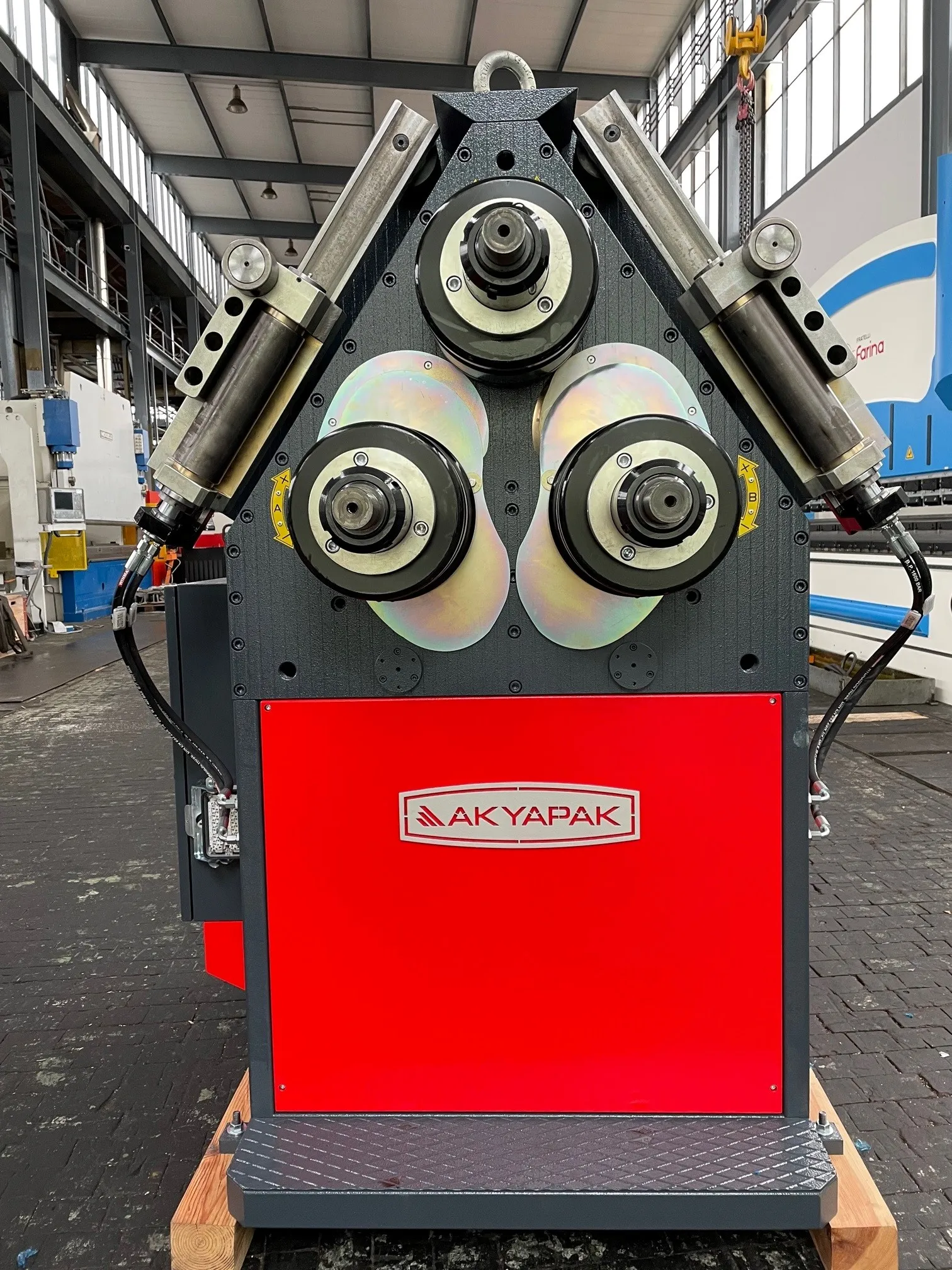

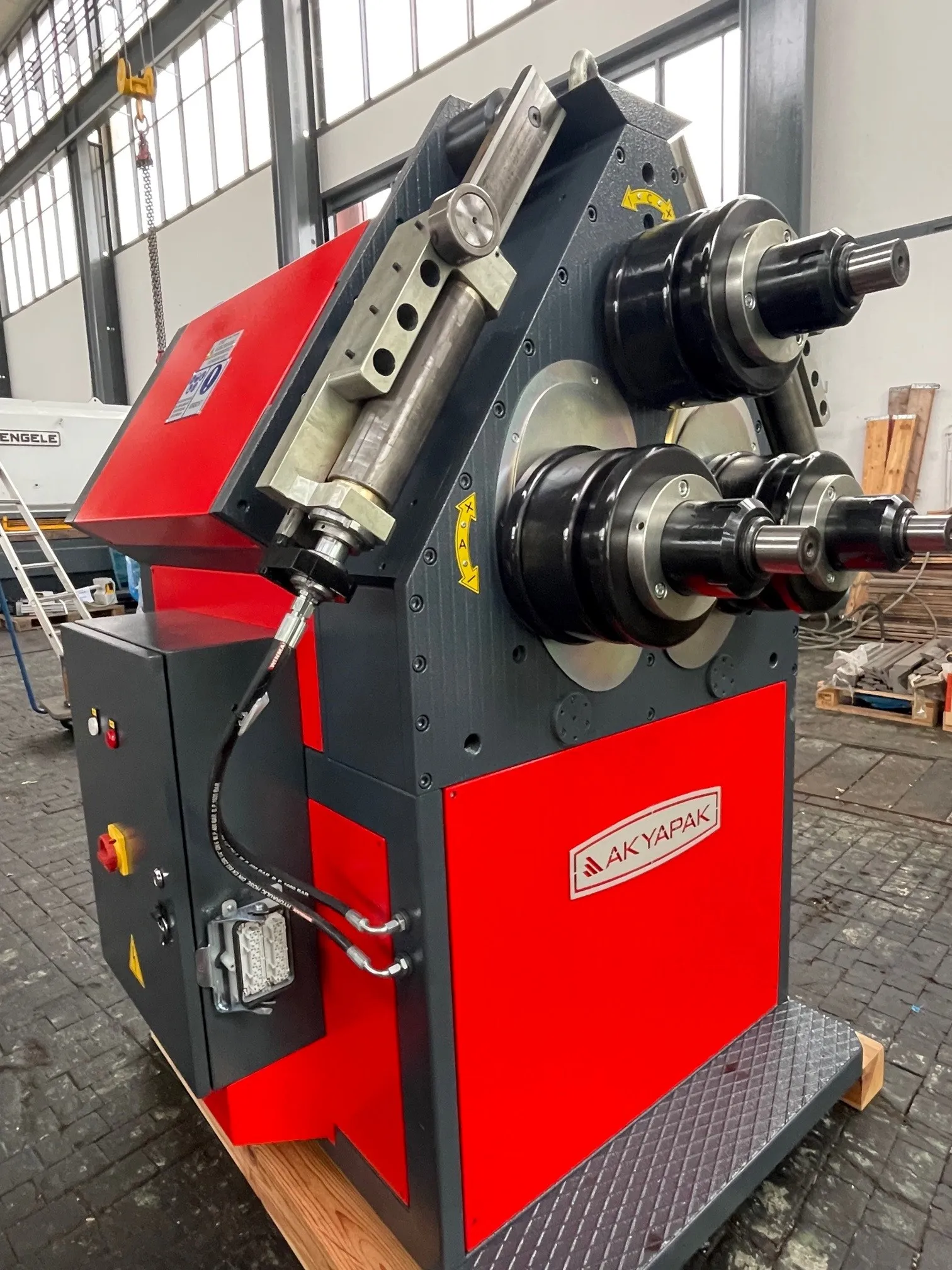

ROHRBIEGEMASCHINE, AK-BEND APK 81
AKYAPAK
APK 81
Auf Anfrage
Condition
Neu
Year of construction
2024
Availability
sofort
Category
Rohrbiegemaschinen
Location
Günzburg, Deutschland
Reference number
4040171
Retailer
Description
TECHNICAL DATA
I-steel - upright 100 x 20 (d 2100) mm, pipe diameter max. 100 x 3 (d 3000) mm, angle steel 80 x 80 x 8 (d 2000) mm, square material 50 x 25 x 2 (d 600) mm, solid material - diameter 60.0 (d 1000) mm
DESCRIPTION
Equipment:
– Welded steel structure body (St-52)

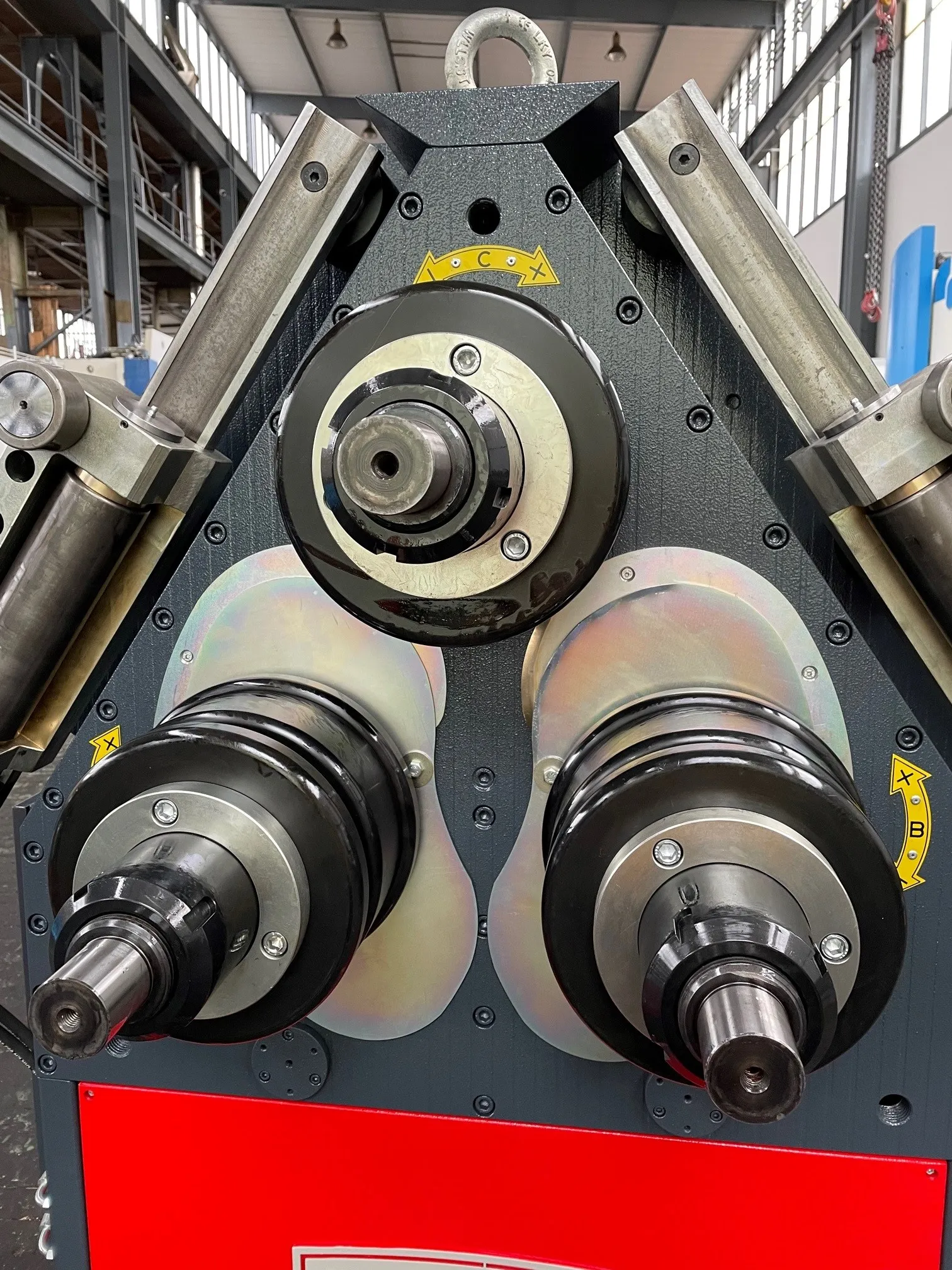

– Rollers are driven by 3 separate hydraulic motors
– Continuously variable speed
– Special steel gears
– Shafts are made of special steel, hardened and ground
– Manual lubrication
– Guide rollers are hydraulically adjustable
– Lower rollers can be moved up and down hydraulically
– Infinitely adjustable speed of the lower rollers, move according to
bottom and top
– Digital display for lower rollers

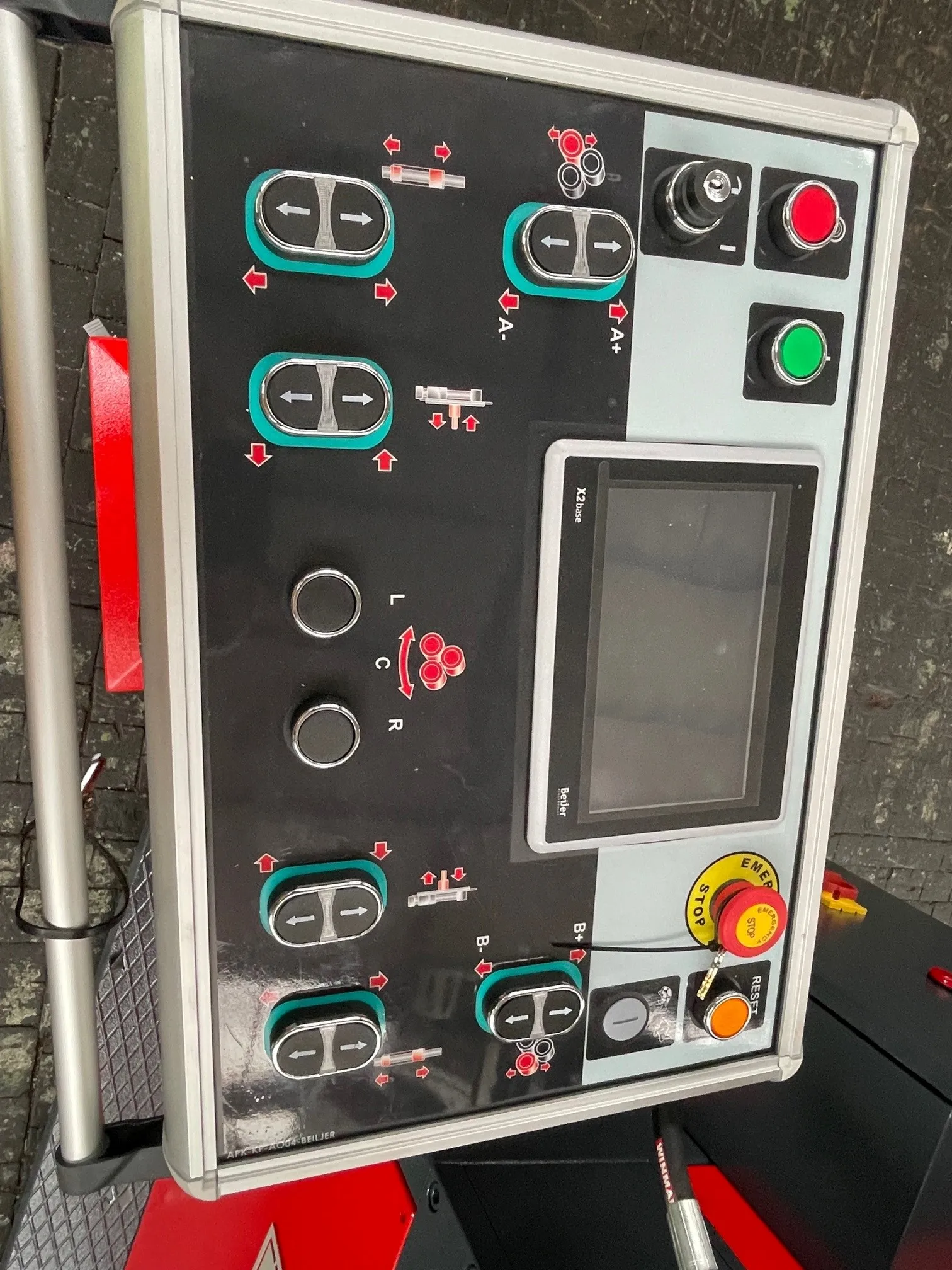

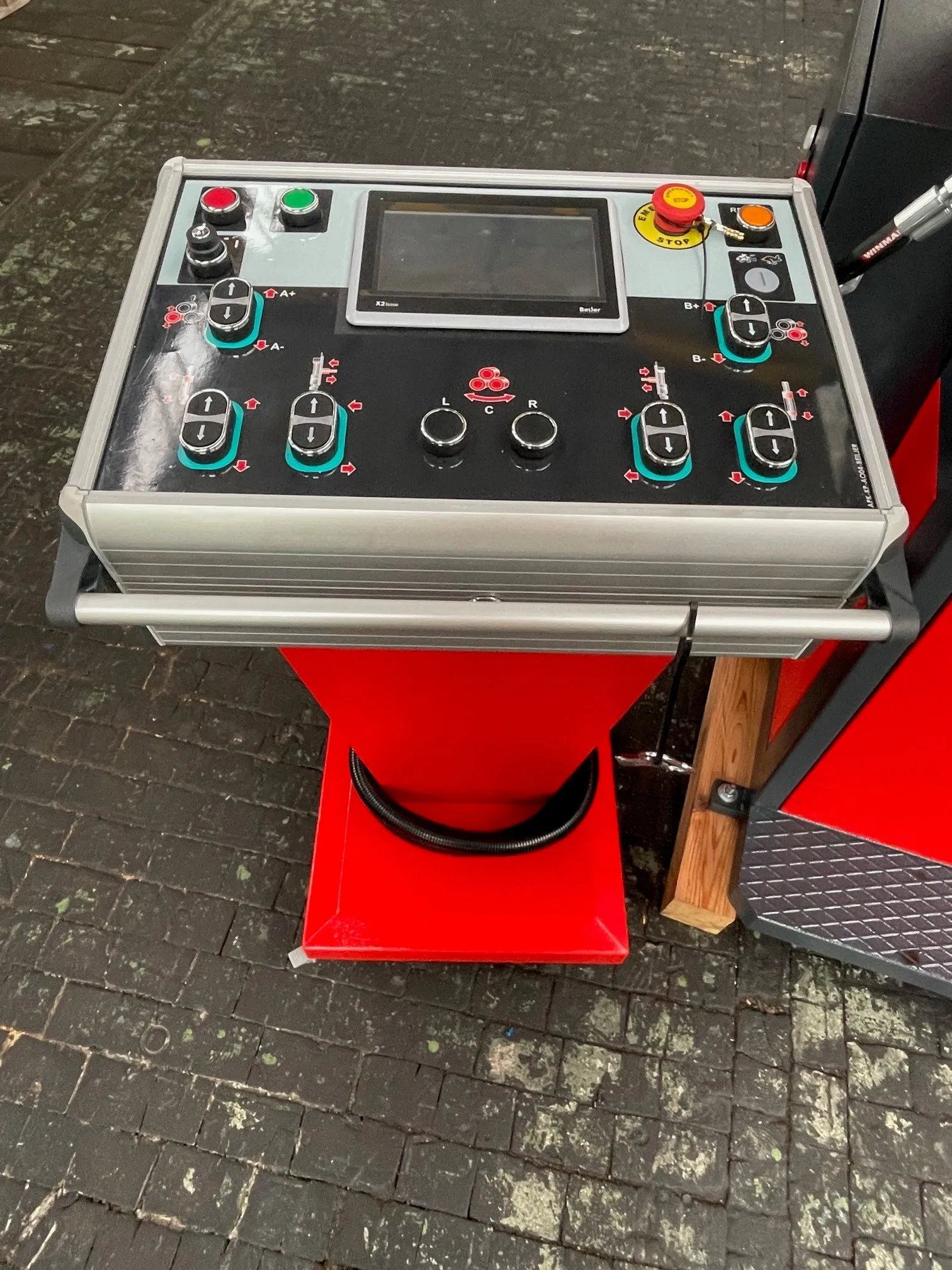

– Separate and movable control panel
– Horizontal and vertical working methods
– Production quality certified according to CE, ISO 9001 – 2015, TSEK and TURQUM
Special equipment:

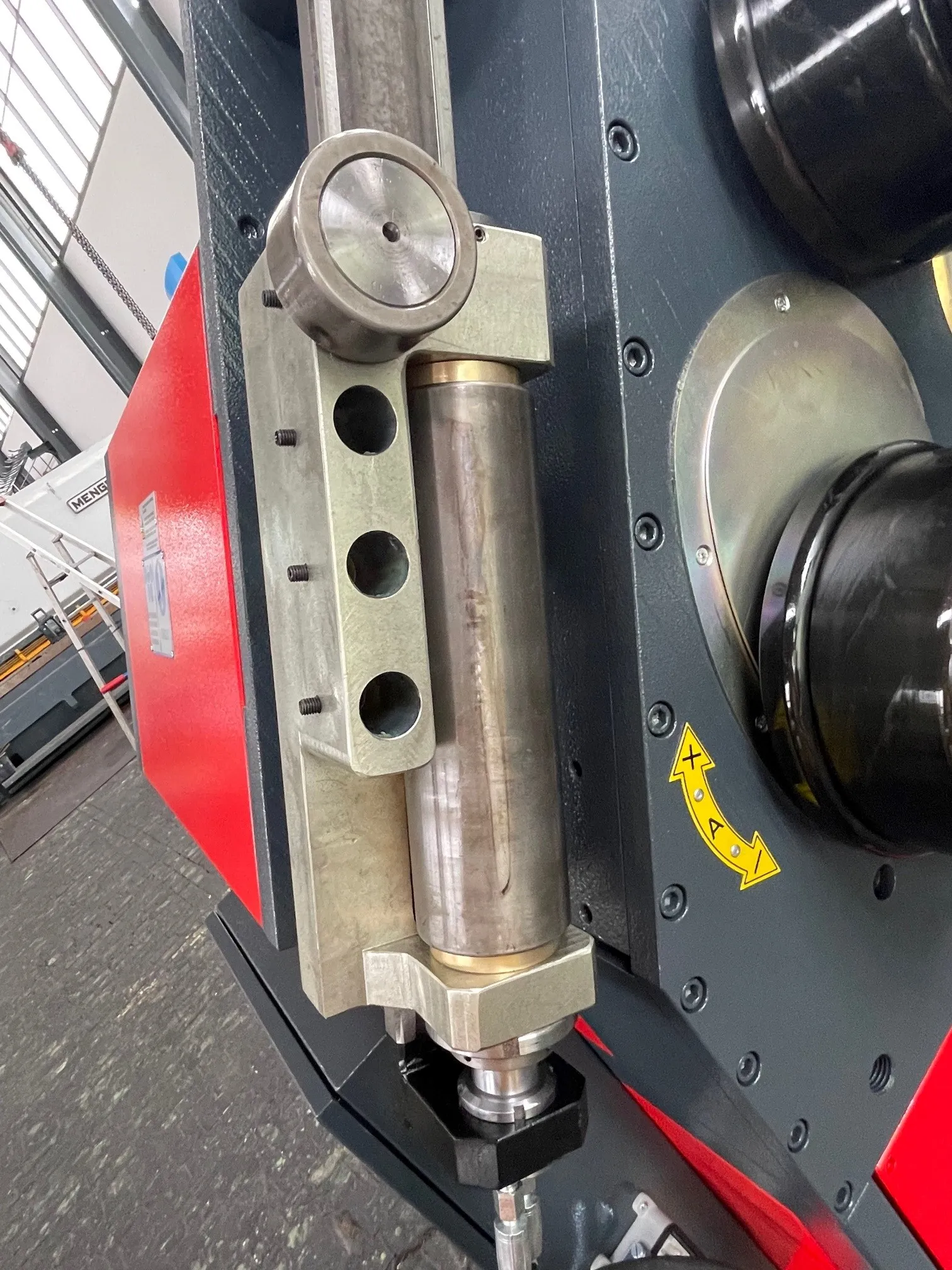

– hydraulically adjustable straightening rollers
