Liegende Plattensäge
SONSTIGE
SCHELLING FT-M 330/310
Auf Anfrage
Condition
Gut (gebraucht)
Year of construction
2004
Availability
Sofort
Category
Sonstige
Location
Pforzheim, Deutschland
Retailer
Description

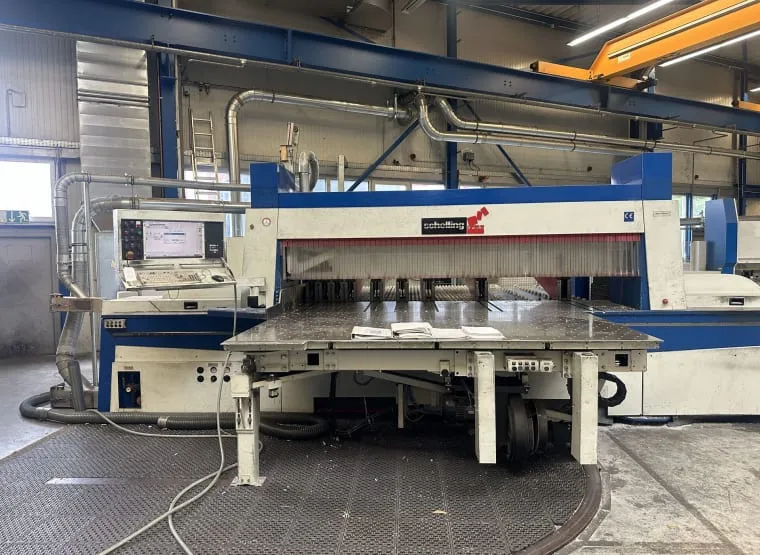

Lying panel saw
- Manufacturer: SCHELLING
- Type: FT-M 330/310
- Year of construction: 2004
- Machine number: 165.309
- Operating voltage: 400 V
- Frequency: 50 Hz
- Rated current: 98 A
- Connection: 58 kW
- Insertion speed:
- Forward: 25 m/min Reverse: 30 m/min
- Saw feed speed:
- Forward: 0.1 - 60 m/min
- Backward: 60 m/min
- Saw motor: 40 kW
- Clamp opening: 220 mm
- Machine accuracy:
- Cut straightness: +/- 0.1 mm on 3 m cutting length
- Dimensional accuracy: +/- 0.1 mm length
- Angle accuracy: +/- 0.1 mm on 1 m leg length
- Cutting length: 3000 mm
- Leg length: 1000 mm
- Table dimensions: 2800 x 1600 mm
- Attention: the machine can be transported on standard trucks
- Total dimensions: 7,500 x 7,000 x 2,300 mm
- Total weight: approx. 12,000 kg
The machine will be sold at an industrial auction.
