Description

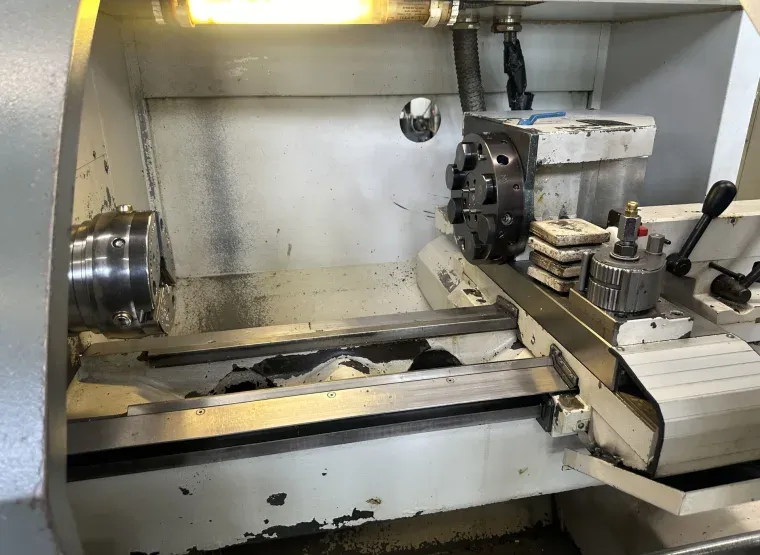

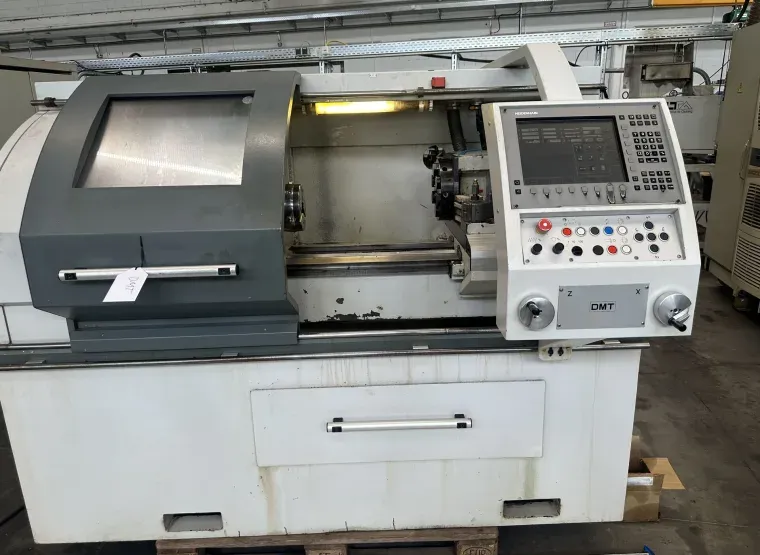

Cycle lathe

• Manufacturer: DMT
• Type: CD 282
• Year of construction: 2007
• Machine number: 2313.07
• Operating voltage: 400 V
• Frequency: 50 Hz
• Rated current: 30 A
• Control voltage: 24 V

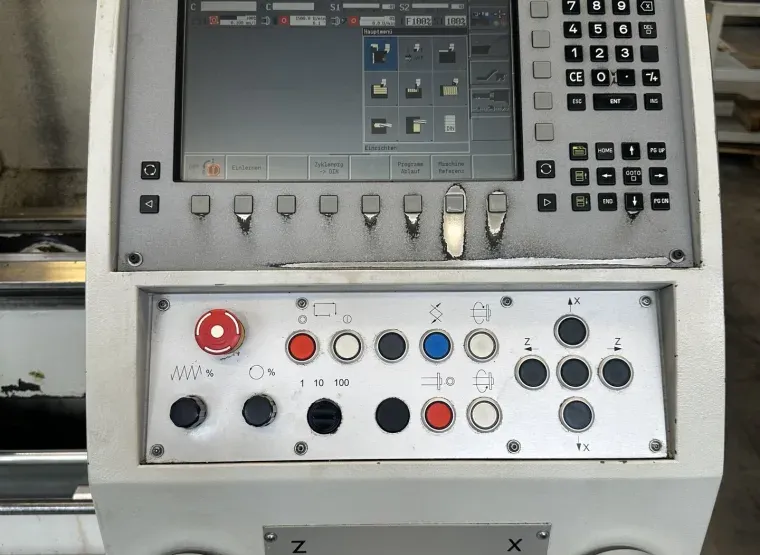

• Control: HEIDENHAIN
• Circulation diameter over bed: 280 mm
• Circulating diameter above the cross slide: 140 mm
• Sledge path plan: 200 mm
• Center width: 500 mm
• Turning length in front of spiral chuck: 500 mm
• Spindle diameter in the front bearing: 75 mm
• Speed range: 1 – 5000 rpm
• Standard chuck sizes: 125/160 mm diameter
• Feed range plan cross slide: 0.001 – 1000 mm/rev
• Feed range longitudinal and thread pitch: 0.001 – 2000 mm/rev
• Rapid traverse plan: 7 m/min
• Rapid longitudinal traverse: 13 m/min
• Tailstock quill diameter: 50 mm diameter
• Pinole travel: 120 mm
• Receiving cone: MK 3

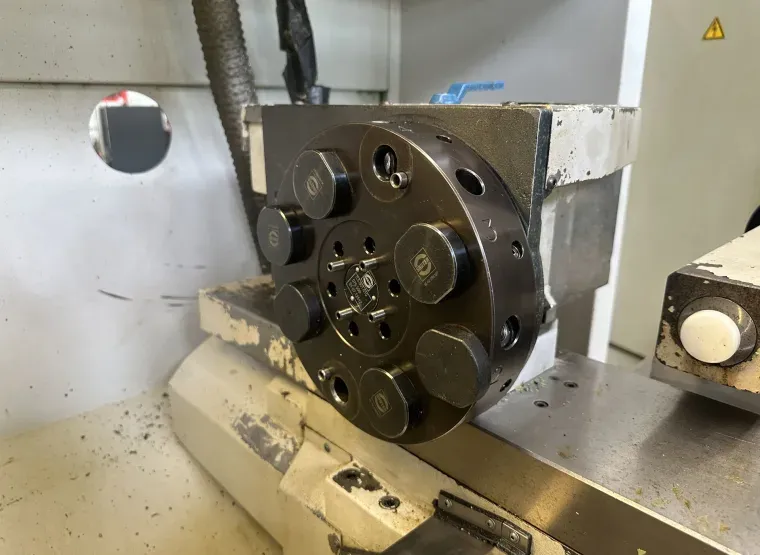

• The machine is equipped with a tailstock as well as an 8-fold disc turret and a three-jaw chuck from the manufacturer SCHUNK
• Diameter: 160 mm
• Operating hours read: 9214
• Total dimensions: 2,100 x 1,200 x 1,700 mm
• Total weight: approx. 1,400 kg

The machine will be sold at an industrial auction.
