Description

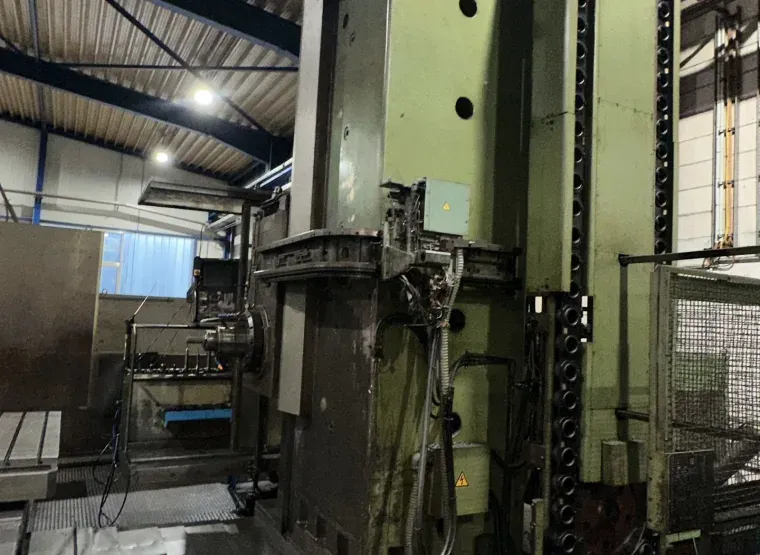

CNC table drilling machine

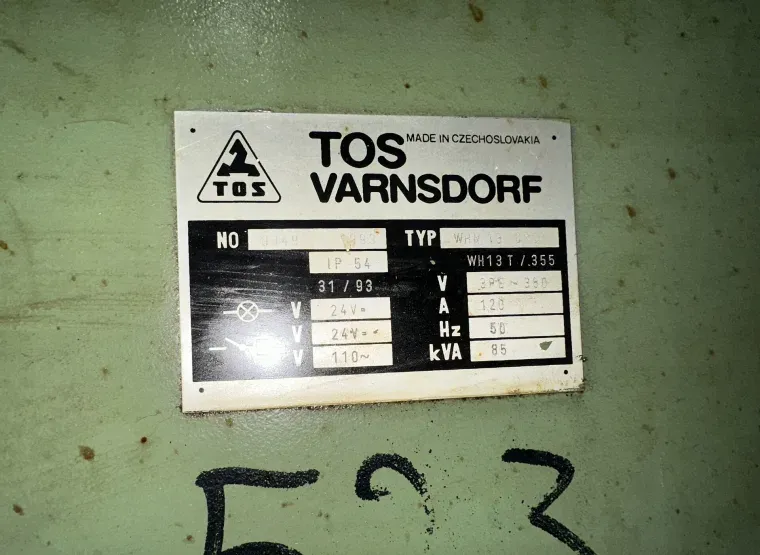

• Manufacturer: TOS
• Type: WHN13CNC
• Year of construction: 1993
• •Machine number: 83-49
• Operating voltage: 380 V
• Frequency: 50 Hz
• Connection: 85 kVA
• Rated current: 120 A

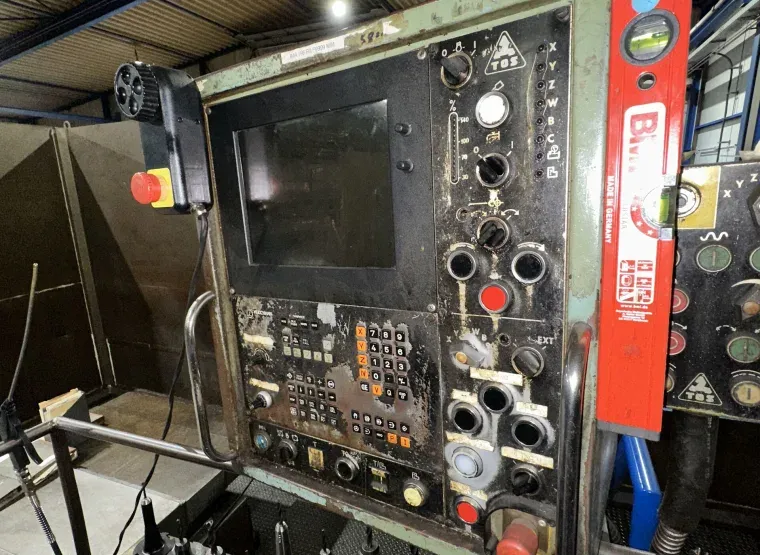

• Control: HEIDENHAIN

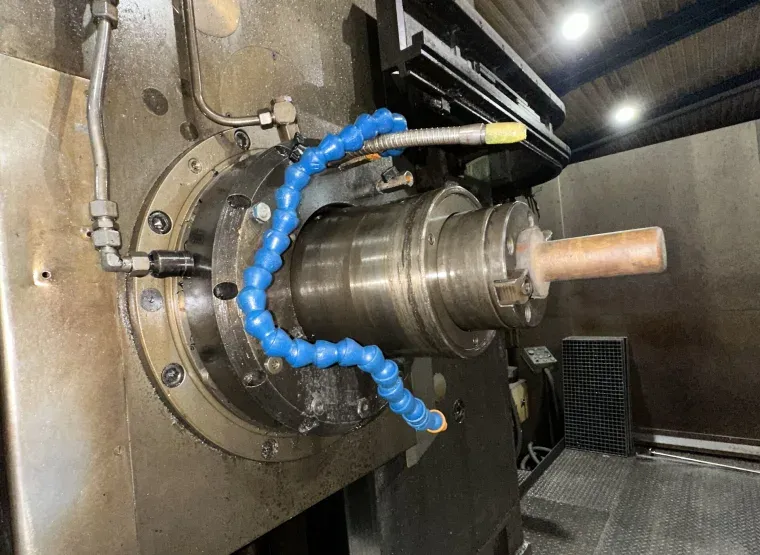

• Spindle carriage:
• Diameter of the work drill spindle: 130 mm
• Diameter of the flange of the holster spindle: 280 mm
• Max. Diameter of the centering cone of the holster spindle: 180 mm
• Depth of the centering cone of the holster spindle: 19 mm
• Drilling spindle from the head of the hol spindle: 19 mm
• Adjustment of the head of the work drill spindle when disengaging the drill spindle: 800 mm
• Adjustment of the head of the work drill spindle when the frame is advanced: 3250 mm
• Adjustment of the axis of the work drill spindle in the Y axis with the start of the parameter in the plane of the clamping table depending on the height of the frame: 2000 mm

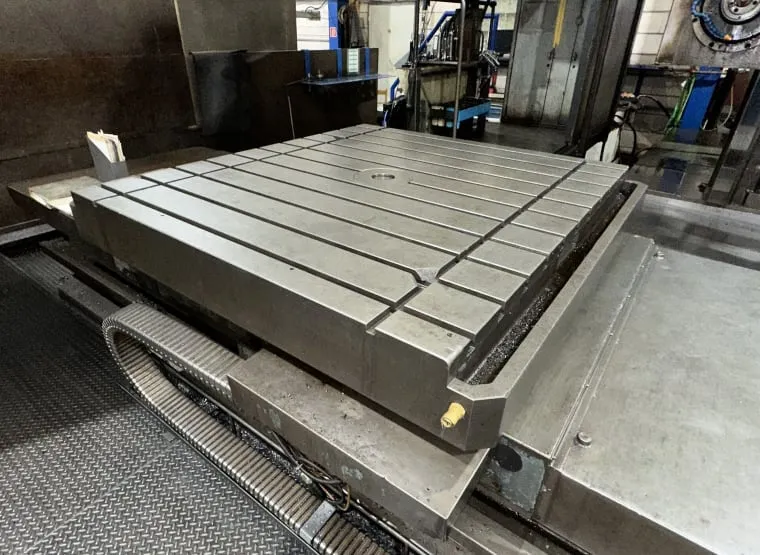

• Table dimensions: 1800 x 2200 mm
• Diameter of the centering hole for the clamping surfaces: 106/H6 mm
• Depth of the centering hole of the clamping surface: 14 mm
• Maximum workpiece weight: 12000 kg
• Maximum table speed: 1.5 rpm
• Table rotation accuracy: 0.001°
• Distance between the clamping grooves: 160 mm
• Min. Distance of the axis of table rotation from the head of the work drill spindle: 165 mm
• Travel paths:
• X: approx. 3500 mm
• Y: approx. 2000 mm
• Z: approx. 1250 mm
• Z: Quill stroke (W axis): 800 mm
• Tool holder: SK 50
• With a 60-fold tool changer
• Incl. Items of tool holders and a 3D measuring probe
• Incl. 2 additional clamping angles
• Dimensions: 1100 x 850 mm
• Total dimensions: 7,000 x 7,000 x 4,500 mm
• Total weight: approx. 34,500 kg

The machine will be sold at an industrial auction.
