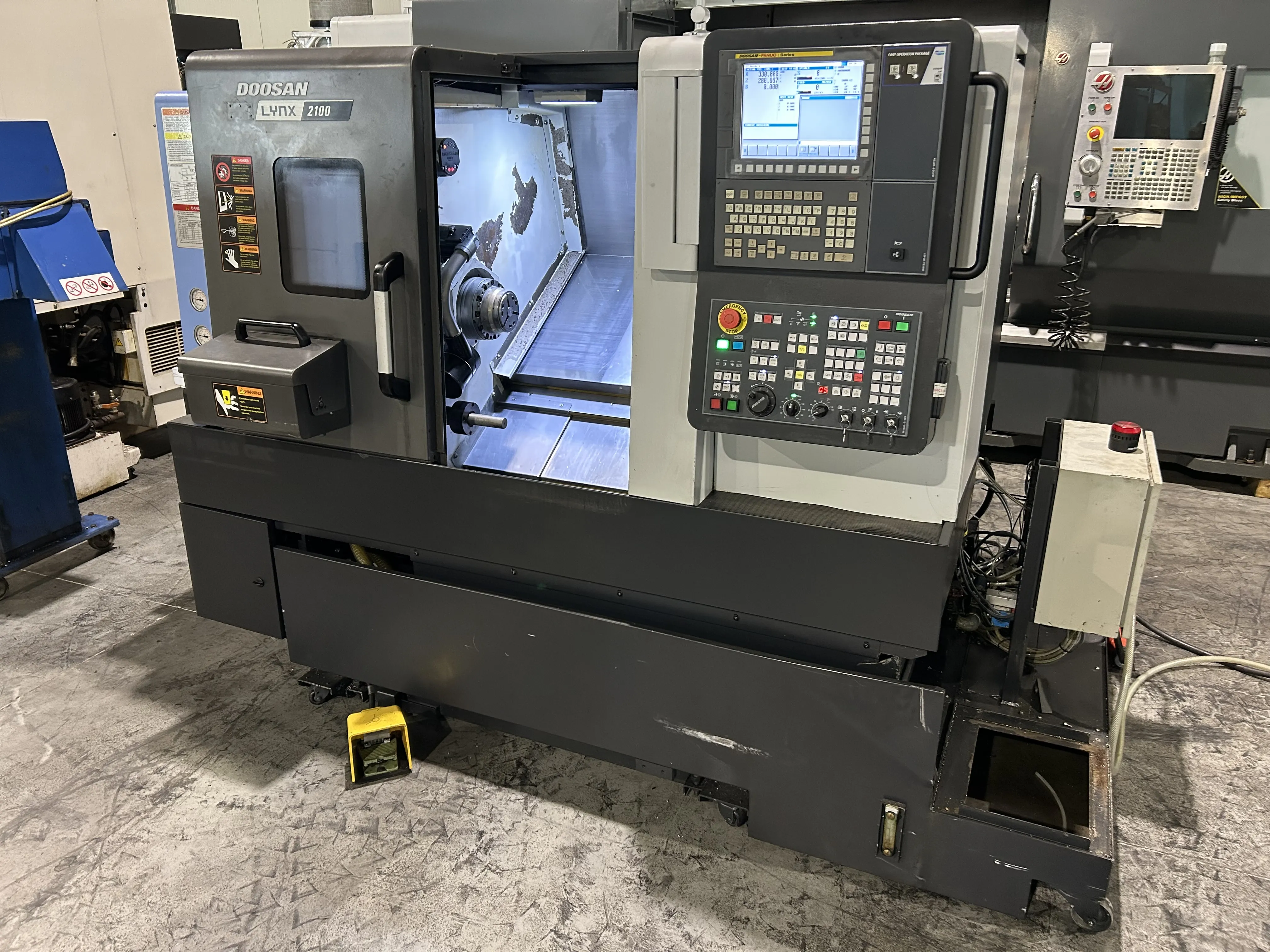

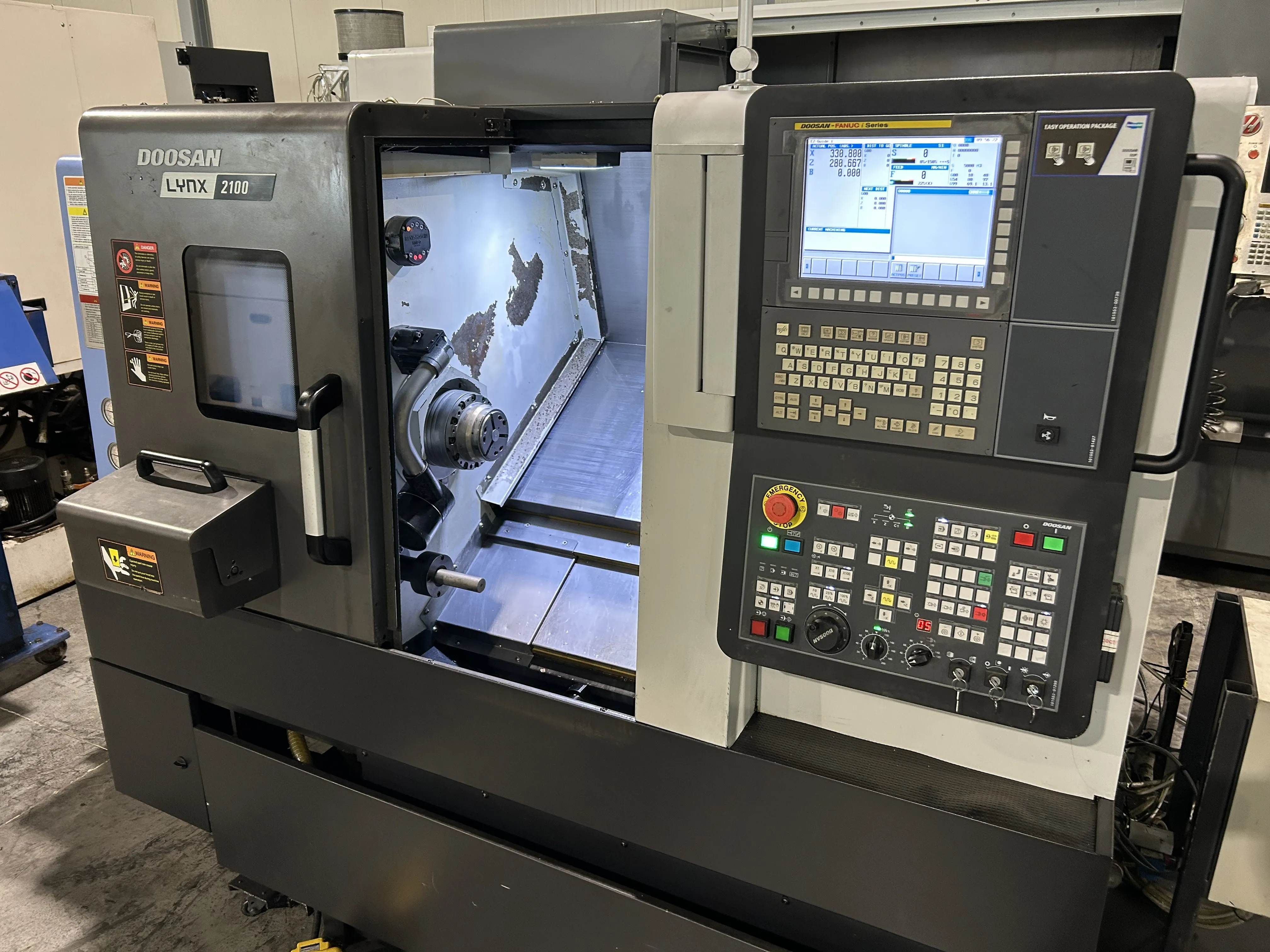

2019 Doosan Lynx 2100B
DOOSAN
Lynx 2100B
Auf Anfrage
Condition
Sehr gut
Year of construction
2019
Availability
Immediately
Category
CNC Drehmaschinen 200-249mm Drehdurchm.
Location
Zutphen, Nederland
Retailer
Description

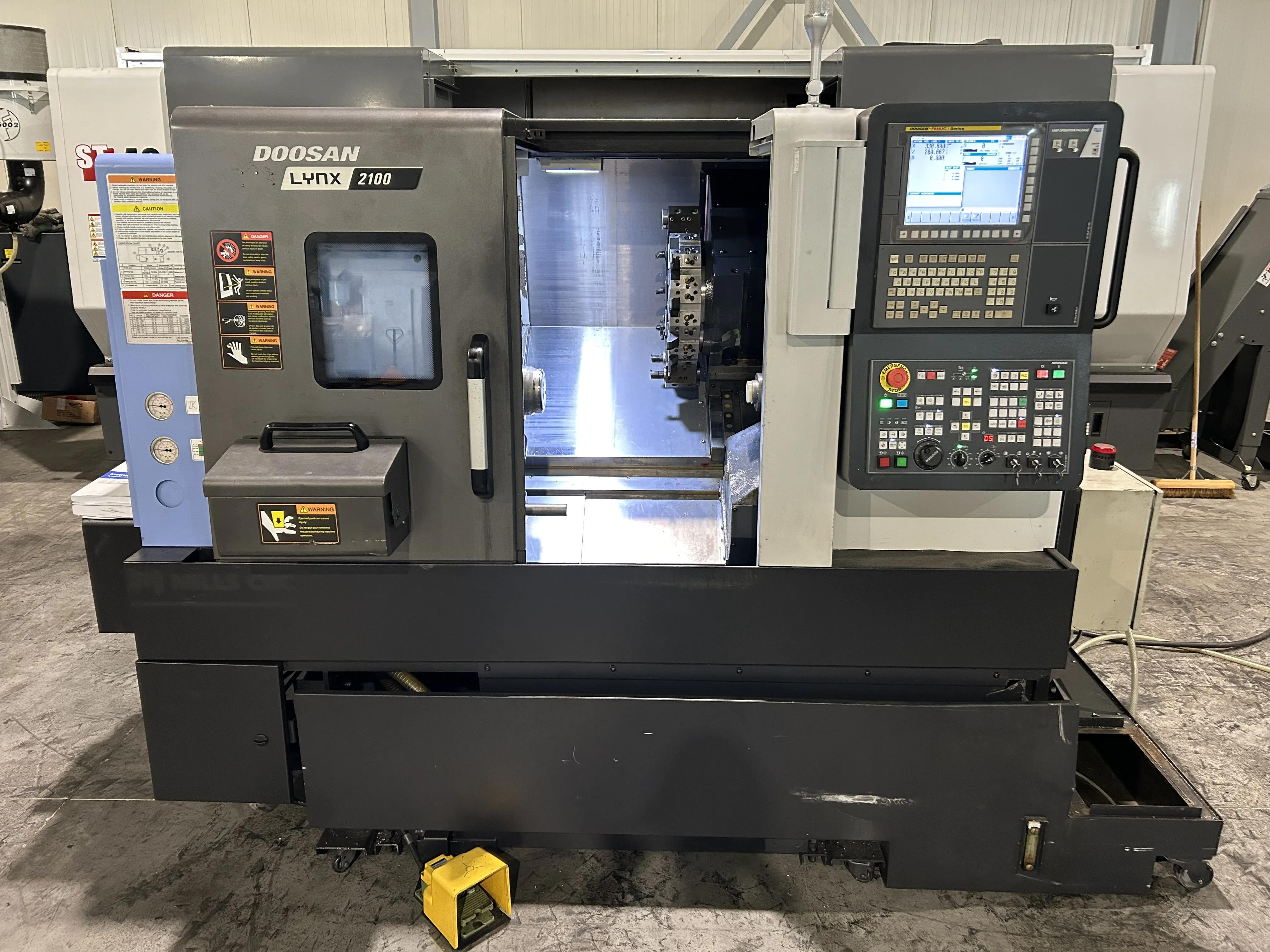

New in stock! 2019 Doosan Lynx 2100B, well maintained with only 6234 hours.
It is possible to inspect the machine under power!
Video's are available!
This machine is immediately available available in our warehouse
in Zutphen. For a viewing and/or more information please contact
us at at: +31 652 685528 or info@hanemach.nl

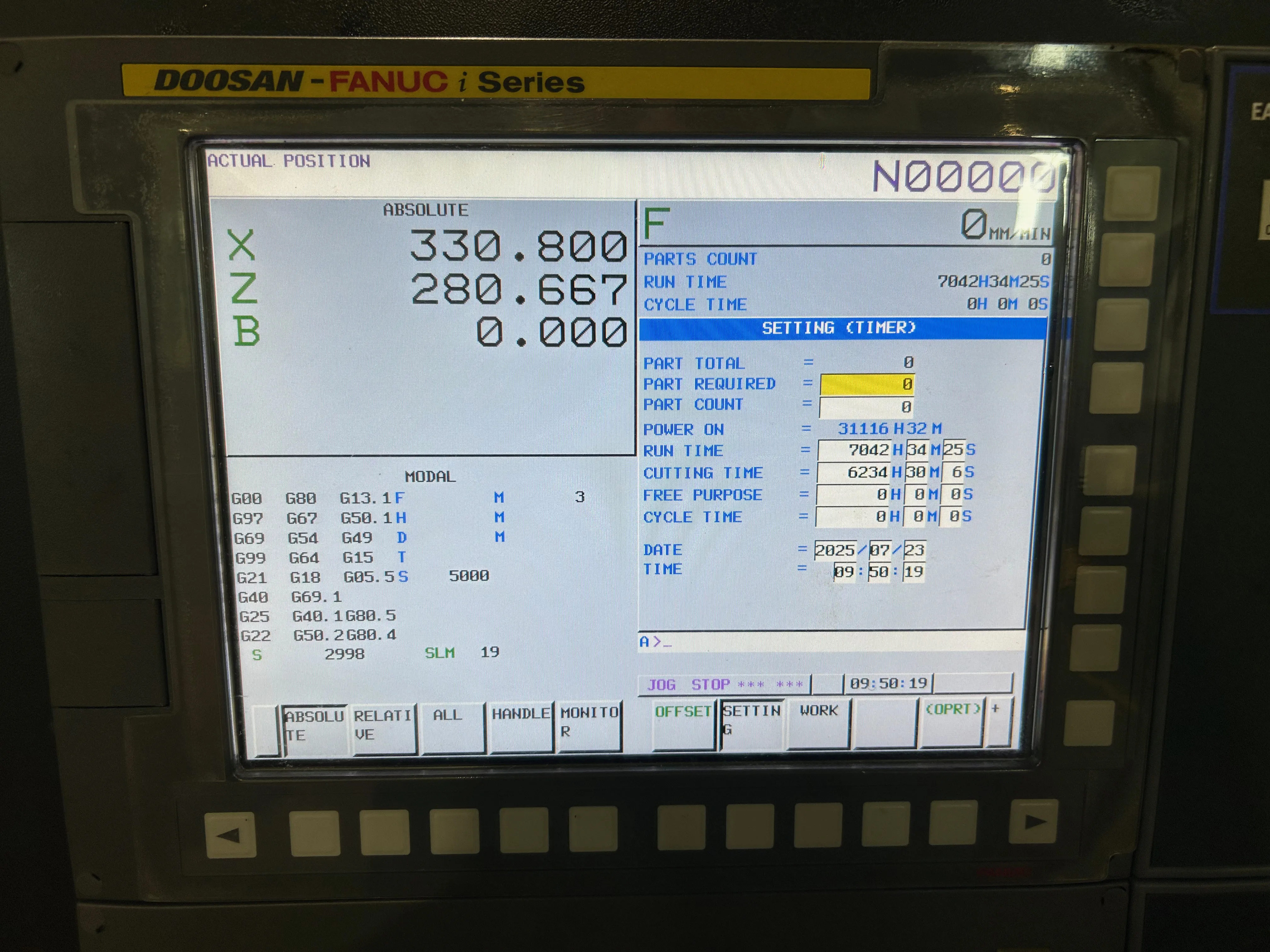

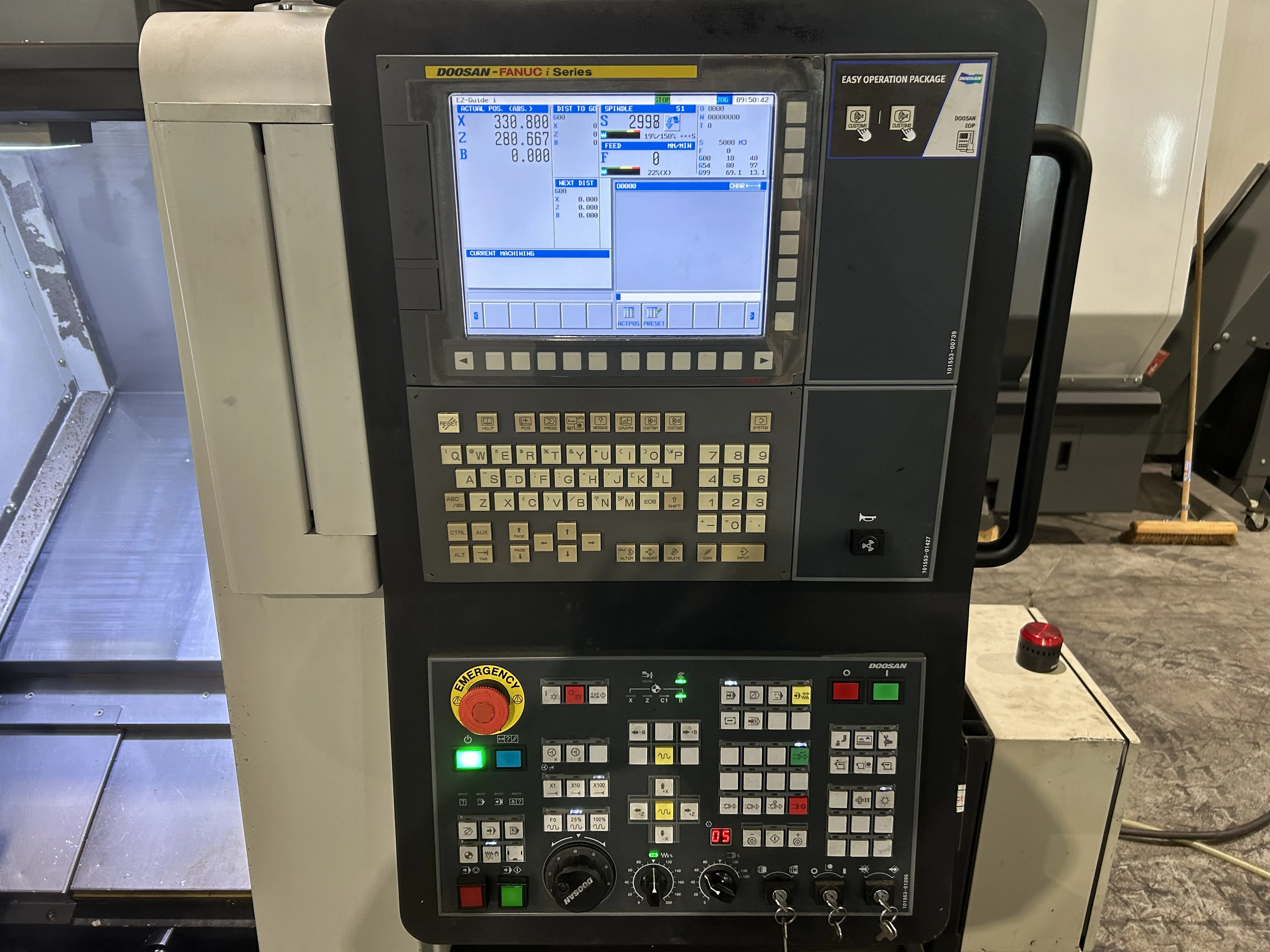

Control: Fanuc i Series
Hours: 7298
Specifications:
Control: Fanuc i Series
Hours: 6234
Capacity:
Swing over bed: 600mm
Swing over saddle: 400mm
Max. Turning diameter: 210mm
Max. Turning length: 330mm
Bar working diameter: 65mm
Spindle:

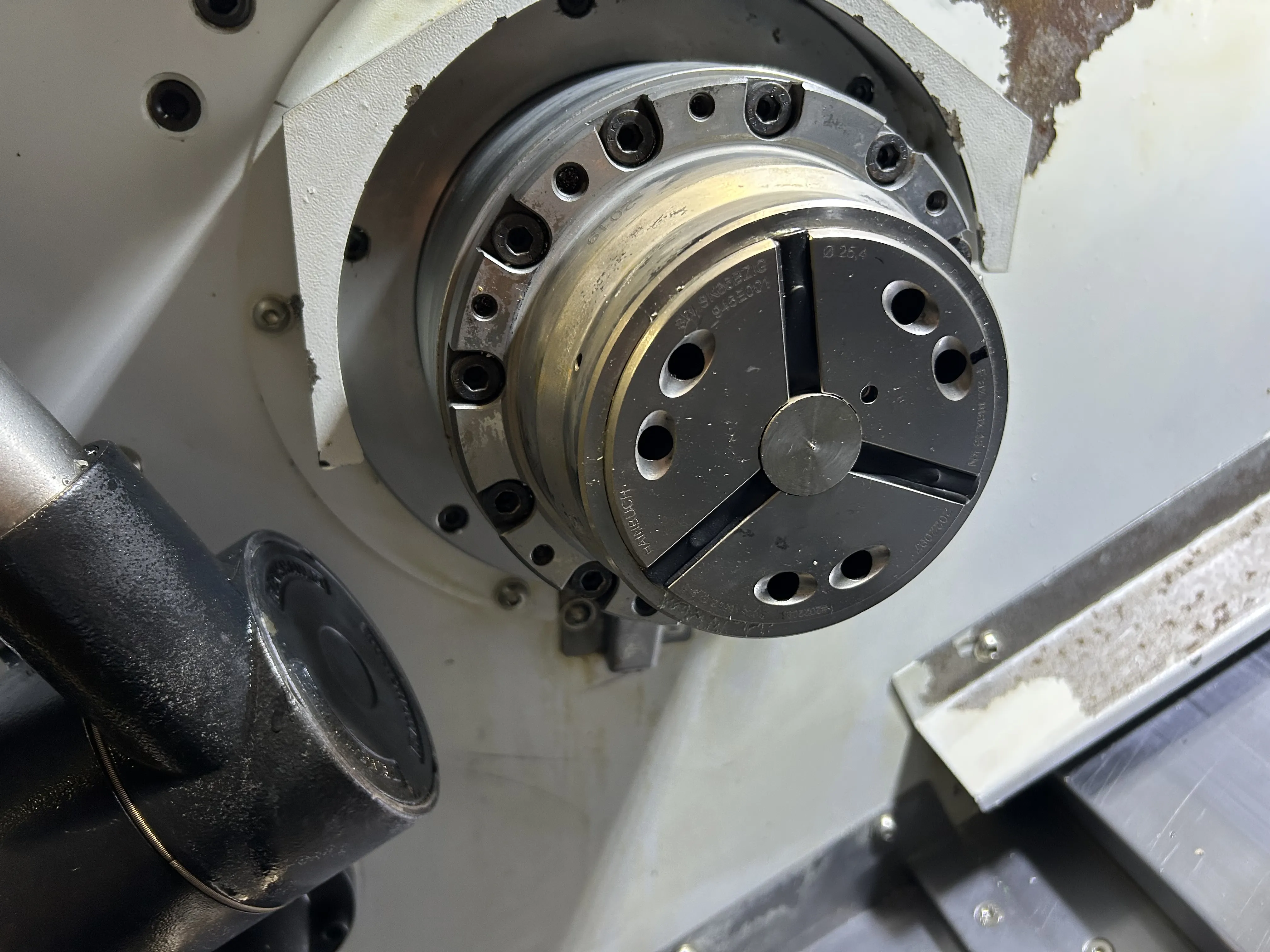

Chuck: Hainbuch Spanntop mini Anzug 65
Spindle speed: 4500rpm
Spindle nose: ASA A2#6
Spindle bearing diameter: 110mm
Spindle through hole diameter: 76mm

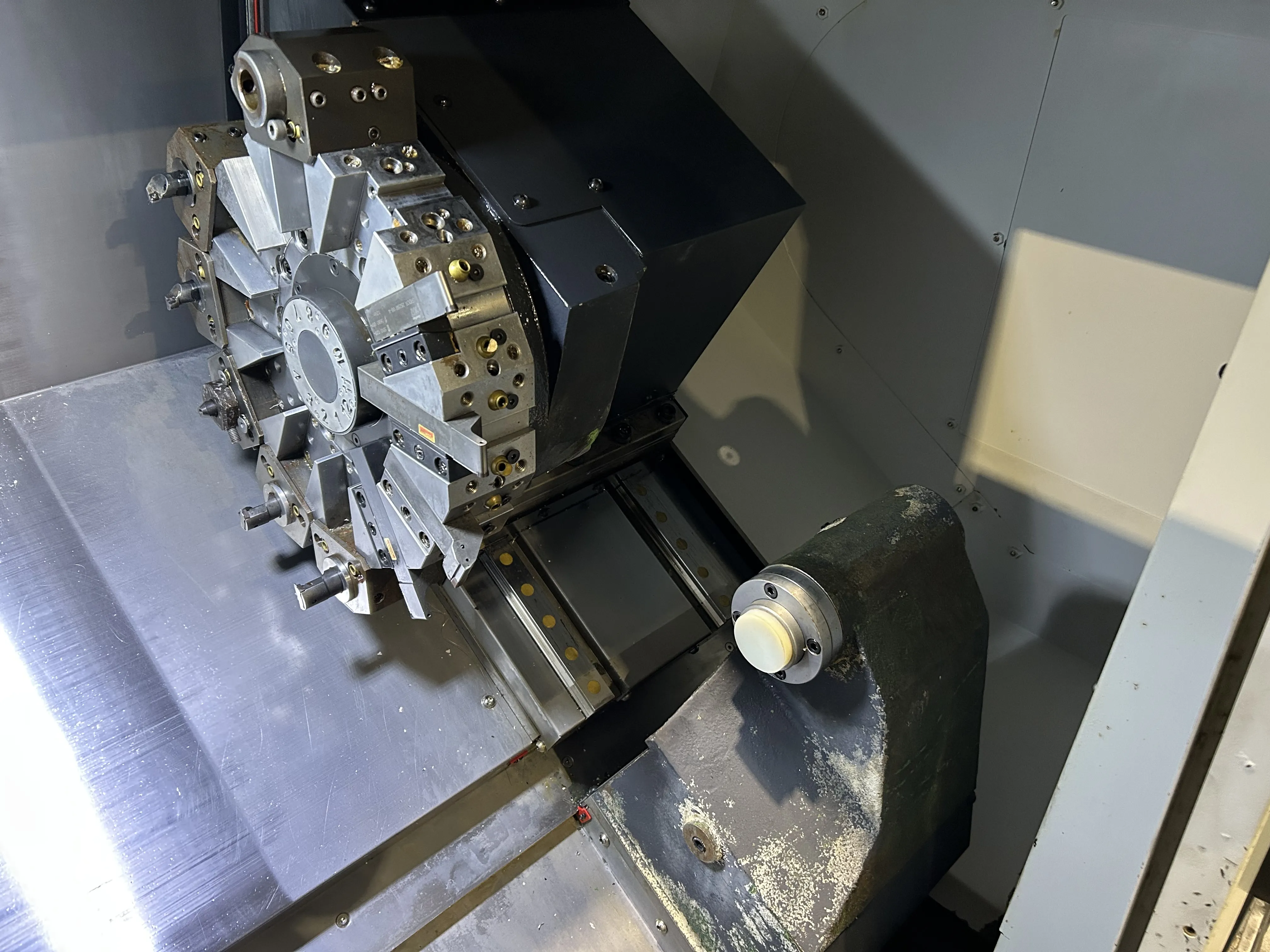

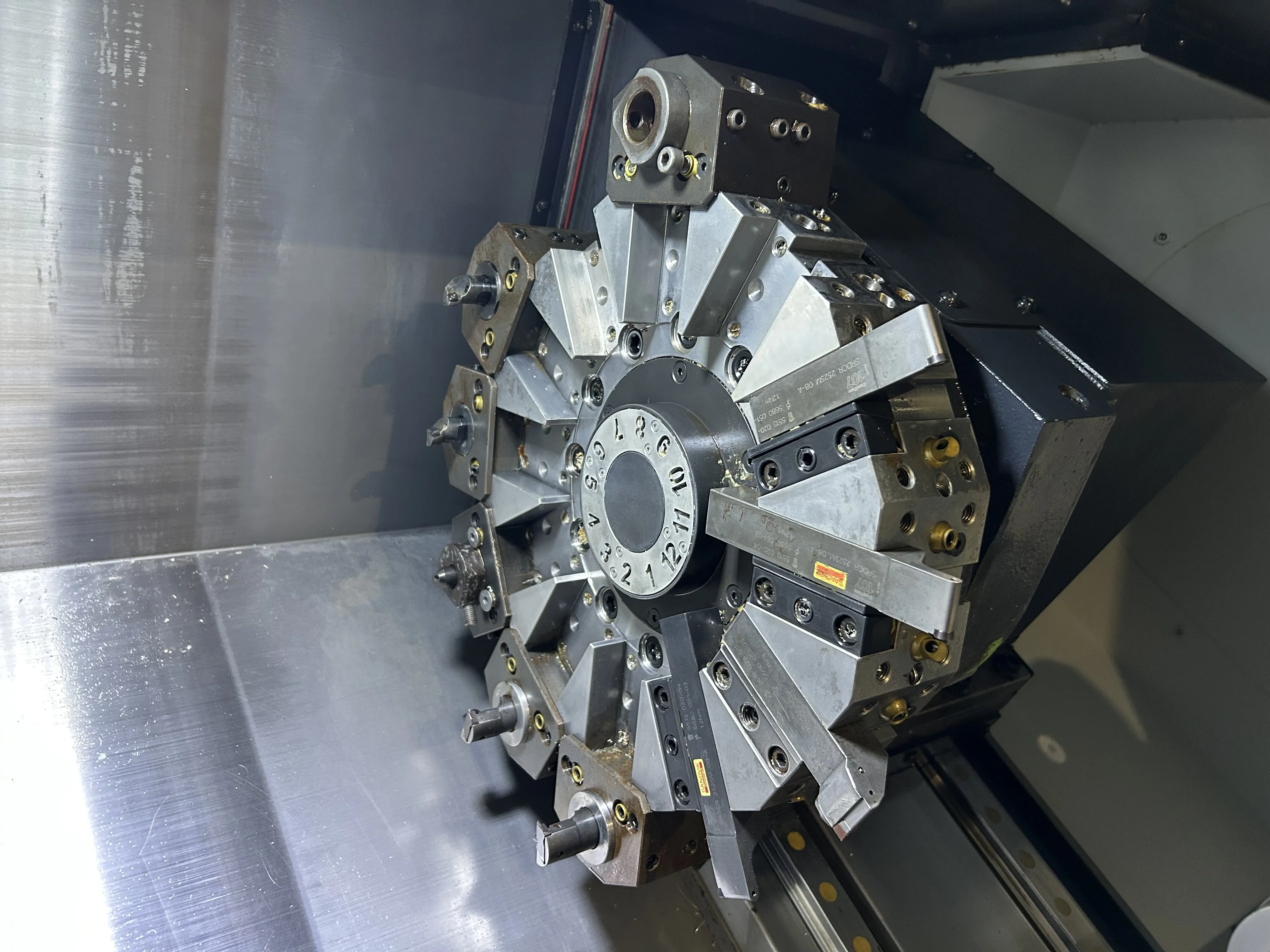

Turret:
No. of tool stations: 12
OD tool size: 25mm
Boring bar diameter: 40mm
Indexing time: 0.15 sec
Carriage:
X-axis: 205mm
Z-axis: 340mm
Rapid traverse X-axis: 30m/min
Rapid traverse Z-axis: 36m/min

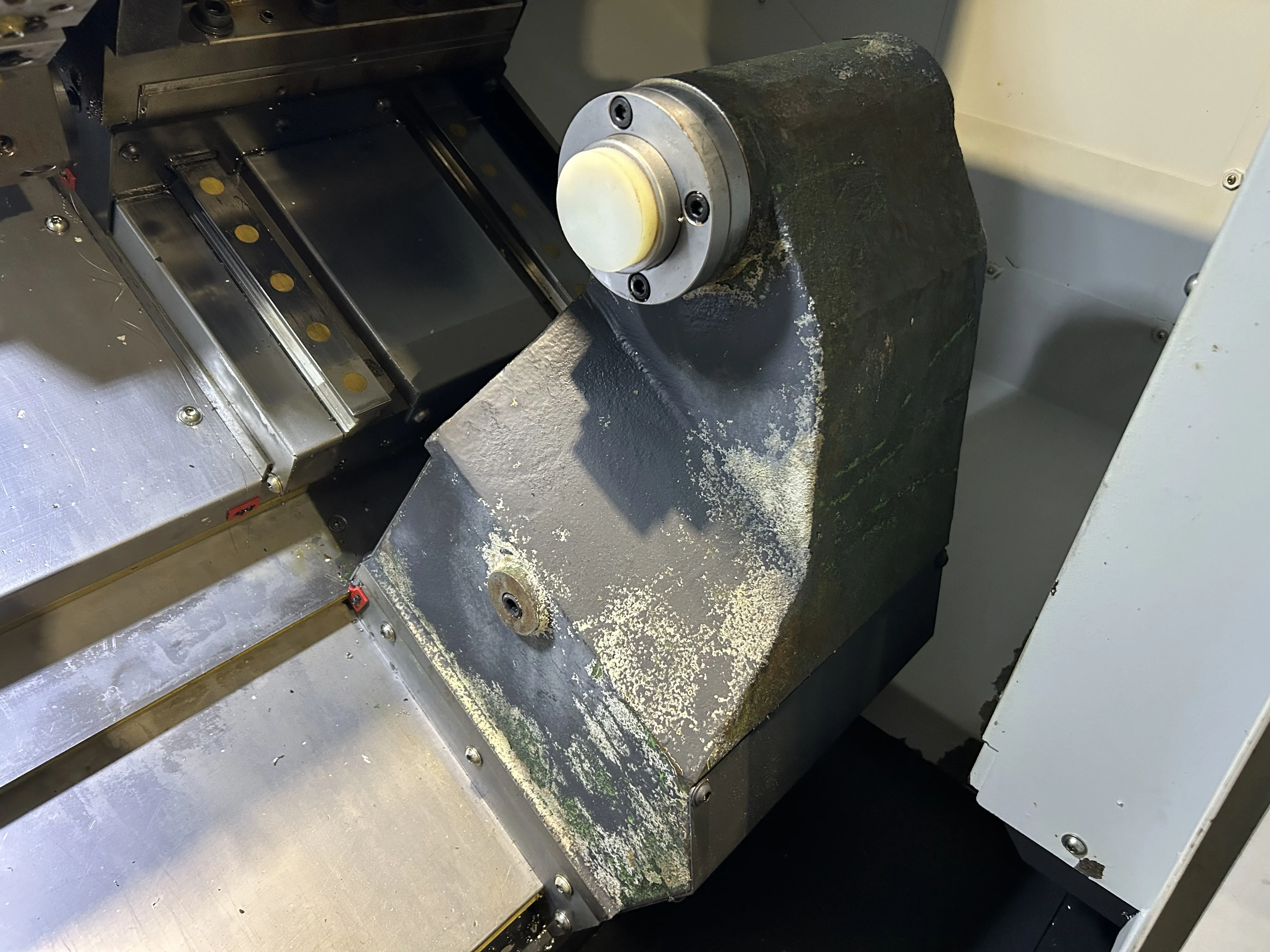

Tailstock:
Quill diameter: 80mm
Quill bore taper: MT#4
Quill travel: 360mm
Motors:
Main spindle motor: 15/11kW
Feed motor (X, Z-axis): 1,8kW
Power source:
Rated capacity: 24,21 kVa
Machine size:
Machine length: 2350mm
Machine width: 1582mm
Machine height: 1693mm
Machine mass: 2750kg
Equipped with:
EZ Guide
Doosan tool load monitoring
Ethernet function
Part program storage 1280M(512kb)
Bar feeder interface

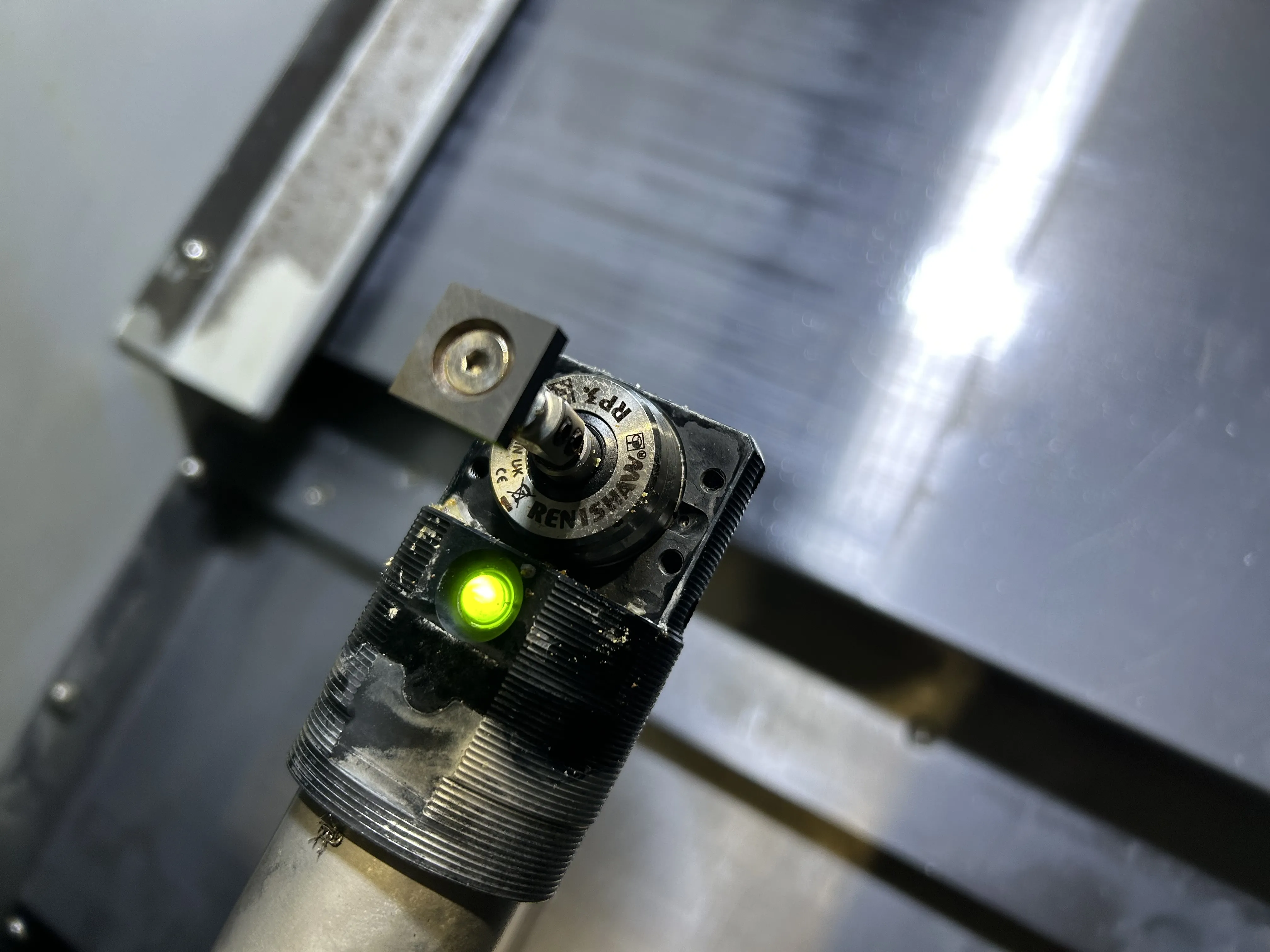

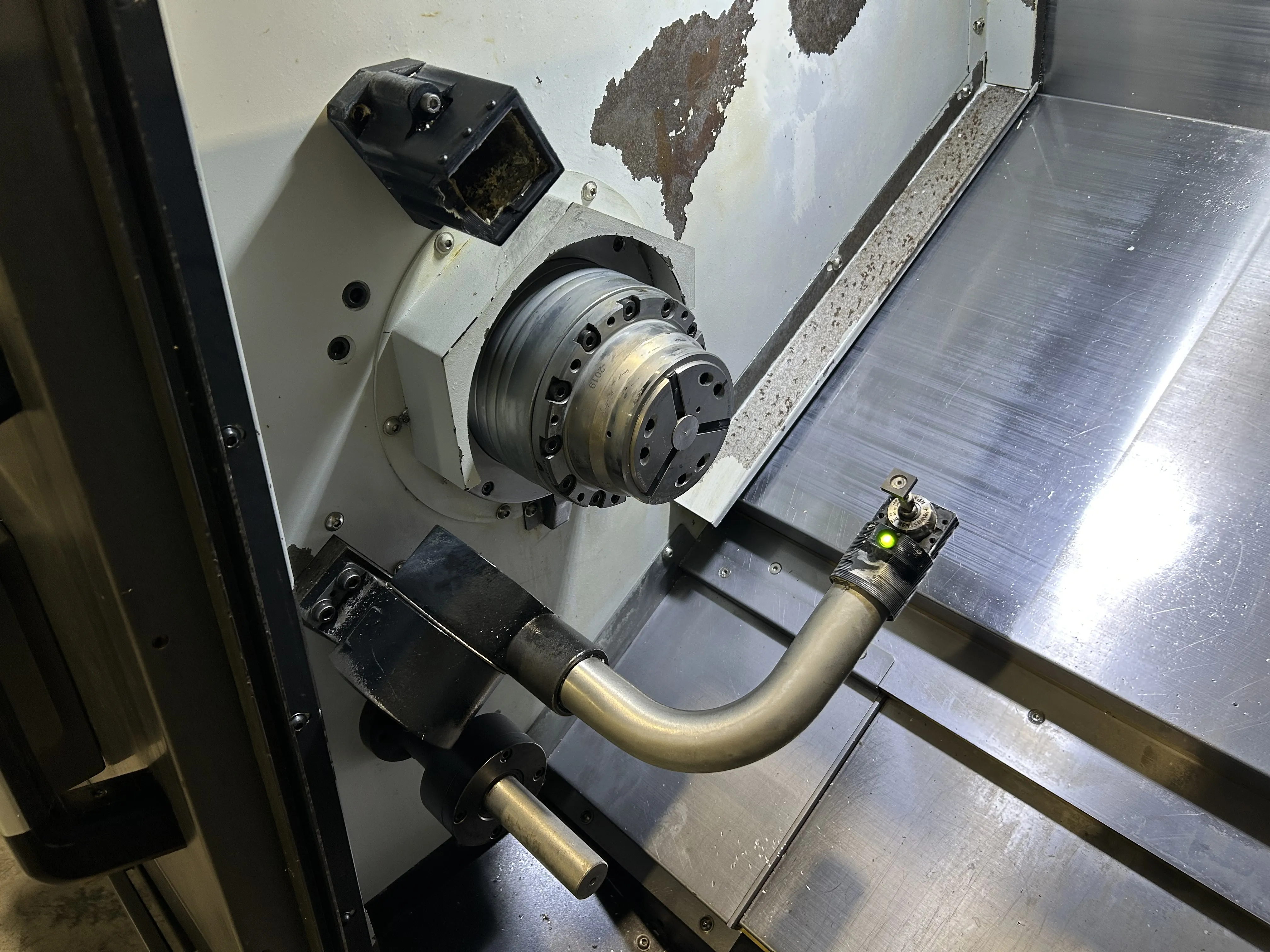

Automatic tool pre-setter
CNC tailstock
128 tool offsets
Part catcher
