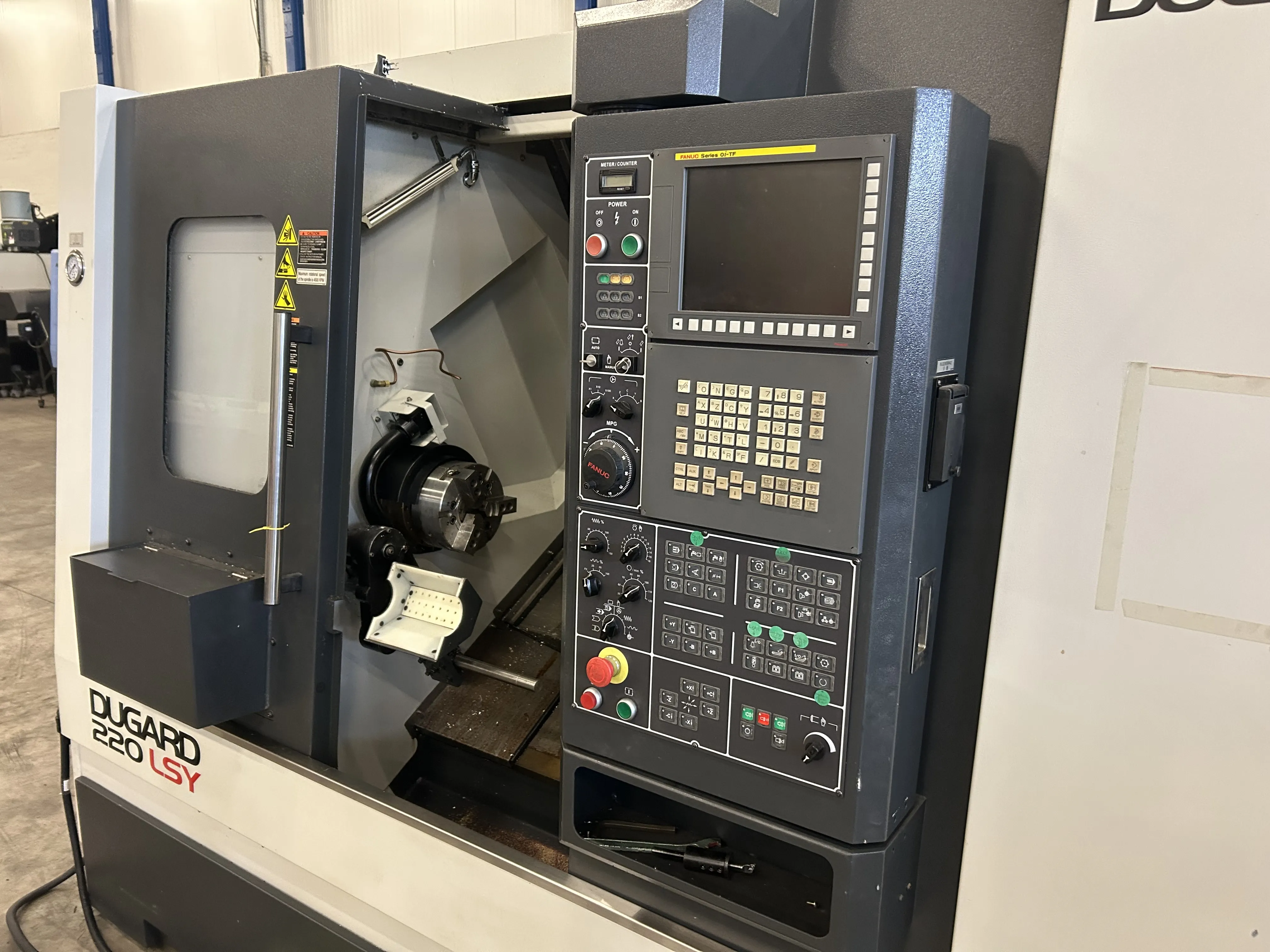

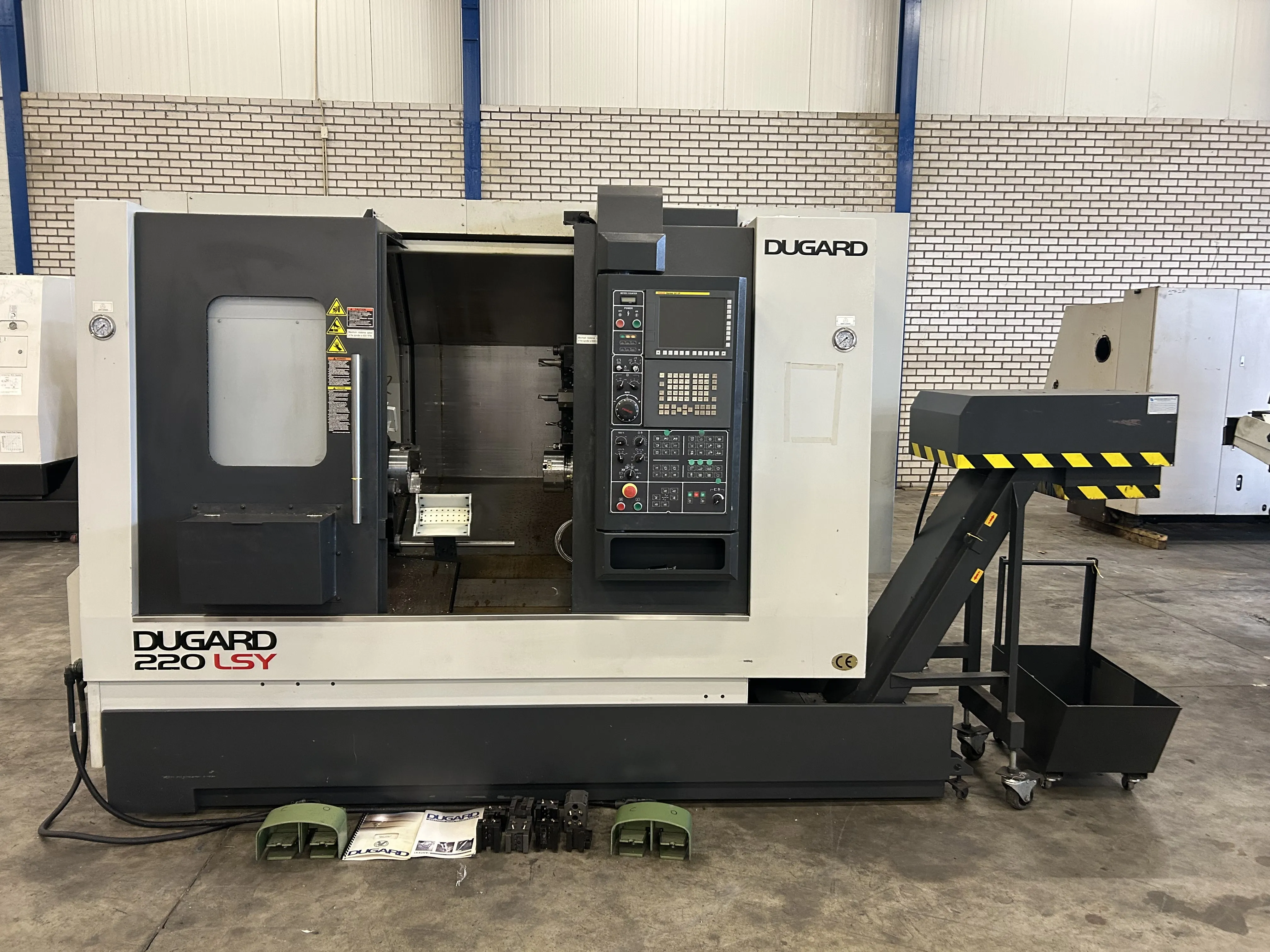

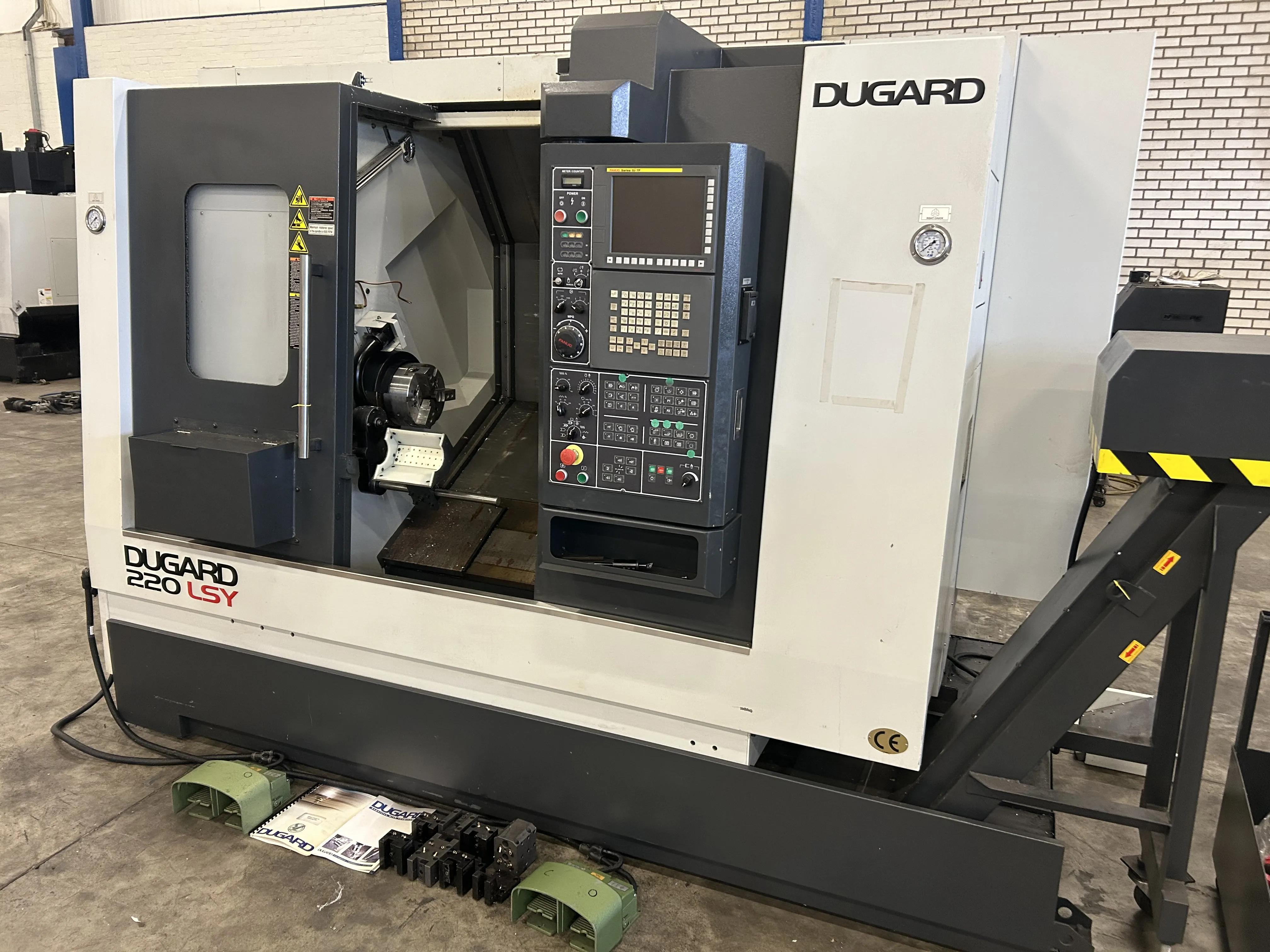

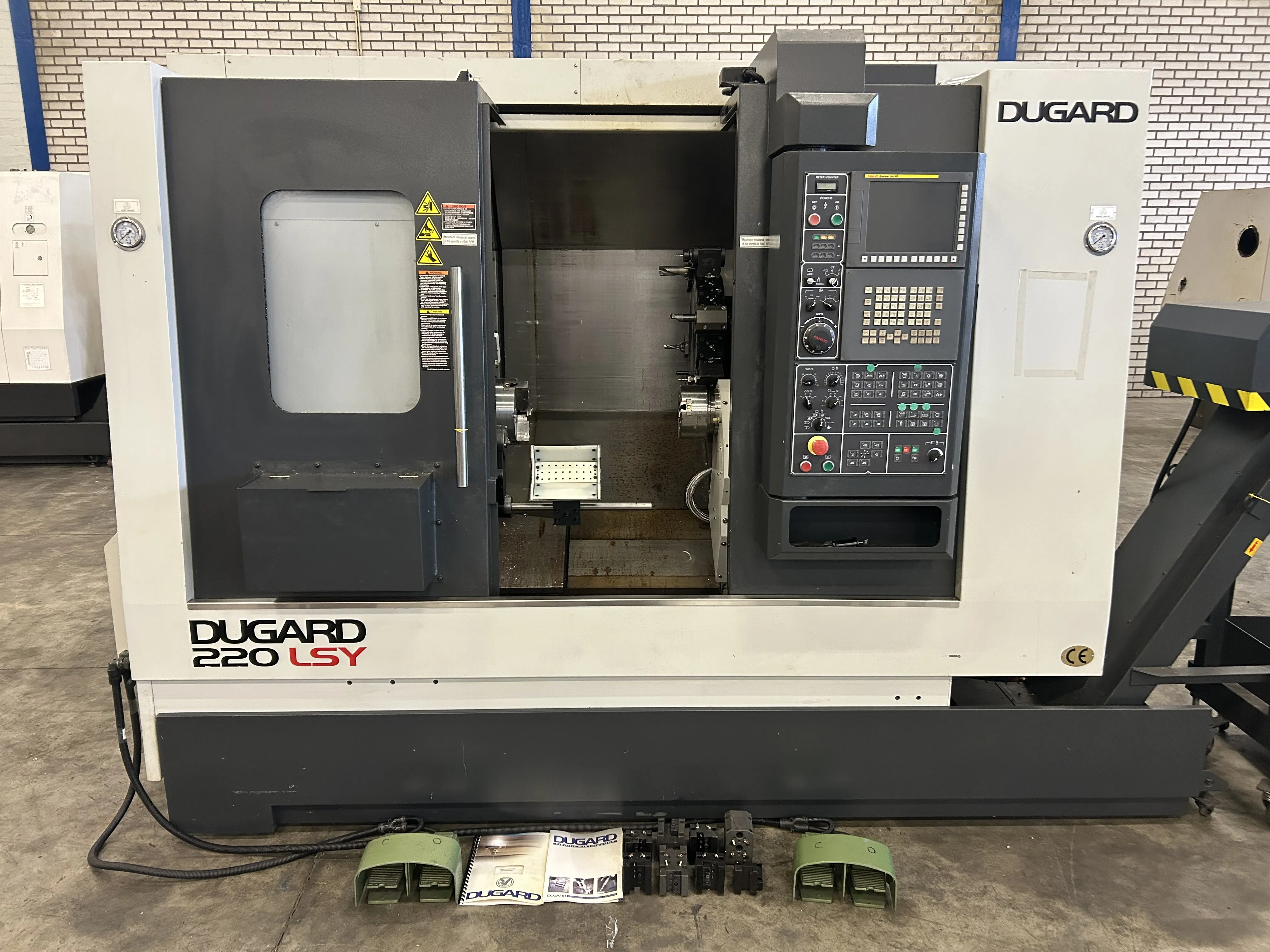

Dugard FNL-220LSY
DUGARD
FNL-220LSY
Auf Anfrage
Zustand
Neuwertig
Baujahr
2018
Verfügbarkeit
immidiately
Kategorie
Bearbeitungszenten (universal)
Standort
Varsseveld
Händler
Beschreibung
This machine is in excellent condition and runs smoothly (check video's!).
This machine has always been kept clean and is well maintained.
IT IS POSSIBLE TO INSPECT THE MACHINE UNDER POWER!
For an appointment or more information please contact us at: +31 652 685528 or info@hanemach.nl

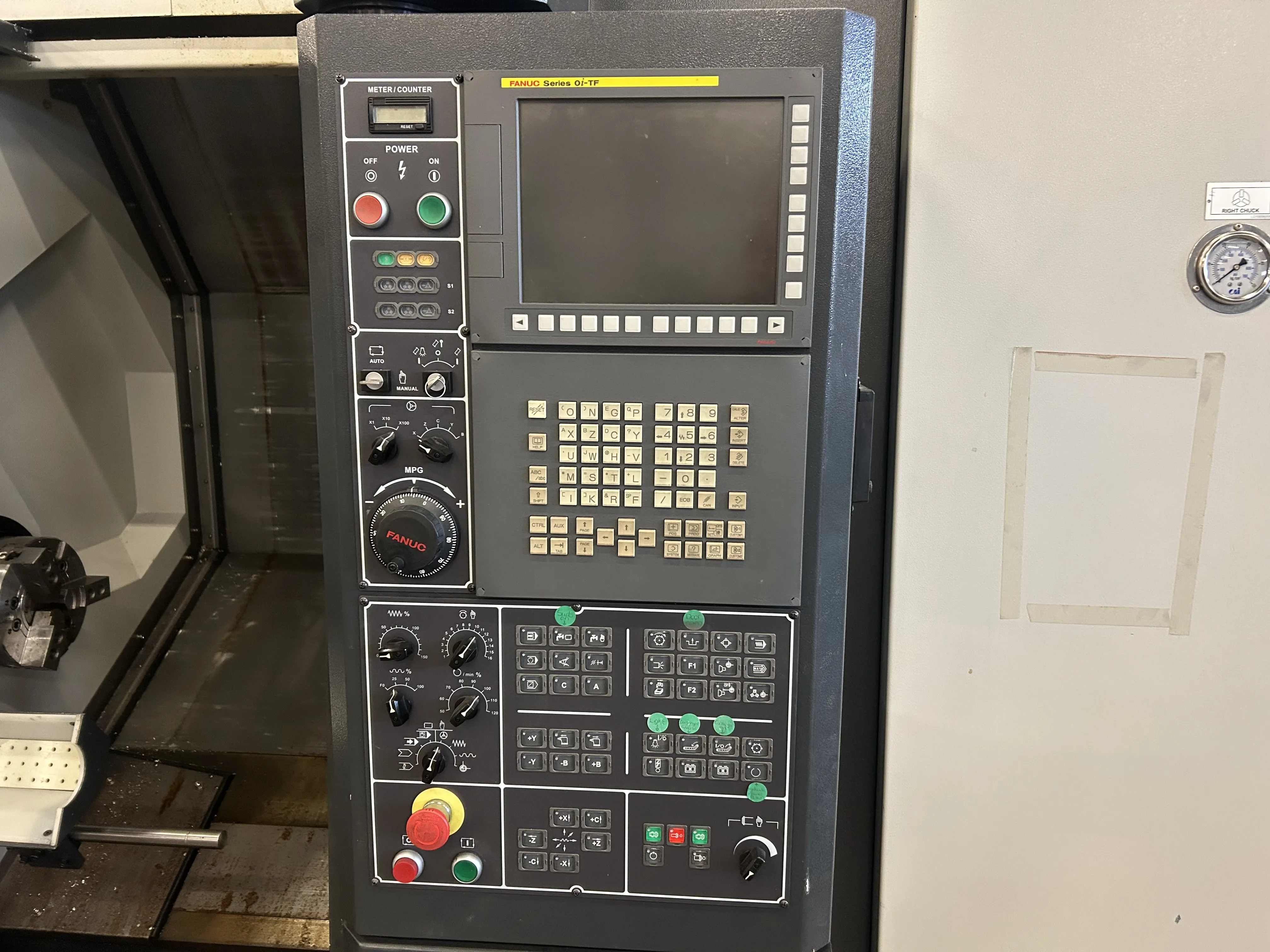

Control: Fanuc 0i-TF
Hours: 553
Capacity:
Max. turning length: 510mm
Max. turning diameter: 270mm
X-axis: 200mm
Z-axis: 560mm
Y-axis: +50mm ~ -55mm
C-axis: 0.001° indexable
Feedrates:
X-axis: 30m/min
Z-axis: 30m/min
Y-axis: 10m/min

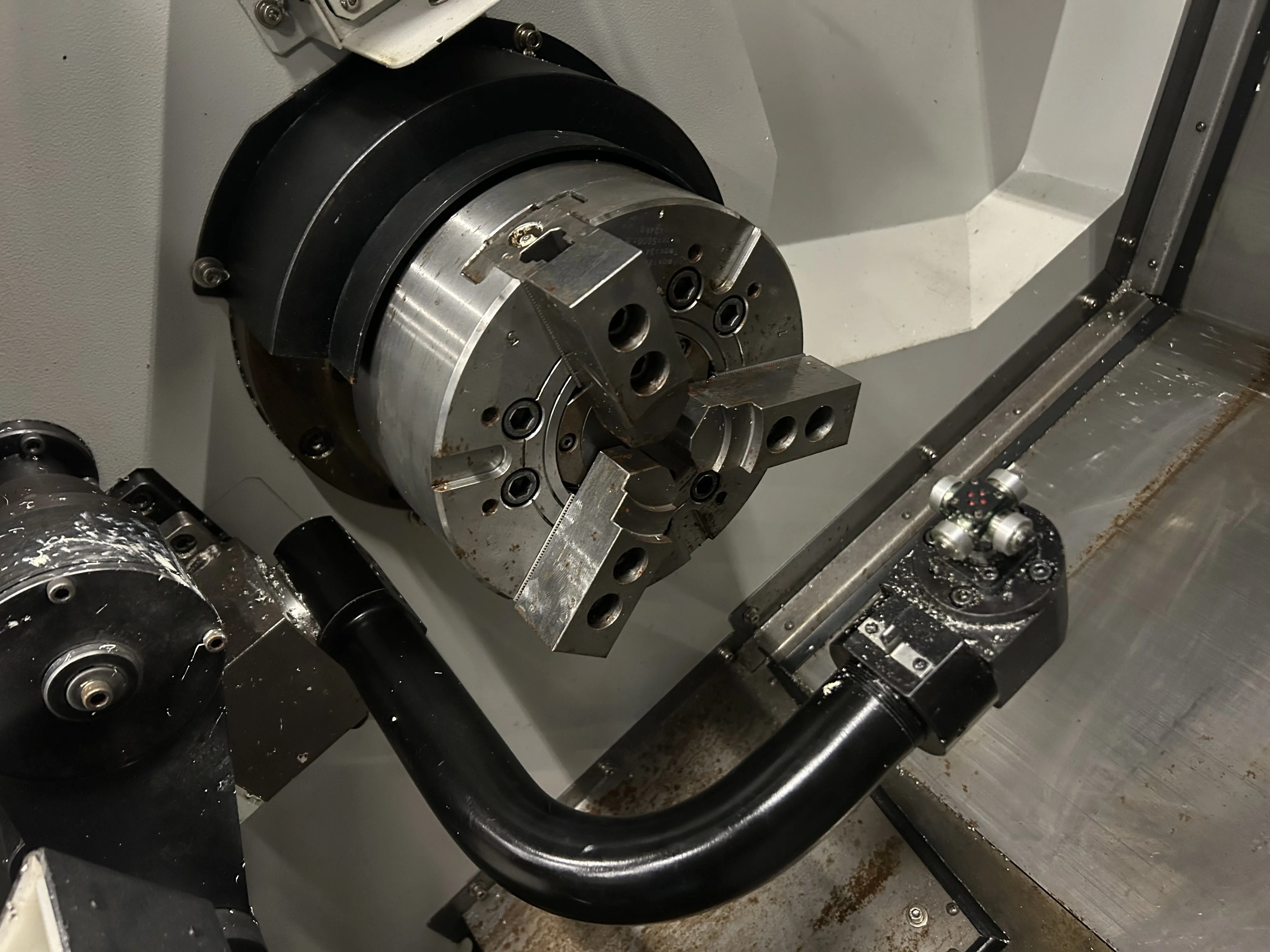

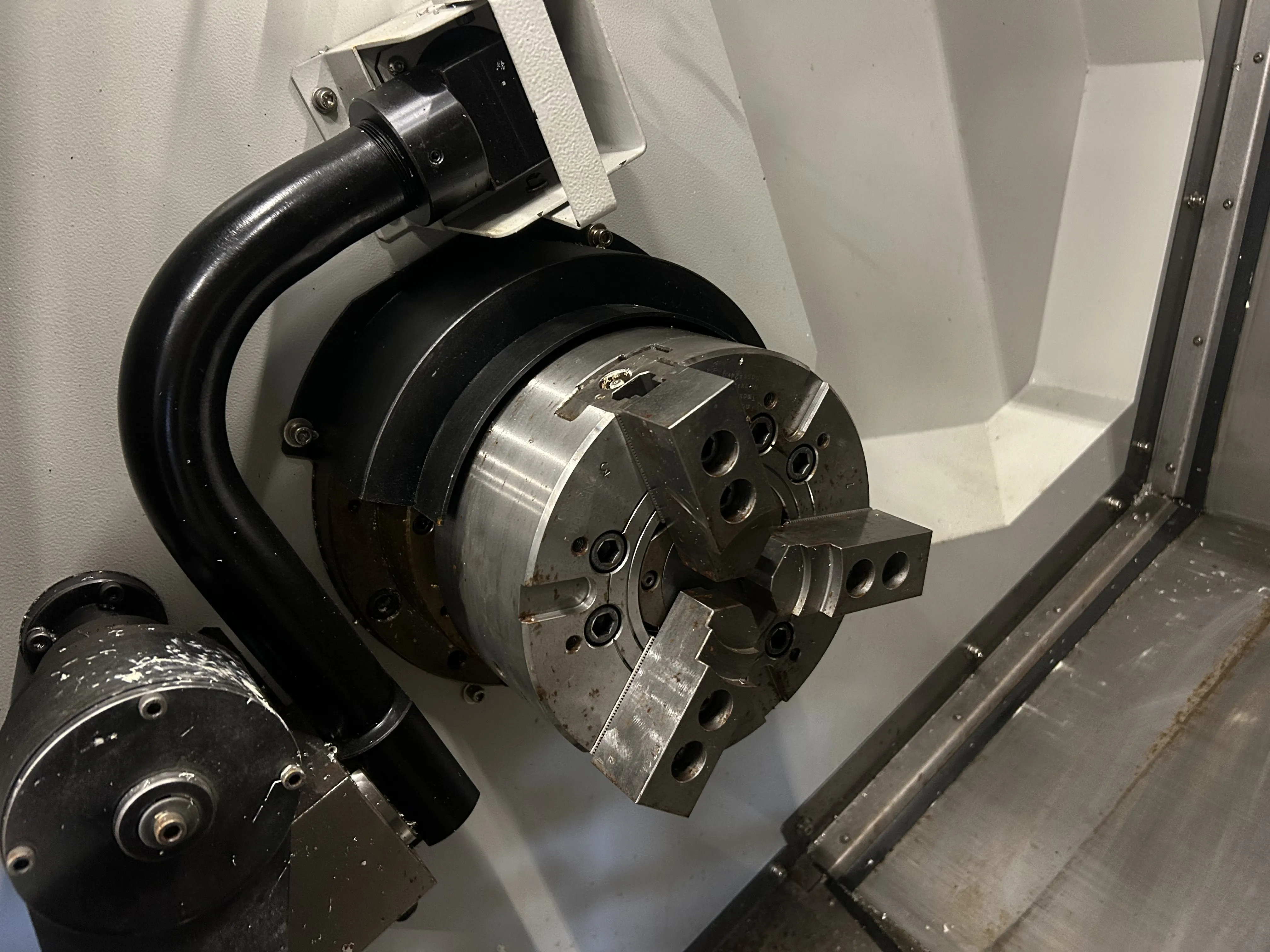

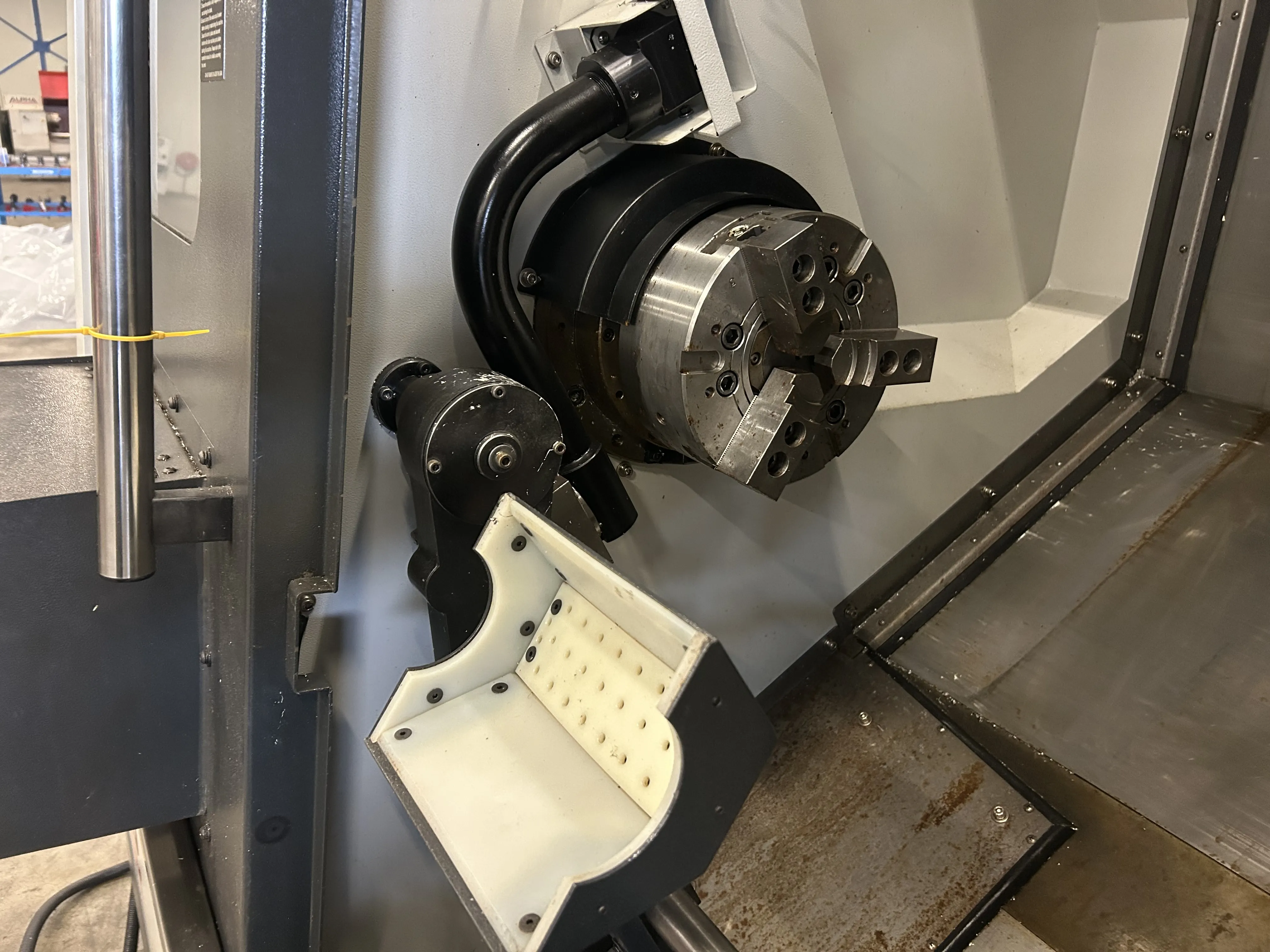

Main spindle:
Chuck size: 210mm

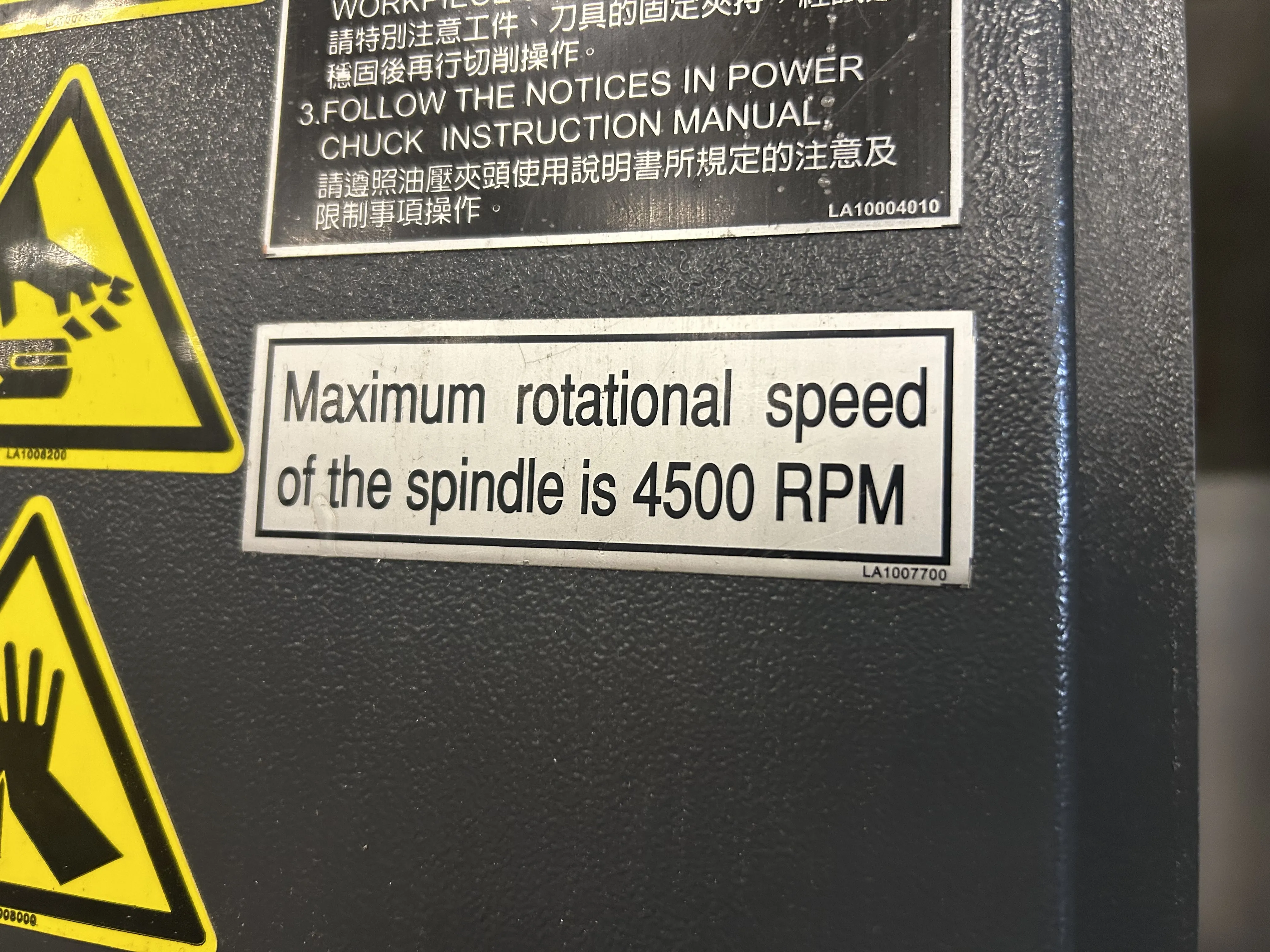

Spindle speed: 4500rpm
Spindle bore: 77mm

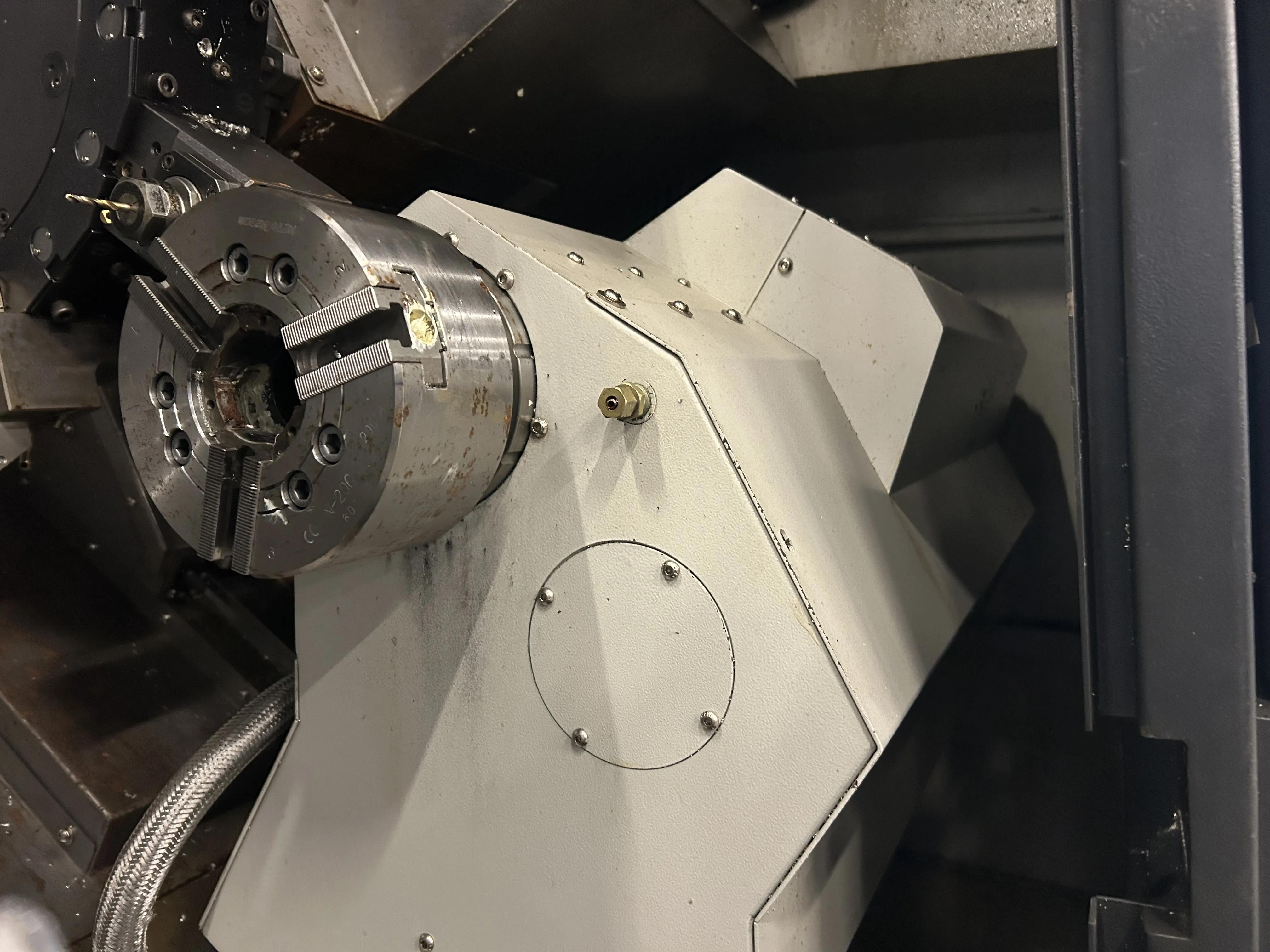

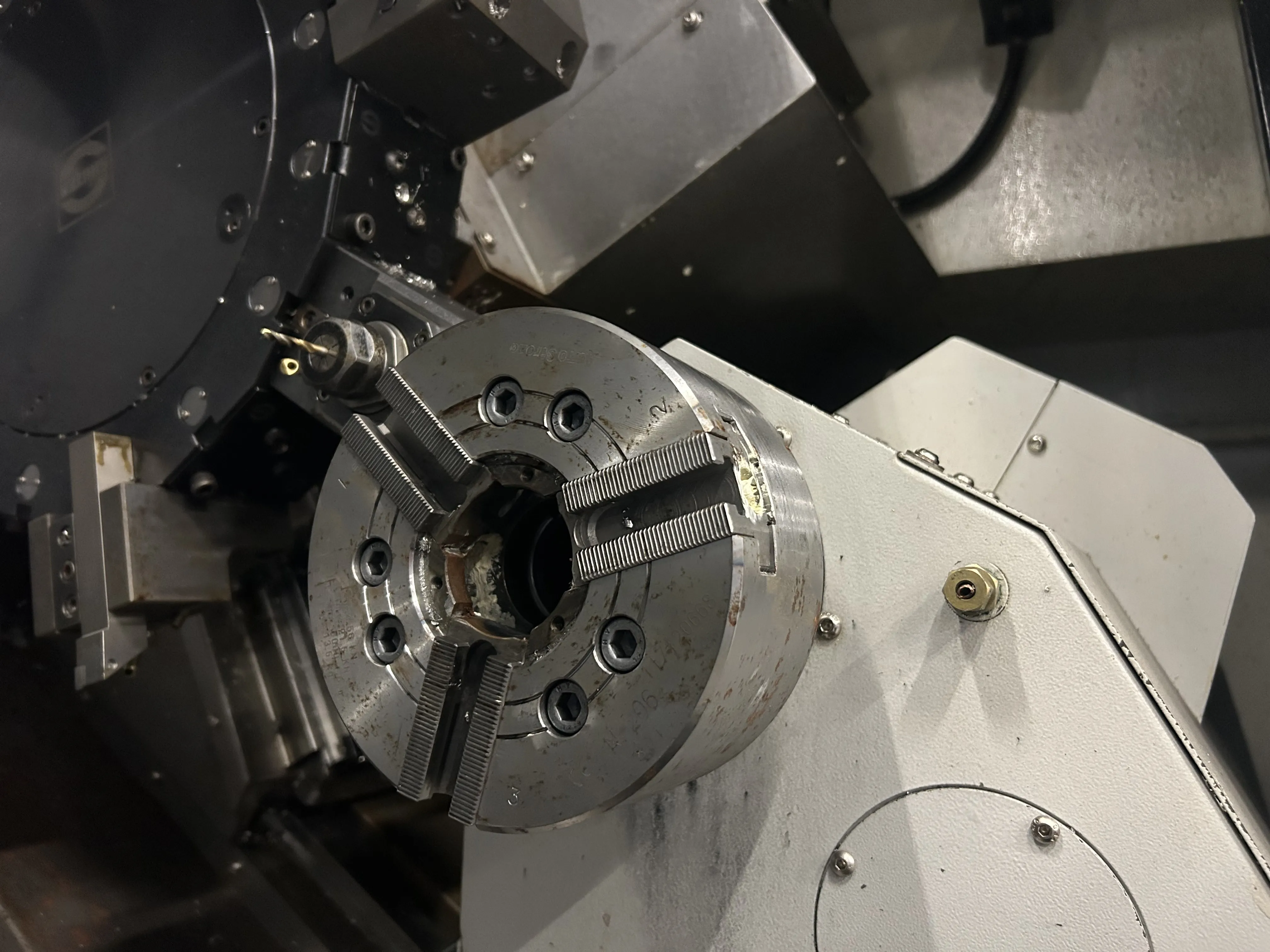

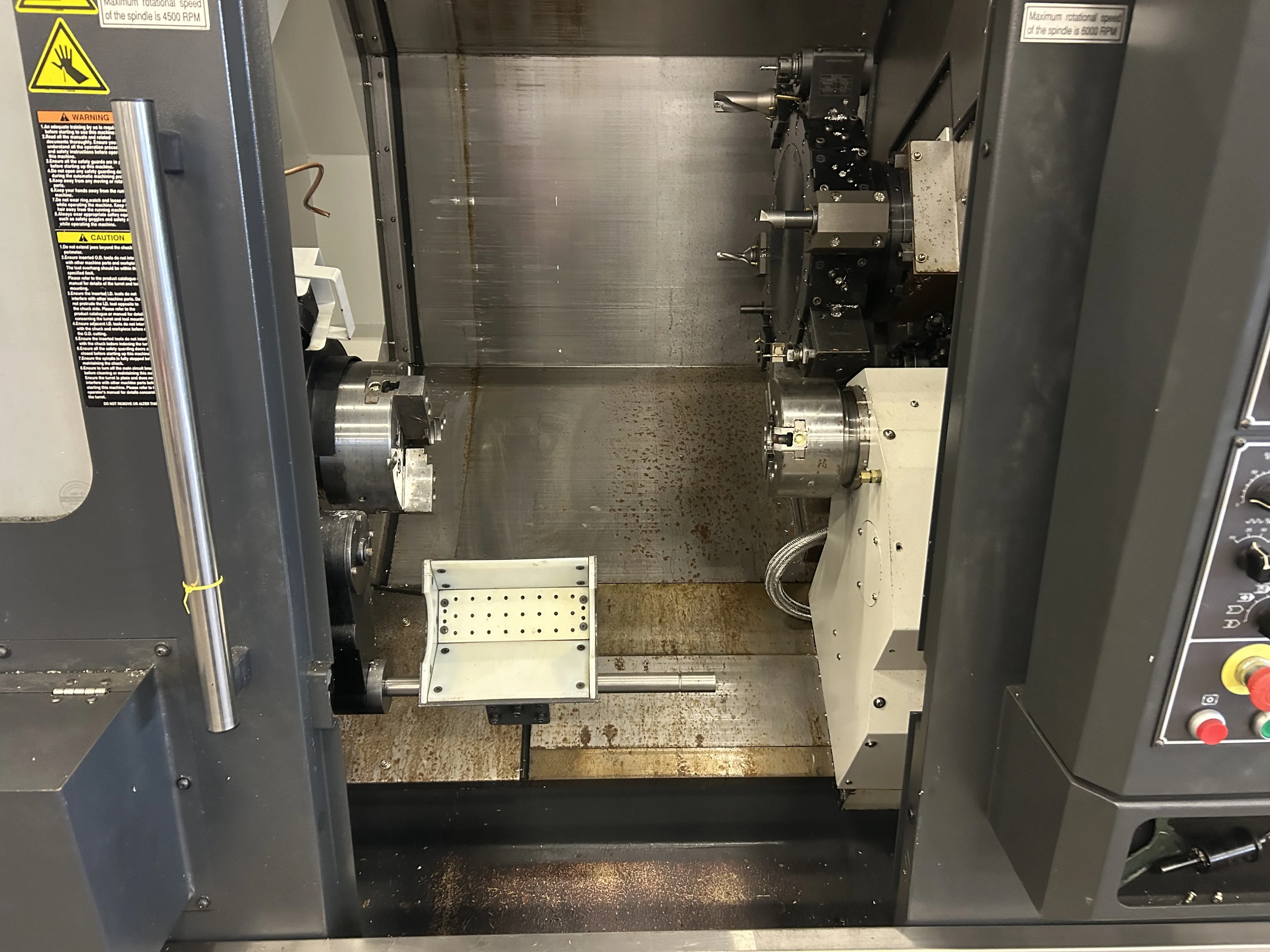

Sub spindle:
Chuck size: 156mm

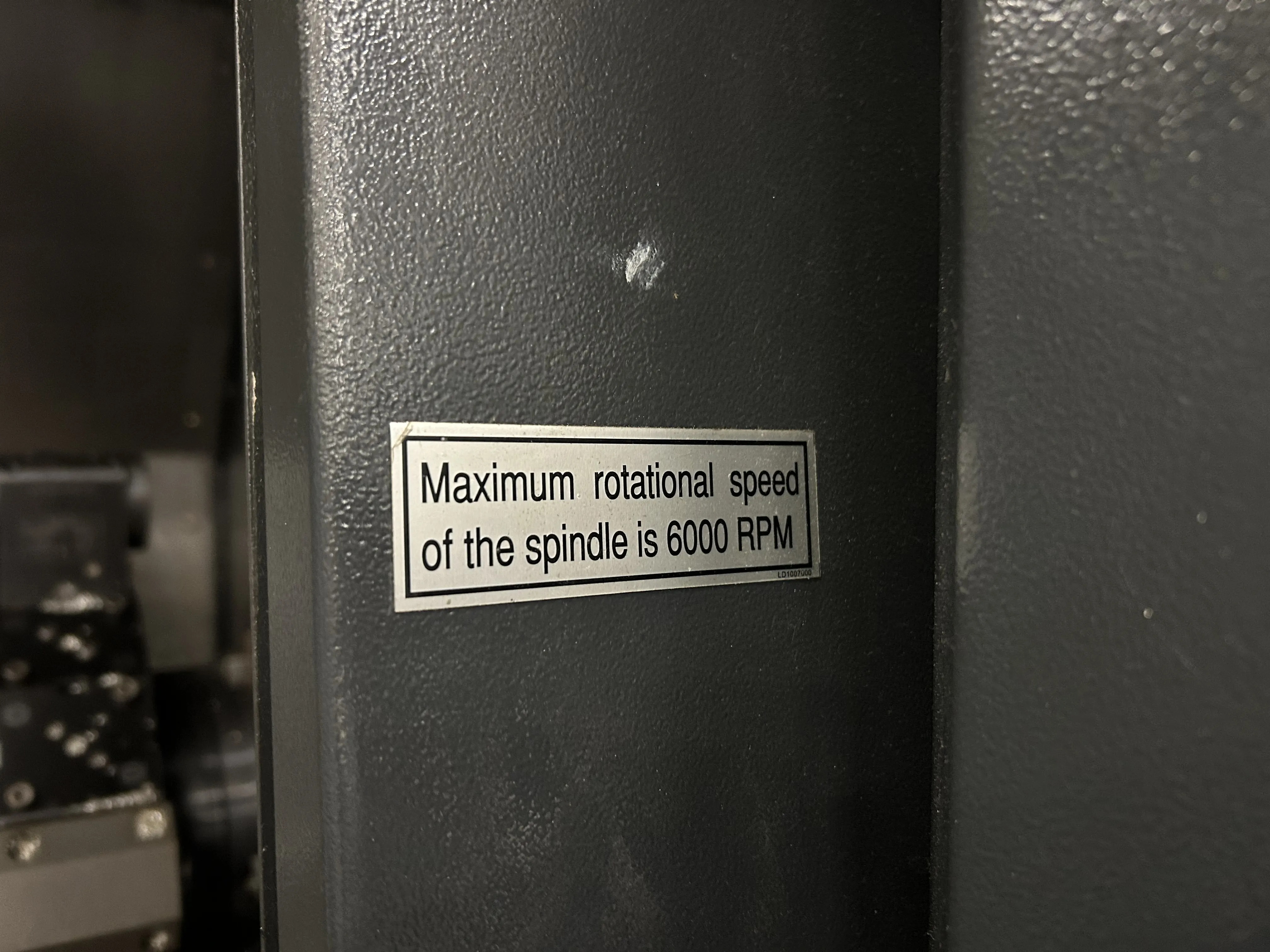

Spindle speed: 6000rpm
Spindle bore: 45mm

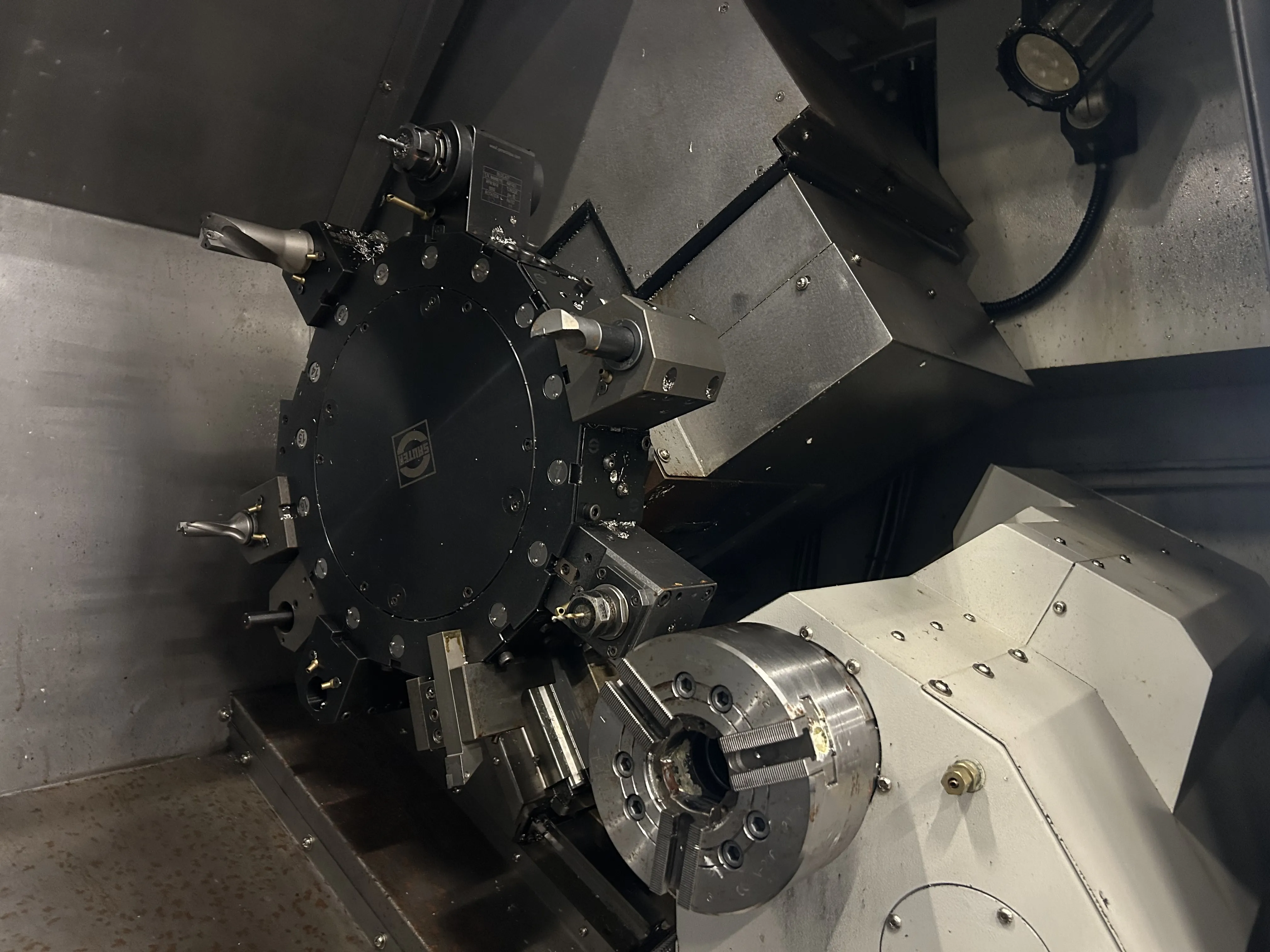

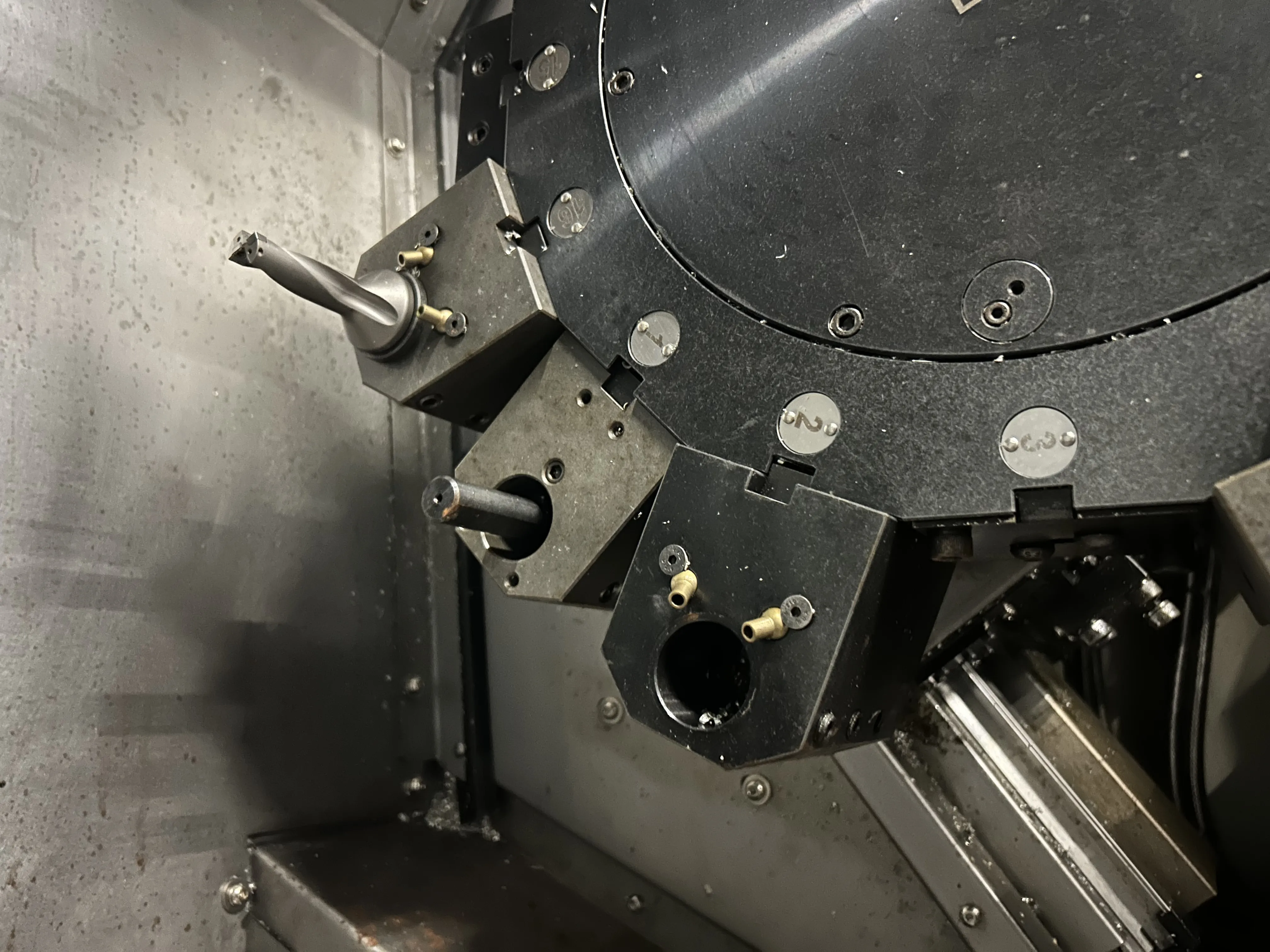

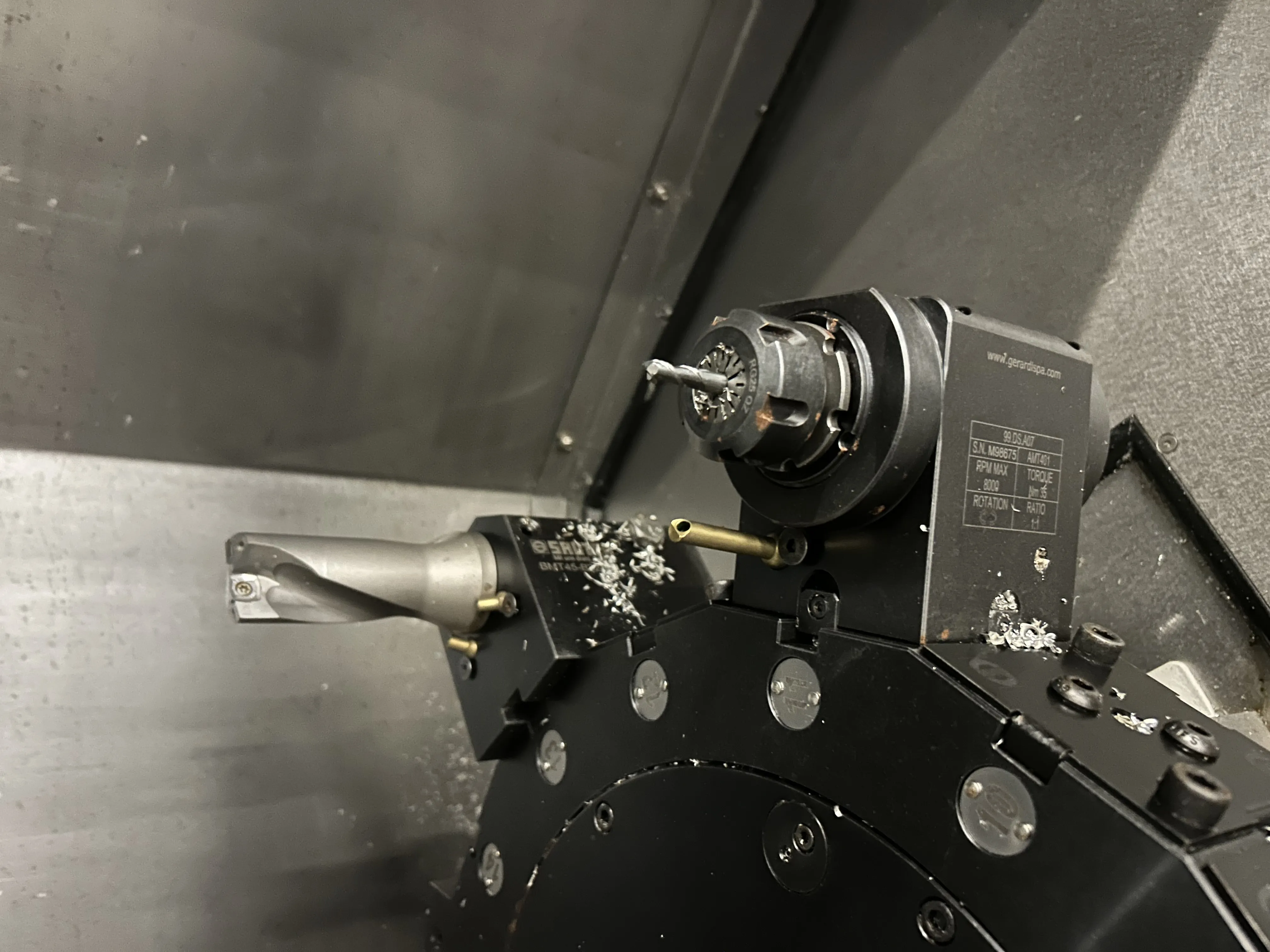

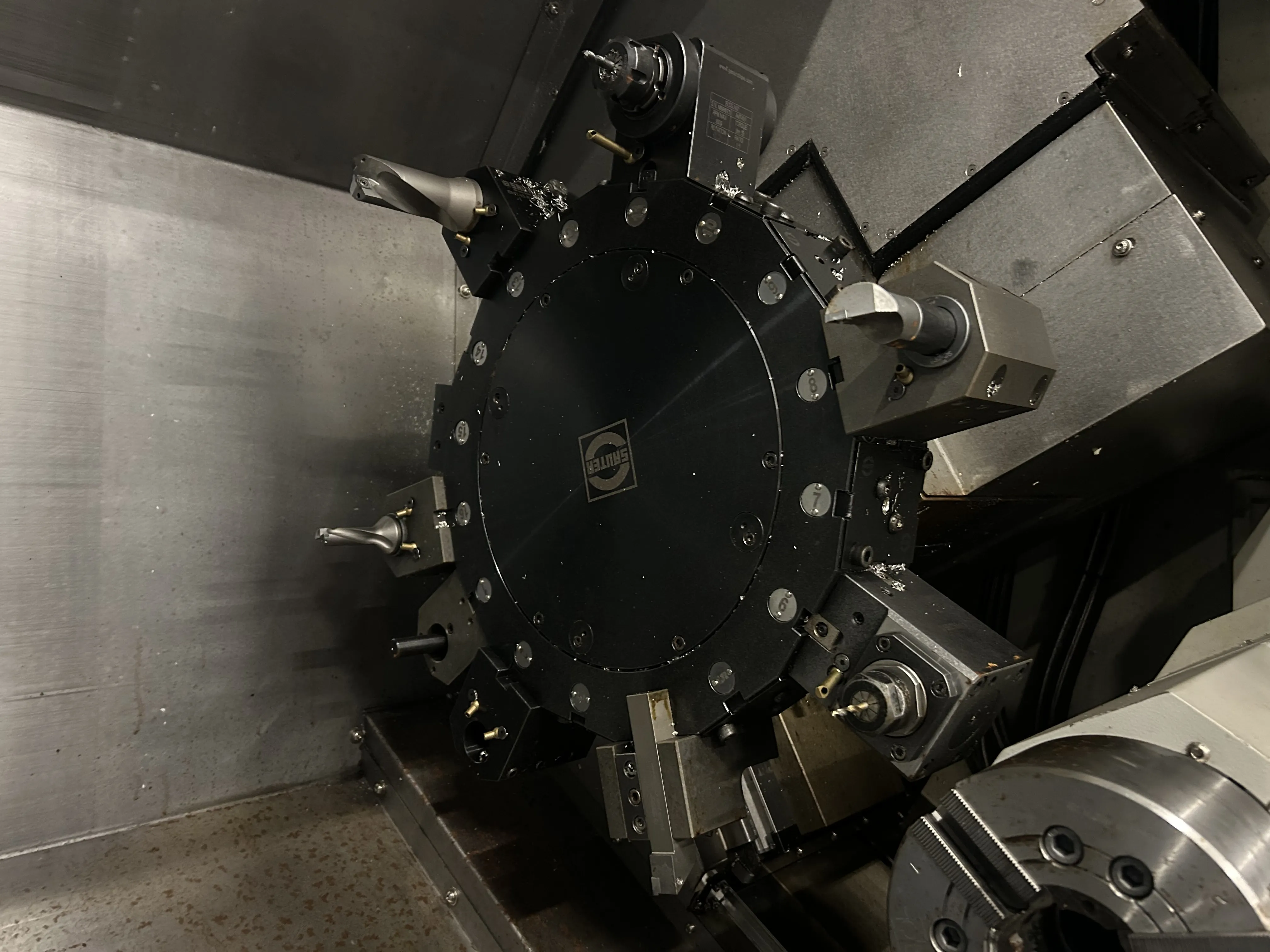

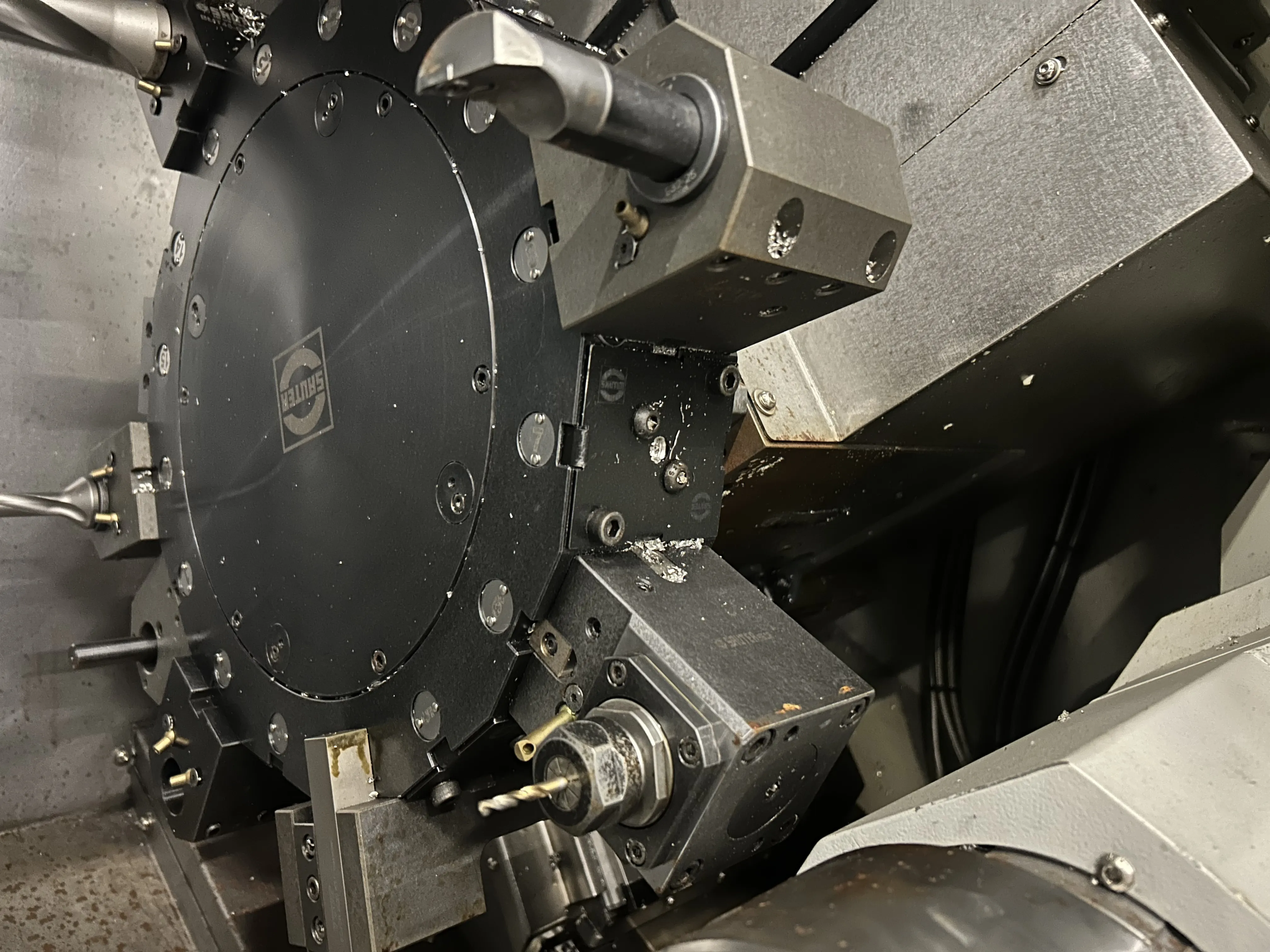

Positions on tool changer: 16
Machine dimensions:
Length: 4109mm
Width: 1954mm
Height: 2122mm
Weight: 5900kg
