Description

x-travel 600 mm
y-travel 530 mm
z-travel 510 mm

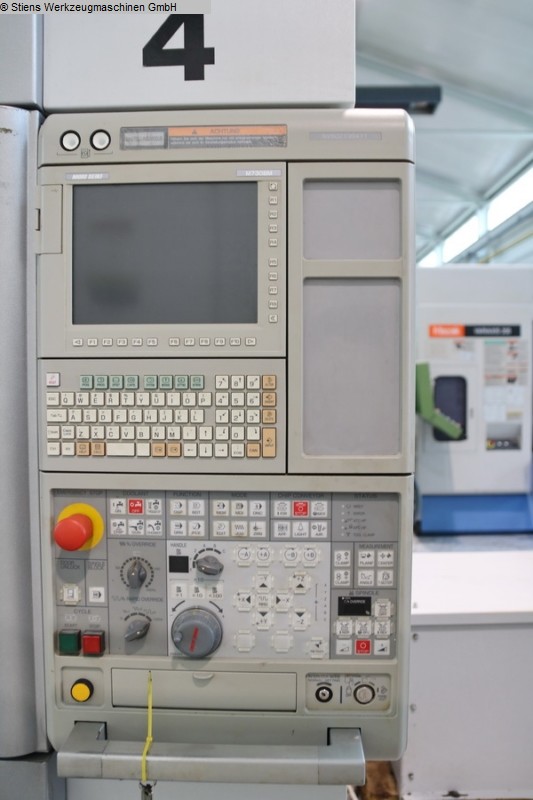

Control M 730 BM MAPPS IV
Main spindle:
max. Spindle speed 10,000 min/-1
Drive power - main spindle 15 / 11 kW
Tool holder SK 40
Gear stages 1
Spindle diameter in the front. Bearing 80 mm

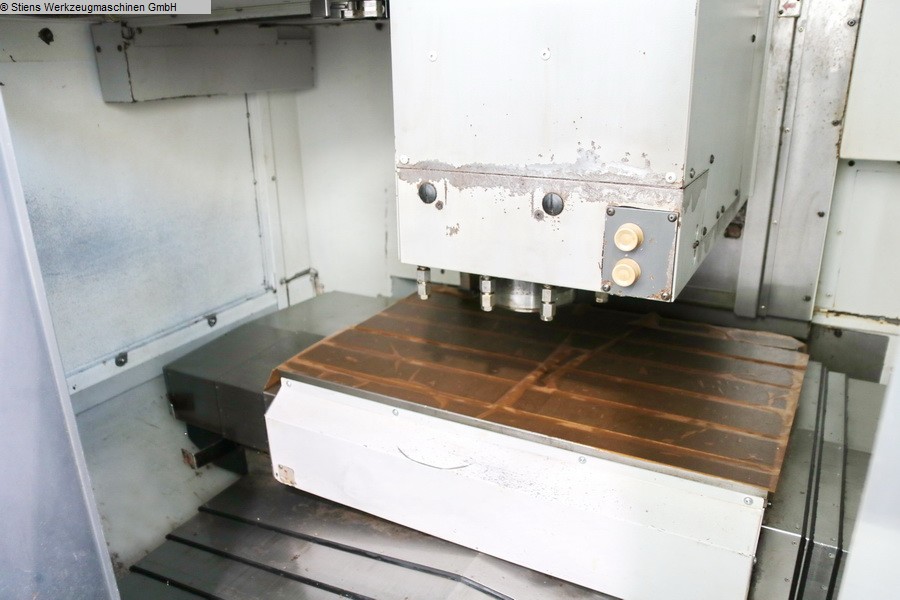

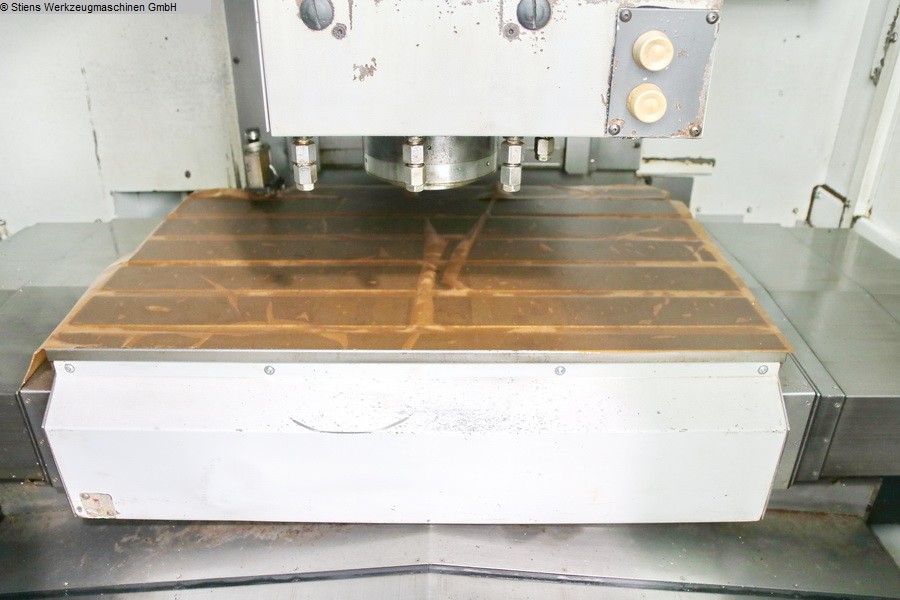

Work table:
Table clamping surface 900 x 600 mm
max. Table load 800 kg
T-slots 6x 18 x 100 mm
Distance spindle / table 150 - 660 mm

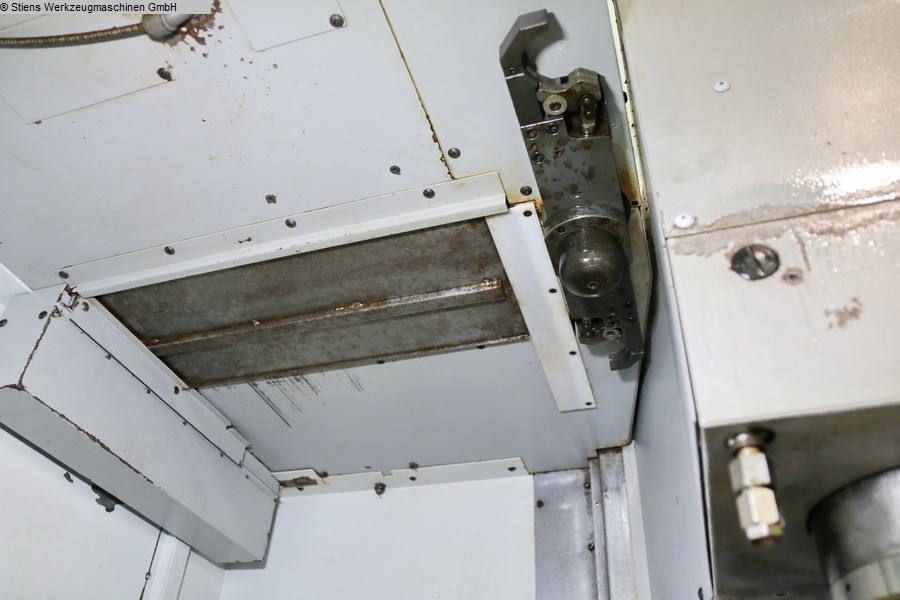

Tool changer:
Number of tool places 30 pos.
Tool holder SK 40
max. Tool diameter 80 mm
max. tool through. with a free neighboring box. 150 mm
max. Tool length 300 mm
max. Tool weight 8.0 kg
Change time tool - tool approx. 1.3 sec
Change time chip - chip approx. 3.45 sec
Feeds:
Rapid traverse ( mm/min
Total power requirement 30 kVA
Machine weight approx. 6.0 t
Space requirement approx. 4.5 x 3.5 x 2.7 m

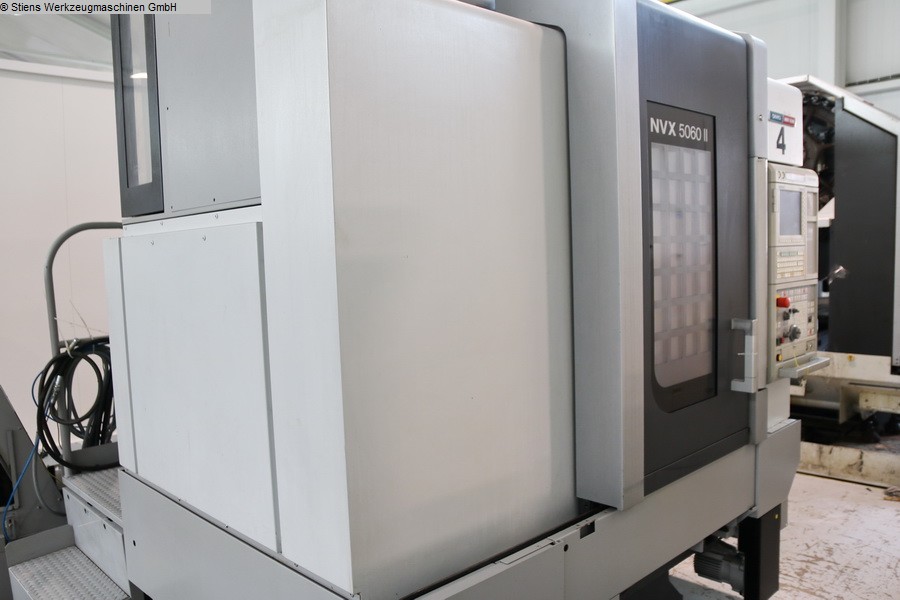

CNC - vertical machining center MORI SEIKI - NVX 5060 II / 40
