Description

Turning diameter max. 356 mm
Turning length 705 mm

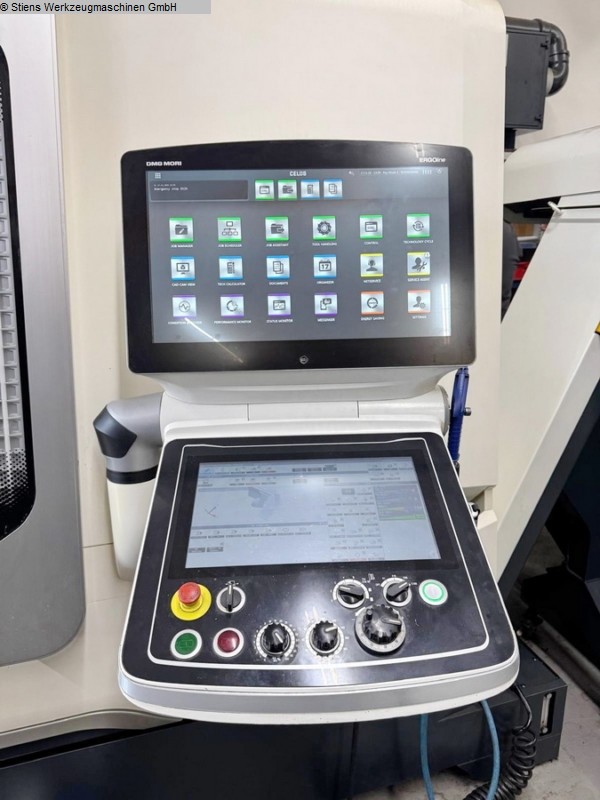

Control M730 UM Mapps CELOS
Circulation diameter over bed 920 mm
Circulation diameter over cross slide 742 mm
Main spindle:
Speed range - main spindle 4,000 min/-1
Drive power - main spindle 18.5 / 15 kW
Spindle nose JIS A2-8
Spindle bore 80 (91) mm
C-axis 0.001 °
Counter spindle:
Speed range - counter spindle 6,000 min/-1
Drive power - counter spindle 11 / 7.5 kW
Spindle bore 43 mm
C-axis 0.001 °
Travel paths:
x-travel 260 mm
z-travel 795 mm
Y - axis +/-50 mm
Rapid traverse ( mm
Shaft diameter of the drills 50 mm

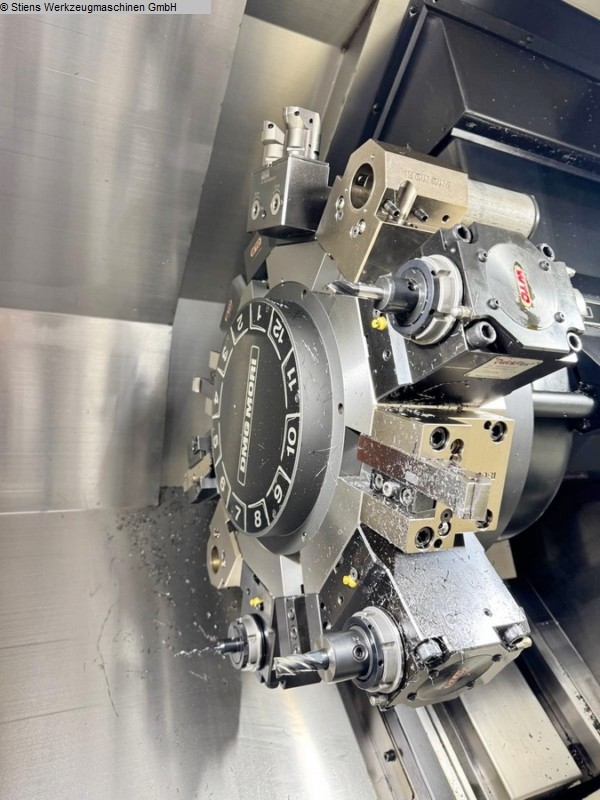

Turret switching time 0.27 sec.
Driven tool positions:
Speed range - driven. Tools max. 10,000 min -1
Drive power - driven. Tools 5.5 / 4.2 kW
Total power requirement 41 kVA
Machine weight approx. 6.4 t
Space requirements approx. 4.0 x 3.0 x 2.3 m

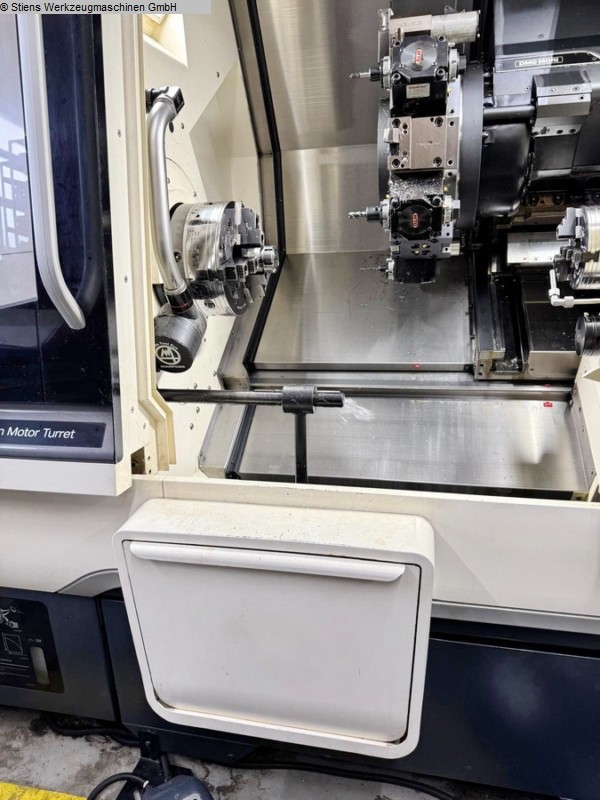

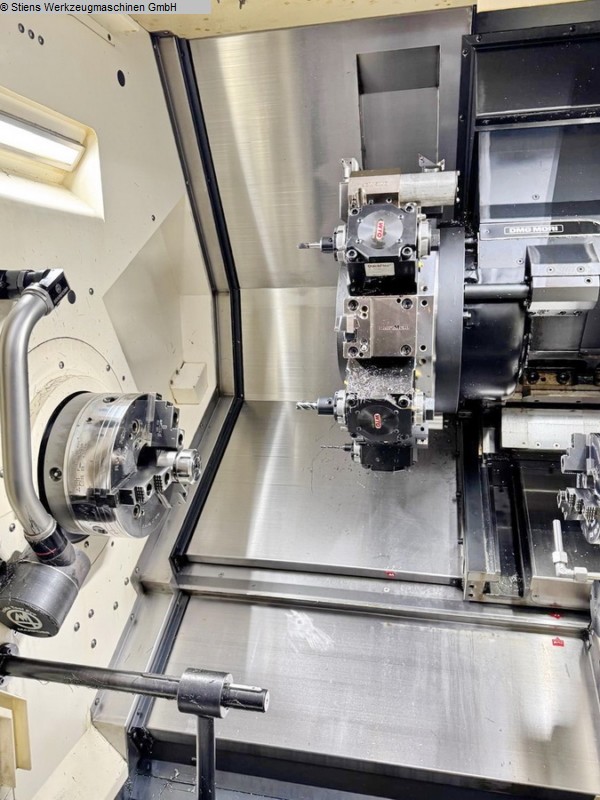

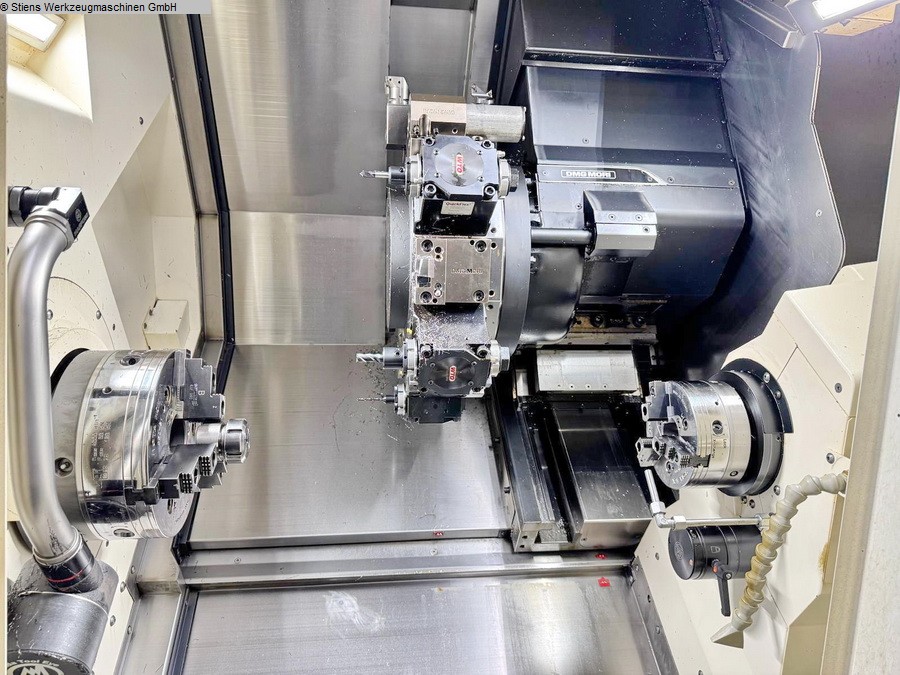

CNC turning and milling center DMG MORI - NLX 2500 SY / 700 - Counter spindle - Tool drive - C, Y axis - only 1,237h spindle hours
