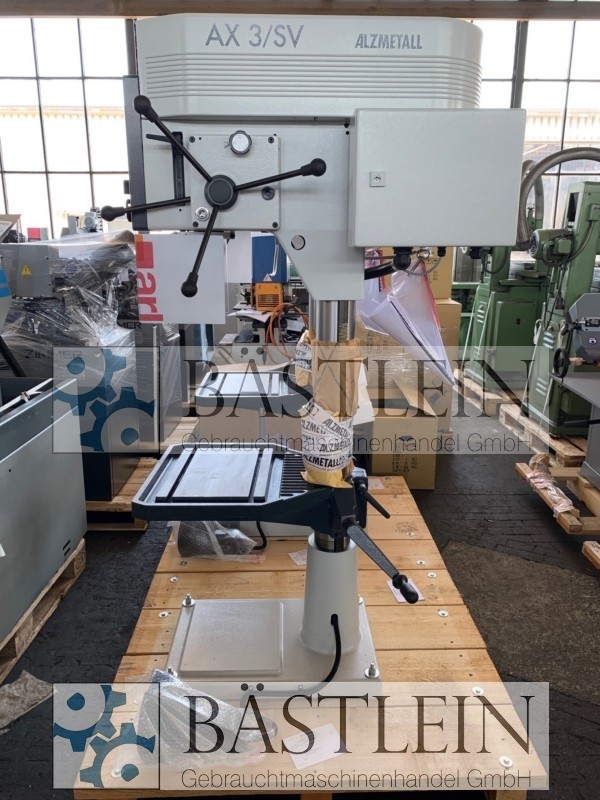

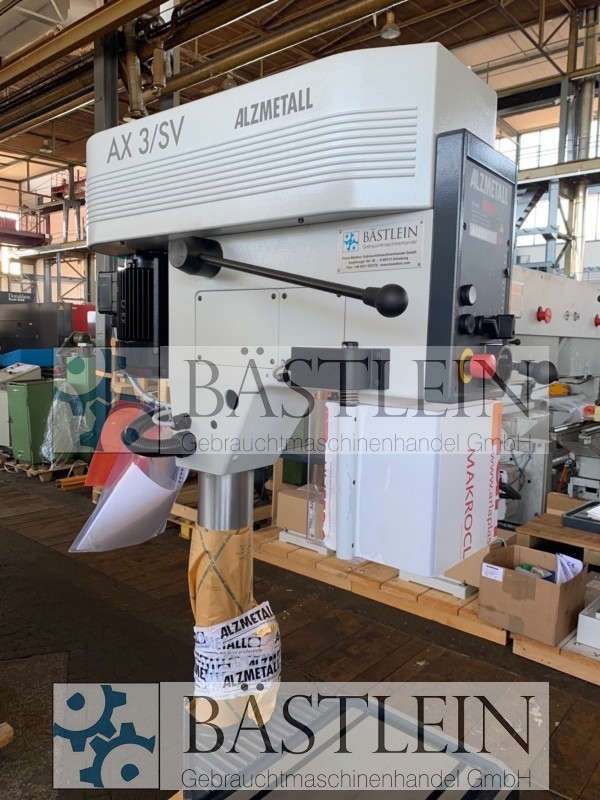

Description

Drilling capacity in St 60 40 mm
Thread cutting in St 60 M 24
Thread cutting in GG 20 M 30
Spindle speeds - continuously variable 160-2250 rpm
Short spindle MK 3
Spindle stroke 120 mm
Throwout 293 mm
Column diameter 115 mm

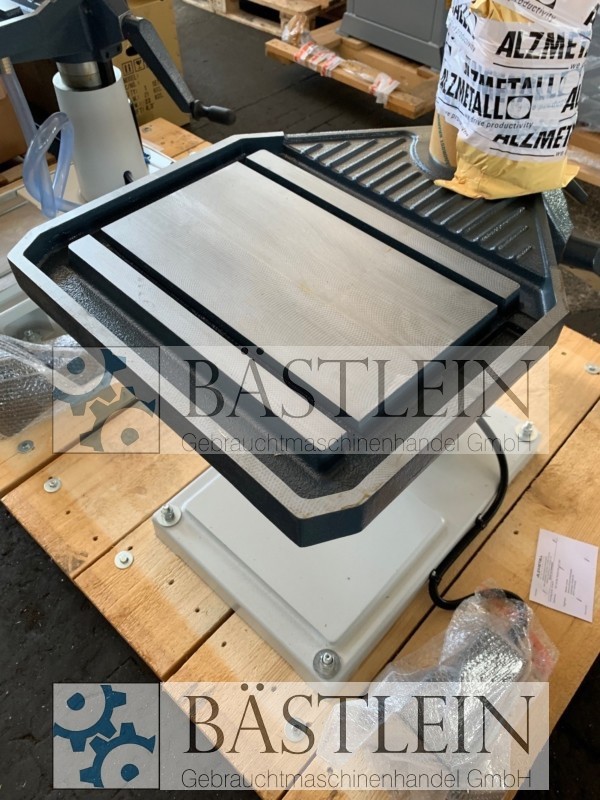

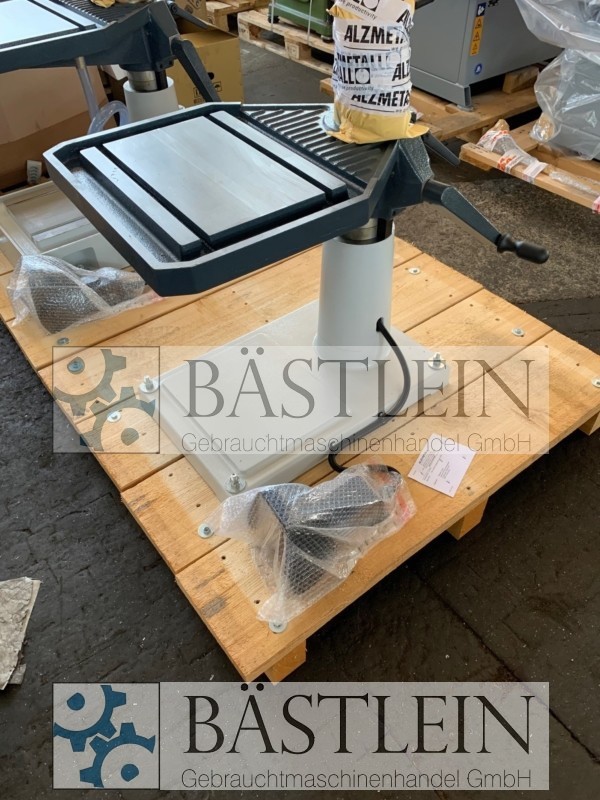

Machine table - usable support 515x360 mm
Distance spindle / table min./max. 117/701 mm
T-slots number - width - distance 2 x 14 x 224 mm
Feed 0.1 + 0.2 mm/rev
Machine height 1840 mm
Standard equipment: - Main switch can be locked with motor protection switch - Mushroom push button (latching) for EMERGENCY STOP - Speed adjustment continuously - Digital speed display - Feed overload protection - Protection class IP 54 - Connection terminals in the control cabinet (no connection cable) - Spindle protection with electrical fuse Special equipment: Item 12 LED machine light with radially adjustable light beam, connected load 230 V, protection class IP65 Item 20.1 Thread cutting device with foot switch, for thread cutting with Stop, max. 6 threads/min., (thread cutting performance depends on spindle speed) Item 25 Coolant device B, consisting of: separate container (33l), Pump with motor protection switch, complete fitting Item 37.1 Digital drilling depth display 0-point definition (start of drilling), 5-digit LED display, character height 13 mm
