Kühlmittelanlage
MAYFRAN
DPF400D-V980 SKD -12
Auf Anfrage
Condition
Gebraucht
Year of construction
2017
Availability
None
Category
Maschinenzubehör etc.
Location
D-59302 Oelde
Retailer
Description
Liter output 980 l
Pump pressure 8 / 20 / 80 bar
Control contactors/contactors
Total power requirement - kW
Machine weight approx. 765 kg
Space requirement approx. 2.3 x 2.0 x 1.8 m

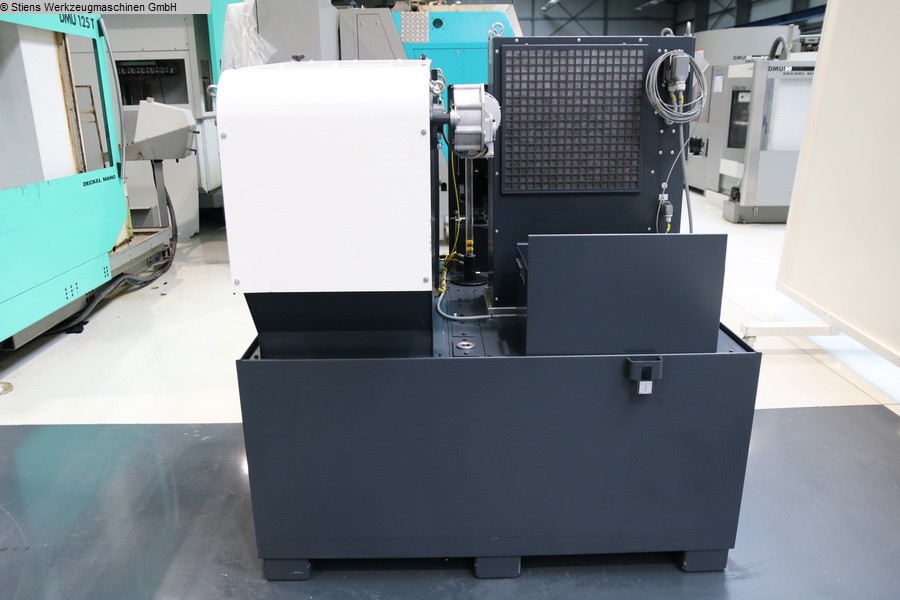

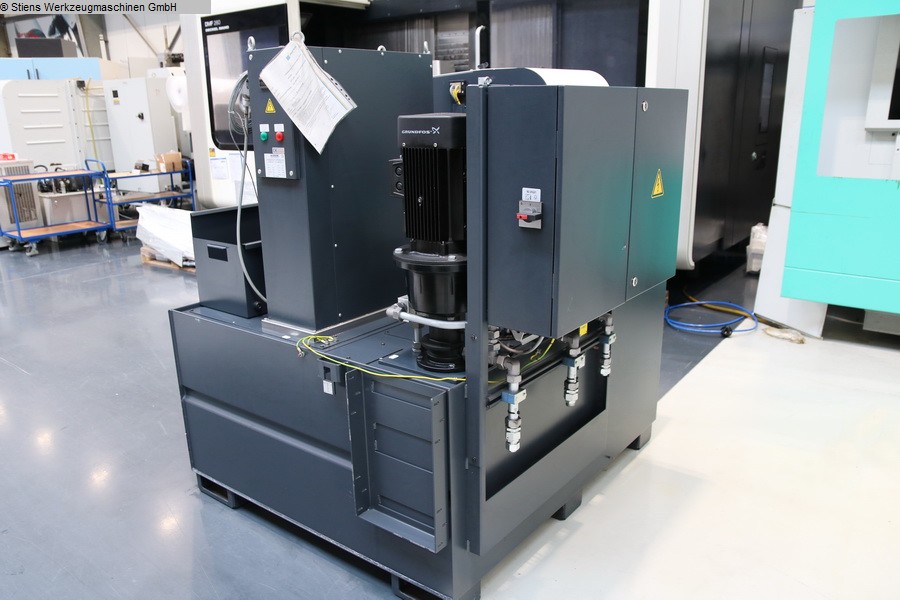

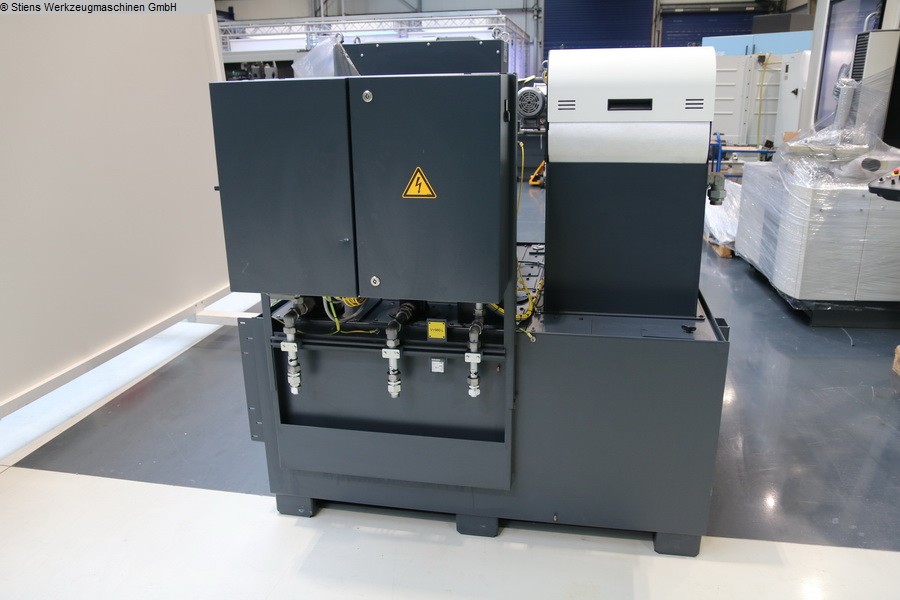

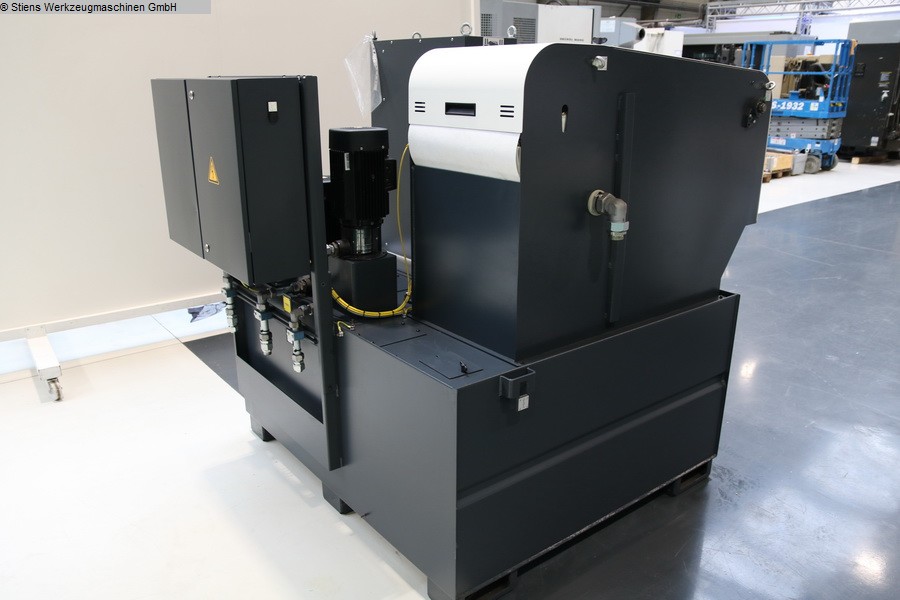

Coolant system
MAYFRAN - DPF400D-V980 SKD (BFA 980 /S/80/20/8+/K2-IE3)
- NEW, unused
- universally applicable
- Can be controlled via contactor
- including paper band filter

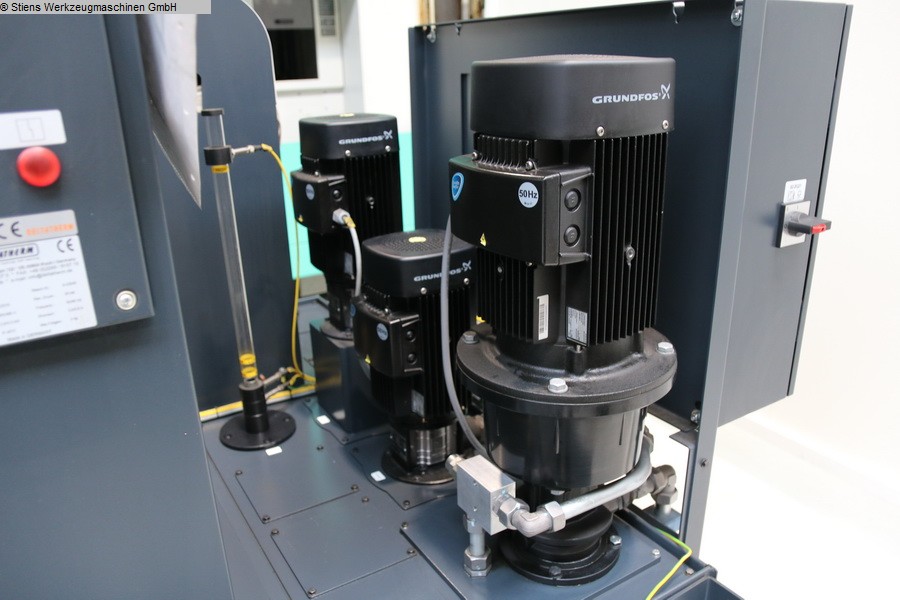

- Number of pumps: 3
- Pump performance:
4.4 kW, pressure 80 bar, max. temp. 90C
2.2 kW, 2,899 rpm, pressure 25 bar, max. temp. 90C
2.2 kW, 2,899 rpm, pressure 8 bar, max. temp. 90C
- Deltatherm E4
