Description

x-travel 3,400 mm
y-travel 3,400 mm
z-travel 1,600 mm

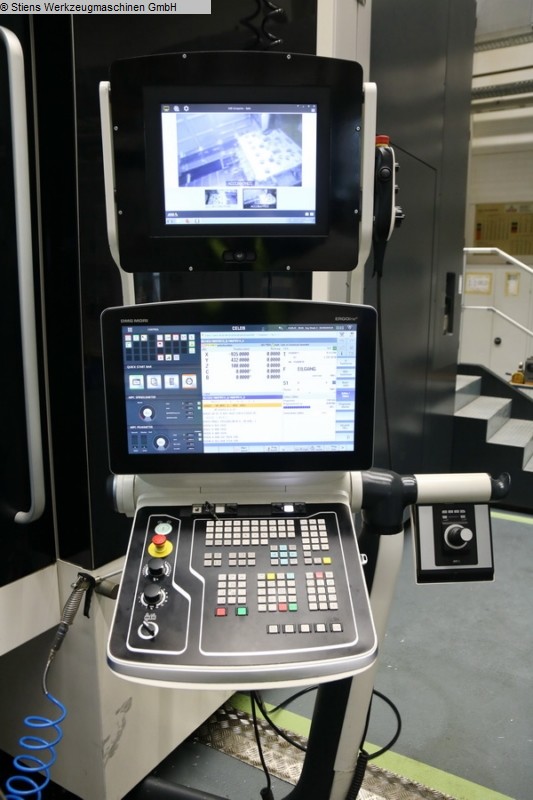

Control CELOS 840D sl Op Siemens

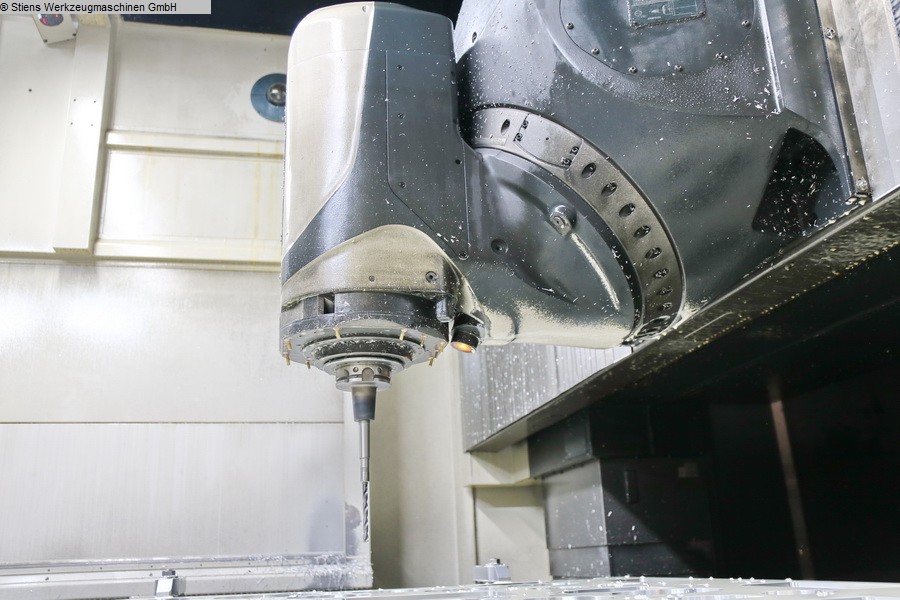

Main spindle:
max. Spindle speed 20 - 15,000 min/-1
Drive power - main spindle 52 / 42 kW
Tool holder HSK-A100
Max. Torque 404 / 280 Nm
swivel B: -30° / +180 °

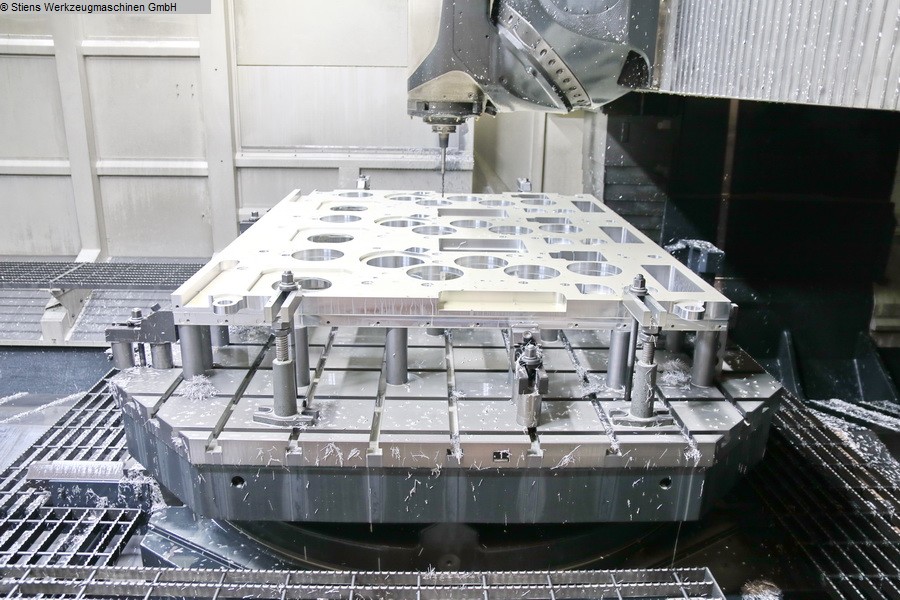

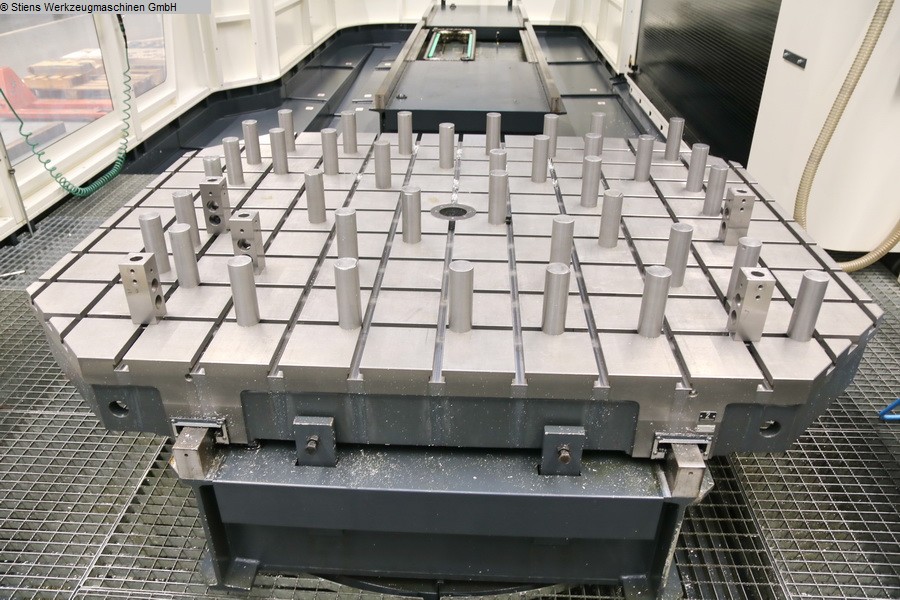

NC rotary table:
table diameter 2,500 x 2,000 mm
max. Table load 10,000 kg
Table speed 5 min/-1
Distance from spindle center to table hor.: 130 - 1,730 mm
Distance spindle center to table vert.: 230 - 1,830 mm
Distance spindle nose and table hor.: -1,500 - 1,900 mm
Distance spindle nose and table vert.: -1,600 - 1,800 mm
Tool changer:
Type 5x wheel / wheel
Number of tool places 303 pos.
max. Tool diameter 110 mm
max. tool through. with a free neighboring box. 280 mm
max. Tool length 900 mm
max. Tool weight 45 kg
Tool change time 7.5 sec
Tool holder HSK-A100
Feeds:
Rapid traverse 60 / 30 / 40 m/min
Total power requirement 140 kVA
Machine weight approx. 106 t
Space requirement approx. 14.0 x 13.0 x 7.0 m

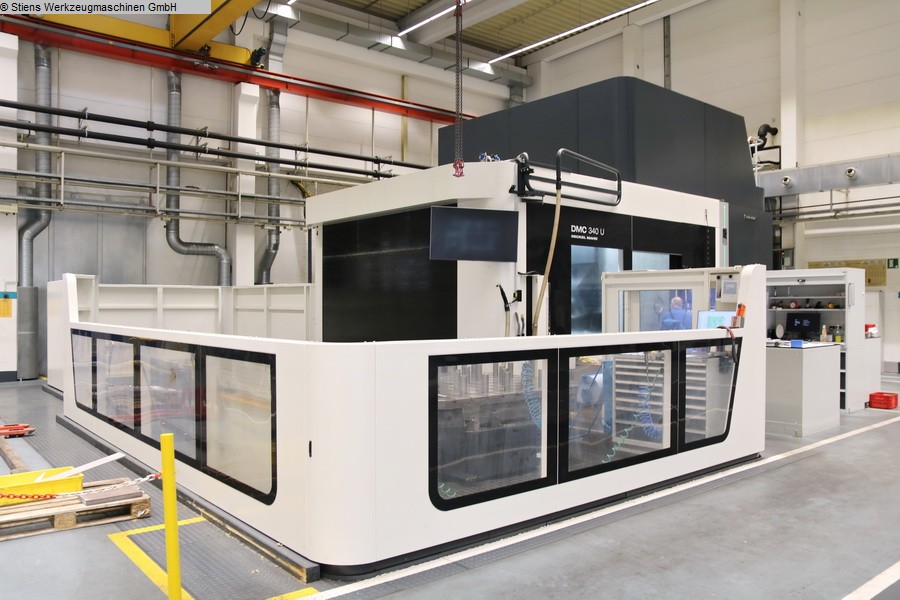

5-axis CNC large machining center universal DMG MORI - DMC 340 U - Pallet changer 2 pos. - Accuracy package - MDynamics package (Improved surface quality with shortened processing time) - only approx. 10,500h spindle hours. - Cone cleaning station with rotating brushes - Balluff tool identification - Machine protection through rapid shutdown (MPC) - Laminated glass safety pane - Machine design for installation in pits - Heidenhain linear scales (instead of Magnescale) - Camera remote system with screen on the control panel
