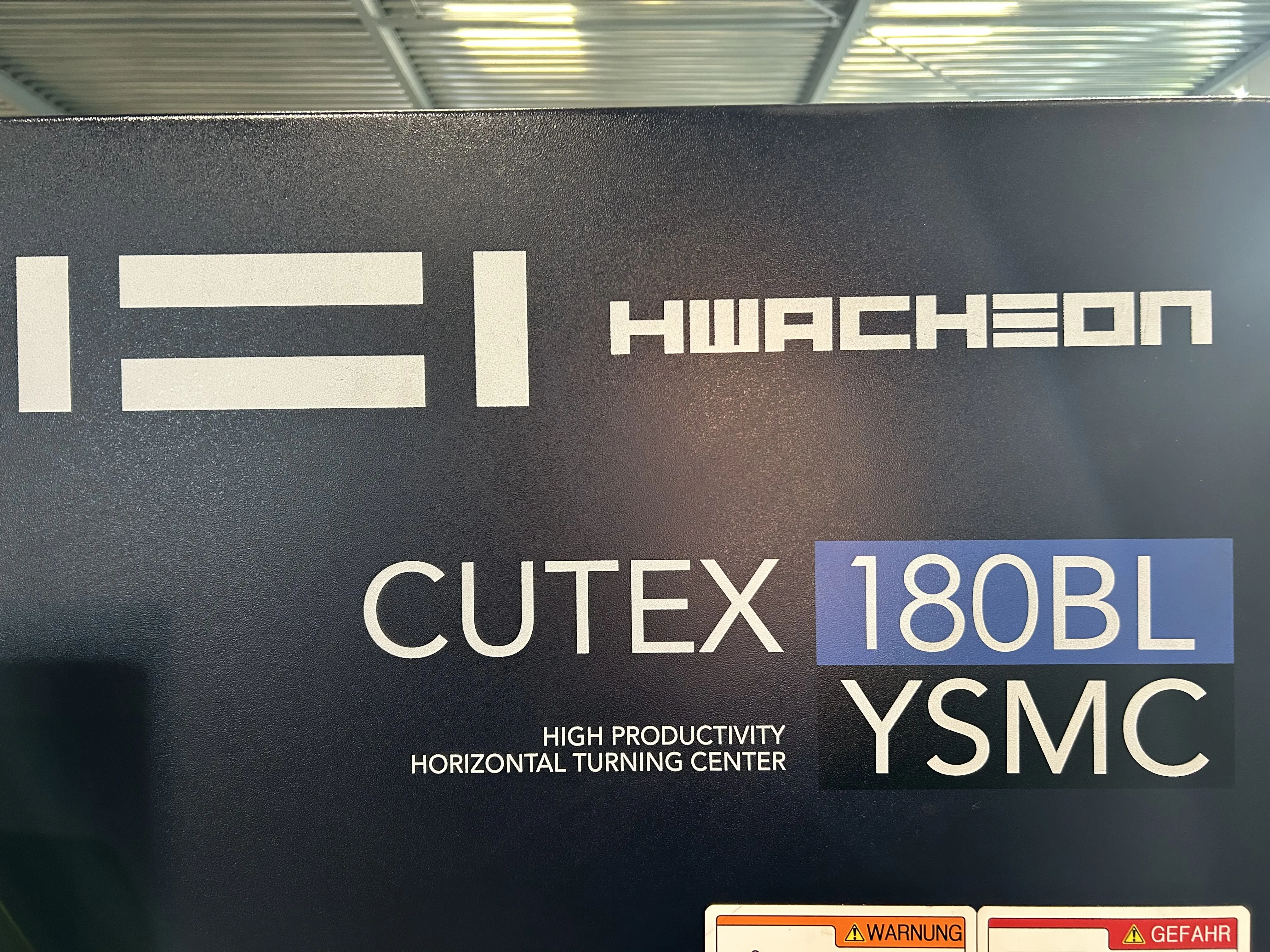

Hwacheon CUTEX-180BL YSMC
HWACHEON
CUTEX-180BL YSMC
Auf Anfrage
Zustand
Sehr gut
Baujahr
2018
Verfügbarkeit
Immediately
Kategorie
CNC Drehmaschinen 300-349mm Drehdurchm.
Standort
Zutphen, The Netherlands
Händler
Beschreibung

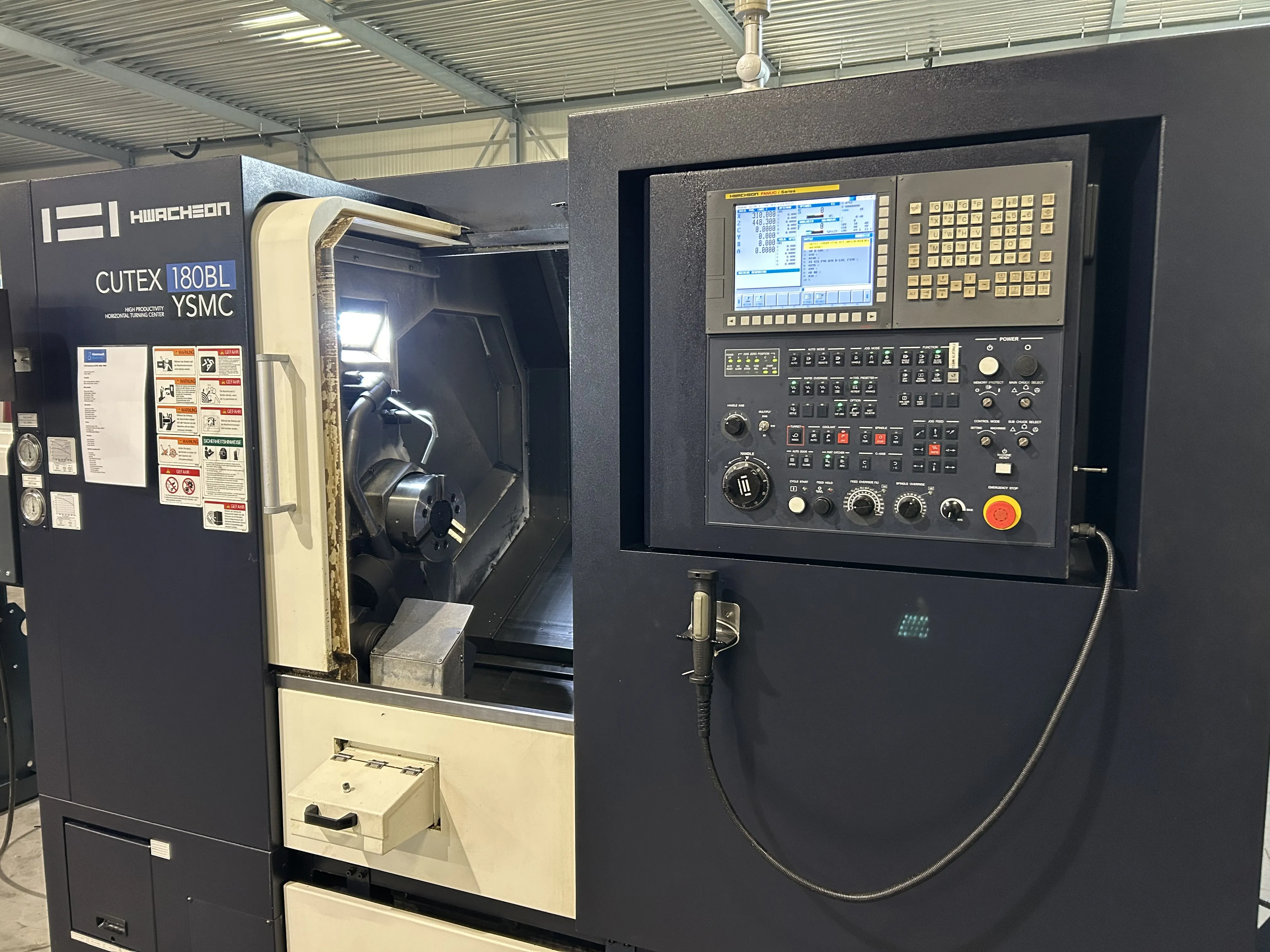

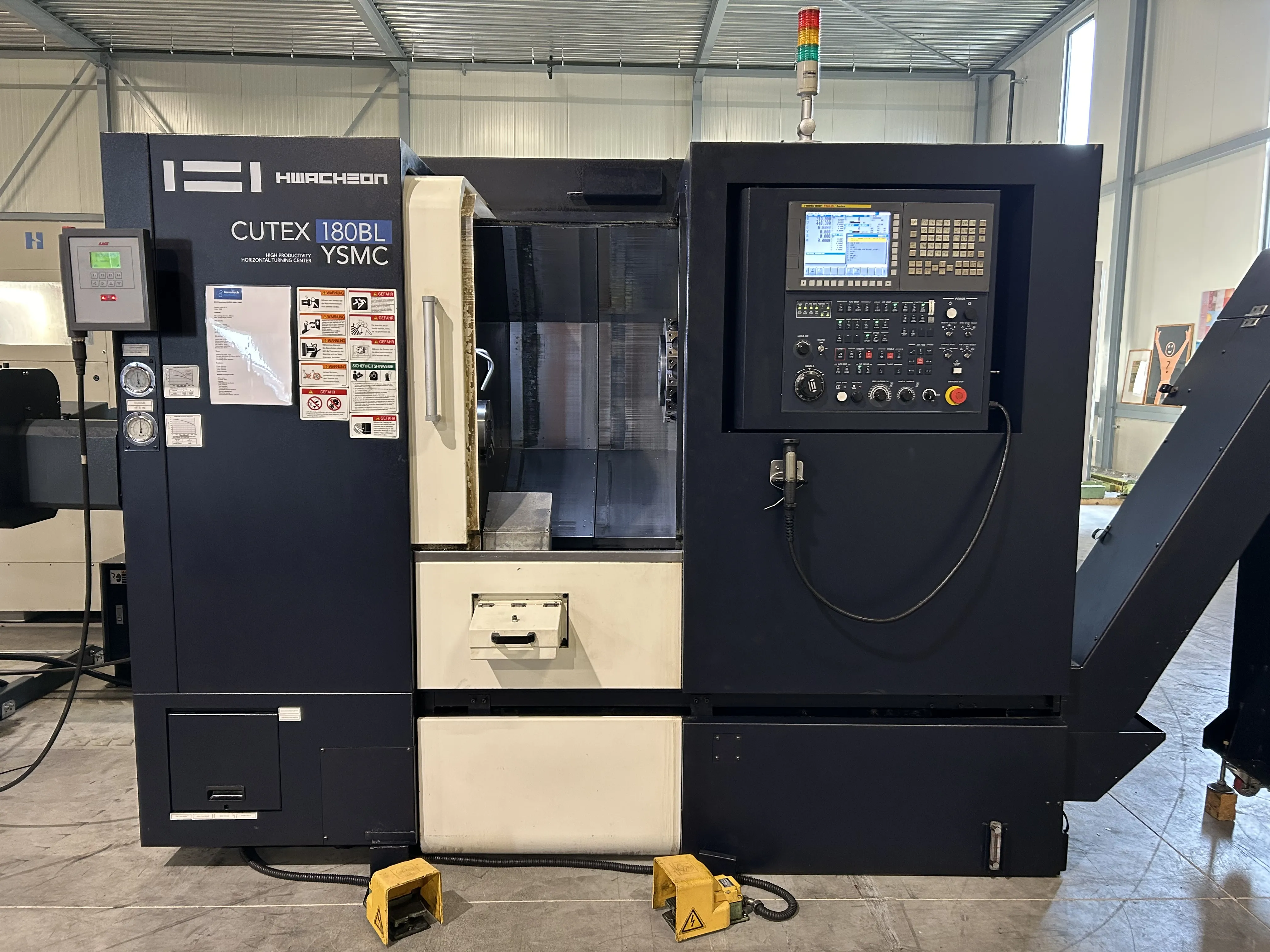

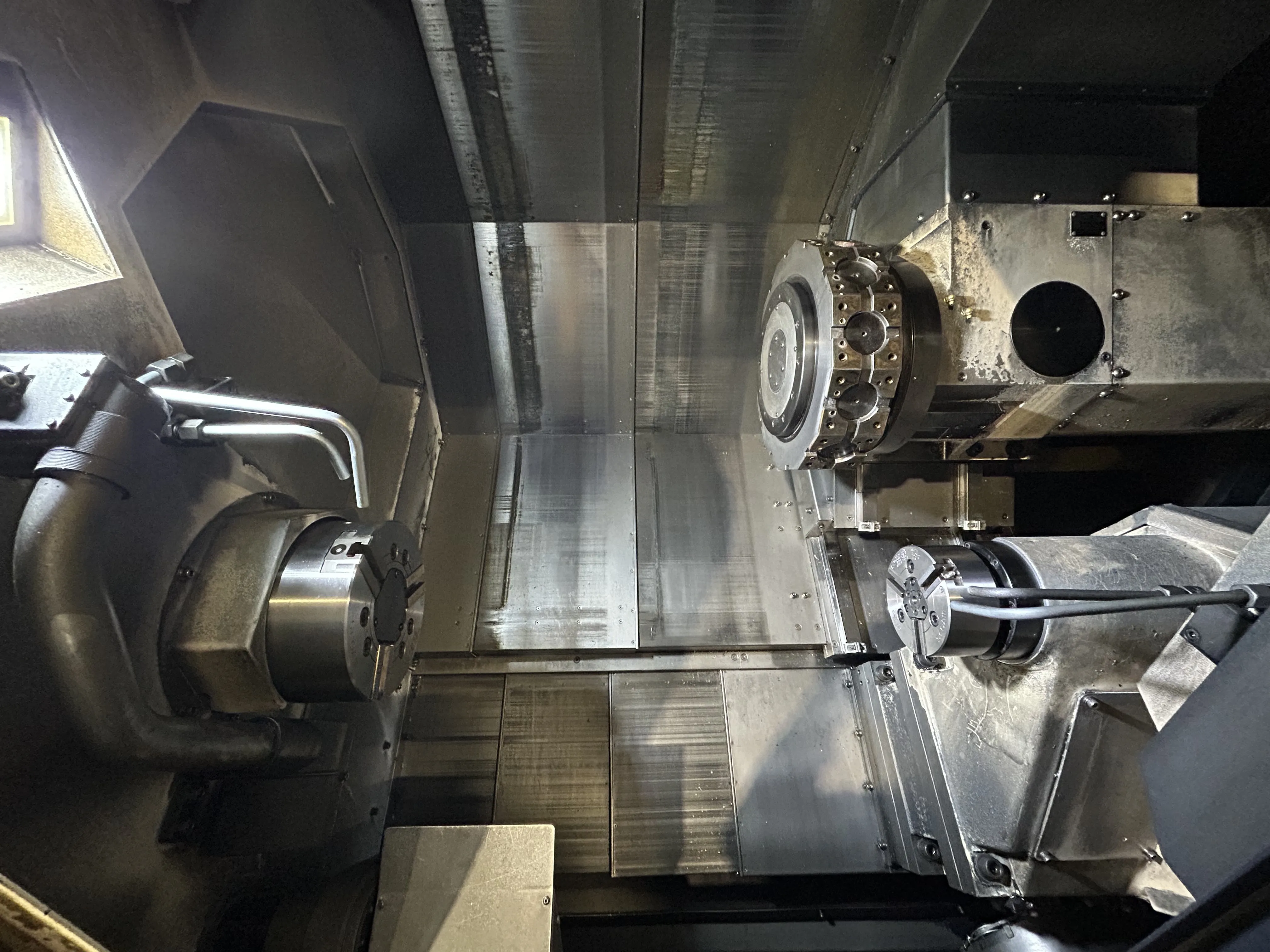

This 2018 Hwacheon CUTEX-180BL YSMC is in excellent condition. This beautiful, fully equipped machine includes a Y-axis, driven tools, sub-spindle, bar feeder, and a set of tool holders.

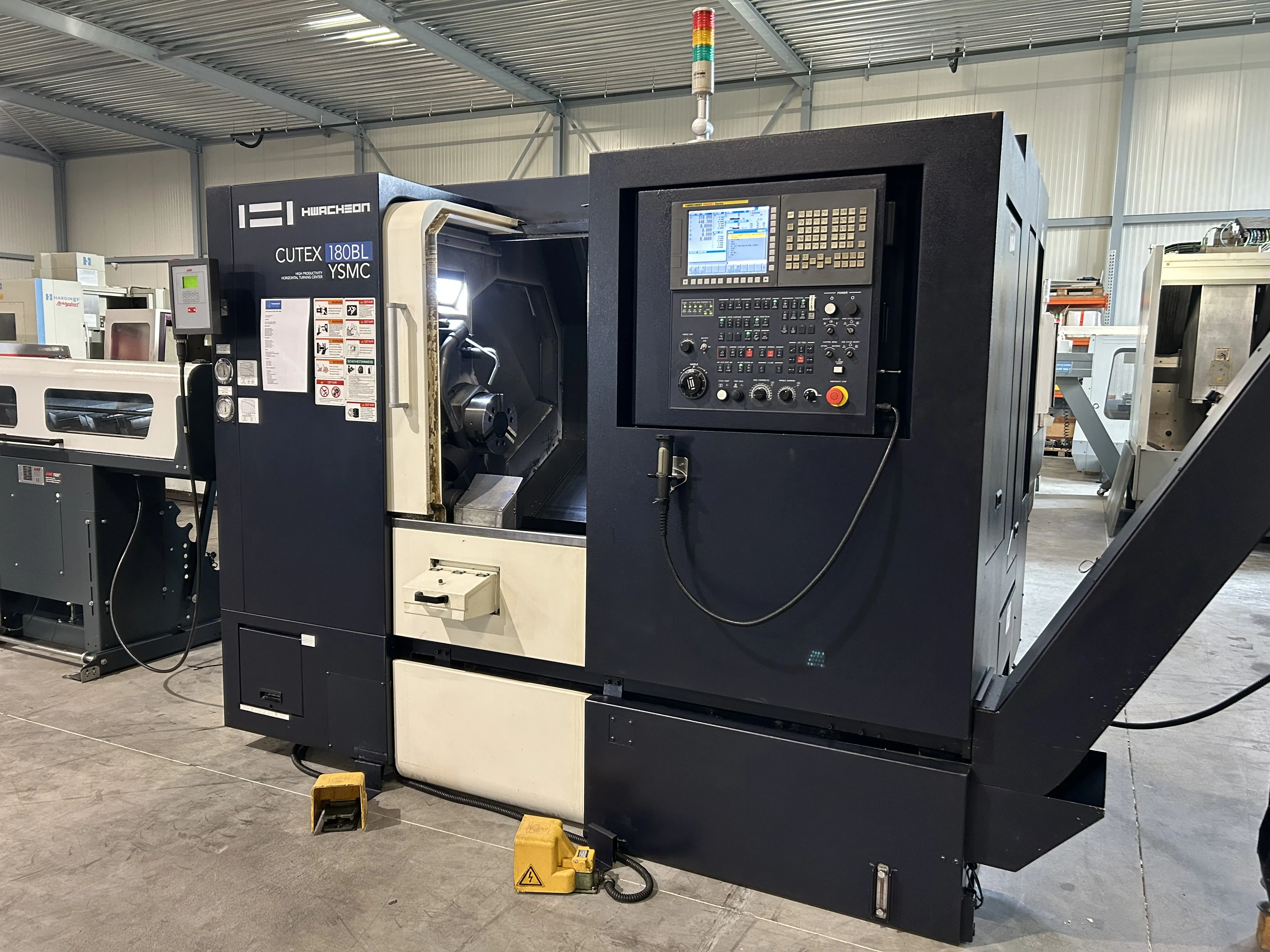

The machine can be viewed live in our showroom in Zutphen and is immediately available.
Delivery, installation, and commissioning are available upon request. Price upon request (excluding VAT).
For videos or more information, please contact +31 638290829 or email info@hanemach.nl

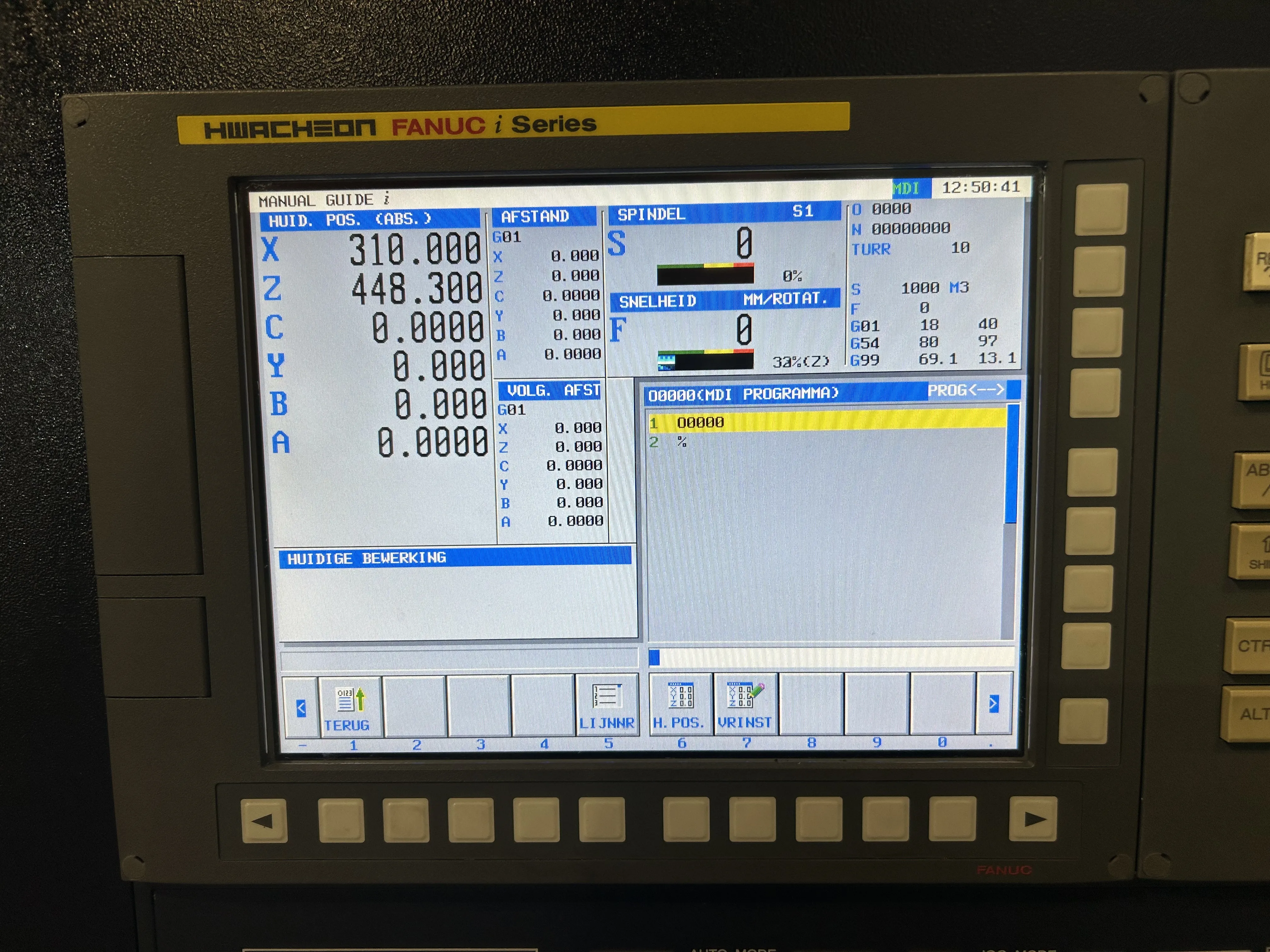

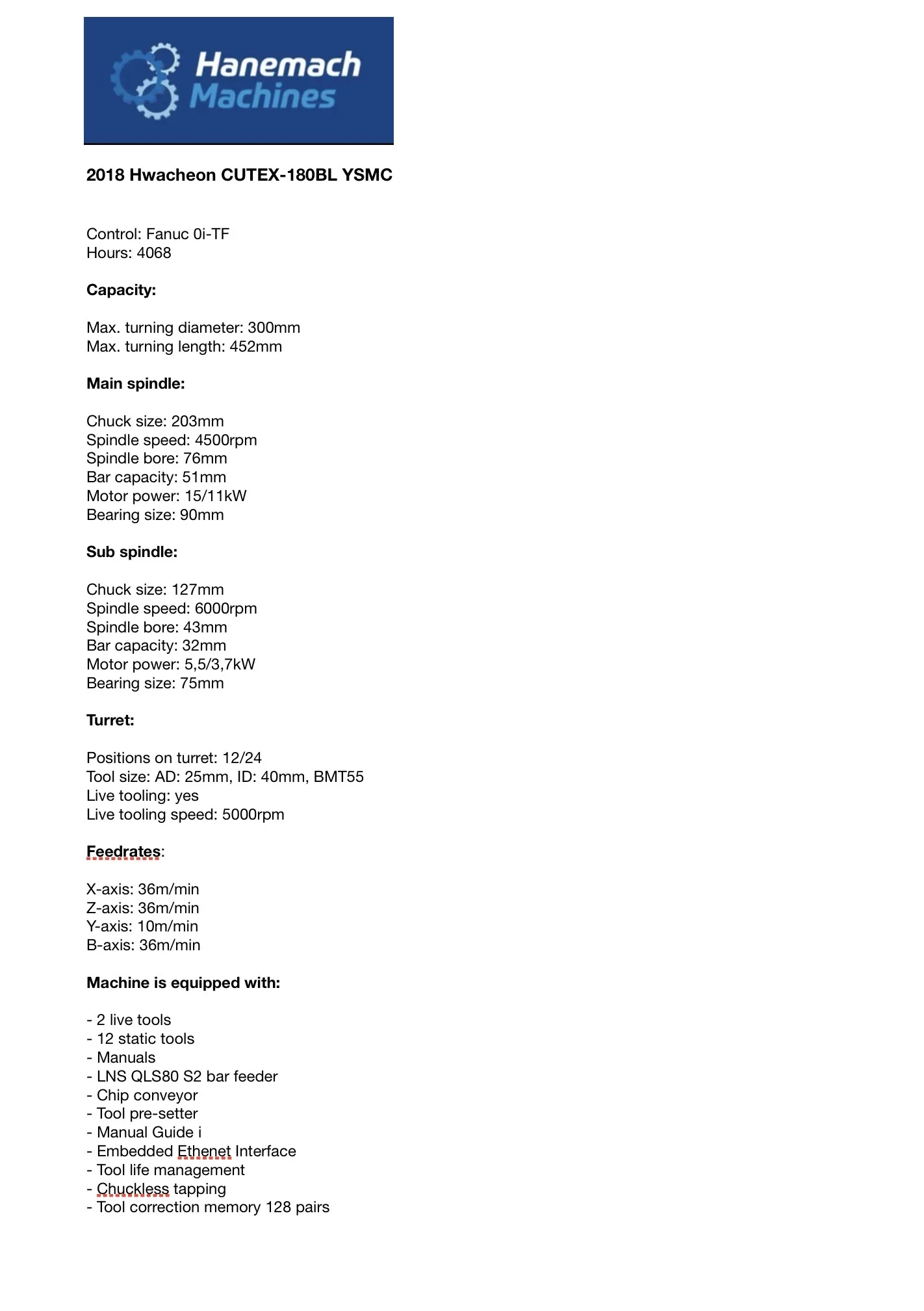

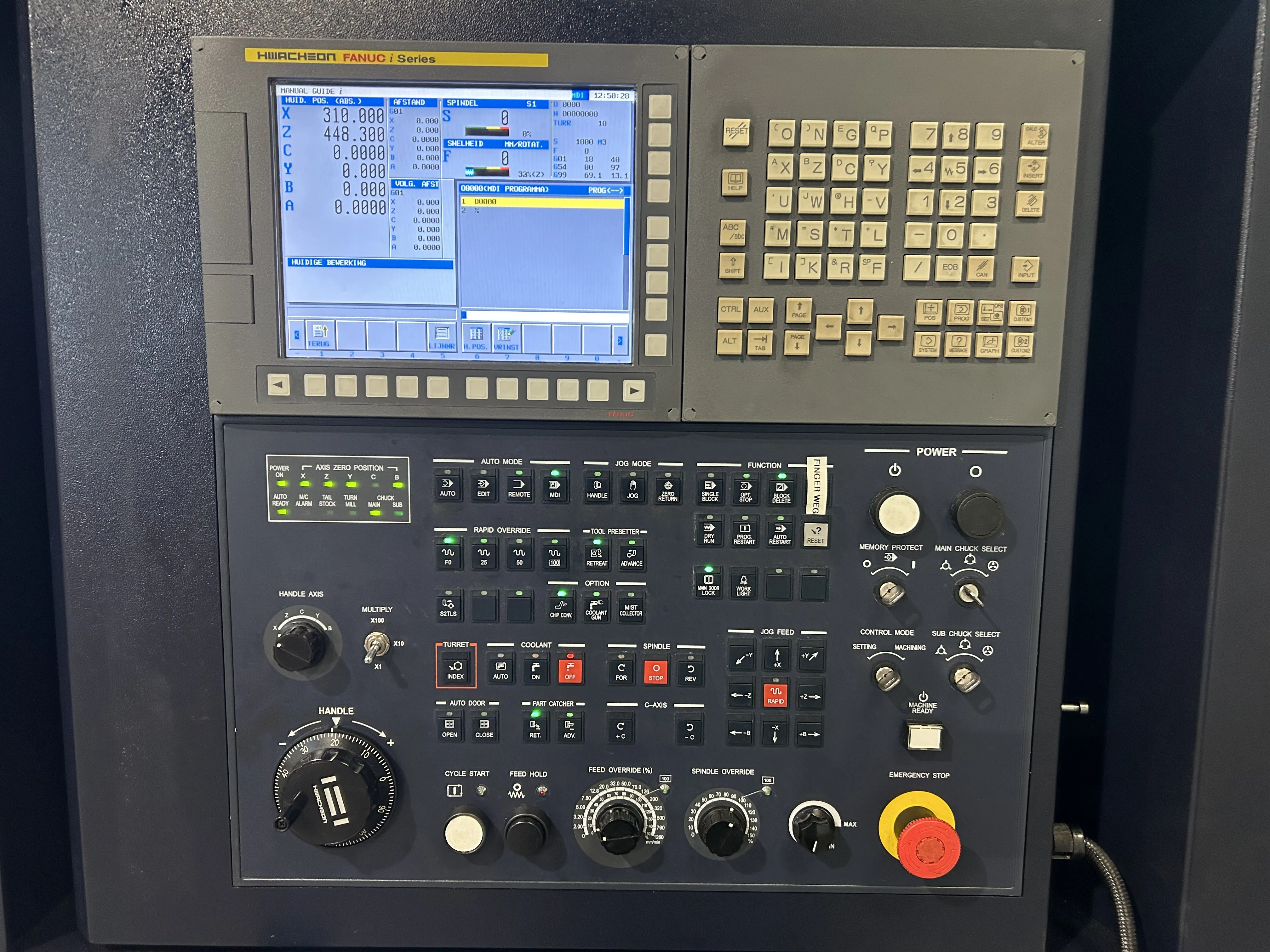

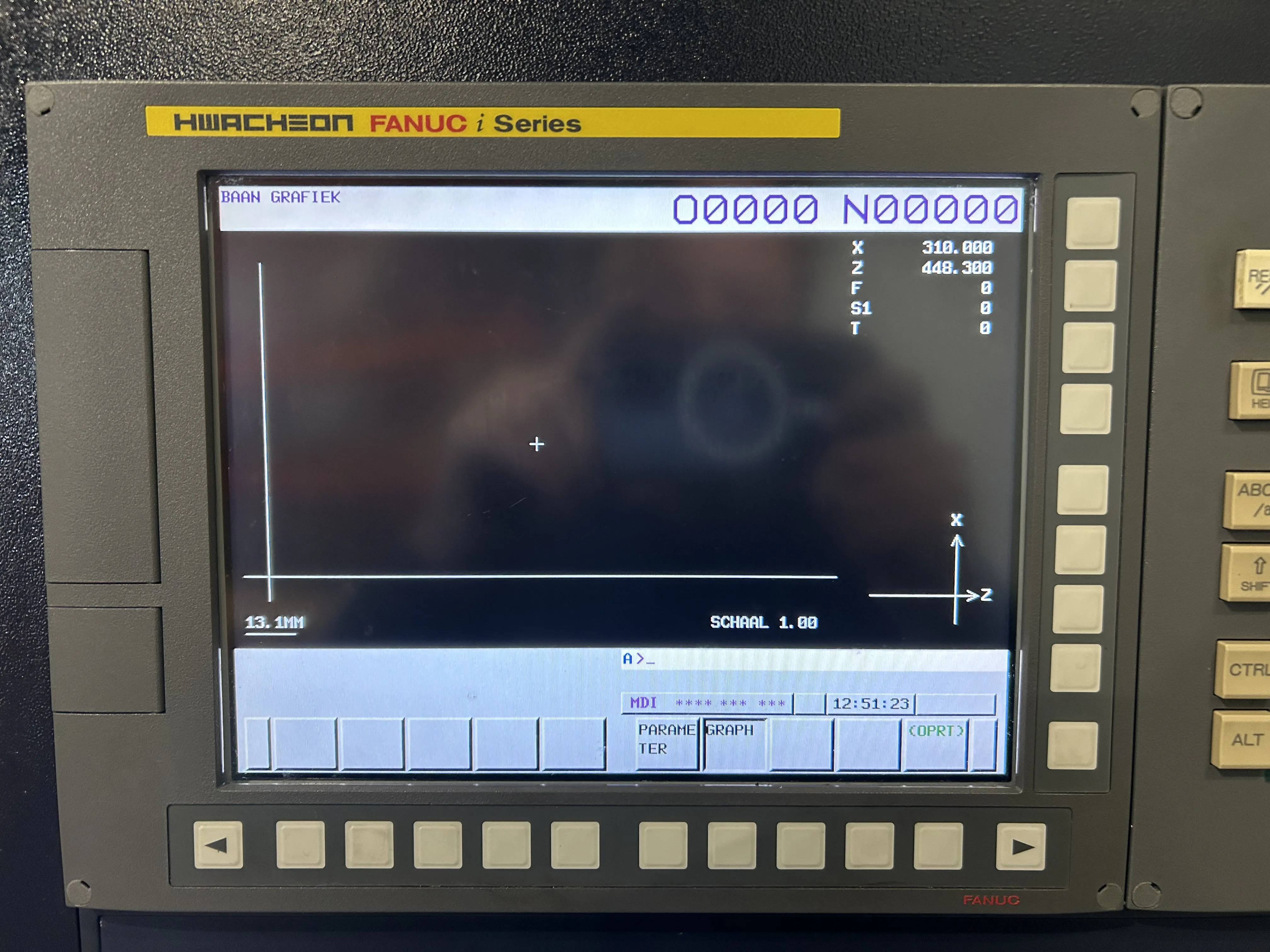

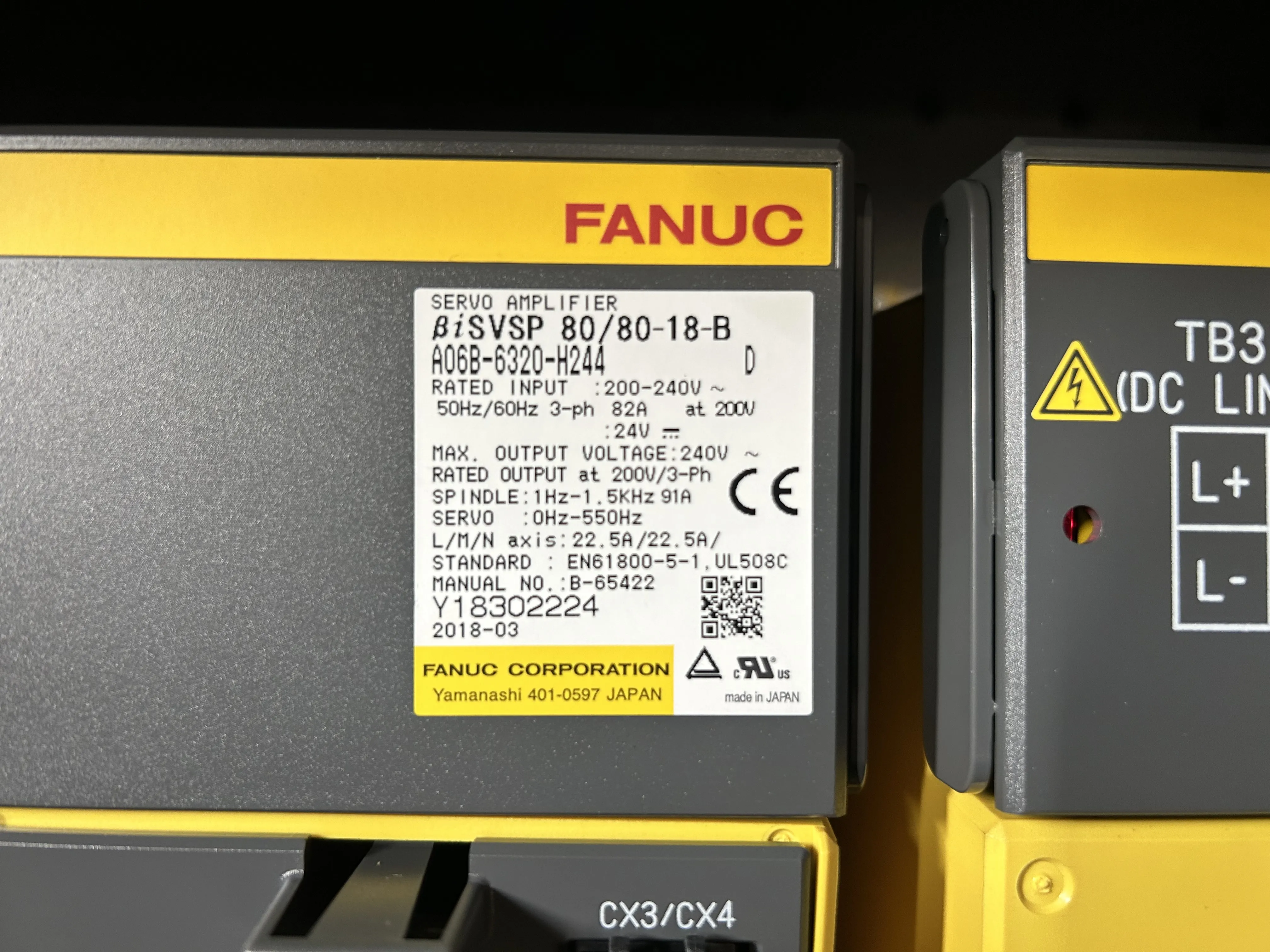

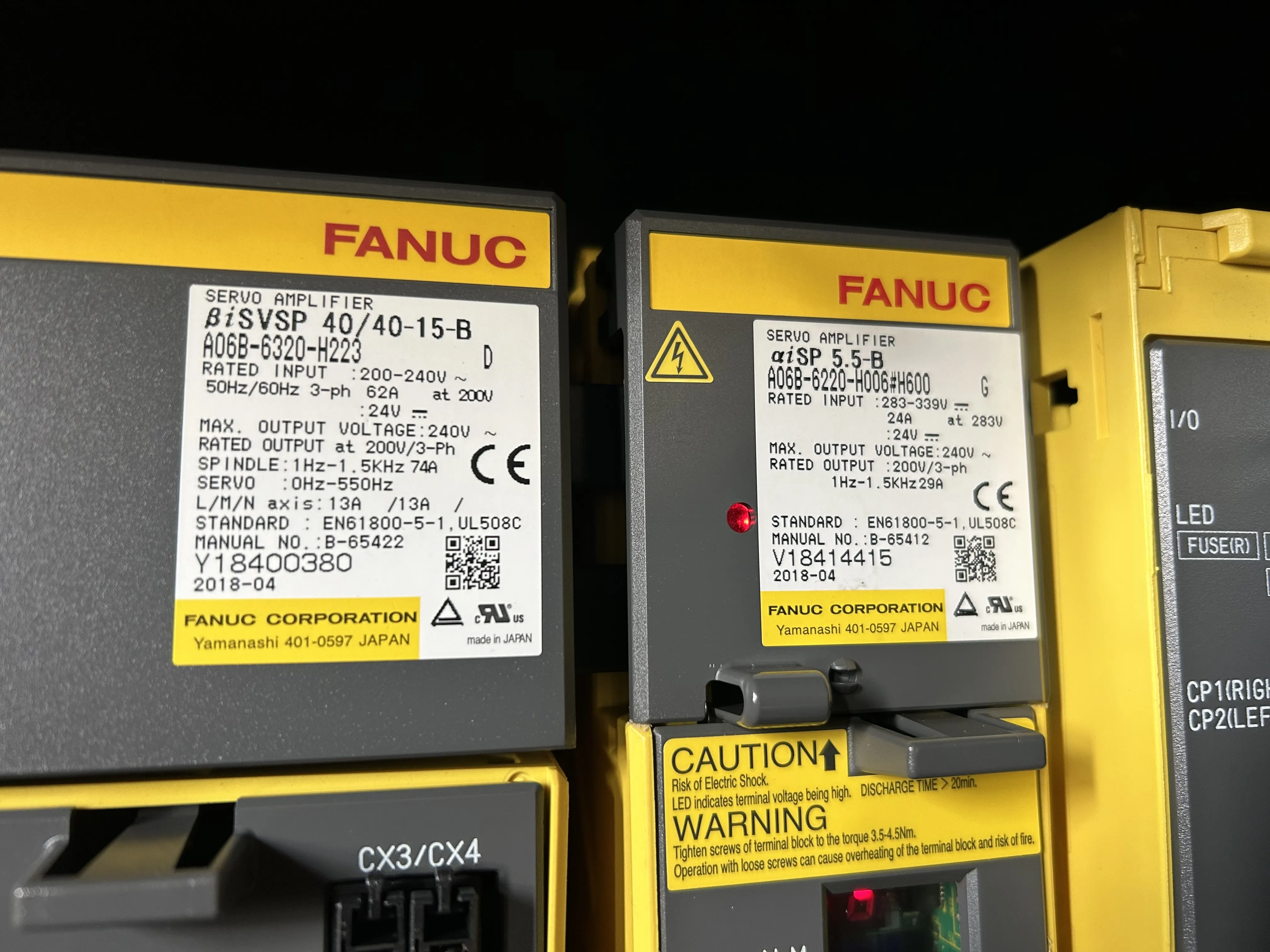

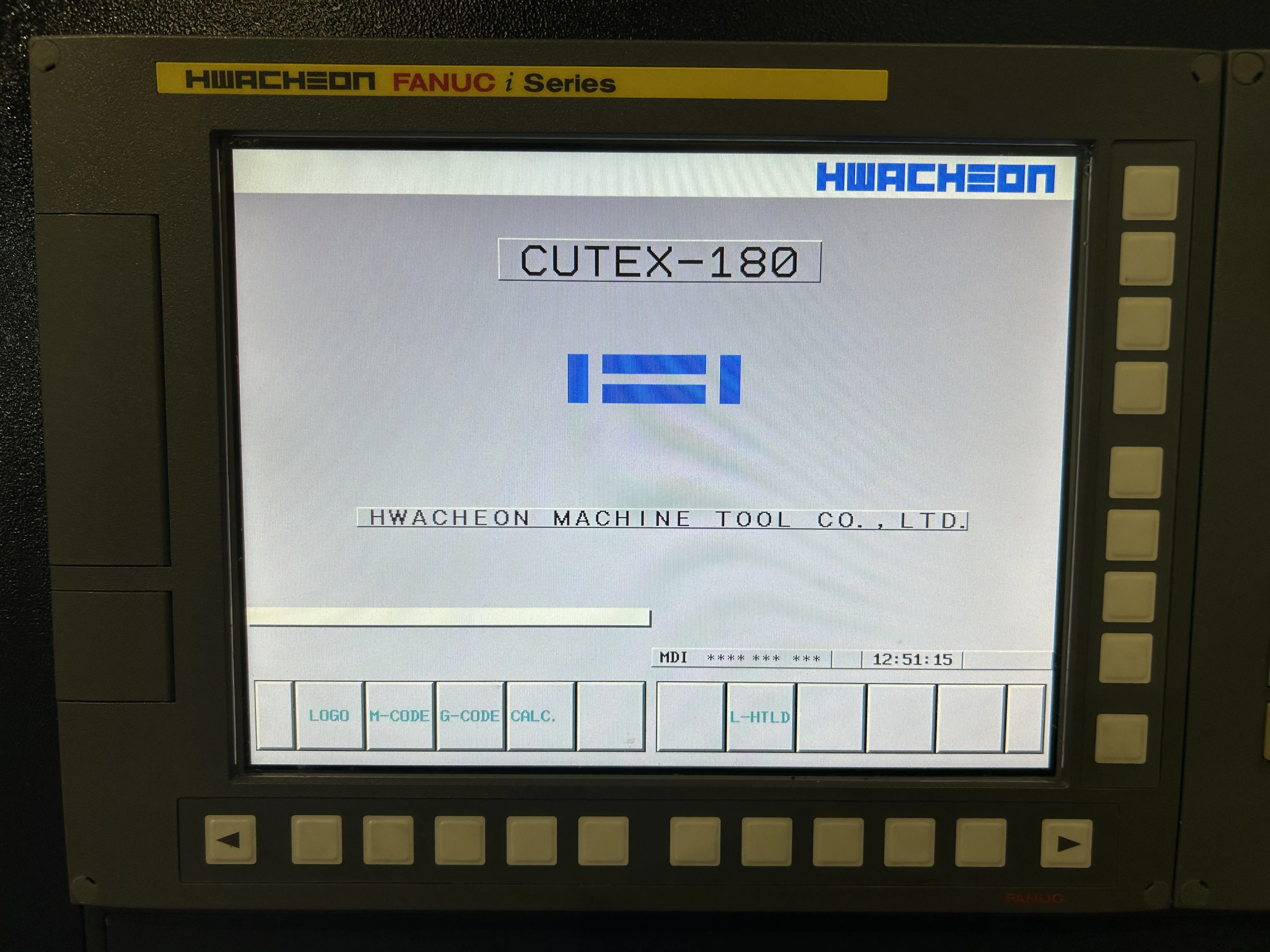

Control: Fanuc 0i-TF

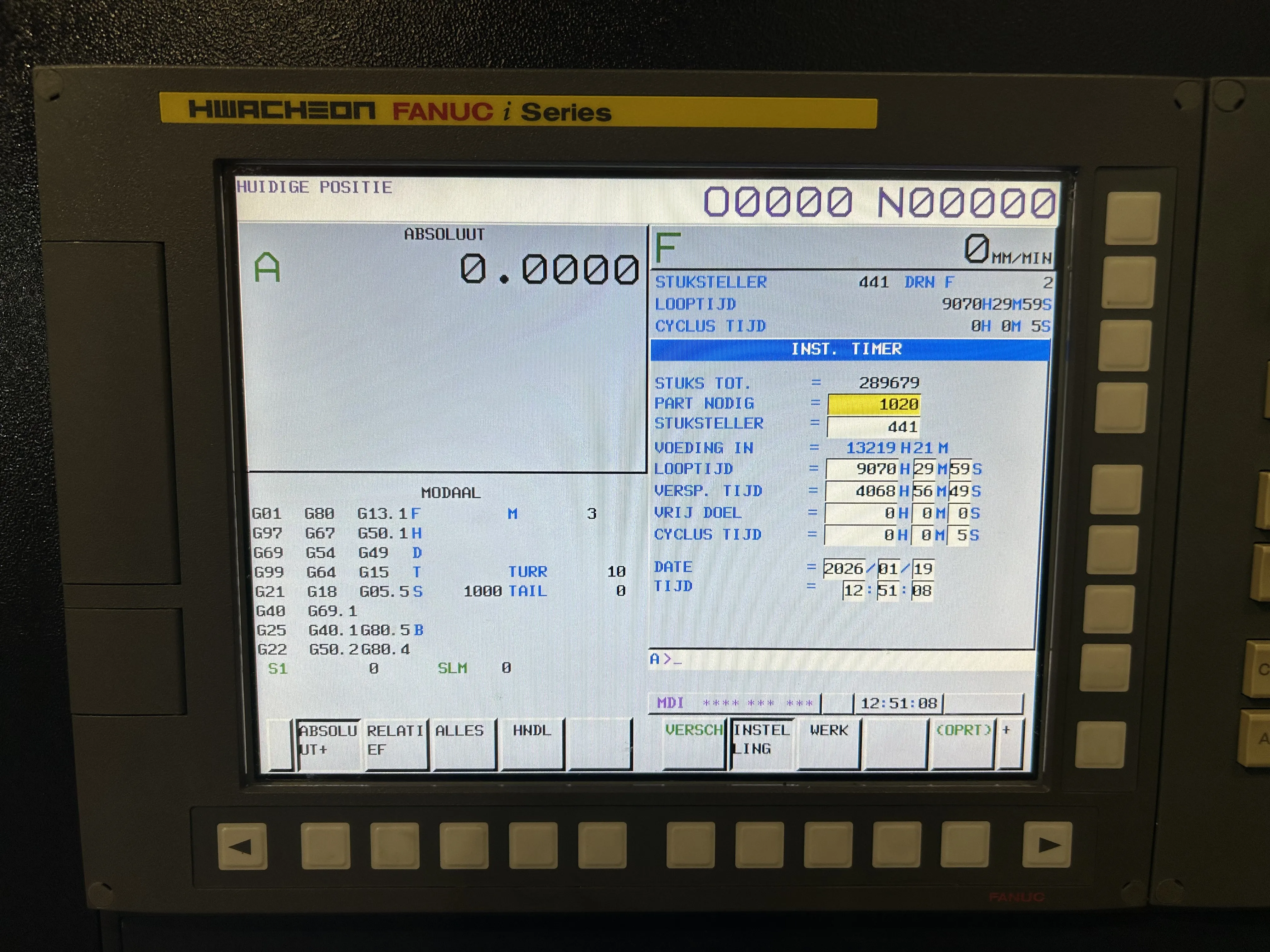

Hours: 4068
Capacity:
- Max. turning diameter: 300mm
- Max. turning length: 452mm

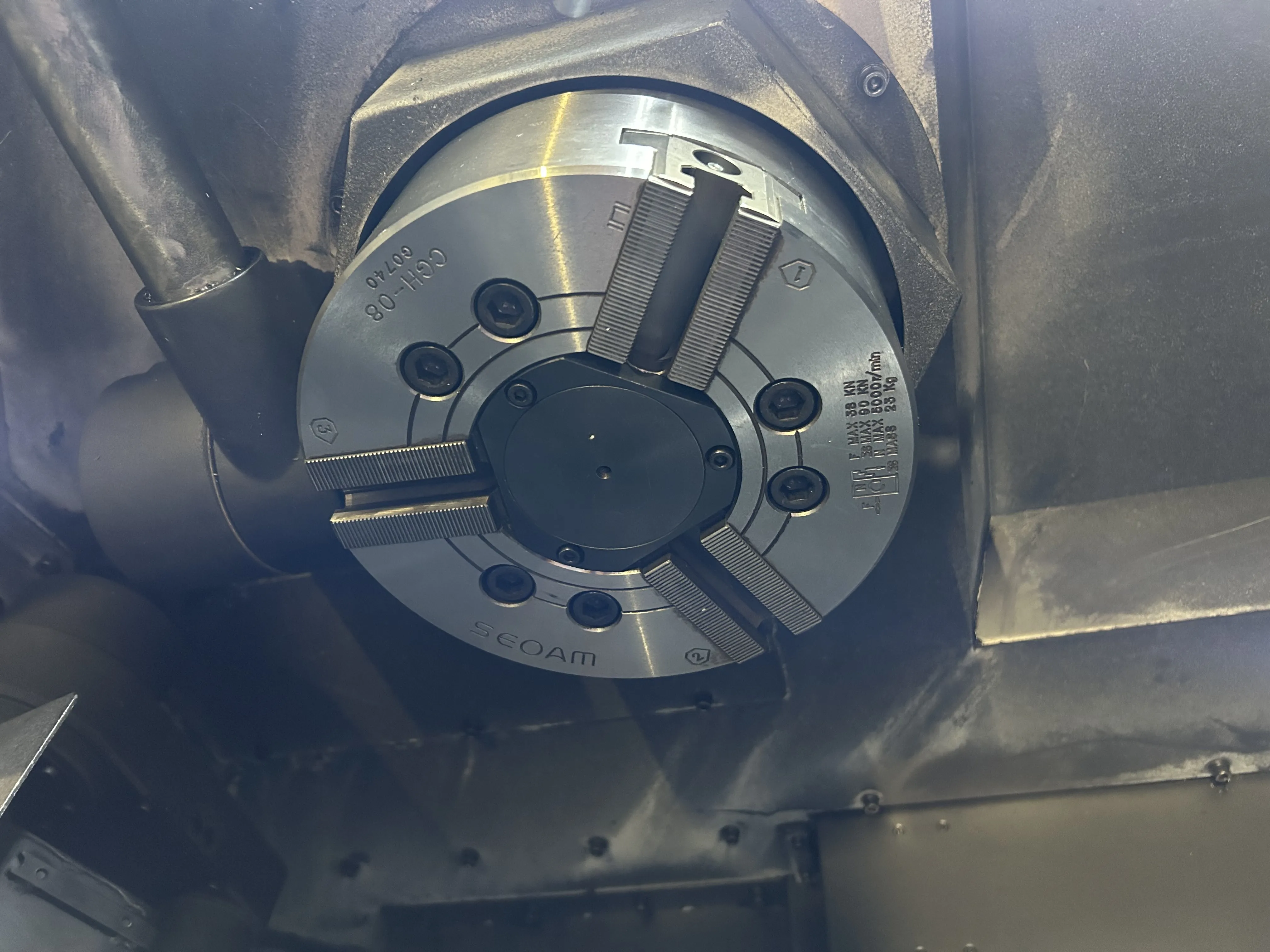

Main spindle:

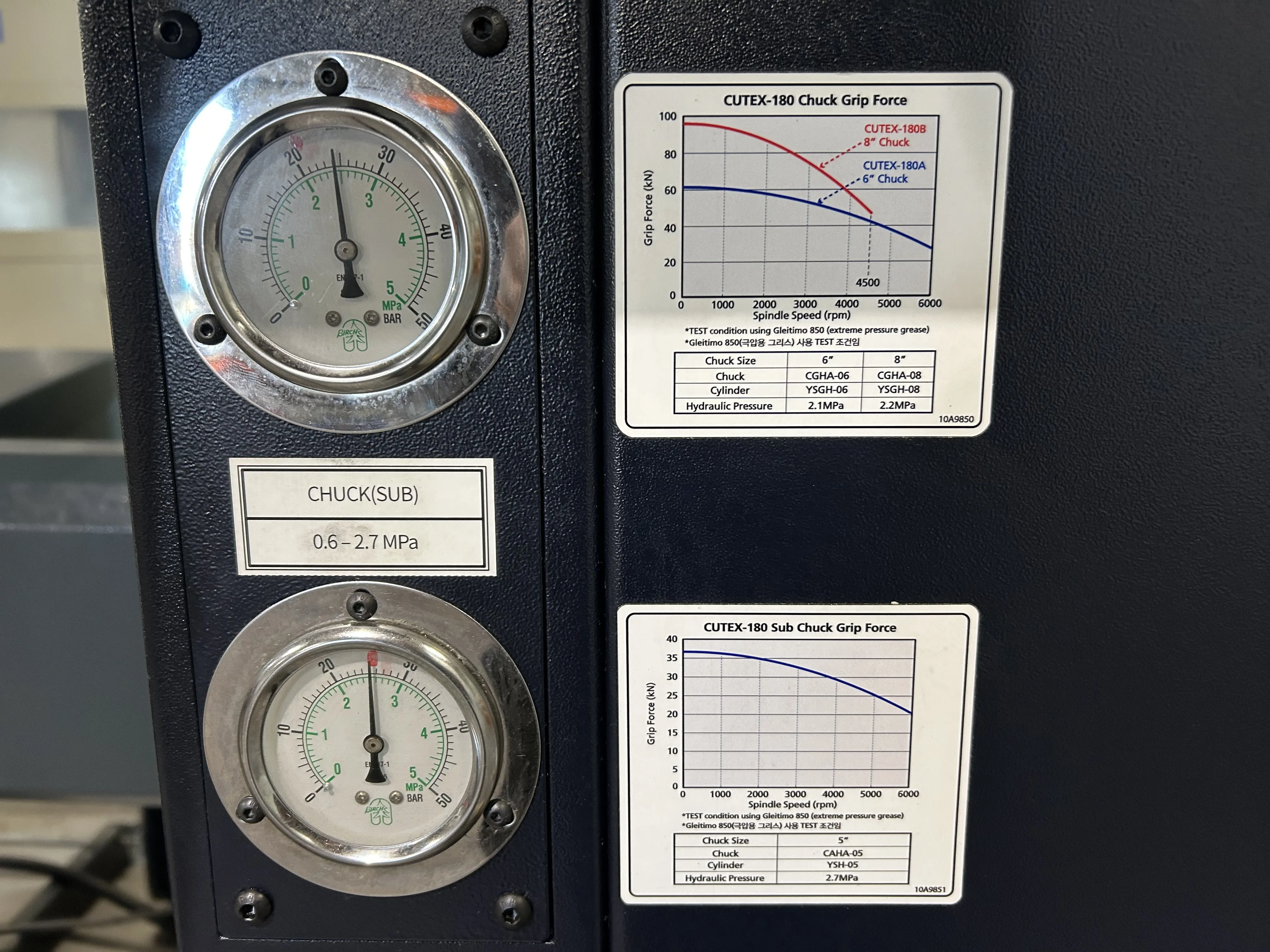

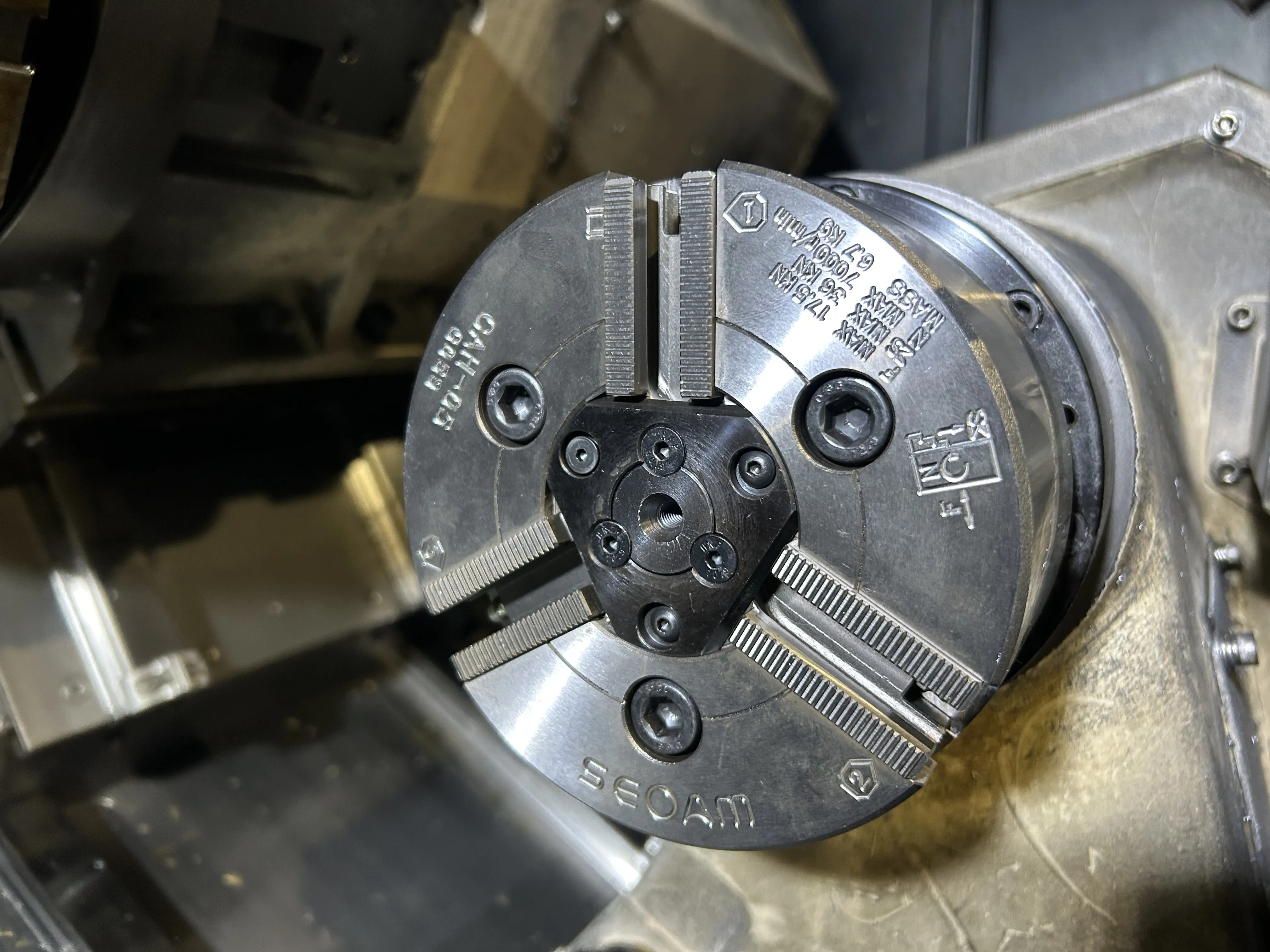

- Chuck size: 203mm
- Spindle speed: 4500rpm
- Spindle bore: 76mm
- Bar capacity: 51mm
- Motor power: 15/11kW
- Bearing size: 90mm
Sub spindle:

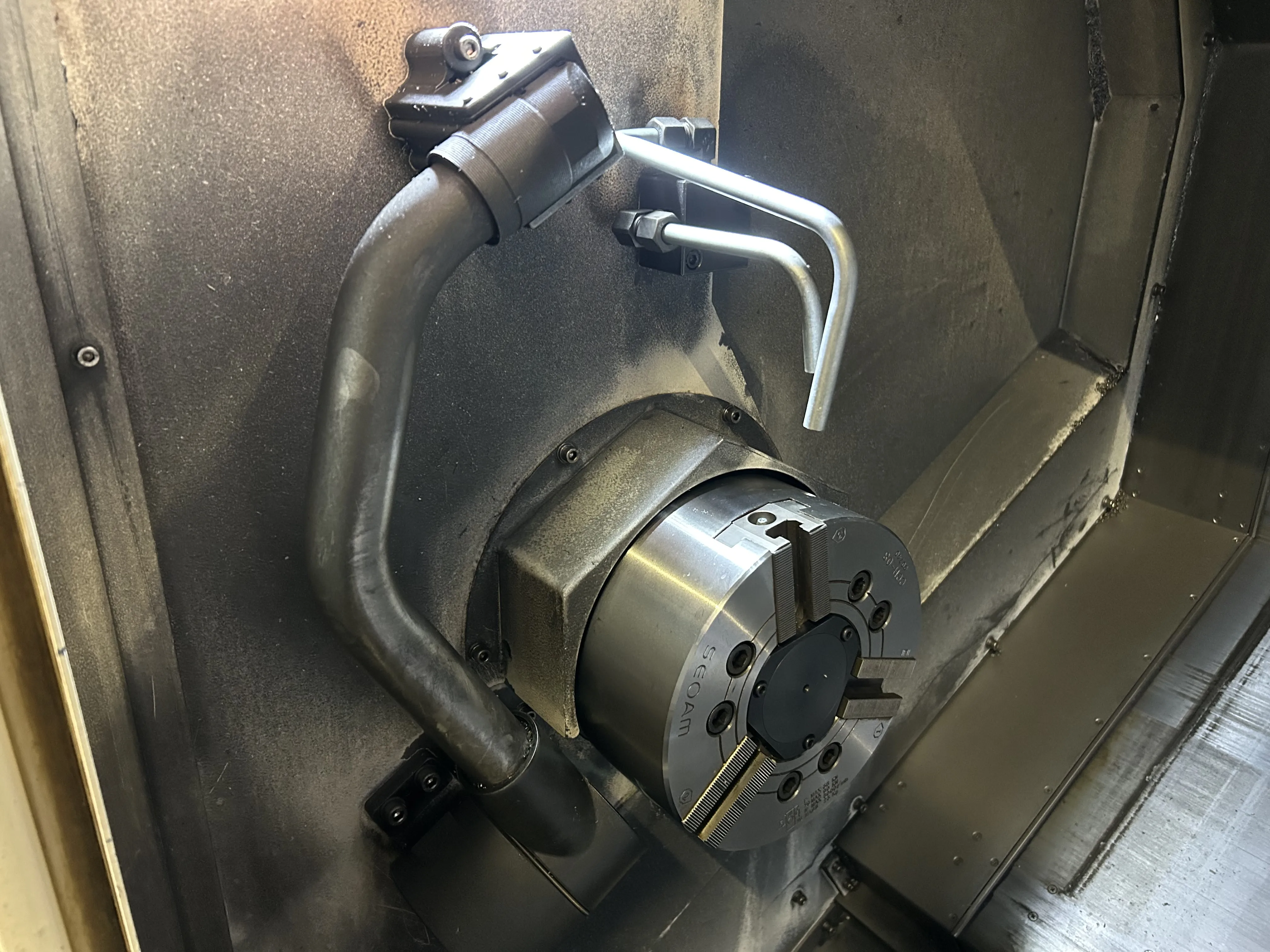

- Chuck size: 127mm
- Spindle speed: 6000rpm
- Spindle bore: 43mm
- Bar capacity: 32mm
- Motor power: 5,5/3,7kW
- Bearing size: 75mm

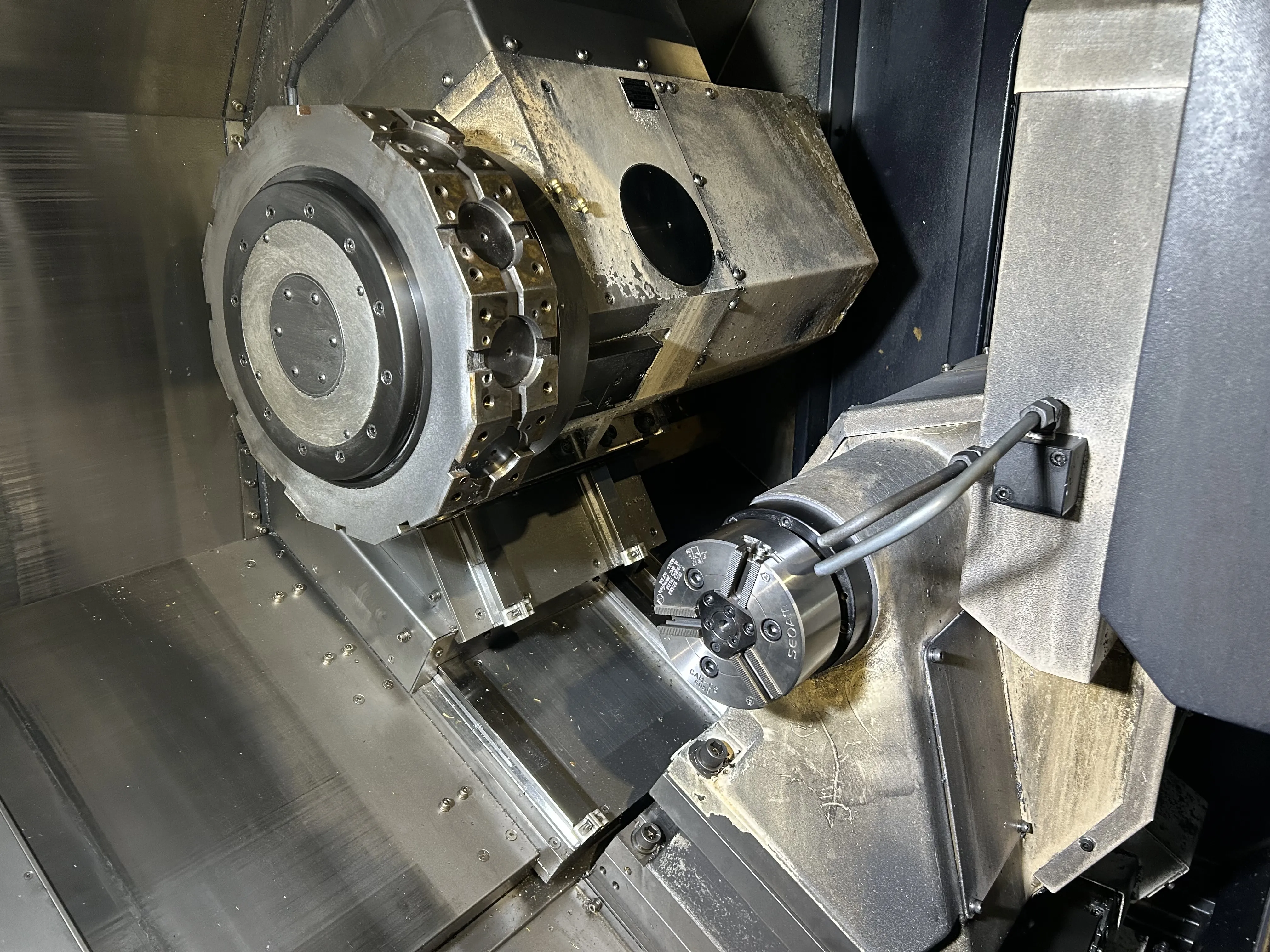

Turret:
- Positions on turret: 12/24
- Tool size: AD: 25mm, ID: 40mm, BMT55
- Live tooling: yes
- Live tooling speed: 5000rpm
Feedrates:
- X-axis: 36m/min
- Z-axis: 36m/min
- Y-axis: 10m/min
- B-axis: 36m/min
Machine is equipped with:

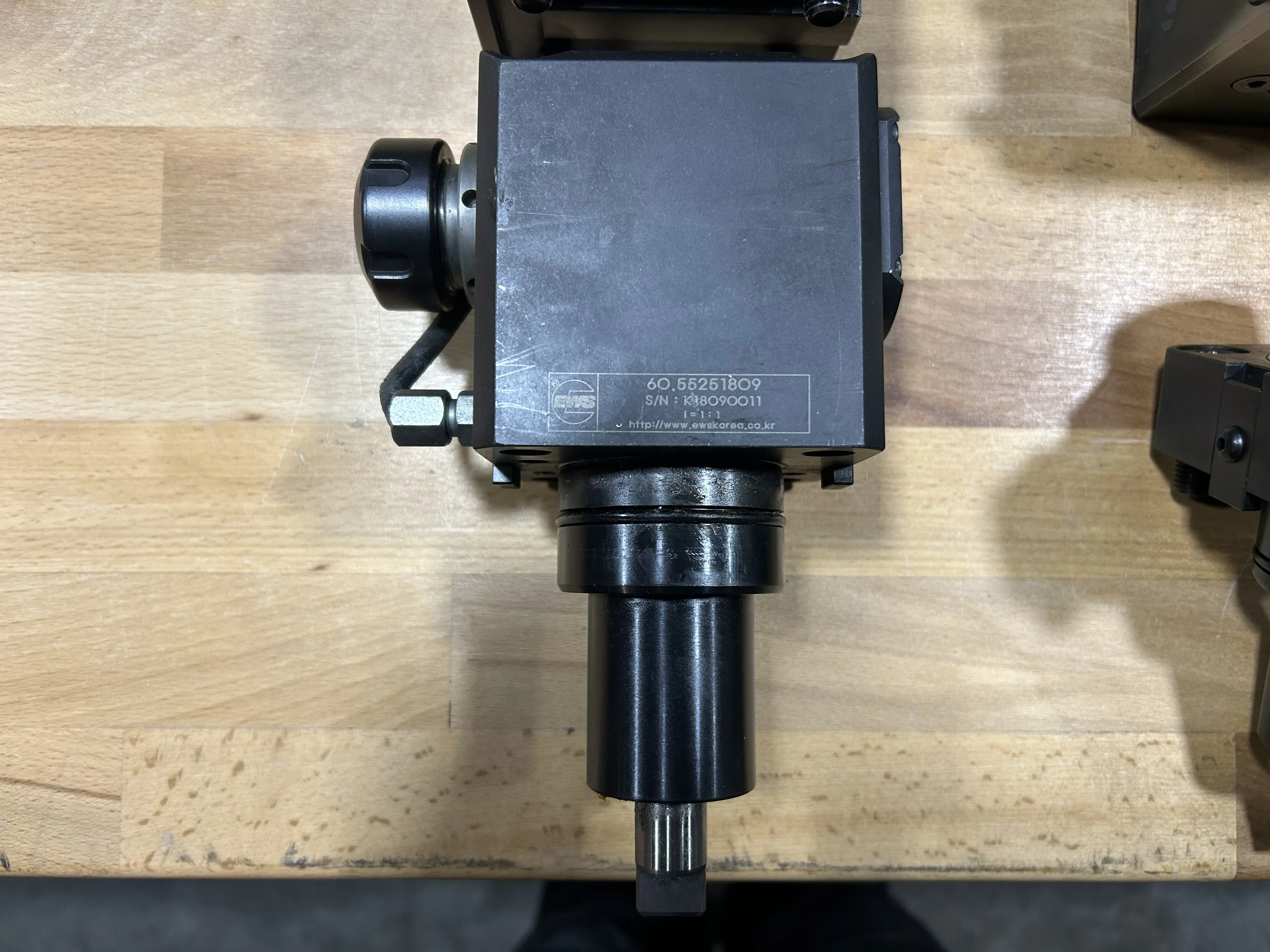

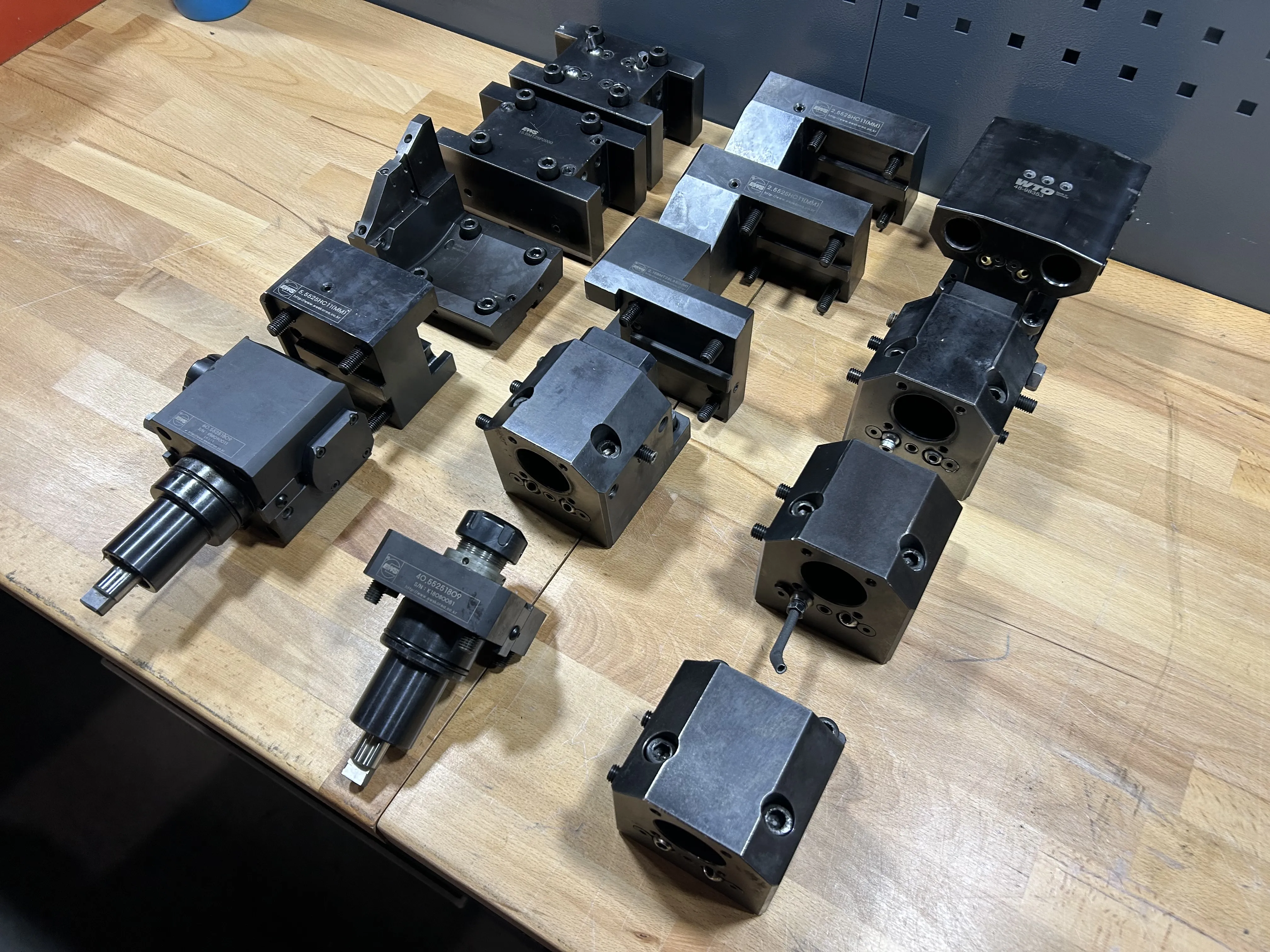

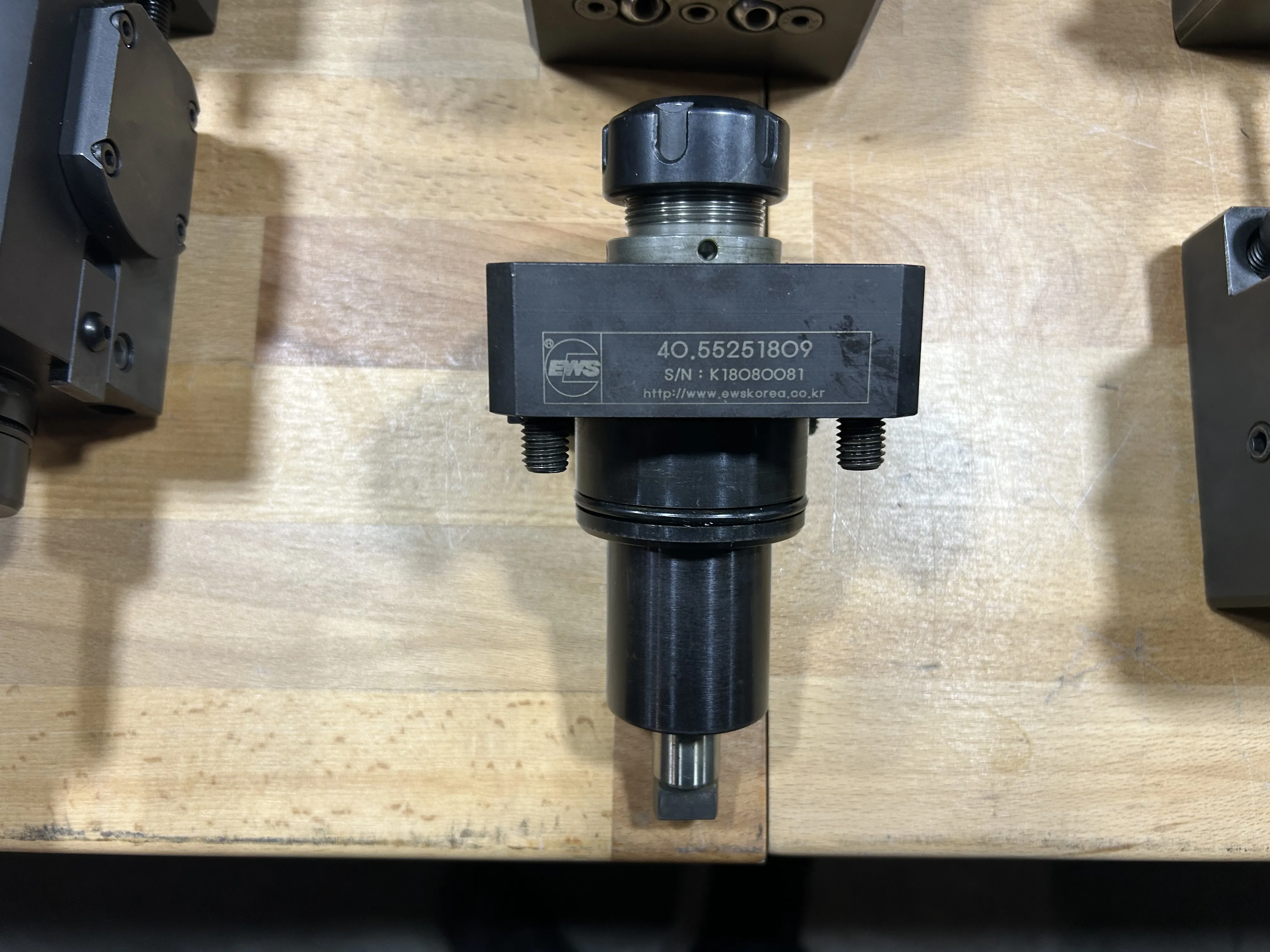

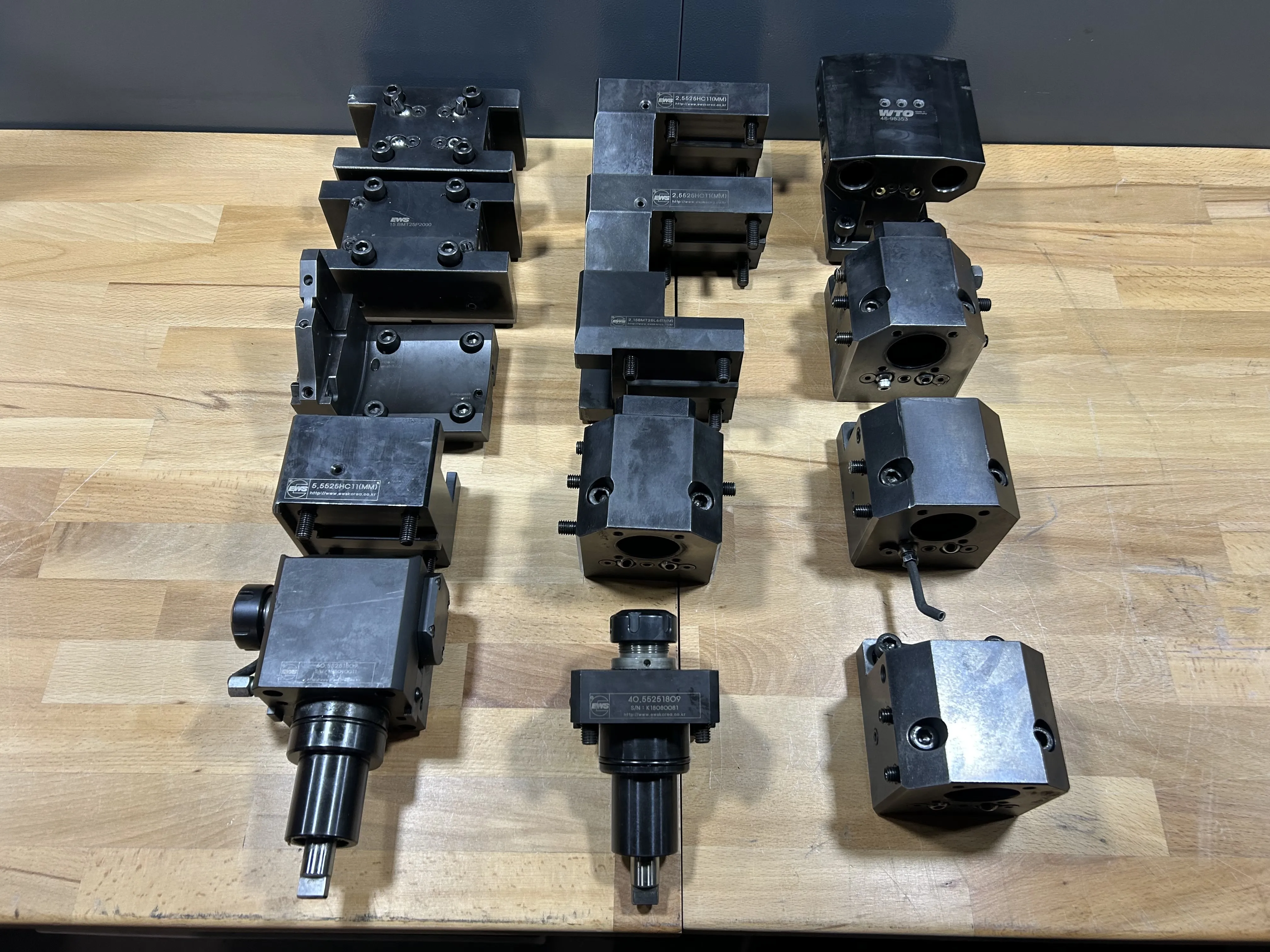

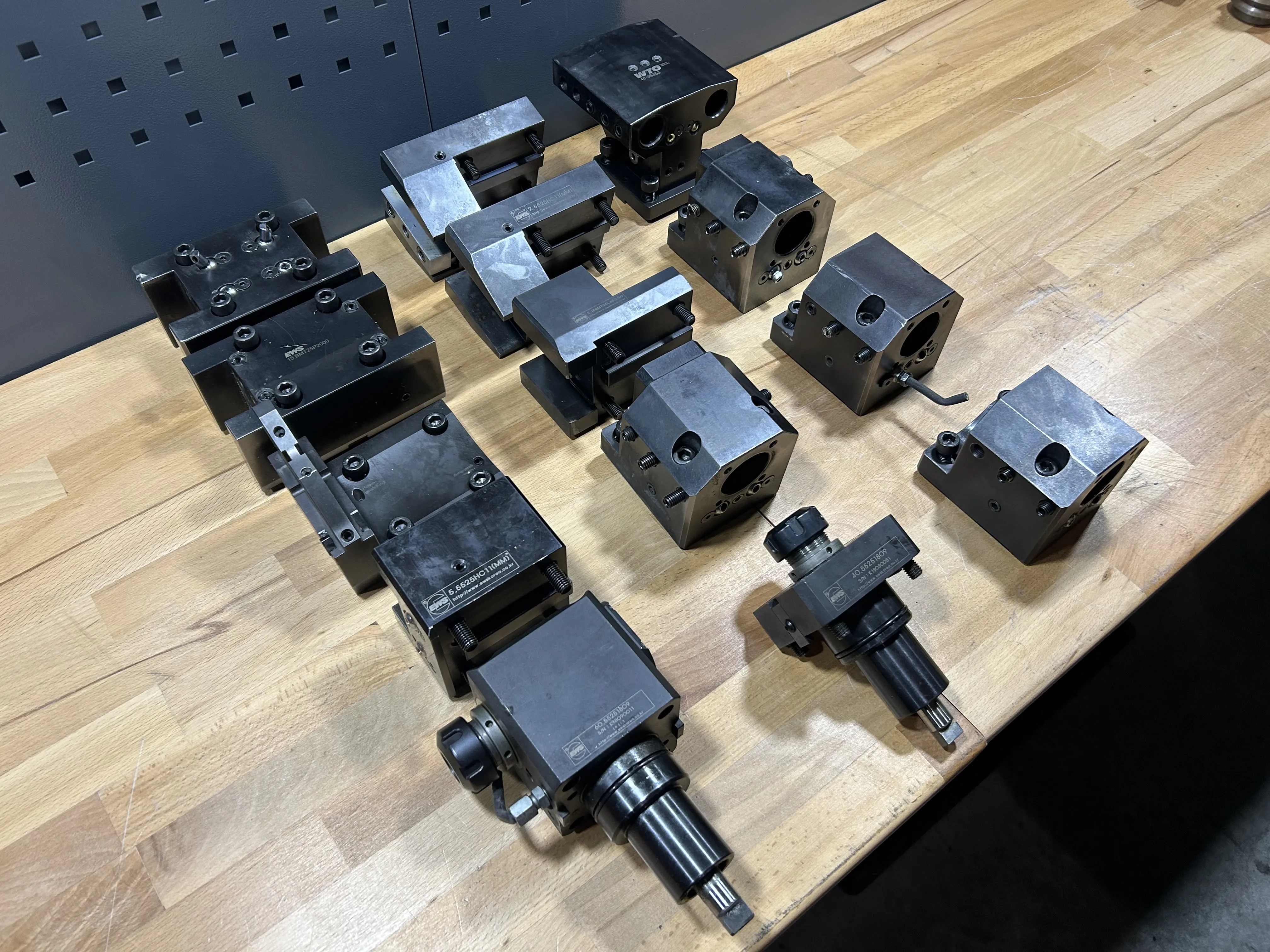

- 2 live tools
- 12 static tools
- Manuals

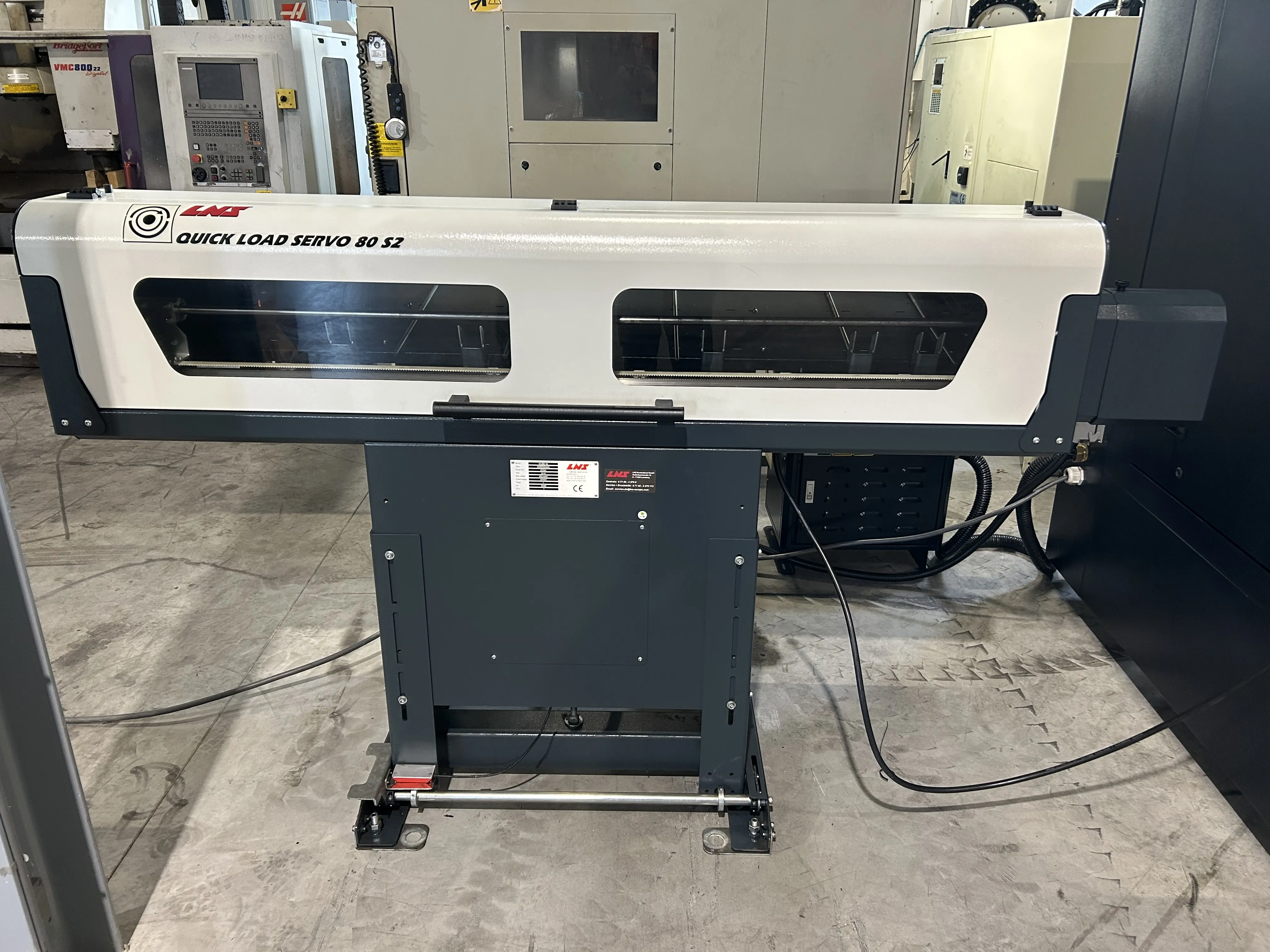

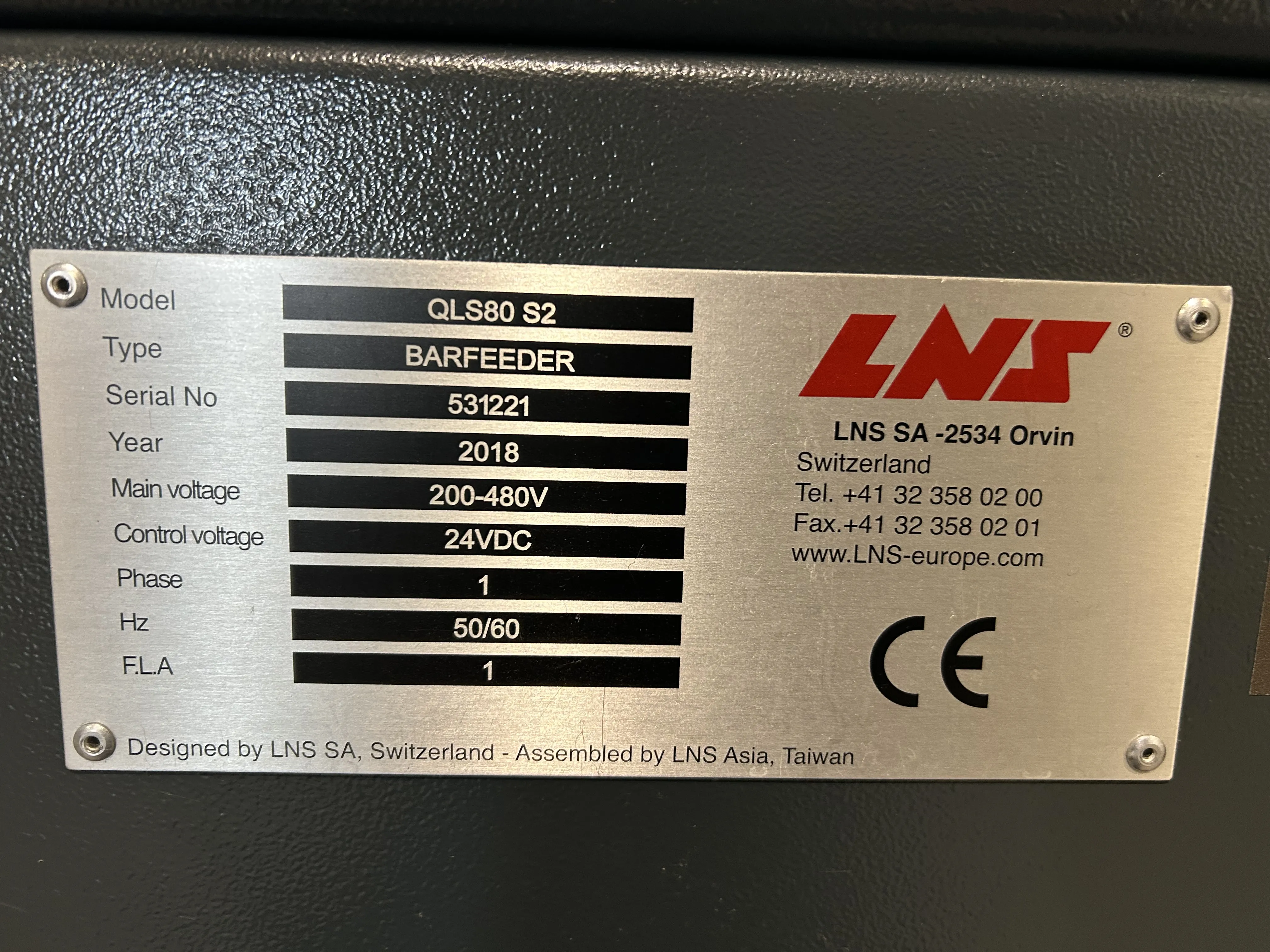

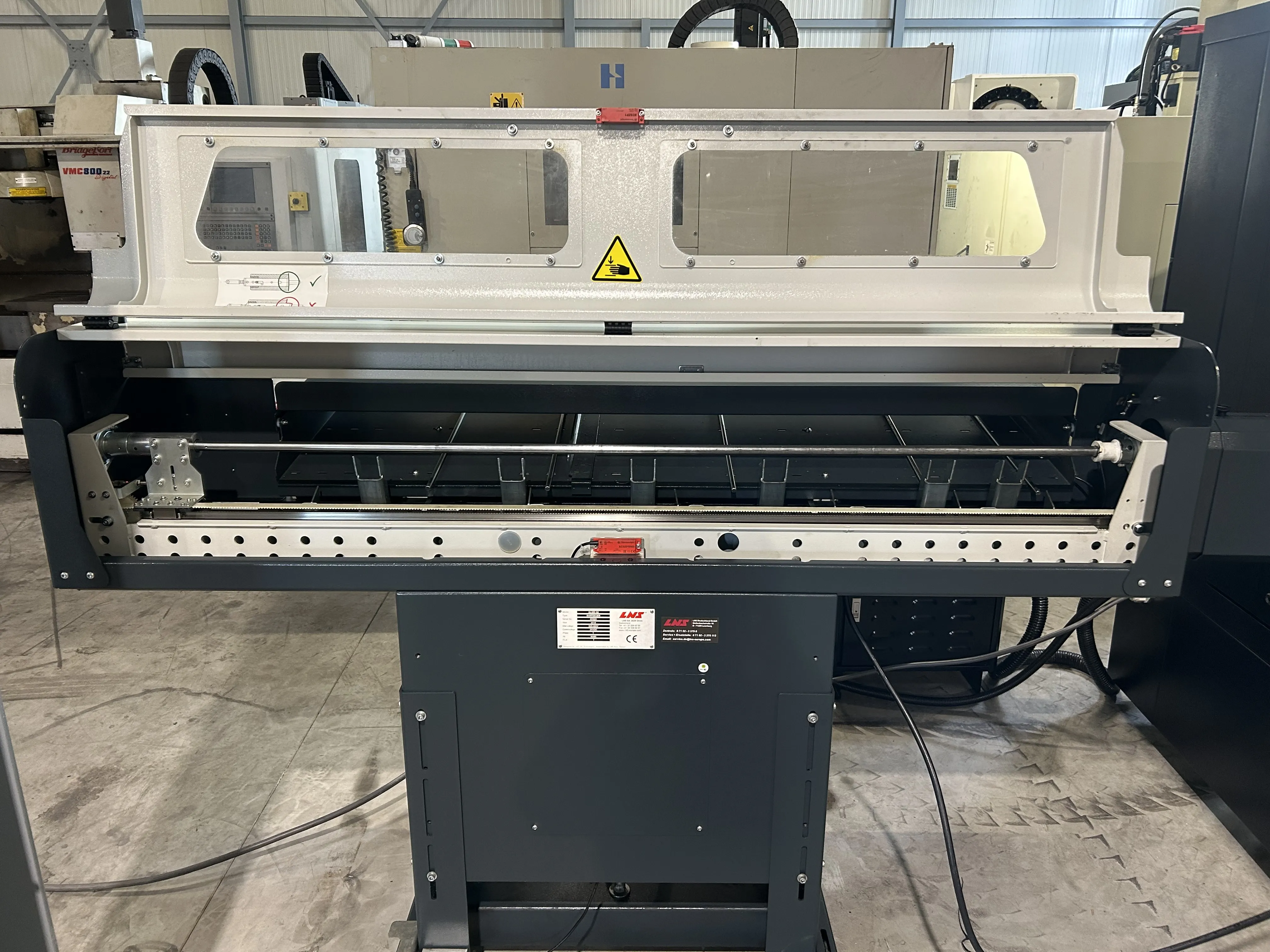

- LNS QLS80 S2 bar feeder

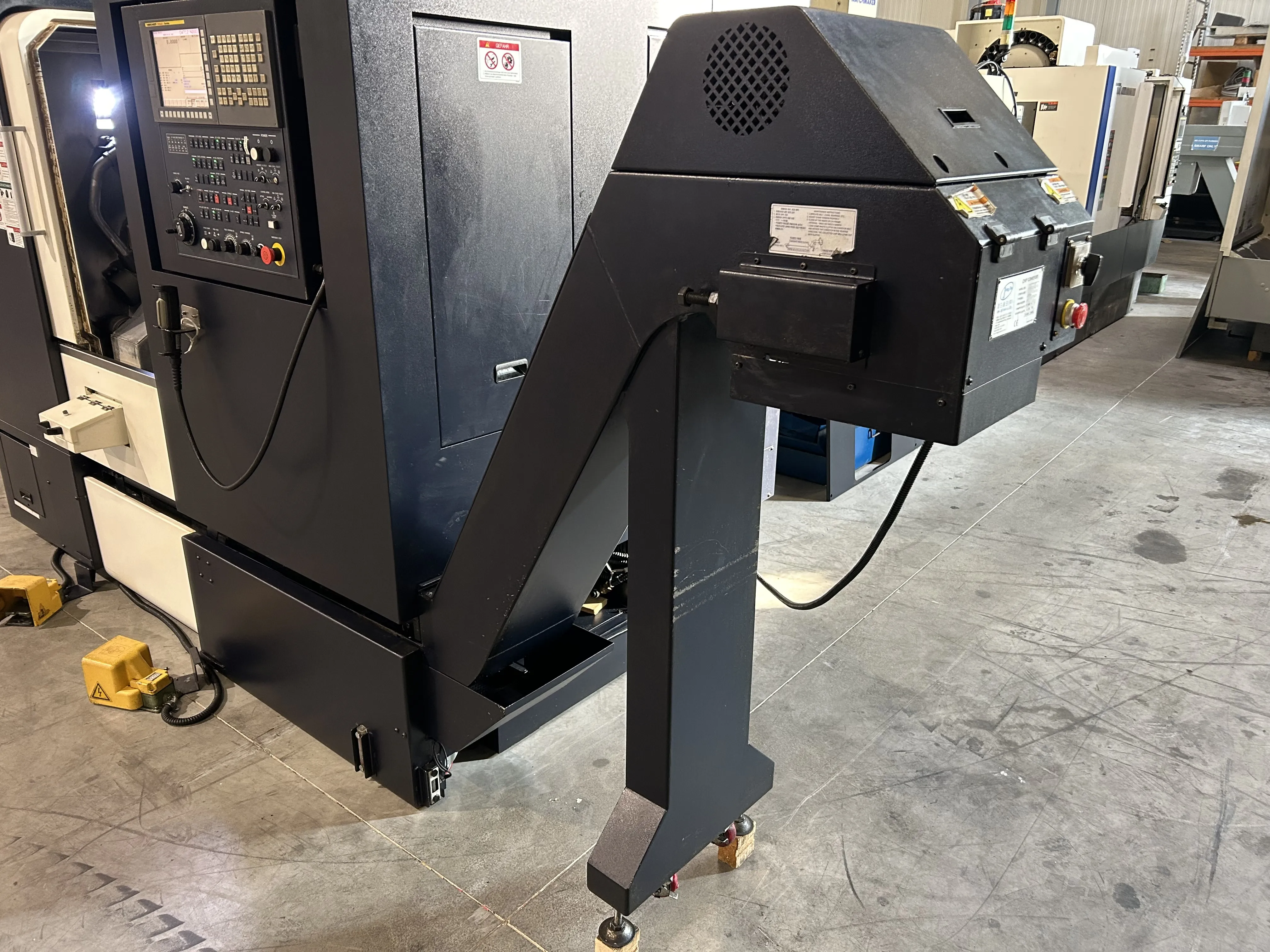

- Chip conveyor

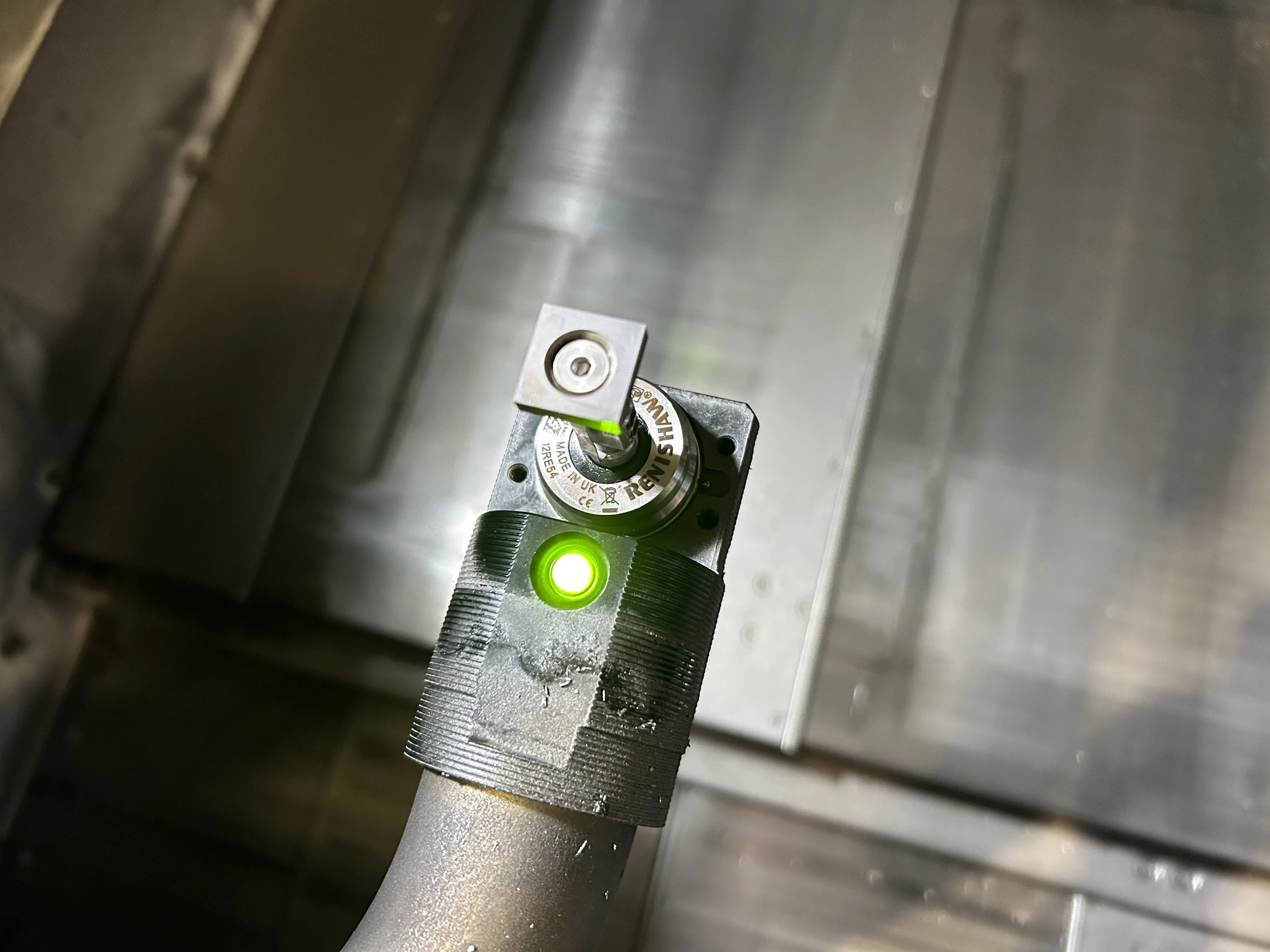

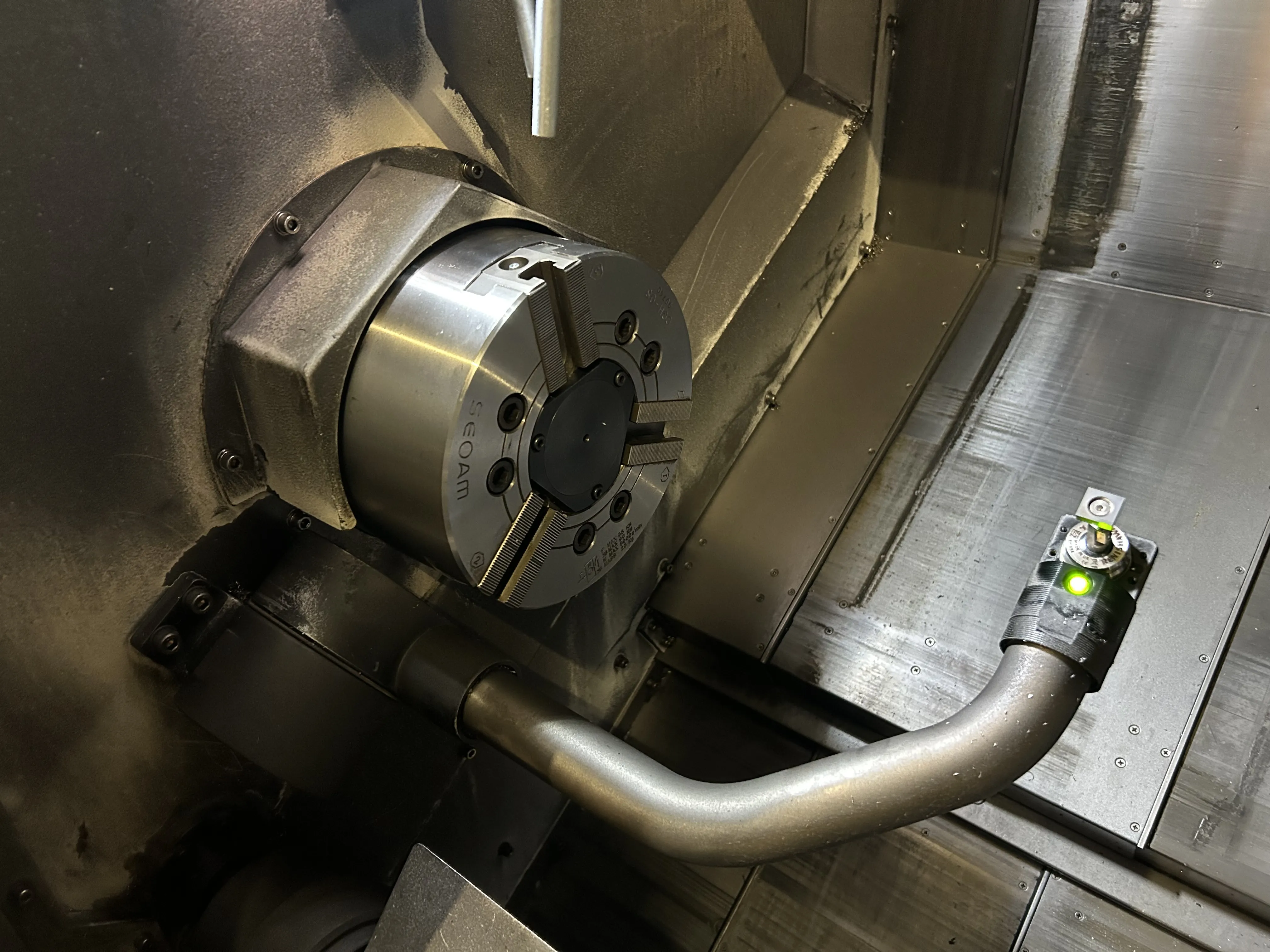

- Tool pre-setter
- Manual Guide i
- Embedded Ethenet Interface
- Tool life management
- Chuckless tapping
- Tool correction memory 128 pairs
