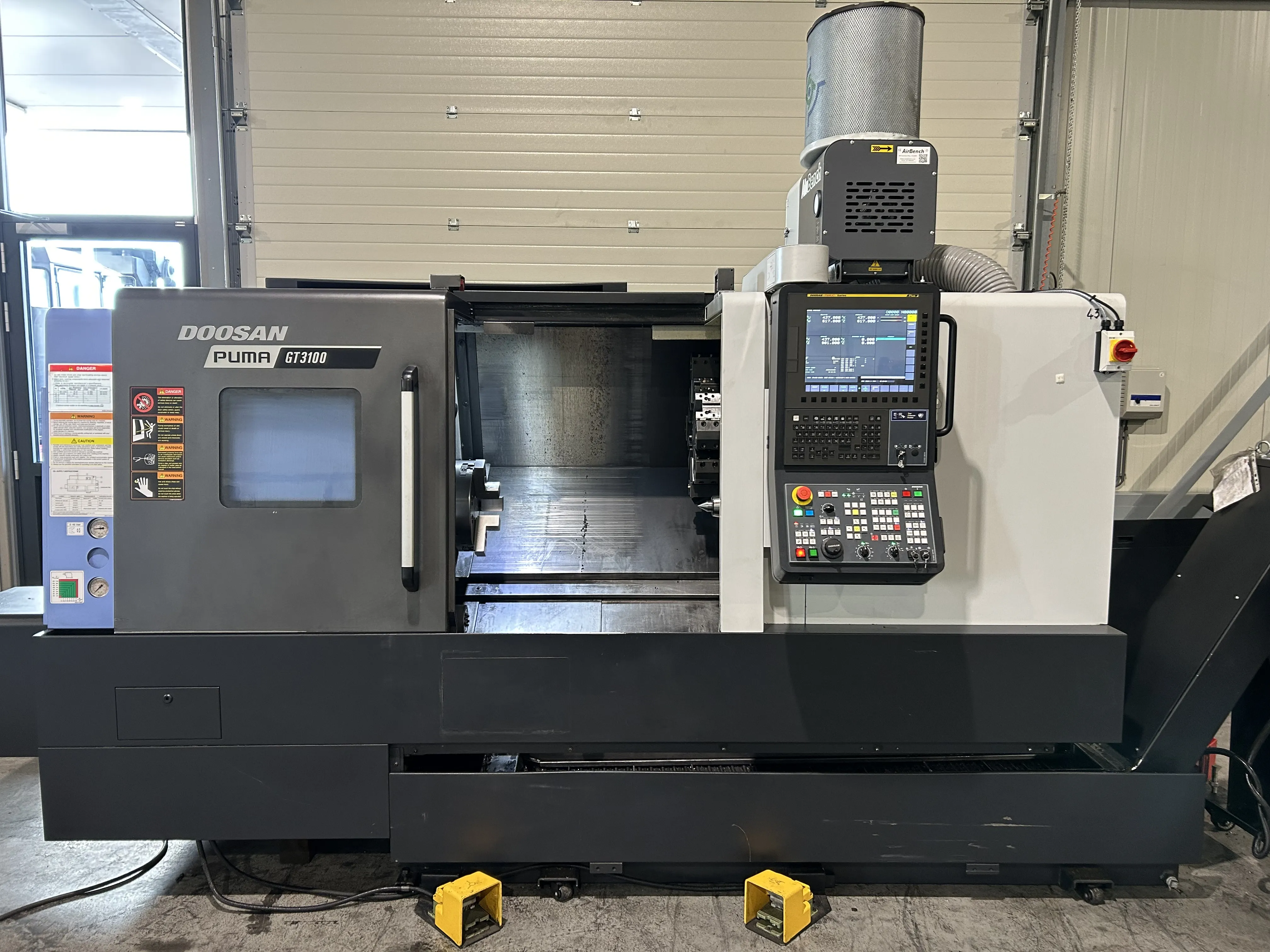

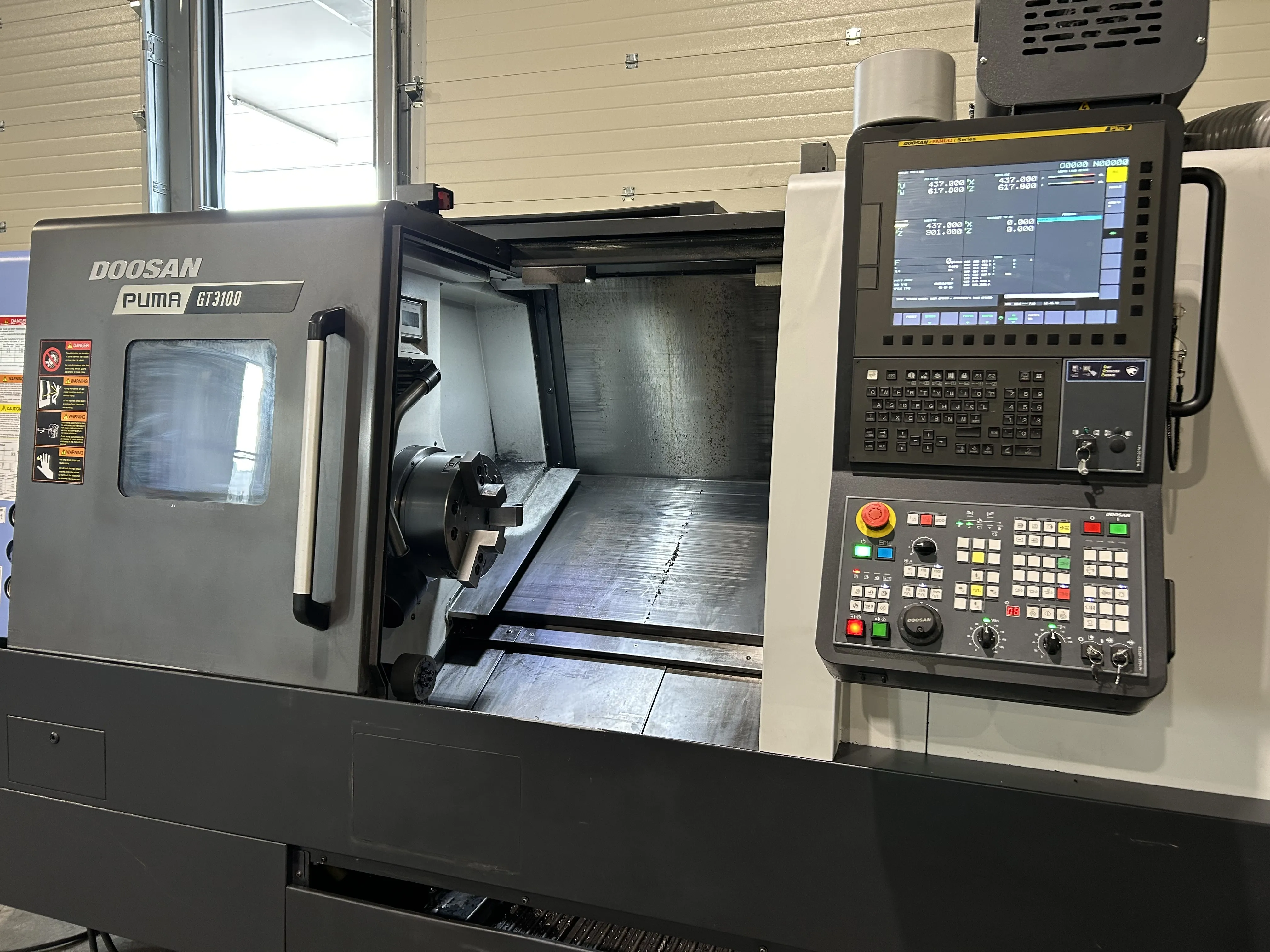

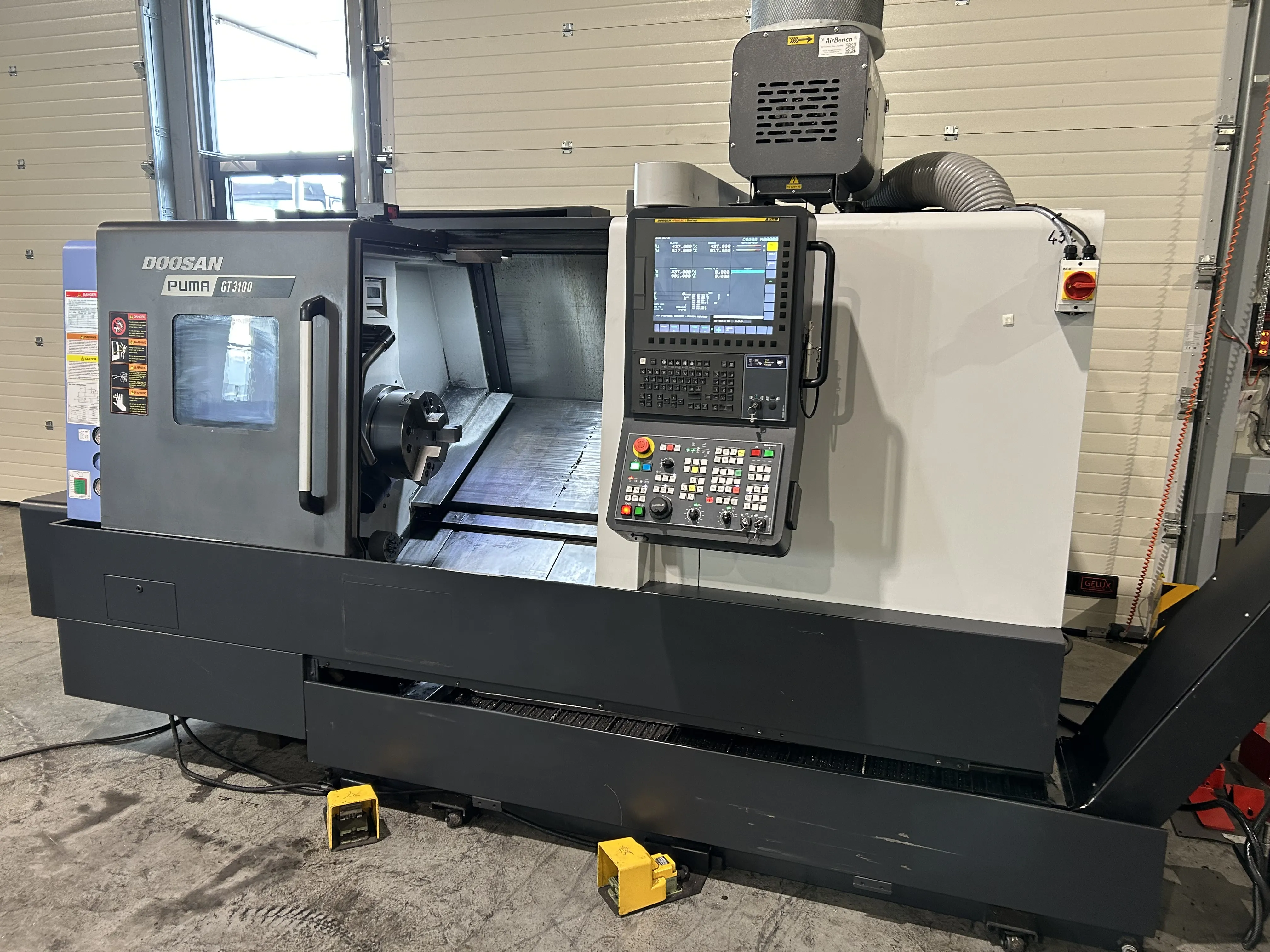

2020 Doosan Puma GT3100
VTL SCHIESS
Puma GT3100
Auf Anfrage
Zustand
Neuwertig
Baujahr
2020
Verfügbarkeit
Immediately
Kategorie
CNC Drehmaschinen 400-449mm Drehdurchm.
Standort
Zutphen, The Netherlands
Händler
Beschreibung
Capacity:
Swing over bed: 720mm
Swing over saddle: 590mm
Max. turning diameter: 481mm
Max. turning length: 755mm
Bar working diameter: 102mm

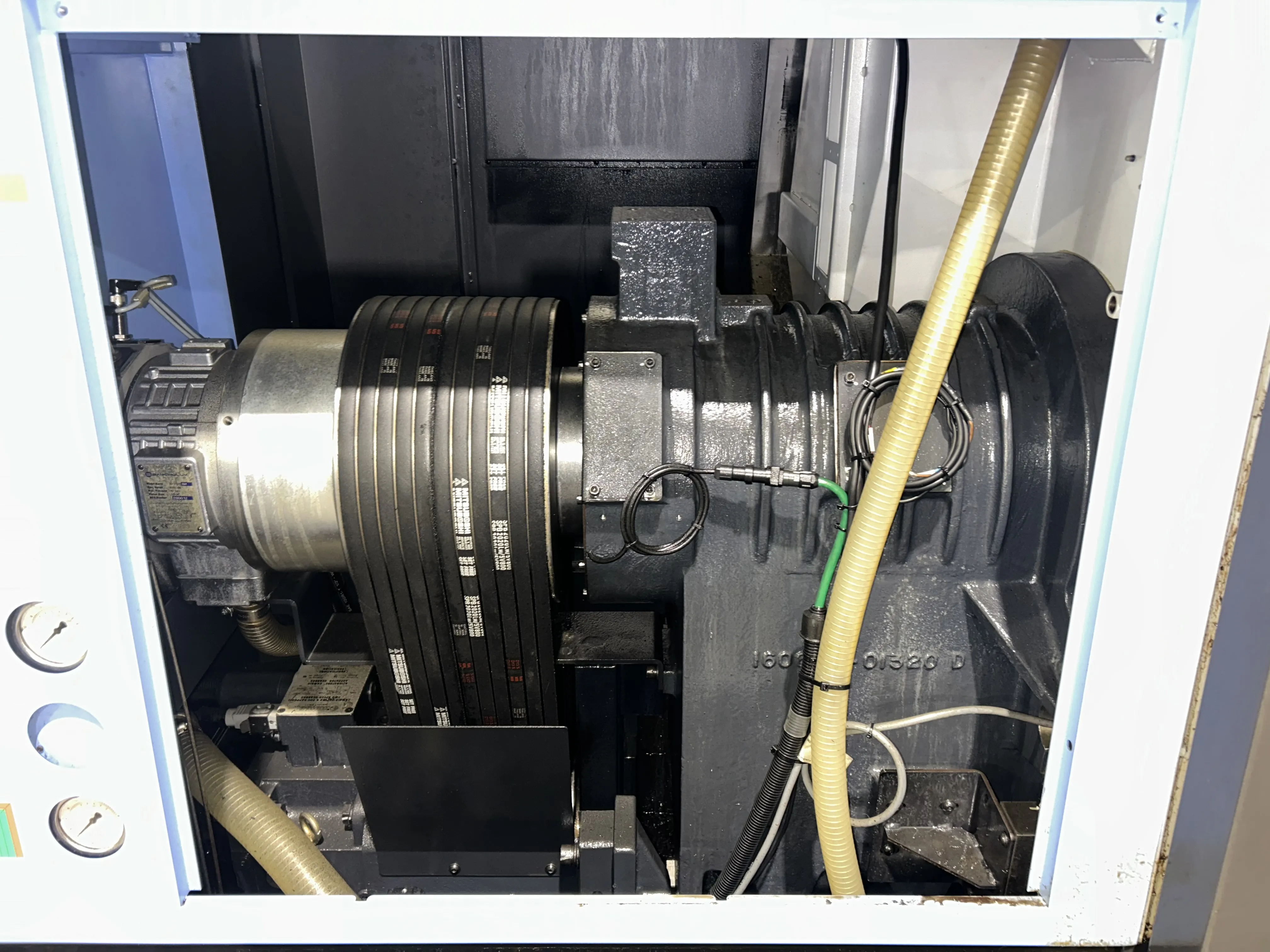

Spindle:

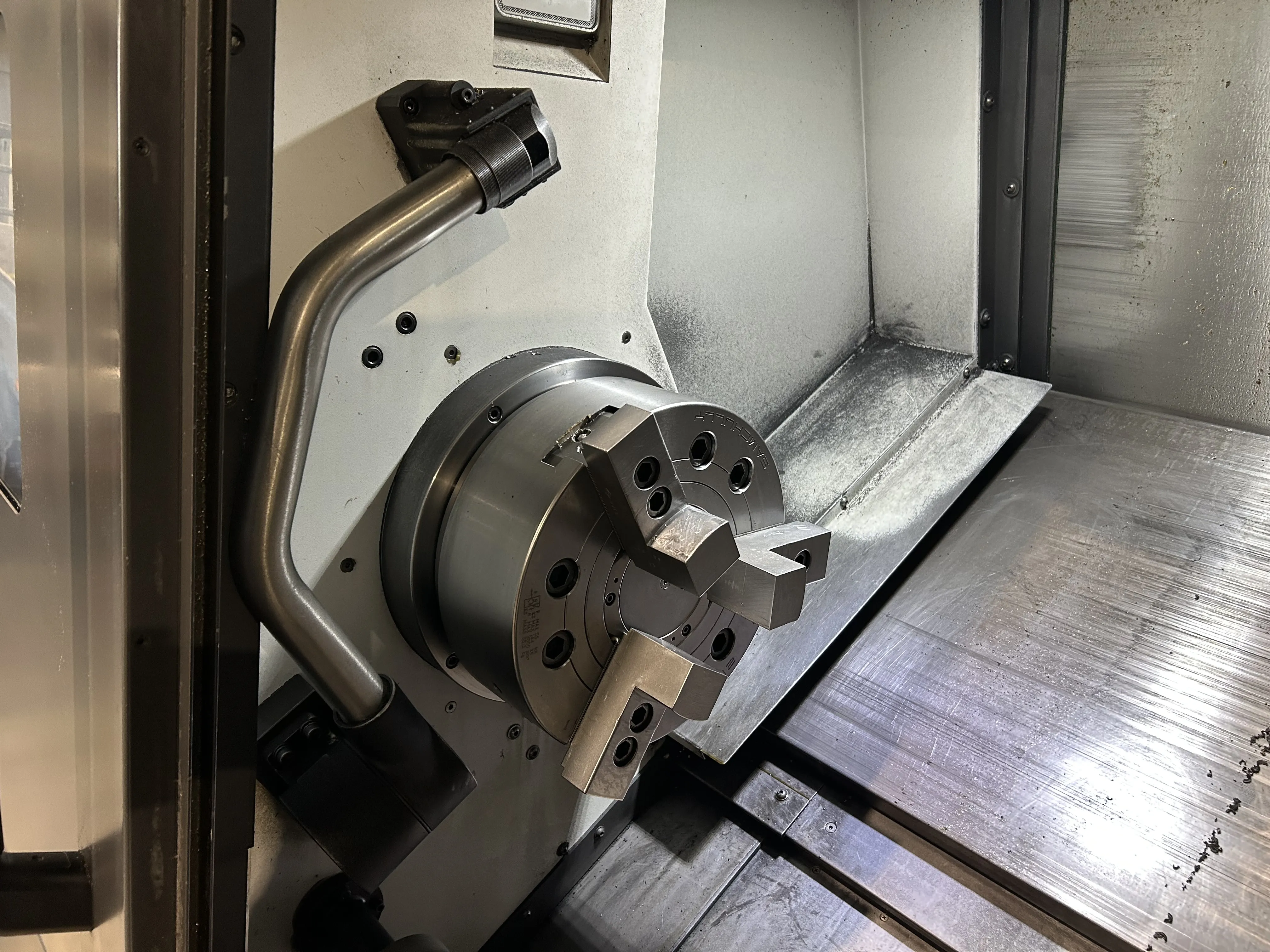

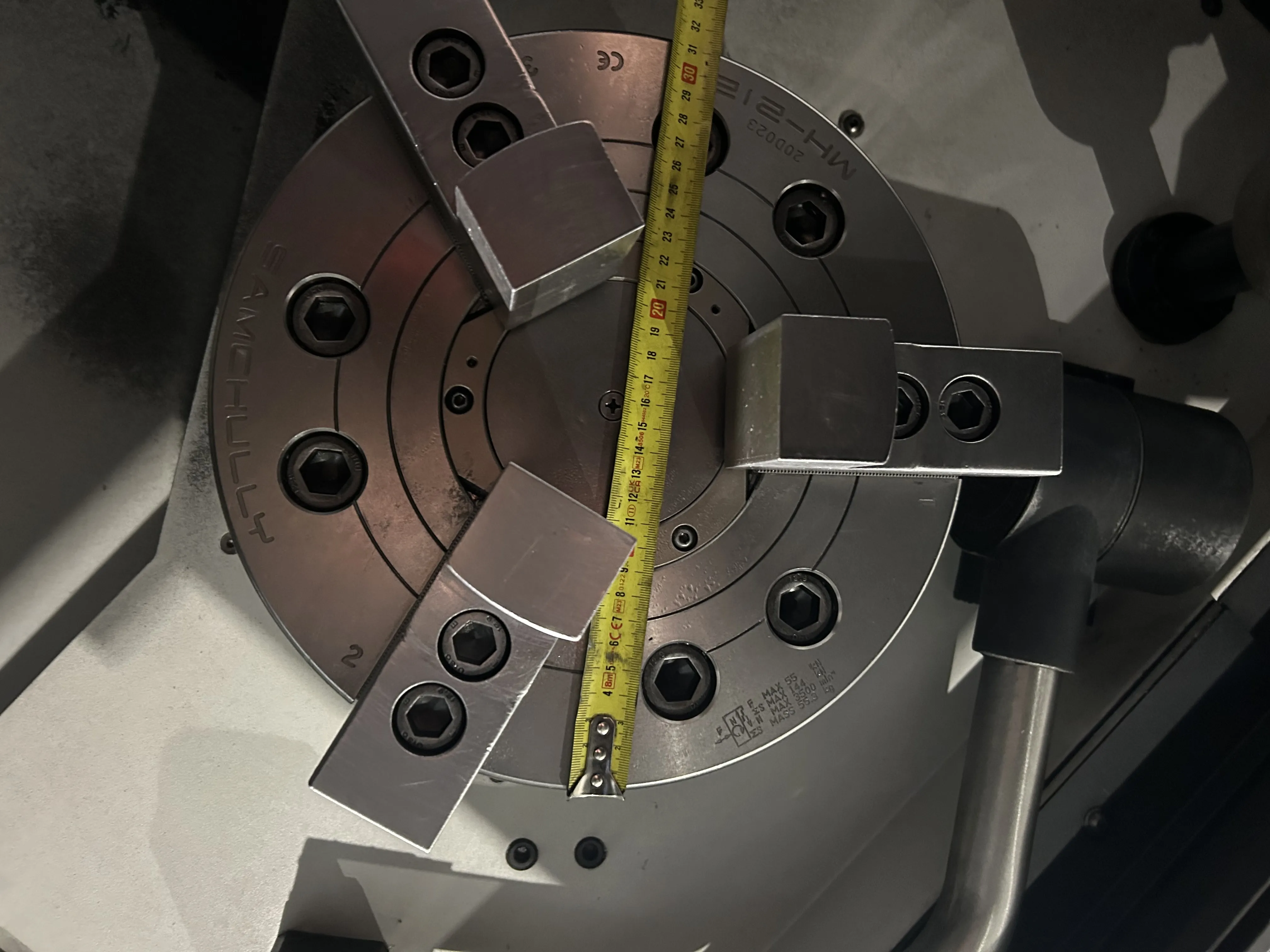

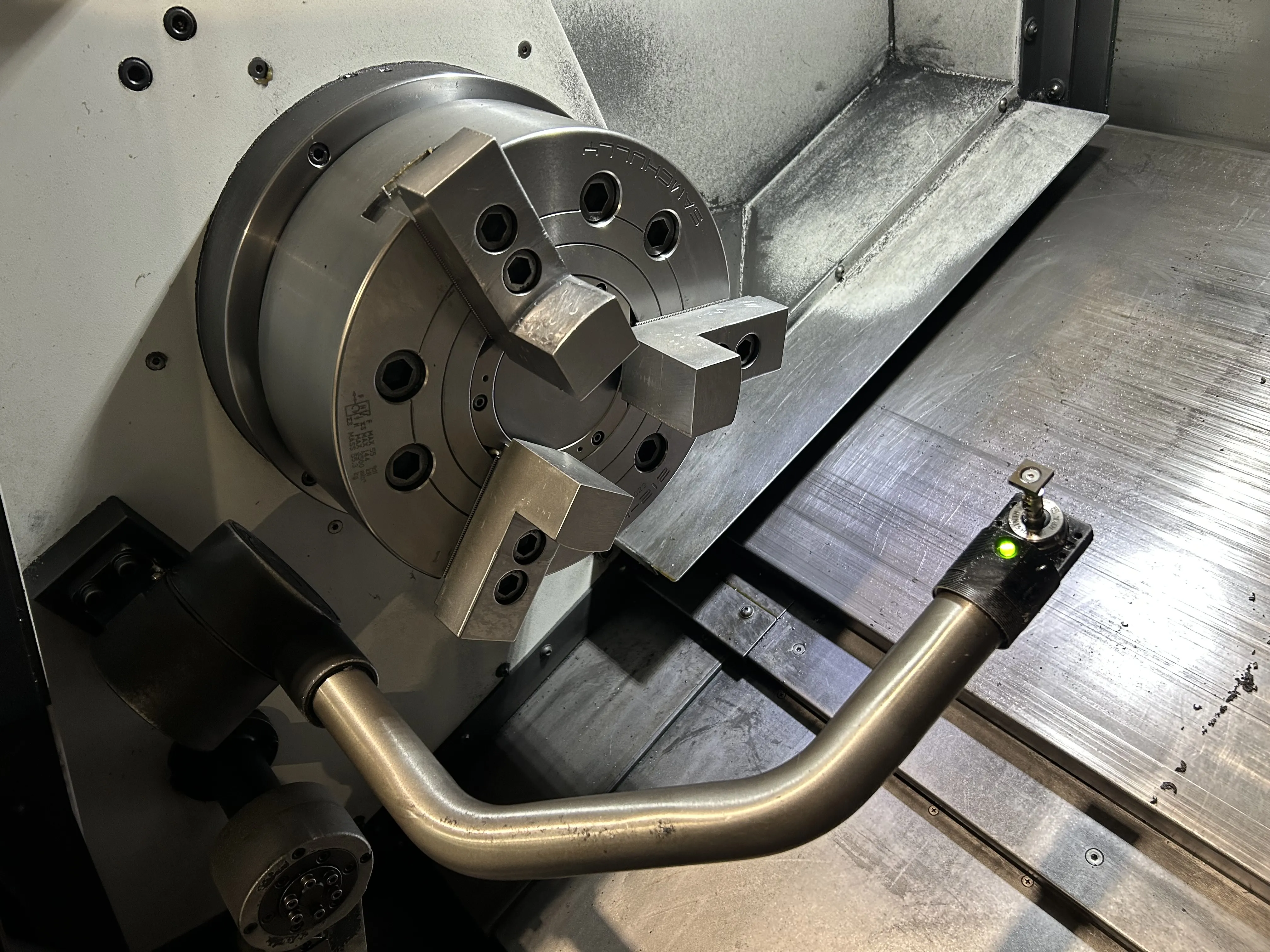

Chuck: Sam Chully MH-212 (305mm)
Spindle speed: 2800rpm (belt type)
Spindle nose: ASA A2#11
Spindle bearing diameter: 160mm
Spindle through hole diameter: 115mm

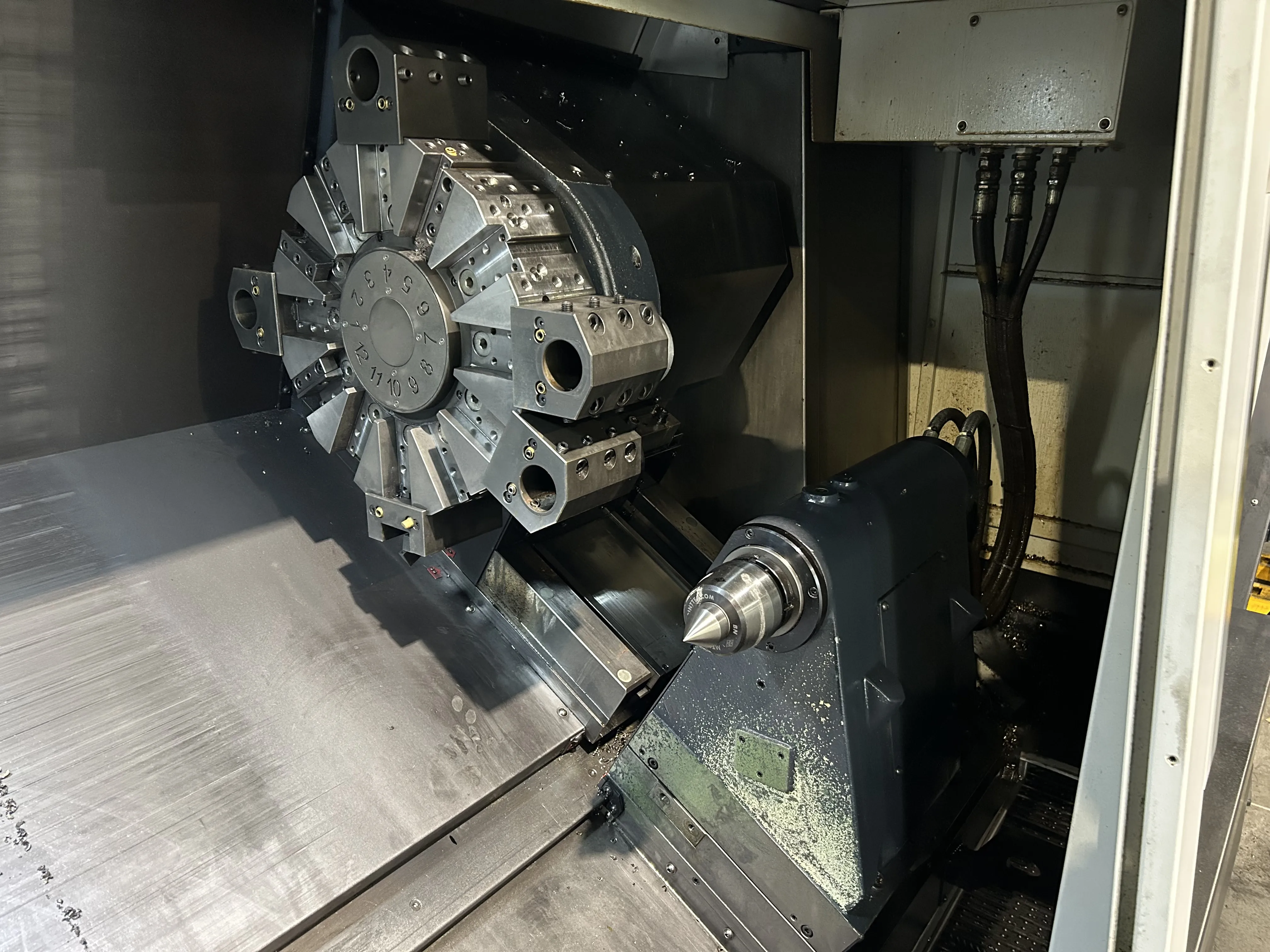

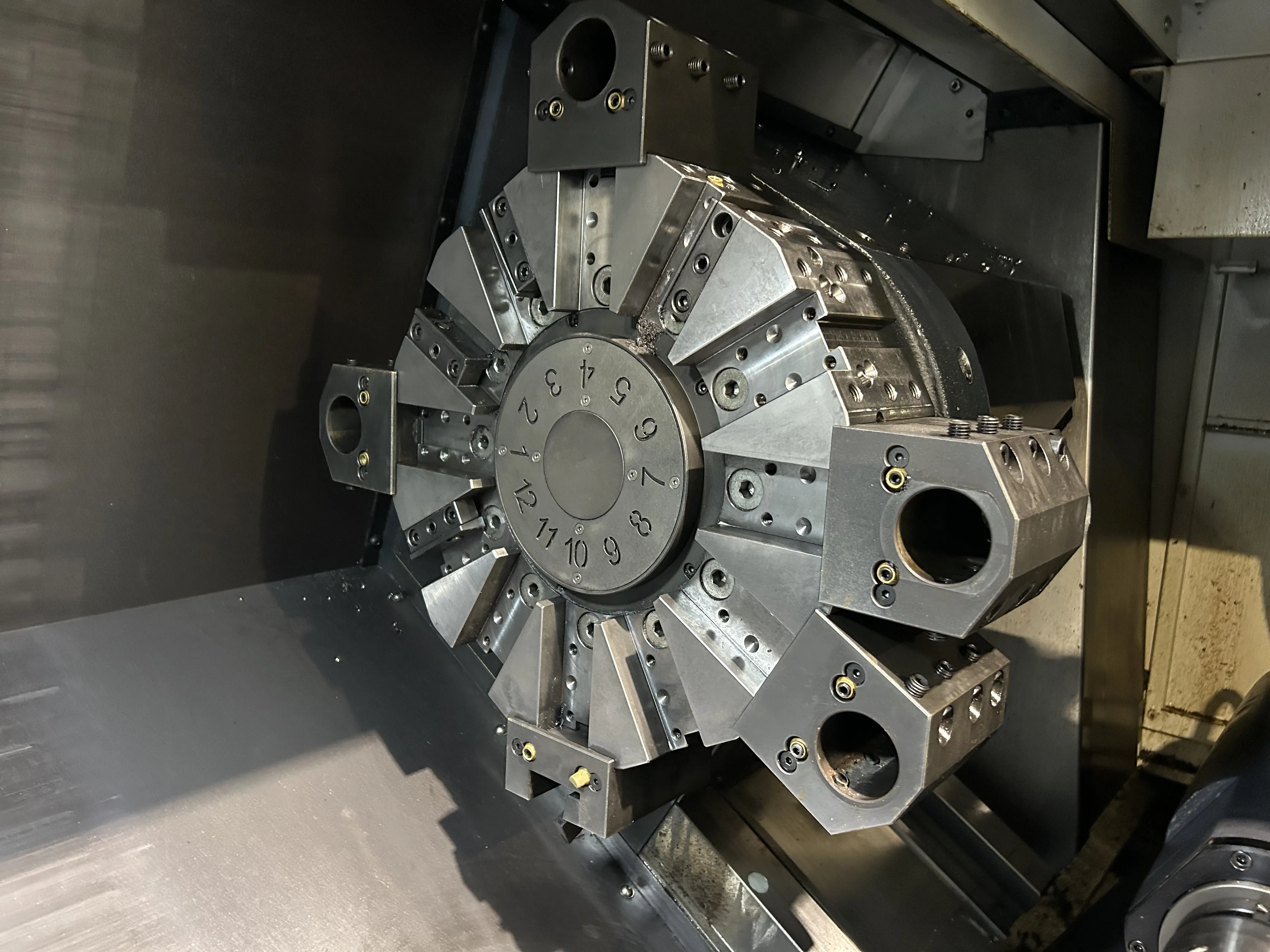

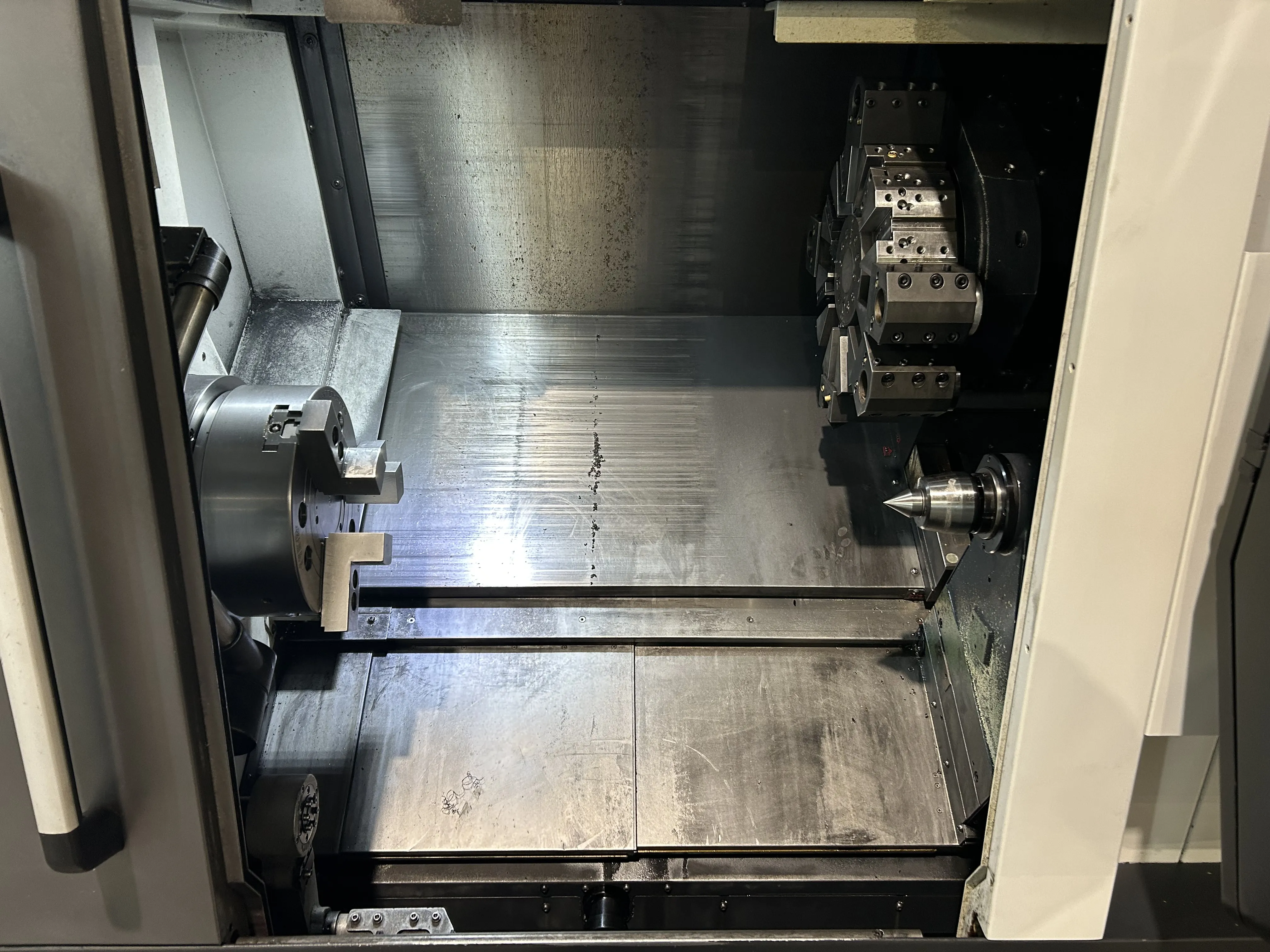

Turret:
No. of tool stations: 10
OD tool size: 25mm
Boring bar diameter: 50mm
Indexing time: 0.15 sec
Carriage:
X-axis: 260mm
Z-axis: 830mm
Rapid traverse X-axis: 25m/min
Rapid traverse Z-axis: 30m/min

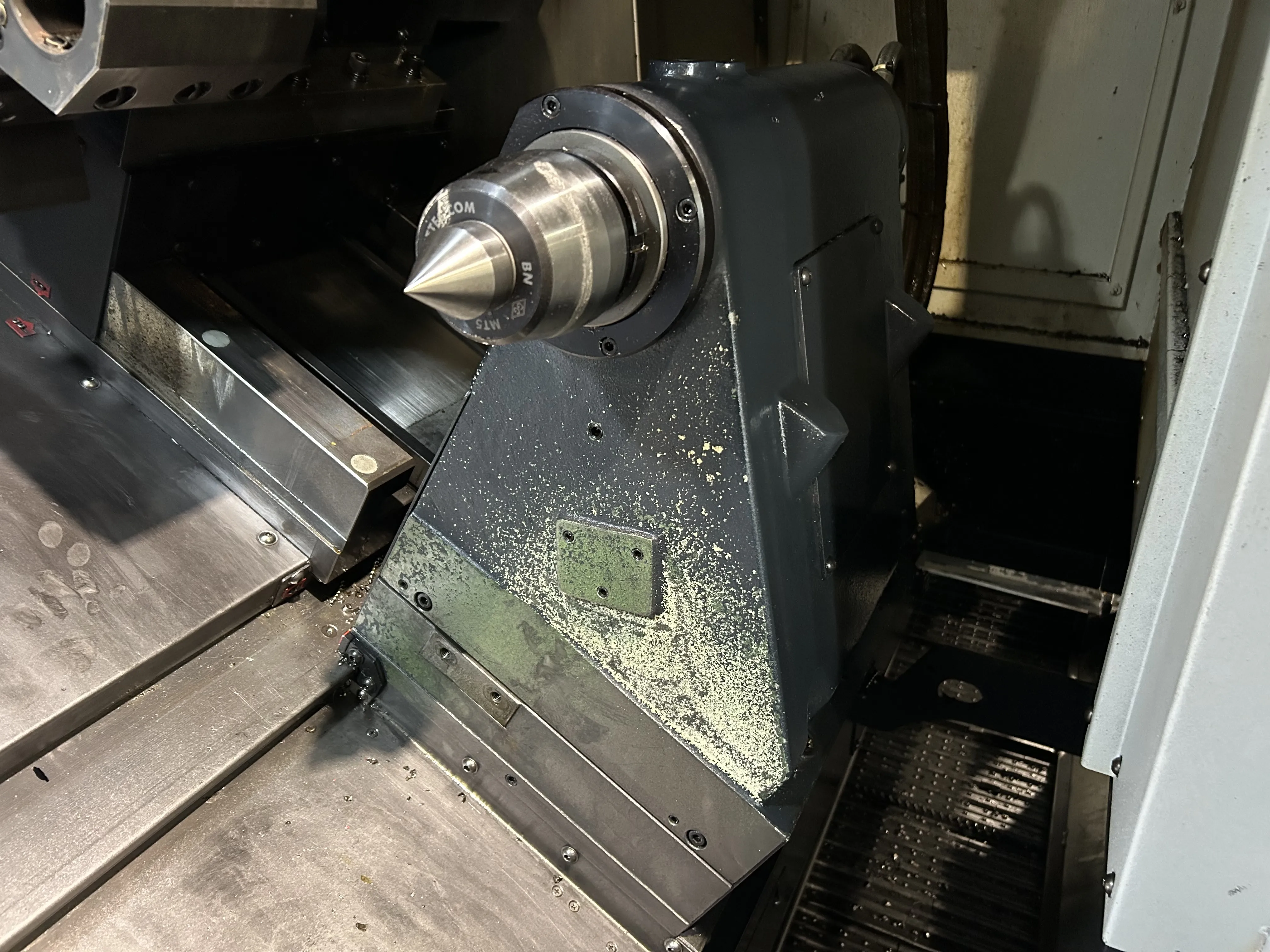

Tailstock:
Quill diameter: 100mm
Quill bore taper: MT#5
Quill travel: 100mm
Machine size:
Machine length: 5000mm
Machine width: 2200mm
Machine height: 2400mm
Machine mass: 5500kg
