Description

Turning diameter 410 mm
Turning length 800 mm

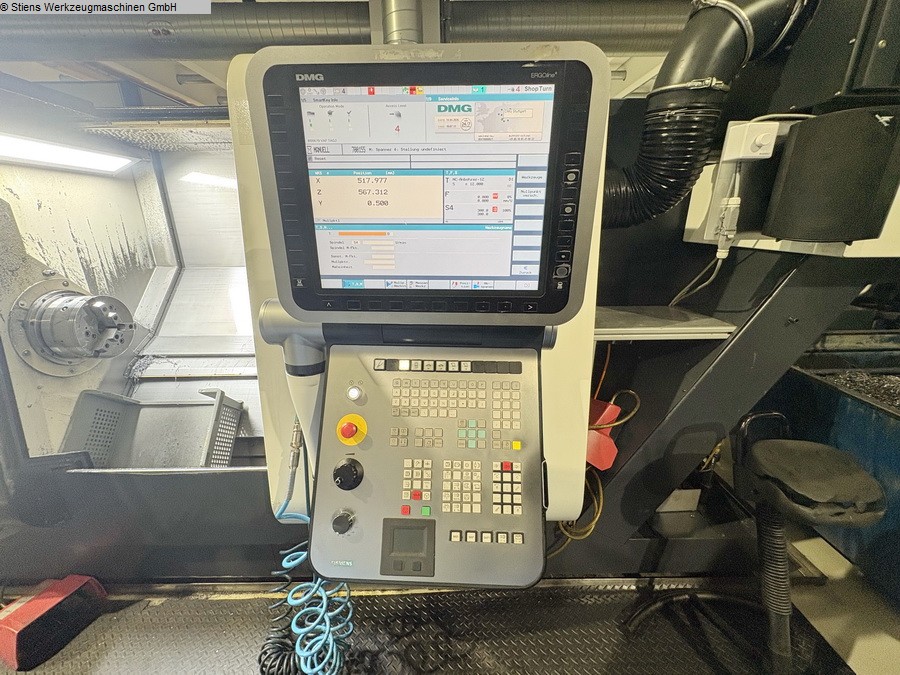

Control Sinumerik 840 D ERGOLine Siemens
Circulation diameter over bed 700 mm
max. Turning diameter 410 mm
Travel - x 300 mm
Travel - y +/- 60 mm
Travel - z 800 mm
Speed range - spindle max. 4,000 rpm

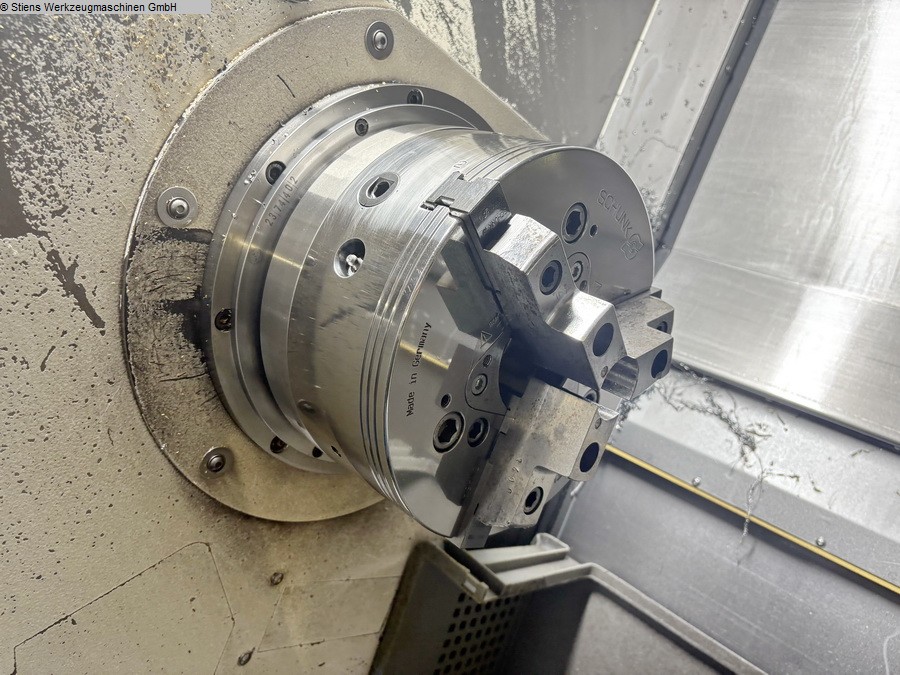

Chuck diameter 260 mm
Spindle bearing diameter 130 mm
Drive power 40% ED = 34 kW
Drive power 100% ED = 25 kW
Max. Torque 280 Nm
C-axis 0.01 °

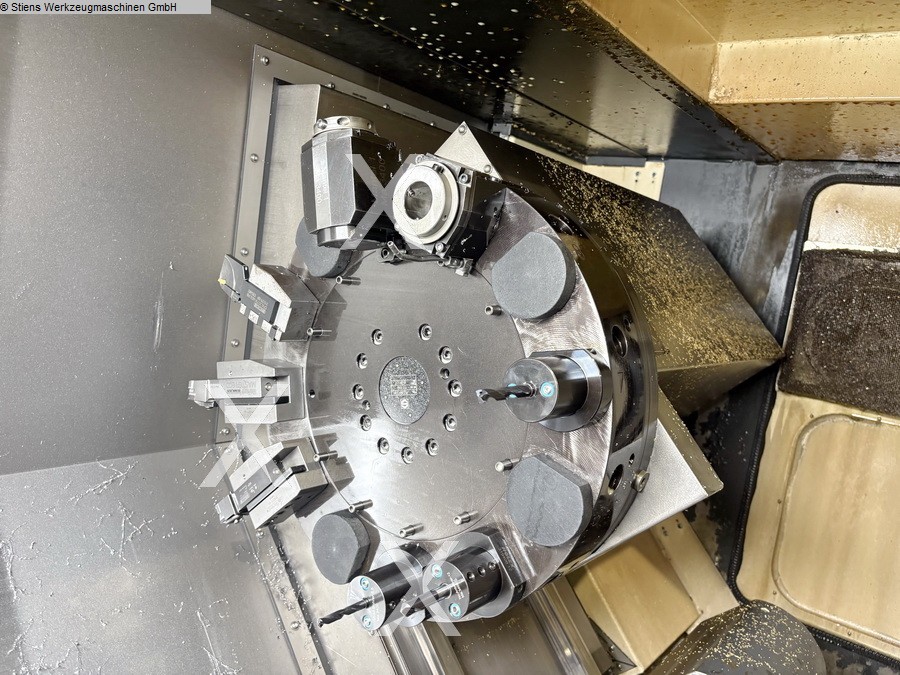

Turret head (x-fold) 12
Tool holder DIN 69880 / 40mm
Driven stations 6 pos
Speed ​​range of the driven. Tools ~ 4,000 min -1
Drive power - driven. Tools 40% ED = 11.3 kW
Drive power - driven. Tools 100% ED = 5.6 kW

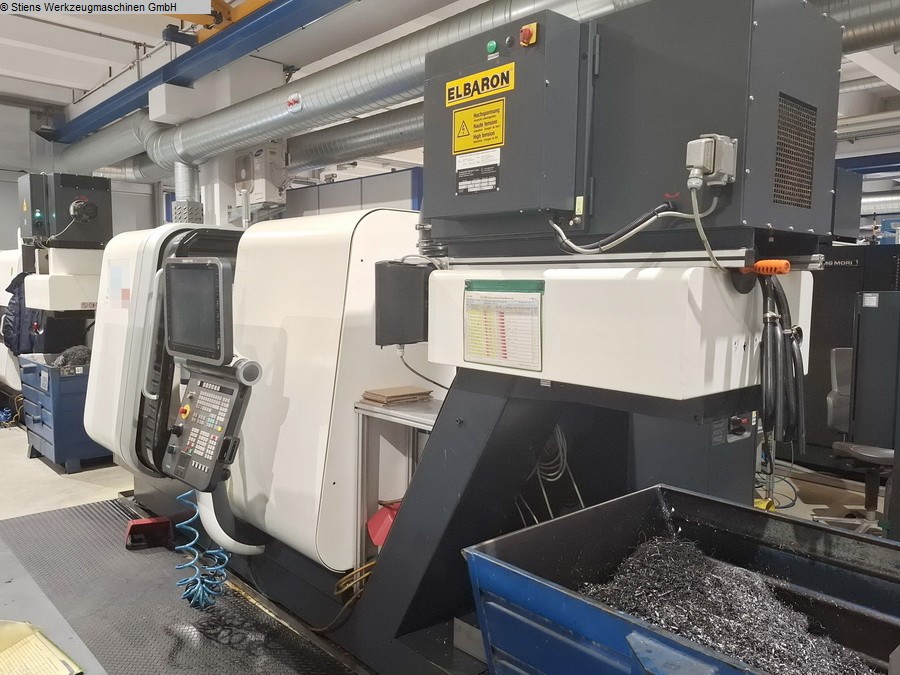

Rapid traverse ( Turning and milling center GILDEMEISTER - CTX beta 800 V4 - Spindle hours: approx. 14,779h - Package for unstable networks - Control panel extension - Hollow clamping device 95mm - Hollow spindle stop 95mm - Differential pressure tension for main spindle - including workbench - incl. tool cabinet - incl. tool cabinet for VDI recordings - incl. 2x powered tools - incl. 6x tool holders
