Zyklendrehmaschine
KNUTH
Numturn 420
Auf Anfrage
Condition
Sehr gut
Year of construction
2015
Availability
Sofort
Category
CNC Drehmaschinen 400-449mm Drehdurchm.
Location
Neresheim, Deutschland
Retailer
Description
Technical data - Knuth Numturn 420 Plus CNC cycle lathe:
Workspace
Workpiece length
Turning diameter over bed
Turning diameter over support
Travel path X-axis
Z-axis travel path
Turning length (max.)
750mm
420mm
230mm
220mm
750mm
500mm
Main spindle
Spindle speed
Spindle mount
Spindle bore
hydr. Jaw chuck Ø
Spindle passage
3,000 rpm
A2-6
52mm
200mm
35mm
Feed rate
Rapid traverse X-axis
Rapid traverse Z axis
4,000 mm/min
8,000 mm/min
Tool carrier
Number of tool slots
8 pieces

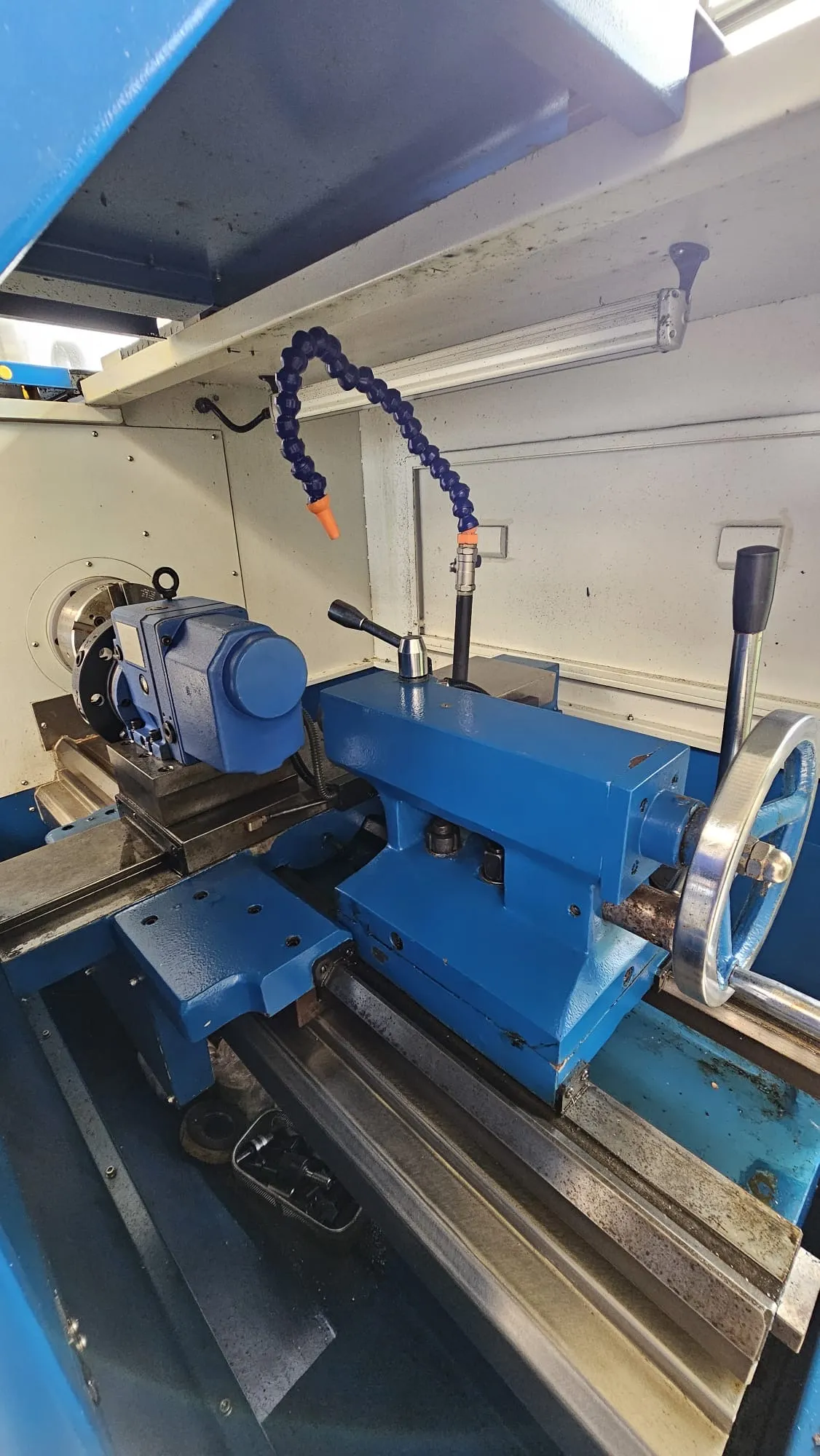

Tailstock
Tailstock cone
Tailstock quill diameter
Tailstock quill stroke
MK 4
52mm
100mm
Accuracies
Positioning accuracy X axis
Z axis positioning accuracy
Repeatability X axis
Repeatability Z axis
0.015mm
0.02mm
0.015mm
0.02mm
Drive performance
Motor power main drive
Motor power X-axis
Motor power Z-axis
Engine power coolant pump
7.5 kW
1.5 kW
1.5 kW
0.125 kW
Dimensions and weights
Dimensions
Weight
2,300x1,450x1,850 mm
2,000 kg
